Steelwrist tiltrotators let a bucket or attachment rotate 360 degrees and tilt side to side, so a machine can work a face or grade without repositioning. Exc@v8 is the UK dealer, supplying the full tiltrotator range with local fitting and support.
Machine weight
Steelwrist XTR2 Tiltrotator
- ±40° tilt angle, weighing from 80 kg
- 273 mm building height
- Direct Fit or S30 top for the excavator connection
- S30 coupler, available with hydraulic locking
- Complete range of S30 work tools
0–2 tonnes
Steelwrist X04 Tiltrotator
- ±45° tilt angle, weighing from 120 kg
- Building height from 324 mm
- Machine interfaces: S40 and Direct Fit (DF)
- Tool coupler safety: Front Pin Hook (FPH)
- QuantumConnect control system or four hose proportional control
2–4 tonnes
Steelwrist X07 Tiltrotator
- ±45° tilt angle, weighing from 195 kg
- Building height from 370 mm
- Machine interfaces: S40, SQ40, S45, S50 and Direct Fit (DF)
- Tool coupler safety: Front Pin Hook (FPH) or Front Pin Lock (FPL)
- SQ40 automatic oil connection available
5–7 tonnes
Steelwrist XTR10 Tiltrotator
- ±45° tilt angle, weighing from 315 kg
- Building height from 497 mm
- Machine interfaces: S45, SQ45, S50, SQ50 and Direct Fit (DF)
- Tool coupler safety: LockSense
- OptiLube onboard lubrication and QuantumConnect control system
6–10 tonnes
Steelwrist X12 Tiltrotator
- ±45° tilt angle, weighing from 330 kg
- Building height from 446 mm
- Machine interfaces: S45, SQ45, S50, SQ50 and Direct Fit (DF)
- Tool coupler safety: Front Pin Lock (FPL)
- SQ automatic oil connection available
7–12 tonnes

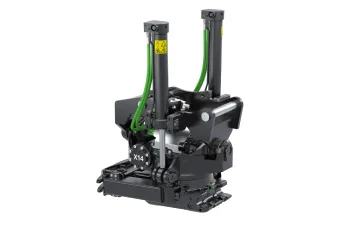

Steelwrist X14 Tiltrotator
- ±45° tilt angle, weighing from 390 kg
- Building height from 455 mm
- Machine interfaces: S45, S50, SQ50 and Direct Fit (DF)
- Tool coupler safety: Front Pin Lock (FPL)
- SQ automatic oil connection available
10–14 tonnes
Steelwrist XTR15 Tiltrotator
- ±45° tilt angle, weighing from 460 kg
- Building height from 548 mm
- Machine interfaces: S60 and SQ60
- Tool coupler safety: LockSense
- OptiLube onboard lubrication and QuantumConnect control system
12–15 tonnes

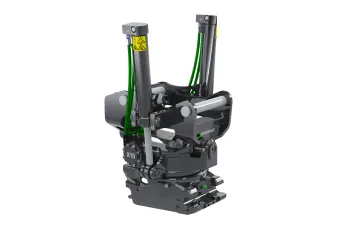

Steelwrist X18 Tiltrotator
- ±45° tilt angle, weighing from 450 kg
- Building height from 560 mm
- Machine interfaces: S60, SQ60-4, SQ60-5 and Direct Fit (DF)
- Tool coupler safety: Front Pin Lock (FPL)
- SQ automatic oil connection available
12–16 tonnes
Steelwrist XTR20 Tiltrotator
- ±45° tilt angle, weighing from 540 kg
- Building height from 557 mm
- Machine interfaces: S60, SQ60 and Direct Fit (DF)
- Tool coupler safety: LockSense
- OptiLube onboard lubrication and QuantumConnect control system
15–20 tonnes
Steelwrist X20 Tiltrotator
- ±45° tilt angle, weighing from 540 kg
- Building height from 563 mm
- Machine interfaces: S60, SQ60-5, SQ65 and Direct Fit (DF)
- Tool coupler safety: Front Pin Lock (FPL) or LockSense
- SQ automatic oil connection available
16–22 tonnes

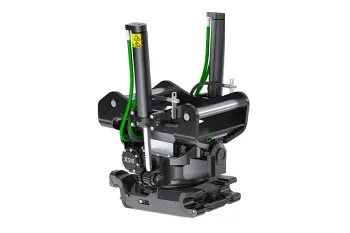

Steelwrist X26 Tiltrotator
- ±45° tilt angle, weighing from 695 kg
- Building height from 615 mm
- Machine interfaces: S70, SQ70, SQ70/55 and Direct Fit (DF)
- Tool coupler safety: Front Pin Lock (FPL) or LockSense
- SQ automatic oil connection available
18–26 tonnes

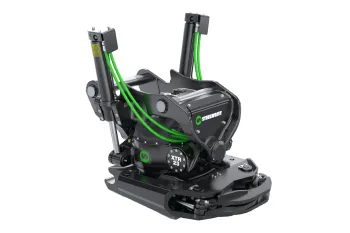

Steelwrist XTR23 Tiltrotator
- ±45° tilt angle, weighing from 608 kg
- Building height from 581 mm
- Machine interfaces: SQ65, S70, SQ70 and SQ70/55
- Tool coupler safety: LockSense
- OptiLube onboard lubrication and QuantumConnect control system
19–23 tonnes

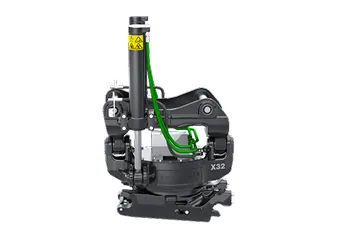

Steelwrist X32 Tiltrotator
- ±45° tilt angle, weighing from 895 kg
- Building height from 681 mm
- Machine interfaces: S70, SQ70, SQ70/55, S80, SQ80 and Direct Fit (DF)
- Tool coupler safety: Front Pin Lock (FPL) or LockSense
- SQ automatic oil connection available
25–33 tonnes
