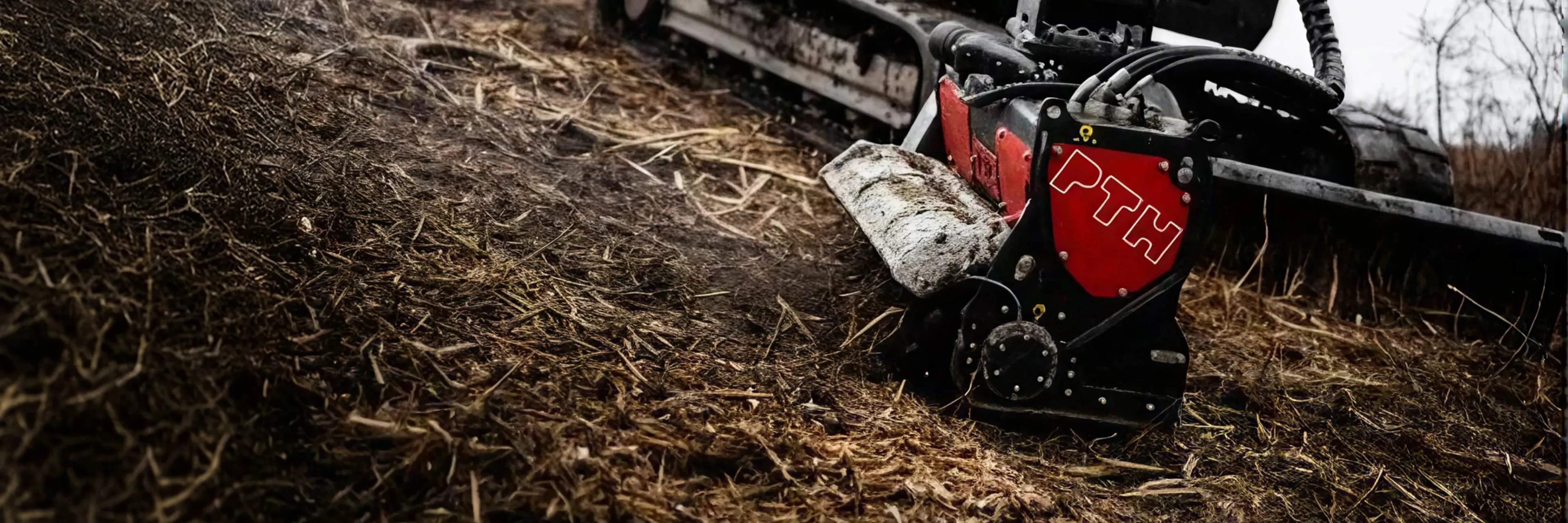

PTH Excavator Crushers
PTH's excavator crushers: the EC-M 1150 for 5 to 14 tonne excavators and the EC-L 1150 and EC-L 1400 for 10 to 25 tonne excavators.
Three tools in one
Each crusher is a stone crusher, stone cutter and forestry mulcher in one attachment, working in stone, mixed ground, wood and earth.
Read more
Each crusher is a stone crusher, stone cutter and forestry mulcher in one attachment, working in stone, mixed ground, wood and earth.
Sized to the excavator
The EC-M 1150 is for 5 to 14 t excavators from 70 l/min. The EC-L 1150 and EC-L 1400 are for 10 to 25 t excavators, from 100 and 120 l/min.
Read more
The EC-M 1150 is for 5 to 14 t excavators from 70 l/min. The EC-L 1150 and EC-L 1400 are for 10 to 25 t excavators, from 100 and 120 l/min.
Carbide tools, adjustable crushing
Carbide-tipped tools on an overlapping rotor, with a mechanically adjustable HARDOX crushing stage, on all three models.
Read more
Carbide-tipped tools on an overlapping rotor, with a mechanically adjustable HARDOX crushing stage, on all three models.
PTH Excavator Crusher EC-M 1150
- Stone crusher, stone cutter and forestry mulcher in one attachment
- For 5–14 t excavators, from 70 l/min at 250–360 bar
- 1,100 mm working width, 1,355 mm total width, working depth up to 80 mm
- Carbide-tipped tools on an overlapping rotor, with a mechanically adjustable HARDOX crushing stage
- Hydraulically adjustable discharge flap
5–14 tonnes
PTH Excavator Crusher EC-L 1150
- Stone crusher, stone cutter and forestry mulcher in one attachment
- For 10–25 t excavators, from 100 l/min at 250–360 bar
- 1,150 mm working width, 1,370 mm total width, working depth up to 150 mm
- Carbide-tipped tools on an overlapping rotor, with a mechanically adjustable HARDOX crushing stage
- Hydraulically adjustable discharge and feed flaps
10–25 tonnes
PTH Excavator Crusher EC-L 1400
- Stone crusher, stone cutter and forestry mulcher in one attachment
- For 10–25 t excavators, from 120 l/min at 250–360 bar
- 1,400 mm working width, 1,590 mm total width, working depth up to 150 mm
- Carbide-tipped tools on an overlapping rotor, with a mechanically adjustable HARDOX crushing stage
- Hydraulically adjustable discharge and feed flaps
10–25 tonnes
