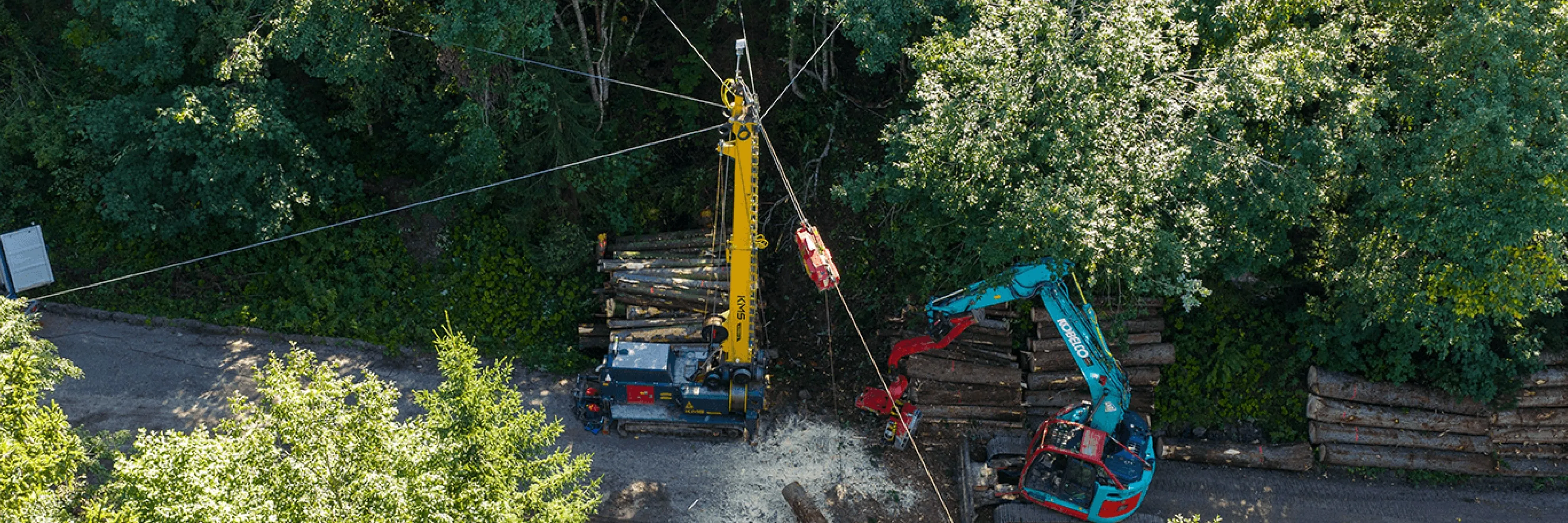

Konrad KMS KM/KR50-1 Tower Yarder

• Compact, on a trailer or tracks

  The KMS is mounted on a tandem trailer with a hydrostatic auxiliary drive (optional on the KM40-3), or on a radio-controlled tracked undercarriage for the KR50-1, with a tower of 11.0 to 12.0 m.

  Read more

  The KMS is mounted on a tandem trailer with a hydrostatic auxiliary drive (optional on the KM40-3), or on a radio-controlled tracked undercarriage for the KR50-1, with a tower of 11.0 to 12.0 m.

• Run from the remote

  The set-up, the winches and the carriage are all radio-controlled, on Konrad's KTC 1.0 control system and KFS-16 or KFS-20 radio remote control.

  Read more

  The set-up, the winches and the carriage are all radio-controlled, on Konrad's KTC 1.0 control system and KFS-16 or KFS-20 radio remote control.

• Long lines

  A 22 mm skyline of 1,000 m on a 120 kN winch and a 1,000 m main line, driven by a 212 kW FPT six-cylinder engine.

  Read more

  A 22 mm skyline of 1,000 m on a 120 kN winch and a 1,000 m main line, driven by a 212 kW FPT six-cylinder engine.

Konrad KM/KR50-1

Tower height

KM: 12.0 m · KR: 11.5 m

Main line pull

45 kN

Skyline

22 mm, 1,000 m

Weight

KM: 14,700–15,800 kg · KR: approx. 18,860 kg

Technical data: Konrad KM/KR50-1

General

Chassis

KM: Tandem trailer · KR: Tracked undercarriage, radio-controlled

Weight

KM: 14,700–15,800 kg, depending on version · KR: approx. 18,860 kg

Transport dimensions (L × W × H)

KM: 6.32 × 2.26 × 3.28 m · KR: 5.31 × 2.25 × 3.03 m

Tower height

KM: 12.0 m · KR: 11.5 m when supported (11.3 m when not)

Control system

KTC 1.0

Radio remote control

KFS-16, KFS-20

Travel drive

KM: Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control · KR: Tracked undercarriage, radio-controlled, 0–4 km/h

Tandem axle

KM: Air brakes, mechanical parking brake, maximum permitted speed 40 km/h (80 km/h possible with the appropriate type approval)

Tyres

KM: 445/45 R19.5

Cable crane

Skyline winch

22 mm, 1,000 m; 120 kN

Main line winch

12 mm, 1,000 m; 45 kN

Guy line winches

18 mm, 70 m; 9 kN

Straw line winch (optional)

7 mm, 1,600 m; 18 kN

Haul-back winch (optional)

11 mm, 2,000 m; 40 kN

Engine

Engine

Water-cooled FPT 6-cylinder turbo diesel, EU Stage V

Power

212 kW (288 PS) at 2,200 rpm

Torque

1,160 Nm at 1,500 rpm

Displacement

6.7 litres

Diesel tank

170 l

Hydraulics

Cable crane pumps

Axial piston pumps, closed circuit, max. 460 bar

Power take-off pump

Axial piston pump, open circuit, max. 280 bar

Hydraulic oil tank

KM: 240 l · KR: 160 l

Remote control

Every function the crew needs for a quick, safe set-up is on the remote: the supports, raising the tower, the guy line drums and winch, the skyline and main line winches, the tensioning cylinder, carriage start and stop, the winch in the carriage, the automatic drive function, handing over radio control, and the horn.

Versions and options

The KM40-3 comes as a 2-cable or 3-cable version. Options include a straw line winch, a long-cable version and additional guy line winches. The 50-1 runs on a tandem trailer with hydrostatic drive (KM50-1) or on a radio-controlled tracked undercarriage (KR50-1).
