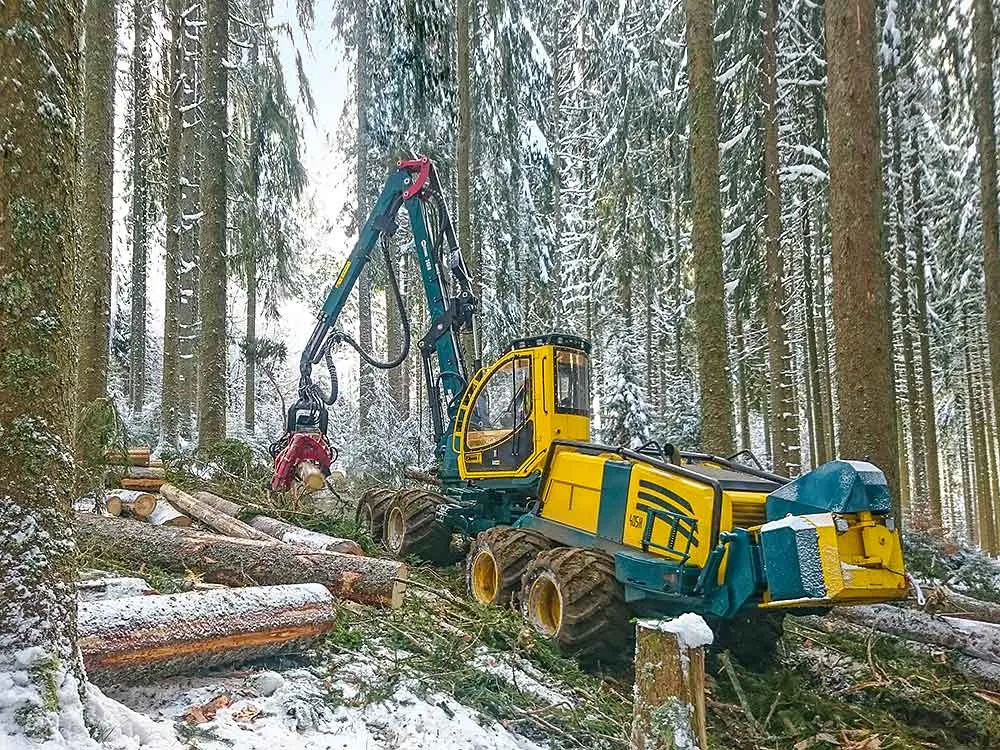

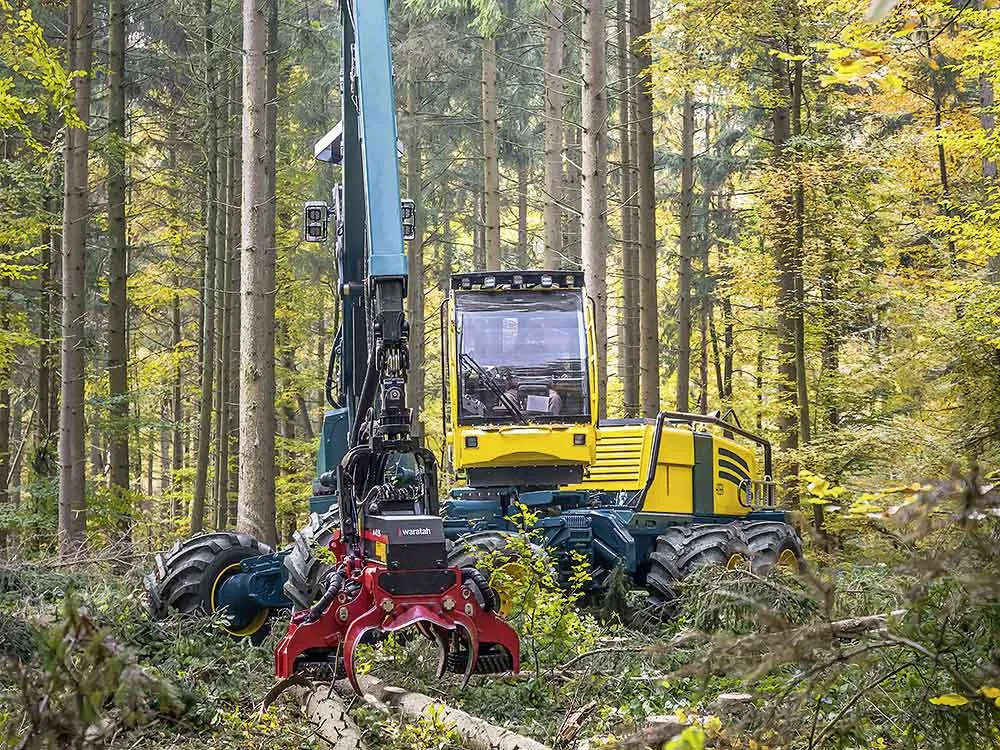

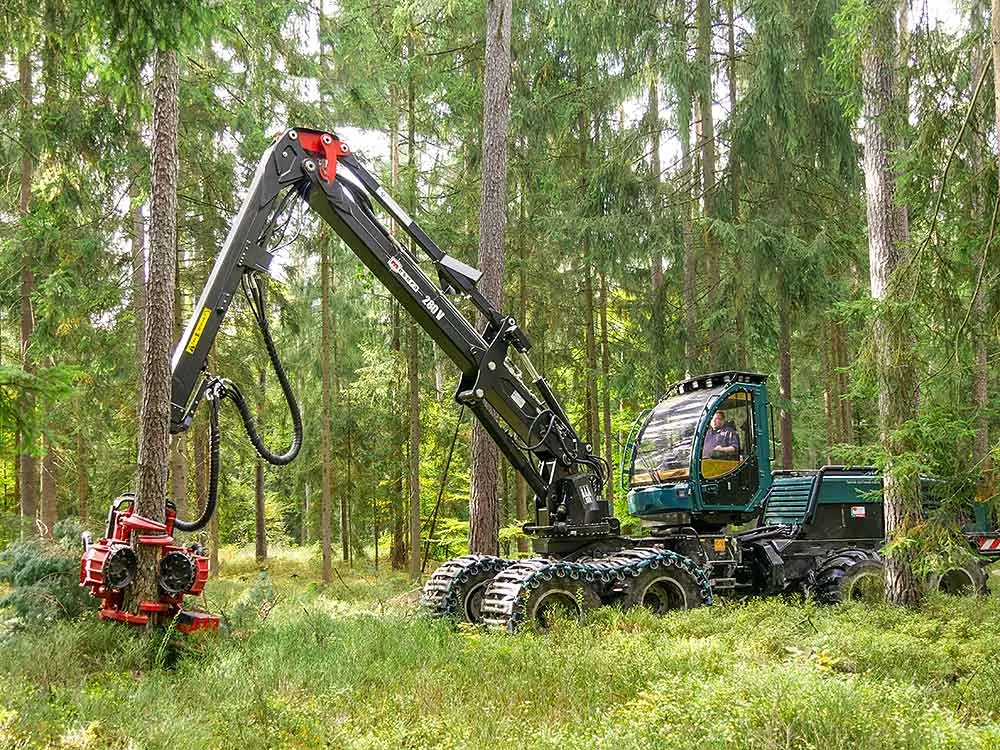

HSM 405H3 8WD Harvester

• One drivetrain across the range

  The H2, H3 and H4 share a hydrostatic-mechanical drive with a NAF 2-speed transfer gearbox, balanced portal tandem axles with 100% selectable differential locks front and rear, and articulated steering with a 50° steering angle.

  Read more

  The H2, H3 and H4 share a hydrostatic-mechanical drive with a NAF 2-speed transfer gearbox, balanced portal tandem axles with 100% selectable differential locks front and rear, and articulated steering with a 50° steering angle.

• Load-sensing hydraulics

  A load-sensing system with two 190 cm³ variable pumps, one for the crane and one for the harvester head, delivering 532 l/min at up to 380 bar.

  Read more

  A load-sensing system with two 190 cm³ variable pumps, one for the crane and one for the harvester head, delivering 532 l/min at up to 380 bar.

• A tested, adjustable safety cab

  The cab is ROPS, FOPS and OPS tested and height-adjustable at the front and rear, with air conditioning and auxiliary heating that preheats the hydraulic oil. A rotating cab, turning through 270°, is an option.

  Read more

  The cab is ROPS, FOPS and OPS tested and height-adjustable at the front and rear, with air conditioning and auxiliary heating that preheats the hydraulic oil. A rotating cab, turning through 270°, is an option.

HSM 405H3 8WD

Power

210 kW (286 HP), 250 kW optional

Weight

From 26,200 kg

Crane lifting moment

280 kNm gross

Crane reach

11 m

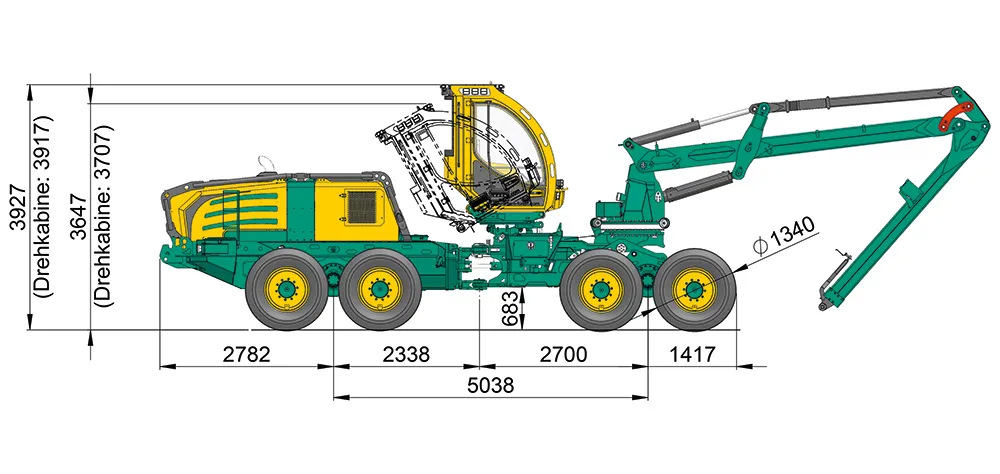

Technical data: HSM 405H3 8WD

Engine

Model

Volvo Penta TAD882VE, 6-cylinder, EU Stage V

Power

210 kW (286 HP) from 1,700 rpm

Torque range

1,225 Nm from 1,100 to 1,600 rpm

Maximum torque

1,255 Nm at 1,400 rpm

Displacement

7.7 litres

Engine (optional)

Model

Volvo Penta TAD884VE, 6-cylinder, EU Stage V

Power

250 kW (340 HP) from 1,800 rpm

Torque range

1,330 Nm from 1,200 to 1,800 rpm

Maximum torque

1,360 Nm at 1,400 rpm

Displacement

7.7 litres

Drive

Transmission

Hydrostatic-mechanical

Transfer gearbox

NAF 2-speed

Axles

NAF balanced portal tandem axles

Differential locks

Front and rear, 100% selectable

Brakes

• 2-circuit brake, disc brakes running in an oil bath
• Spring-loaded parking brake

Steering

• Articulated steering with 2 cylinders
• 50° steering angle

Torsion lock

2 hydraulic cylinders

Tyres

Standard

710/45-26.5, 2,880 mm wide with tapes and chains

Optional

• 800/40-26.5: 2,980 mm wide with tapes only, 3,060 mm wide with tapes and chains
• 600/55-26.5: 2,660 mm wide with tapes and chains

Hydraulics

System

Load sensing

Pumps

Variable (working pumps): crane pump 190 cm³, head pump 190 cm³

Flow

532 l/min at 1,400 rpm

Pressure

Up to 380 bar

Oil

Saturated synthetic ester, Panolin HLP SYNTH with Kleenoil microfiltration; WGK 1

Tanks

Diesel

500 l

AdBlue

45 l

Hydraulic oil

250 l

Weight

From

26,200 kg

Crane

Model

Mesera M280 V110

Reach

11 m

Gross lifting moment

280 kNm

Slewing torque

65 kNm

Slewing angle

260°

Tilt angle

+24° / −30°

Other cranes

Other cranes on request

Harvester head

Model

Logmax 6000

Felling diameter

650 mm

Delimbing diameter

500 mm

Maximum feed force

26.9 kN

Maximum feed speed

4.2 m/s

Maximum operating pressure

280 bar

Weight

1,330 kg

Control

LOG Mate

Other heads

Other aggregates on request

Cab

Features

• Height-adjustable at the front and rear, +10° / −29°
• Bent Lexan windscreen
• Windscreen wipers at the front and side
• ROPS, FOPS and OPS tested safety cab
• Air-cushioned seat with seat heating
• Hot water heating
• Auxiliary heating with cooling water and hydraulic oil preheating
• Air conditioning
• Optional: height-adjustable and rotatable (270°), front and rear +10° / −12° (restricted to −24°), lateral ±9°
• Optional: sun blinds

Electrics

Equipment

• HSM Ecommand colour display
• 5 operator programs plus factory setting
• Diagnostics function and error display
• Graphical support for editing parameters
• 110 A (28 V) generator
• 2 maintenance-free dry-cell batteries, 75 Ah each

Equipment

Standard

• 20 LED work lights on the cab
• 4 work lights in front of the crane
• 2 LED work lights on the crane column
• 2 LED work lights on the rear frame
• Front bogie lift, separately switchable
• Voltage converter, on-board voltage 24 V to 12 V
• End cushioning for crane and steering cylinder
• Radio
• Fire extinguisher
• First-aid kit
• Warning triangle
• Tool set
• Bypass filter
• Diesel fill pump
• Hydraulic fill pump
• Vacuum pump

Special

Crane tip control xyControl (Epsilon crane)

Crane options

The 405H3 8WD comes with the Mesera M280 V110 as its standard crane.

Crane specifications (1)

Crane	Reach	Lifting moment	Slewing torque	Slewing angle	Fit
Mesera M280 V110	11 m	280 kNm gross	65 kNm	260°	Standard

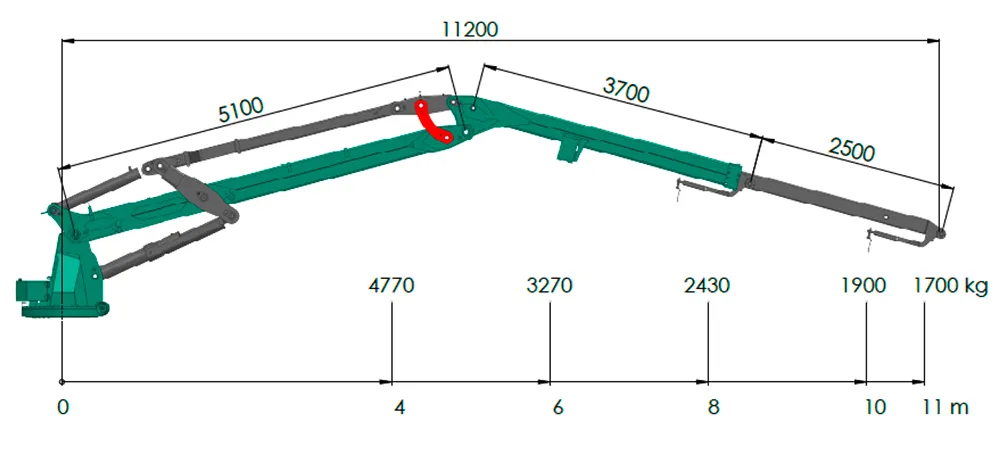

Crane reach diagrams (1)

Documents and data sheets

HSM's data sheet for the 405H3 8WD: data sheet (PDF)
