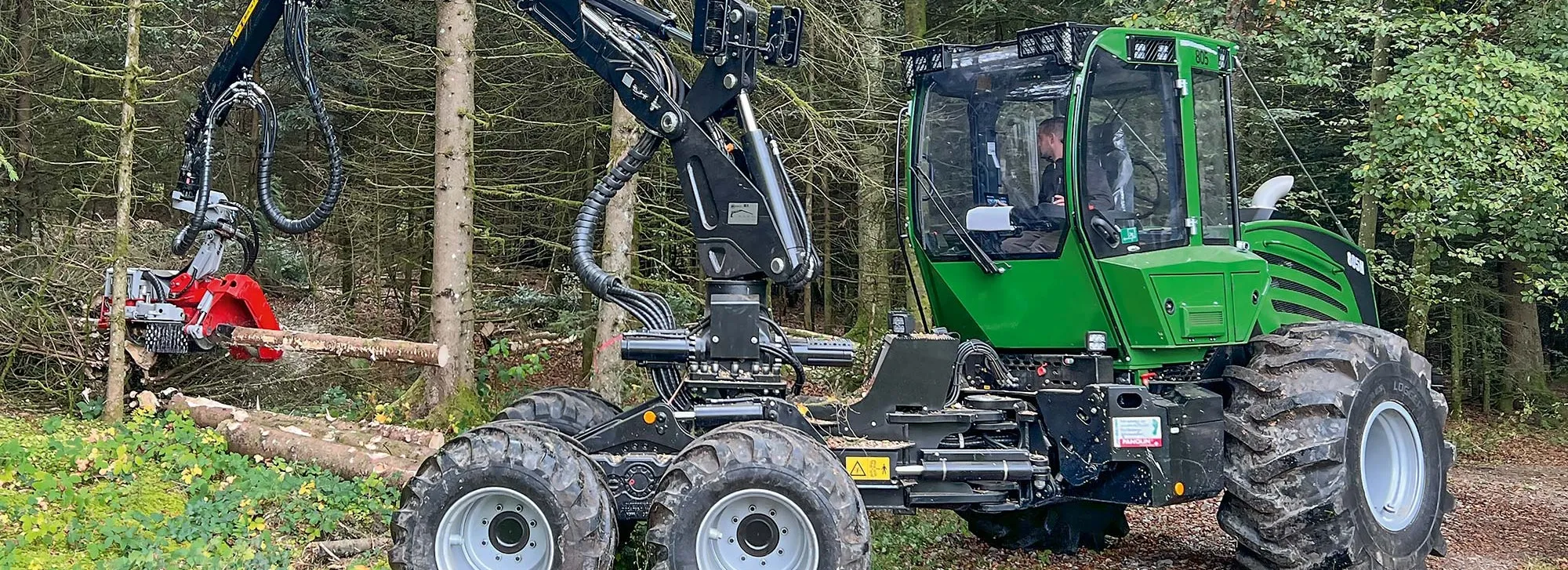

HSM 805H1 6WD Harvester

• Volvo Penta engines

  Every version has a Volvo Penta engine to EU Stage V, from 175 kW (238 HP) in the 805H1 and 805H1 6WD to 250 kW (340 HP) in the 405H4 and, as an option, the 405H3.

  Read more

  Every version has a Volvo Penta engine to EU Stage V, from 175 kW (238 HP) in the 805H1 and 805H1 6WD to 250 kW (340 HP) in the 405H4 and, as an option, the 405H3.

• Load-sensing hydraulics

  A load-sensing hydraulic system on saturated synthetic ester oil, Panolin HLP SYNTH with Kleenoil microfiltration. The 805H1, 805H1 6WD, 208H2 and 954H2 deliver 304 l/min at 1,600 rpm and up to 350 bar; the 405 delivers 532 l/min at 1,400 rpm and up to 380 bar.

  Read more

  A load-sensing hydraulic system on saturated synthetic ester oil, Panolin HLP SYNTH with Kleenoil microfiltration. The 805H1, 805H1 6WD, 208H2 and 954H2 deliver 304 l/min at 1,600 rpm and up to 350 bar; the 405 delivers 532 l/min at 1,400 rpm and up to 380 bar.

• Articulated steering and a tested cab

  Articulated steering with 2 cylinders (a 45° steering angle on the 805H1, 805H1 6WD, 208H2 and 954H2, 50° on the 405), 100% selectable differential locks front and rear, and a ROPS, FOPS and OPS tested safety cab.

  Read more

  Articulated steering with 2 cylinders (a 45° steering angle on the 805H1, 805H1 6WD, 208H2 and 954H2, 50° on the 405), 100% selectable differential locks front and rear, and a ROPS, FOPS and OPS tested safety cab.

HSM 805H1 6WD

Power

175 kW (238 HP)

Weight

15,000 kg

Crane lifting moment

138 kNm gross

Crane reach

10 m

Technical data: HSM 805H1 6WD

Engine

Model

Volvo Penta TAD583VE, 4-cylinder, EU Stage V

Power

175 kW (238 HP) from 1,750 rpm

Torque range

947 Nm from 1,200 to 1,750 rpm

Maximum torque

969 Nm at 1,380 rpm

Displacement

5.13 litres

Drive

Transmission

HSM TwinPowerDrive

Axles

Planetary axles

Differential locks

Front and rear, 100% selectable

Brakes

• 2-circuit brake, disc brakes running in an oil bath
• Spring-loaded parking brake

Steering

• Articulated steering with 2 cylinders
• 45° steering angle

Torsion lock

2 hydraulic cylinders

Tyres

Standard

• Front: 23.1 x 26, minimum width 2,550 mm
• Rear: 710/40 x 22.5

Hydraulics

System

Load sensing

Flow

304 l/min at 1,600 rpm

Pressure

Up to 350 bar

Oil

Saturated synthetic ester, Panolin HLP SYNTH with Kleenoil microfiltration; WGK 1

Tanks

Diesel

235 l

AdBlue

25 l

Hydraulic oil

100 l

Weight

Weight

15,000 kg

Crane

Model

Mesera L 181 V 100

Reach

10 m

Gross lifting moment

138 kNm

Slewing torque

38.4 kNm net

Tilt angle

+15° / −15°

Harvester head

Model

Waratah H423

Felling diameter

580 mm

Delimbing diameter

420 mm

Weight

955 kg

Control

Timberrite H16 High Level

Other heads

Other aggregates on request

Cab

Features

• HSM Panorama comfort cab
• ROPS, FOPS and OPS tested safety cab
• Swivel seat device, air-suspended comfort seat
• Heating and air conditioning

Electrics

Equipment

• HSM Ecommand colour display
• 5 operator programs plus factory setting
• Diagnosis tool and error indication
• Graphic support when editing parameters
• 110 A (28 V) generator
• 2 service-free dry batteries, 55 Ah each

Equipment

Standard

• 12 LED work lights
• 24 V to 12 V voltage transformer
• Radio with CD player
• Fire extinguisher
• First-aid kit
• Warning triangle
• Tool set

Special

• Auxiliary heating
• Seat area dampers
• Vacuum pump
• Diesel filling pump
• Other accessories on request

Crane options

The 805H1 6WD comes with the Mesera L 181 V 100 as its standard crane.

Crane specifications (1)

Crane	Reach	Lifting moment	Slewing torque	Fit
Mesera L 181 V 100	10 m	138 kNm gross	38.4 kNm net	Standard

Documents and data sheets

HSM's data sheet for the 805H1 6WD: data sheet (PDF)
