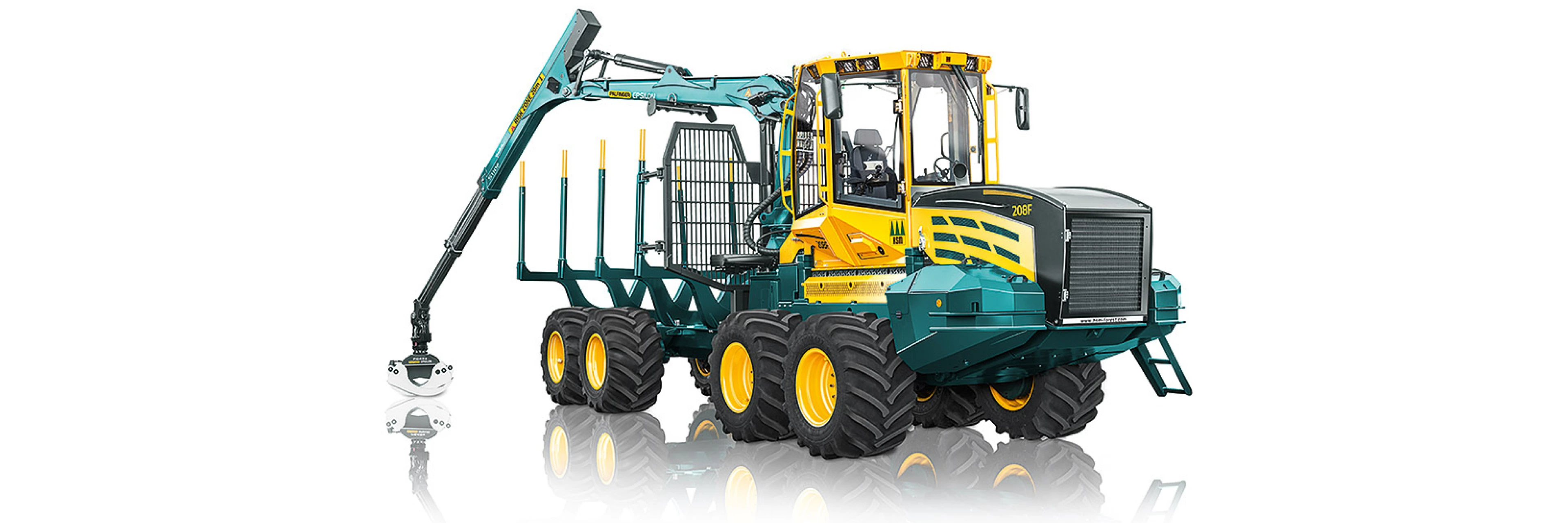

HSM 208F 7 t Forwarder

Name: Exc@v8 Group
Address: Unit 15A, Mealbank Mill Industrial Estate, Kendal, Cumbria, LA8 9DL, GB
Telephone: 01539 729999

The smallest 208F: a 129 kW four-cylinder Volvo Penta engine, an Epsilon C60 F69 crane and a 4,000 mm load area for a 7 t payload, 2,300 mm wide on its standard tyres.

Compare all 8 versions side by side

Narrow machine, wide tyres
Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
Read more
Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
One drivetrain across the range
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Read more
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Load-sensing hydraulics
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.
Read more
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.

HSM 208F 7 t

Payload: 7 t
Power: 129 kW (175 HP)
Weight: 13,900 kg
Load area: 4,000 mm long

Technical data: HSM 208F 7 t

Engine

Model: Volvo Penta TAD581VE, 4-cylinder, EU Stage V
Power: 129 kW (175 HP) from 1,700 rpm
Torque range: 800 Nm from 1,100 to 1,500 rpm
Maximum torque: 816 Nm at 1,380 rpm
Displacement: 5.13 litres

Drive

Transfer gearbox: NAF 2-speed
Hydrostatic drive: HSM High Speed Drive (71 series), 0 to 14 km/h in first gear
Axles: NAF portal bogie axles
Differential locks: Front and rear, 100% selectable
Brakes: 2-circuit brake, multi-disc brakes running in an oil bath
Spring-loaded parking brake
Steering: Articulated steering with 2 cylinders
45° steering angle
Torsion lock: 2 hydraulic cylinders

Tyres

Standard: 600/50-22.5: 2,300 mm overall width, 2,400 mm with tracks
Optional: 650/45-22.5: 2,400 mm overall width, 2,500 mm with tracks
710/40-22.5: 2,500 mm overall width, 2,600 mm with tracks

Hydraulics

System: Load sensing
Pump: Variable pump (working pump)
Flow: 304 l/min at 1,600 rpm
Pressure: Up to 350 bar
Oil: Saturated synthetic ester, Panolin HLP SYNTH with Kleenoil microfiltration; WGK 1

Tanks

Diesel: 150 l
AdBlue: 25 l
Hydraulic oil: 110 l

Weight

Operating weight: 13,900 kg as standard
Weight distribution: 60% front axle, 40% rear axle

Crane

Standard crane: Epsilon C60 F69 (82 / 63 kNm, 6.9 m reach)
Other cranes: 1 more Epsilon and 11 Mesera cranes; see Crane options below

Load area

Rungs: 4 rungs
Length: 4,000 mm
Cross section: 2.9 m² (3.3 m² optional)
Payload: 7 t

Cab

Features: Parallel pivoting cab, raisable to the side
ROPS, FOPS and OPS tested safety cab
Swivel seat with pedals at the front and rear
Windscreen wipers front and rear, side wipers optional
Air-cushioned seat with seat heating
Hot water heating
Air conditioning

Electrics

Equipment: HSM Ecommand colour display
5 operator programs plus factory setting
Diagnostics function and error display
Graphical support for editing parameters
110 A (28 V) generator
2 maintenance-free dry-cell batteries, 75 Ah each

Equipment

Standard: 14 LED work lights on the cab
4 work lights on the crane
Voltage converter, 24 V to 12 V
Radio with CD
Fire extinguisher
First-aid kit
Warning triangle
Tool kit
Cooling box
Reversing camera with colour monitor
Rear work lights
Special: Front dozer blade
Front bogie lift
Turnable rung
Last rung plugged
Tiltable crane
Quick-change system for rungs
Clambunk
Auxiliary heating
Bogie tracks
Radio control for the winch
Drive by radio
Sun blinds
Pluggable front grid
Cab suspension HCS
Crane tip control xyControl (Epsilon cranes only)
Other accessories on request

Crane options

The 208F 7 t has the Epsilon C60 F69 as its standard crane and can be fitted with 12 other Epsilon and Mesera cranes. Lifting moments are gross / net. All are supplied with the FG43S grapple.

Epsilon cranes (2)

Crane	Lifting moment	Reach	Fit
Epsilon C60 F69	82 / 63 kNm	6.9 m	Standard
Epsilon C60 F86	82 / 51 kNm	8.6 m	Optional

Mesera cranes (11)

Crane	Lifting moment	Reach	Fit
Mesera F59 F72	78 / 56 kNm	7.2 m	Optional
Mesera F59 FT85	78 / 51 kNm	8.5 m	Optional
Mesera F59 FT100	78 / 47 kNm	10.0 m	Optional
Mesera F59 FT100i	78 / 47 kNm	10.0 m	Optional
Mesera F71 F72	99 / 75 kNm	7.2 m	Optional
Mesera F71 FT85	99 / 70 kNm	8.5 m	Optional
Mesera F71 FT100	99 / 66 kNm	10.0 m	Optional
Mesera F71 FT100i	99 / 66 kNm	10.0 m	Optional
Mesera F83 F72	106 / 82 kNm	7.2 m	Optional
Mesera F83 FT85	106 / 76 kNm	8.5 m	Optional
Mesera F83 FT100i	106 / 73 kNm	10.0 m	Optional
