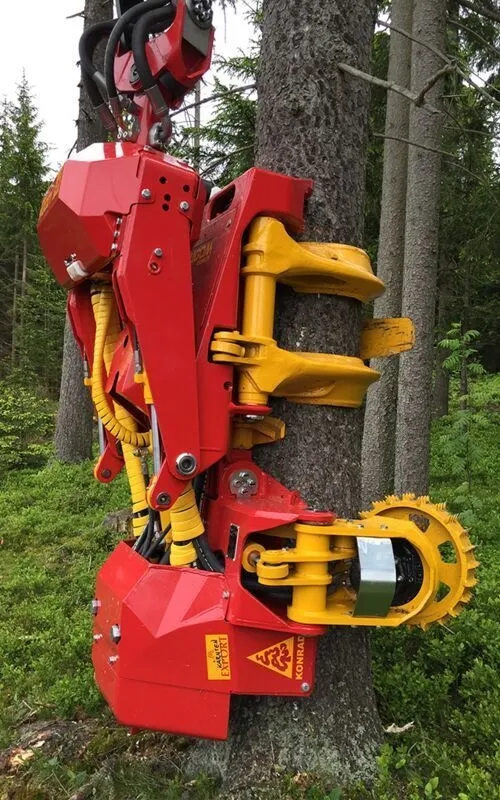

Konrad Woody WH60-1 Harvester Head
The Konrad Woody WH60-1 is an all-round harvester head for hardwood and heavy mountain timber, with four driven feed rollers, 35 kN of feed force, a 1,200 mm grapple opening and a 680 mm cut.
- Cuts up to 680 mm, delimbs 40–650 mm
- 4 feed rollers, 35 kN feed force
- 1,200 mm grapple opening
- Integrated Konrad endless rotator and KTC 1.0 control
- Optional top saw, cutting up to 320 mm
Technical data
| Weight (with rotator, oil filled) | 1,450 kg (1,480 kg with optional top saw) |
|---|---|
| Recommended engine power | 118 kW (160 PS) |
| Operating pressure | 300–350 bar |
| Oil requirement | 200–250 l/min |
| Rotator | Integrated Konrad endless rotator |
| Operating voltage | 24 V |
| Control system | KTC 1.0 |
| Max. cutting diameter | 680 mm (top saw: 320 mm) |
| Saw guide bar length | 820 mm (top saw: 420 mm) |
| Chain speed | 40 m/s |
| Chain tensioner | Hydraulic (top saw: manual) |
| Chain pitch | .404" |
| Drive links | 98 (top saw: 55) |
| Feed rollers | 4 |
| Max. feed force | 35 kN |
| Feed speed | 0–4 m/s |
| Max. feed roller opening | 740 mm |
| Delimbing knives | 4 flexible, 1 static |
| Delimbing diameter | 40–650 mm |
| Max. grapple opening | 1,200 mm |
Overview
The Woody WH60-1 is Konrad’s all-round head for hardwood and heavy mountain timber, on a further improved frame design.
Traction and handling
Its four feed rollers are driven hydraulically, with a mechanical differential lock, for traction in hardwood and heavy mountain wood alike. Konrad’s frame geometry is built for handling hardwood and crooked trees, and a parallel bar on the feed roller arms balances uneven stem surfaces, so the feed wheels keep their grip whatever the stem diameter.
On steep ground
The frame bracket improves gripping on steep slopes and keeps the frame relatively long in the tilt-up position, which makes controlled felling of big trees easier.
Standard equipment
An automatic chain tensioner, a photo sensor and the Konrad endless rotator come as standard.
Exc@v8 supplies and supports Konrad harvester heads in the UK and Ireland.
