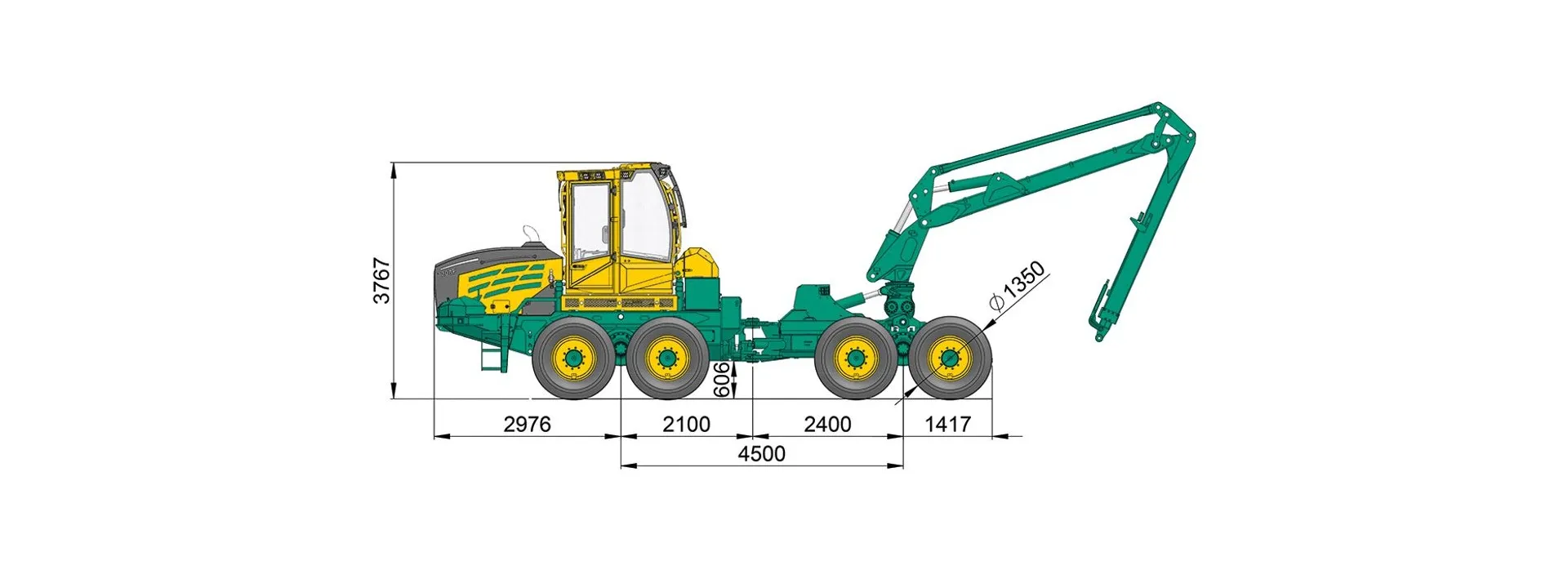

HSM 208H2 Harvester

• Volvo Penta engines

  Every version has a Volvo Penta engine to EU Stage V, from 175 kW (238 HP) in the 805H1 and 805H1 6WD to 250 kW (340 HP) in the 405H4 and, as an option, the 405H3.

  Read more

  Every version has a Volvo Penta engine to EU Stage V, from 175 kW (238 HP) in the 805H1 and 805H1 6WD to 250 kW (340 HP) in the 405H4 and, as an option, the 405H3.

• Load-sensing hydraulics

  A load-sensing hydraulic system on saturated synthetic ester oil, Panolin HLP SYNTH with Kleenoil microfiltration. The 805H1, 805H1 6WD, 208H2 and 954H2 deliver 304 l/min at 1,600 rpm and up to 350 bar; the 405 delivers 532 l/min at 1,400 rpm and up to 380 bar.

  Read more

  A load-sensing hydraulic system on saturated synthetic ester oil, Panolin HLP SYNTH with Kleenoil microfiltration. The 805H1, 805H1 6WD, 208H2 and 954H2 deliver 304 l/min at 1,600 rpm and up to 350 bar; the 405 delivers 532 l/min at 1,400 rpm and up to 380 bar.

• Articulated steering and a tested cab

  Articulated steering with 2 cylinders (a 45° steering angle on the 805H1, 805H1 6WD, 208H2 and 954H2, 50° on the 405), 100% selectable differential locks front and rear, and a ROPS, FOPS and OPS tested safety cab.

  Read more

  Articulated steering with 2 cylinders (a 45° steering angle on the 805H1, 805H1 6WD, 208H2 and 954H2, 50° on the 405), 100% selectable differential locks front and rear, and a ROPS, FOPS and OPS tested safety cab.

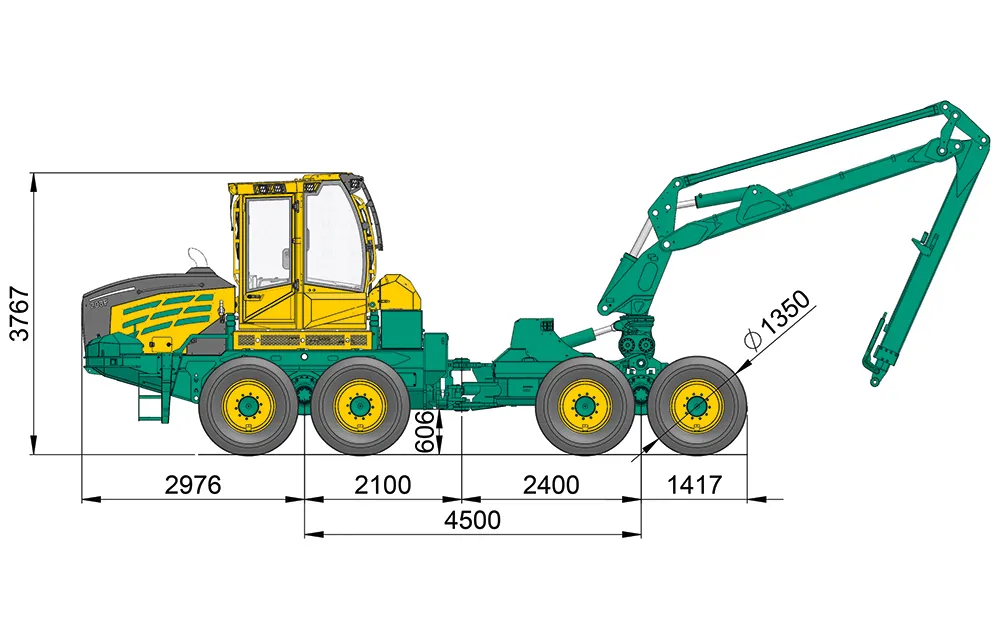

HSM 208H2

Power

210 kW (286 HP)

Weight

20,800 kg

Crane lifting moment

188 kNm gross

Crane reach

10 m / 11 m

Technical data: HSM 208H2

Engine

Model

Volvo Penta TAD882VE, EU Stage V

Power

210 kW (286 HP) from 1,700 rpm

Torque range

1,225 Nm from 1,100 to 1,600 rpm

Maximum torque

1,255 Nm at 1,400 rpm

Displacement

7.7 litres

Drive

Transmission

HSM High Speed Drive (71 series), 1st gear 0 to 14 km/h

Transfer gearbox

NAF 2-speed

Axles

NAF planetary axles

Differential locks

Front and rear, 100% selectable

Brakes

• 2-circuit brake, disc brakes running in an oil bath
• Spring-loaded parking brake

Steering

• Articulated steering with 2 cylinders
• 45° steering angle

Torsion lock

2 hydraulic cylinders

Tyres

Standard

710/45-26.5: 3,000 mm total width

Hydraulics

System

Load sensing

Pumps

Variable (working pump)

Flow

304 l/min at 1,600 rpm

Pressure

Up to 350 bar

Oil

Saturated synthetic ester, Panolin HLP SYNTH with Kleenoil microfiltration; WGK 1

Tanks

Diesel

220 l + 65 l

AdBlue

45 l

Hydraulic oil

170 l

Weight

Weight

20,800 kg (series)

Distribution

Front axle 60%, rear axle 40%

Crane

Model

Mesera M221 H100 / H110

Reach

10 m / 11 m

Gross lifting moment

188 kNm

Slewing torque

43.6 kNm

Tilt angle

+24° / −30°

Crane (optional)

Model

Mesera M240 H103 / H111

Reach

10.3 m / 11.1 m

Gross lifting moment

240 kNm

Slewing torque

54 kNm

Tilt angle

+22° / −30°

Harvester head

Model

Logmax 6000

Felling diameter

650 mm

Delimbing diameter

500 mm

Maximum feed force

26.9 kN

Maximum feed speed

4.2 m/s

Maximum operating pressure

280 bar

Weight

1,330 kg

Control

LOG Mate

Other heads

Other aggregates on request

Cab

Features

• Parallel pivoting cab
• ROPS, FOPS and OPS tested safety cab
• Swivel seat with pedals at the rear and the front
• Windscreen wipers at the front and rear, side wipers optional
• Air-cushioned seat with seat heating
• Hot water heating
• Air conditioning

Electrics

Equipment

• HSM Ecommand colour display
• 5 driving programs plus factory setting
• Diagnostics function and error display
• Graphical support for editing parameters
• 110 A (28 V) generator
• 2 maintenance-free dry-cell batteries, 75 Ah each

Equipment

Standard

• 4 LED work lights on the cab
• 4 work lights on the crane
• Potential transformer
• Radio with CD
• Fire extinguisher
• First-aid kit
• Warning triangle
• Tool kit
• Cooling box

Crane options

The 208H2 comes with the Mesera M221 H100 / H110 as its standard crane and can be fitted with the Mesera M240 H103 / H111 as an option.

Crane specifications (2)

Crane	Reach	Lifting moment	Slewing torque	Fit
Mesera M221 H100 / H110	10 m / 11 m	188 kNm gross	43.6 kNm	Standard
Mesera M240 H103 / H111	10.3 m / 11.1 m	240 kNm gross	54 kNm	Optional

Crane reach diagrams (2)

Documents and data sheets

HSM's data sheet for the 208H2: data sheet (PDF)
