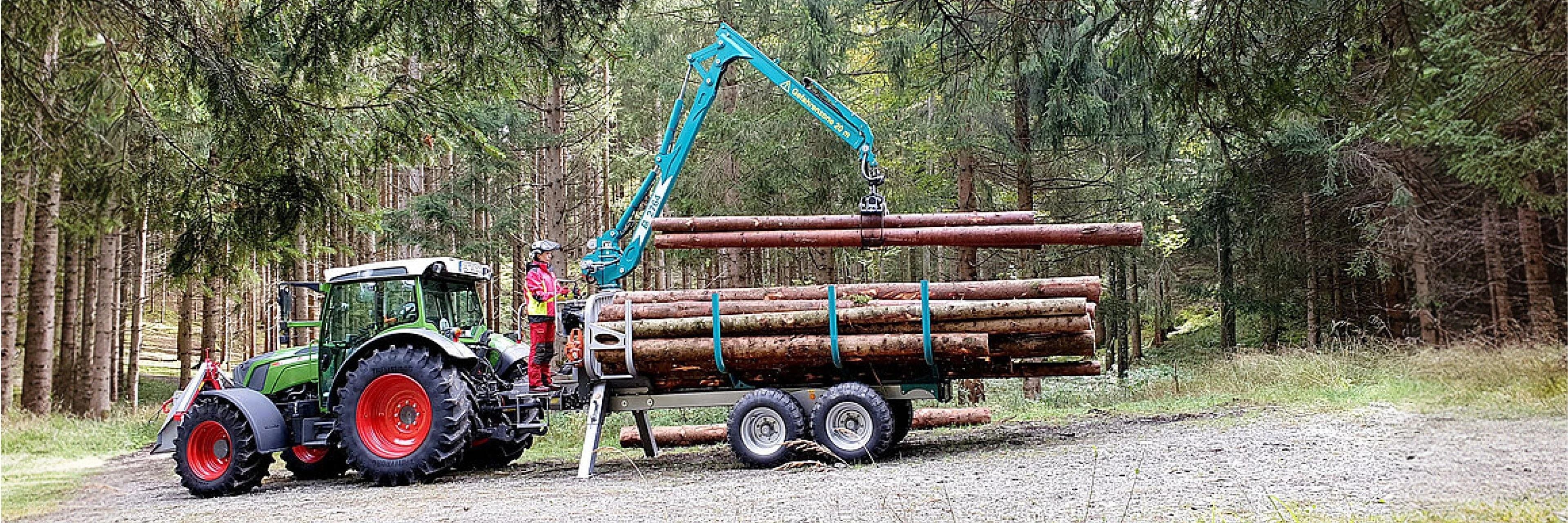

    Pfanzelt Forwarding Trailers

    Pfanzelt Forwarding Trailers

    Pfanzelt's forwarding trailers with Pfanzelt cranes, in nine models across three series: the logLINE L14 to L19, the Profi P11+ to P17 and the S-line S6 and S8.

    Choose from the Pfanzelt forwarding trailers

    Compare the models

    Only what differs. Everything else is the same on all 9 models.

    Key figures
    SpecificationL14L16L19P11+P13P15P17S6S8
    Load capacity off-road13.0 t15.0 t17.0 t9 t11 t13 t15 t6 t6 t
    Crane reach7,800 mm8,300 mm8,300 mm6,340 mm7,140 mm8,000 mm9,950 mm6,340 mm6,700 mm
    Lift moment, net61 kNm70 kNm70 kNm40.5 kNm40.5 kNm51 kNm51 kNm27 kNm35 kNm
    Dead weight with craneapprox. 4.5 tapprox. 5.5 tapprox. 6.0 tapprox. 3.3 tapprox. 3.6 tapprox. 4.2 tapprox. 4.5 tapprox. 1.7 tapprox. 2.2 t
    Frame
    SpecificationL14L16L19P11+P13P15P17S6S8
    FrameCentral tube frameCentral tube frameCentral tube frameCentral tube frameCentral tube frameCentral tube frameCentral tube frameBolted double frameBolted double frame
    Central tube200 × 200 × 10 mm250 × 250 × 8 mm350 × 250 × 8 mm200 × 200 × 10 mm200 × 200 × 10 mm200 × 200 × 10 mm300 × 200 × 10 mm–Not on this model–Not on this model
    Frame extension1,500 mm1,500 mm1,500 mm2,000 mm, mechanically extensible2,000 mm, mechanically extensible2,000 mm, mechanically extensible2,000 mm, mechanically extensible–Not on this model–Not on this model
    Long flat bed3,900–5,500 mm4,500–6,000 mm4,500–6,000 mm3,800–5,900 mm3,800–5,900 mm3,800–5,900 mm4,500–6,500 mm3,500 mm3,710 mm
    Stanchion pairs4 (extensible sideways by 300 mm)4 (extensible sideways by 300 mm)4 (extensible sideways by 300 mm)44443 + 13 + 1
    Draw bar pivoting moment22.5 kNm35 kNm35 kNm–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model
    Front cage area2.98–3.37 m²3.25–3.75 m²3.50–4.00 m²2.12 m²2.38 m²2.87 m²3.52 m²1.40 m²1.79 m²
    Running gearBogie chassis, 1,210 mm wheelbaseBogie chassis, 1,300 mm wheelbaseBogie chassis, 1,300 mm wheelbase–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model
    Bogie oscillation±17°, ±180 mm±17°, ±180 mm±17°, ±180 mm–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model
    Track width1,850 mm1,800 mm1,900 mm–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model
    Bogie axle–Not on this model–Not on this model–Not on this modelStandardStandardStandardStandardStandardStandard
    Headache rack–Not on this model–Not on this model–Not on this modelStandardStandardStandardStandard–Not on this model–Not on this model
    Control panel on the draw bar–Not on this model–Not on this model–Not on this modelStandardStandardStandardStandardStandardStandard
    Double-walled crane support zone–Not on this model–Not on this model–Not on this model–Not on this modelStandardStandardStandard–Not on this model–Not on this model
    Loads
    SpecificationL14L16L19P11+P13P15P17S6S8
    Load capacity off-road13.0 t15.0 t17.0 t9 t11 t13 t15 t6 t6 t
    Dead weight with craneapprox. 4.5 tapprox. 5.5 tapprox. 6.0 tapprox. 3.3 tapprox. 3.6 tapprox. 4.2 tapprox. 4.5 tapprox. 1.7 tapprox. 2.2 t
    Brakes and tyres
    SpecificationL14L16L19P11+P13P15P17S6S8
    Brake system4-wheel pneumatic braking system with spring-loading4-wheel pneumatic braking system with spring-loading4-wheel pneumatic braking system with spring-loading2-wheel hydraulic4-wheel air brake4-wheel air brake4-wheel air brake2-wheel hydraulic2-wheel hydraulic
    Tyres560/45-22.5″, 12 PR stud profile600/50-22.5″, 12 PR stud profile600/50-22.5″, 12 PR stud profile380/55-17″, 14 PR grooved tread480/45-17″, 14 PR grooved tread500/45-22.5″, 12 PR stud profile600/50-22.5″, 12 PR stud profile380/55-17″, 14 PR grooved tread380/55-17″, 14 PR grooved tread
    Rim flange reinforcement, spar sleeve protectionStandardStandardStandardOptionalOptionalStandardStandard–Not on this model–Not on this model
    Brake surface–Not on this model–Not on this model–Not on this model300 × 90 mm, 8-hole wheel300 × 90 mm, 8-hole wheel406 × 120 mm, 10-hole wheel406 × 120 mm, 10-hole wheel300 × 60 mm, 6-hole wheel300 × 60 mm, 6-hole wheel
    Wheels with valve protection–Not on this model–Not on this model–Not on this modelStandardStandard–Not on this model–Not on this modelStandardStandard
    Crane
    SpecificationL14L16L19P11+P13P15P17S6S8
    Loading cranePfanzelt LK 6280Pfanzelt LK 7185Pfanzelt LK 7185Pfanzelt LK 4267Pfanzelt LK 4272Pfanzelt LK 5180Pfanzelt LK 51100Pfanzelt LK 2764Pfanzelt LK 3767
    Reach7,800 mm8,300 mm8,300 mm6,340 mm7,140 mm8,000 mm9,950 mm6,340 mm6,700 mm
    Lift moment, net61 kNm70 kNm70 kNm40.5 kNm40.5 kNm51 kNm51 kNm27 kNm35 kNm
    Pivoting moment25 kNm27 kNm27 kNm15.2 kNm15.2 kNm21.5 kNm21.5 kNm8.1 kNm11.9 kNm
    Independent oil supply with load-sensing pumpStandardStandardStandard–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model–Not on this model
    Crane controlEHC control with 2 Danfoss Profi1 joysticksEHC control with 2 Danfoss Profi1 joysticksEHC control with 2 Danfoss Profi1 joysticks8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope
    Clamshell gripperPm 230Pm 230Pm 230Pm 230Pm 230Pm 230Pm 230Pm 150Pm 230
    Options
    SpecificationL14L16L19P11+P13P15P17S6S8
    Tyres
    • 500/60-22.5″ Tianli Forestry Flotation
    • 600/50-22.5″ Trelleborg T404
    • 600/50-22.5″ Tianli Forestry Flotation
    • 560/45-22.5″
    • 700/40-22.5″ BKT Flotation
    		700/40-22.5″ BKT Flotation
    • 480/45-17″ grooved tread, with valve protection
    • 520/50-17″ grooved tread, with valve protection
    • 520/50-17″ grooved tread, with valve protection
    • 520/50-17″ 159B forestry wheel
    • 560/45-22.5″ stud profile, forestry wheel
    • 500/60-22.5″ Tianli Forestry Flotation
    • 560/45-22.5″ stud profile, forestry wheel
    • 600/50-22.5″ stud profile, forestry wheel
    • 600/50-22.5″ Tianli Forestry Flotation
    • 560/45-22.5″ stud profile, forestry wheel
    • 600/50-22.5″ Tianli Forestry Flotation
    		–Not on this model480/45-17″ grooved tread, with valve protection
    Fitted as standard560/45-22.5″
    • 600/50-22.5″ Trelleborg T404
    • Loading crane LK 7185 (8,300 mm, 70 kNm)
    • 600/50-22.5″ Trelleborg T404
    • Loading crane LK 7185 (8,300 mm, 70 kNm)
    		–Not on this model
    • 480/45-17″ grooved tread, with valve protection
    • 4-wheel air brake
    • Loading crane LK 4272 (7,140 mm crane length)
    		4-wheel air brake
    • 600/50-22.5″ stud profile, forestry wheel
    • 4-wheel air brake
    • Loading crane LK 51100 (9,950 mm crane length)
    		–Not on this model–Not on this model
    Cranes and control
    • EHC control with remote control unit
    • Loading crane LK 62100 (9,800 mm, 61 kNm)
    • Loading crane LK 7185 (8,300 mm, 70 kNm)
    • Loading crane LK 71100 (10,000 mm, 70 kNm)
    • EHC control with remote control unit
    • Loading crane LK 62100 (9,800 mm, 61 kNm)
    • Loading crane LK 71100 (10,000 mm, 70 kNm)
    • EHC control with remote control unit
    • Loading crane LK 62100 (9,800 mm, 61 kNm)
    • Loading crane LK 71100 (10,000 mm, 70 kNm)
    • Loading crane LK 4167 (6,620 mm crane length)
    • Loading crane LK 4272 (7,140 mm crane length)
    • Loading crane LK 4177 (7,550 mm crane length)
    • Loading crane LK 5180 (8,000 mm crane length)
    • Loading crane LK 5280 (7,800 mm crane length)
    • Loading crane LK 6180 (8,000 mm crane length)
    • Loading crane LK 6280 (7,800 mm crane length)
    • Loading crane LK 4282 double telescope (7,960 mm crane length)
    • Loading crane LK 5287 double telescope (8,730 mm crane length)
    • Loading crane LK 5186 (8,800 mm crane length)
    • Loading crane LK 5286 (8,600 mm crane length)
    • Loading crane LK 6186 (8,800 mm crane length)
    • Loading crane LK 6286 (8,600 mm crane length)
    • Z-Crane Z4389 (5,700 mm crane length)
    • Crane operation via EHC control block with wireless control unit
    • Loading crane LK 4177 (7,550 mm crane length)
    • Loading crane LK 5180 (8,000 mm crane length)
    • Loading crane LK 5280 (7,800 mm crane length)
    • Loading crane LK 6180 (8,000 mm crane length)
    • Loading crane LK 6280 (7,800 mm crane length)
    • Loading crane LK 4282 double telescope (7,960 mm crane length)
    • Loading crane LK 5287 double telescope (8,730 mm crane length)
    • Loading crane LK 5186 (8,800 mm crane length)
    • Loading crane LK 5286 (8,600 mm crane length)
    • Loading crane LK 6186 (8,800 mm crane length)
    • Loading crane LK 6286 (8,600 mm crane length)
    • Z-Crane Z4389 (5,700 mm crane length)
    • Z-Crane Z5376 (7,600 mm crane length)
    • Z-Crane Z5388 (8,800 mm crane length)
    • Crane operation via EHC control block with wireless control unit
    • Loading crane LK 6180 (8,000 mm crane length)
    • Loading crane LK 6280 (7,800 mm crane length)
    • Loading crane LK 5287 double telescope (8,730 mm crane length)
    • Loading crane LK 5186 (8,800 mm crane length)
    • Loading crane LK 5286 (8,600 mm crane length)
    • Loading crane LK 6186 (8,800 mm crane length)
    • Loading crane LK 6286 (8,600 mm crane length)
    • Loading crane LK 51100 (9,950 mm crane length)
    • Loading crane LK 61100 (9,950 mm crane length)
    • Z-Crane Z5376 (7,600 mm crane length)
    • Z-Crane Z5388 (8,800 mm crane length)
    • Crane operation via EHC control block with wireless control unit
    • Loading crane LK 6180 (8,000 mm crane length)
    • Loading crane LK 5186 (8,800 mm crane length)
    • Loading crane LK 5286 (8,600 mm crane length)
    • Loading crane LK 6186 (8,800 mm crane length)
    • Loading crane LK 6286 (8,600 mm crane length)
    • Loading crane LK 61100 (9,950 mm crane length)
    • Z-Crane Z5376 (7,600 mm crane length)
    • Z-Crane Z5388 (8,800 mm crane length)
    • Crane operation via EHC control block with wireless control unit
    		–Not on this model–Not on this model
    DrivepowerDRIVEpowerDRIVEpowerDRIVE
    • uniDRIVE
    • powerDRIVE
    • uniDRIVE
    • powerDRIVE
    • uniDRIVE
    • powerDRIVE
    		powerDRIVE–Not on this model–Not on this model
    Other–Not on this modelDraw bar tilt / spring suspension systemDraw bar tilt / spring suspension system
    • Independent hydraulic oil supply via piston pump
    • Crane cable winch with wireless control, 1.5 t tractive force
    • Pendulum with concealed hoses
    • Crane operating hours counter
    • Crane floodlights
    • Cut material box
    • Floor pan
    • Draw bar, bottom hitch
    • Ball hitch
    • Independent hydraulic oil supply via piston pump
    • Crane cable winch with wireless control, 1.5 t tractive force
    • Pendulum with concealed hoses
    • Crane operating hours counter
    • Crane floodlights
    • Cut material box
    • Floor pan
    • Draw bar, bottom hitch
    • Ball hitch
    • Independent hydraulic oil supply via piston pump
    • Crane cable winch with wireless control, 1.5 t tractive force
    • Pendulum with concealed hoses
    • Crane operating hours counter
    • Crane floodlights
    • Cut material box
    • Floor pan
    • Draw bar, bottom hitch
    • Ball hitch
    • Independent hydraulic oil supply via piston pump
    • Crane cable winch with wireless control, 1.5 t tractive force
    • Pendulum with concealed hoses
    • Crane operating hours counter
    • Crane floodlights
    • Cut material box
    • Floor pan
    • Draw bar, bottom hitch
    • Ball hitch
    • Independent hydraulic oil supply, incl. Cardan shaft
    • Crane cable winch with wireless control, 1.5 t tractive force
    • Cut material pan
    • DUO variant (tipper bed)
    • Stanchion pair insertion in the rear
    • Independent hydraulic oil supply, incl. Cardan shaft
    • Crane cable winch with wireless control, 1.5 t tractive force
    • Pendulum with internal concealed hoses
    • Cut material pan
    • DUO variant (tipper bed)
    • Stanchion pair insertion in the rear
    • Crane floodlights
    Brakes–Not on this model–Not on this model–Not on this model
    • Hydraulic 4-wheel brake
    • 4-wheel overrun brake automatic jolt control
    • 4-wheel air brake
    • Combi brake (air brake and hydraulic 4-wheel brake)
    • Hydraulic 4-wheel brake
    • Combi brake (air brake and hydraulic 4-wheel brake)
    • Hydraulic 4-wheel brake
    • Combi brake (air brake and hydraulic 4-wheel brake)
    • Hydraulic 4-wheel brake
    • Combi brake (air brake and hydraulic 4-wheel brake)
    		Overrun brake with 2-wheel hydraulic brake
    • 4-wheel hydraulic brake
    • 2-wheel air brake with 2-wheel hydraulic brake
    • 4-wheel Overrun brake with automatic jolt control and hydraulic auxiliary brake
    • 4-wheel pneumatic brake system

    Documents and data sheets

    Pfanzelt's data sheet for the L14, L16 and L19: data sheet (PDF)

    Pfanzelt's data sheet for the P11+, P13, P15 and P17: data sheet (PDF)

    Pfanzelt's data sheet for the S6 and S8: data sheet (PDF)
