Menzi Muck M515

Menzi Muck M515

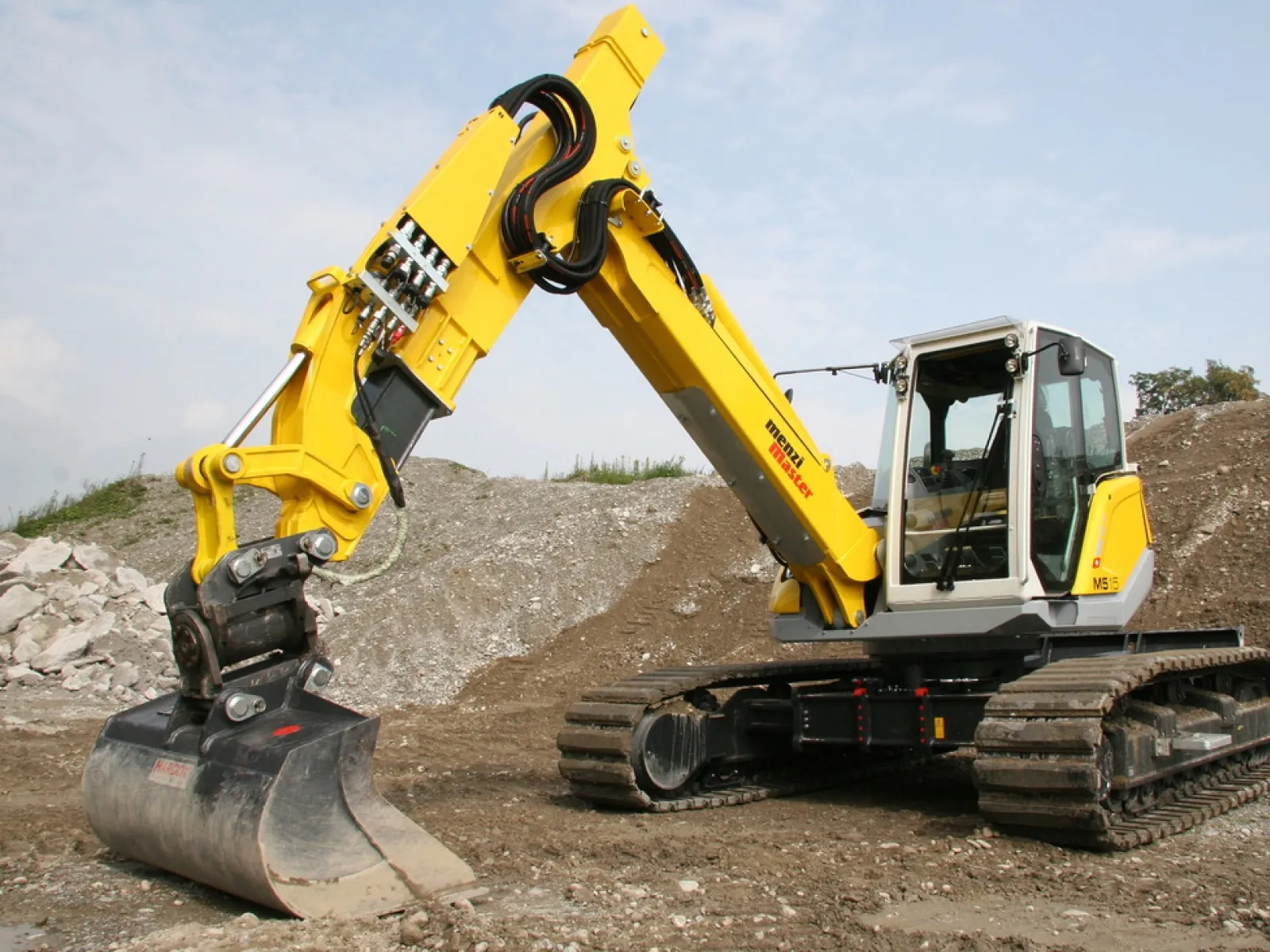

The M515 Menzi Master is a 14-tonne tracked excavator with a track gauge that adjusts from 1,900 to 2,900 mm, a 115 kW Deutz engine and zero tail swing, for low-ground-pressure work.

The M515 Menzi Master has a long track chassis with a track gauge that adjusts from 1,900 to 2,900 mm, for stability on slopes. Its 600 mm tracks give a ground pressure of 0.35 kg/cm² (0.25 kg/cm² on 900 mm tracks) and it has a climbing ability of 94%. Zero tail swing and special wide-angle kinematics give it a wide working envelope and a short front-turn radius.

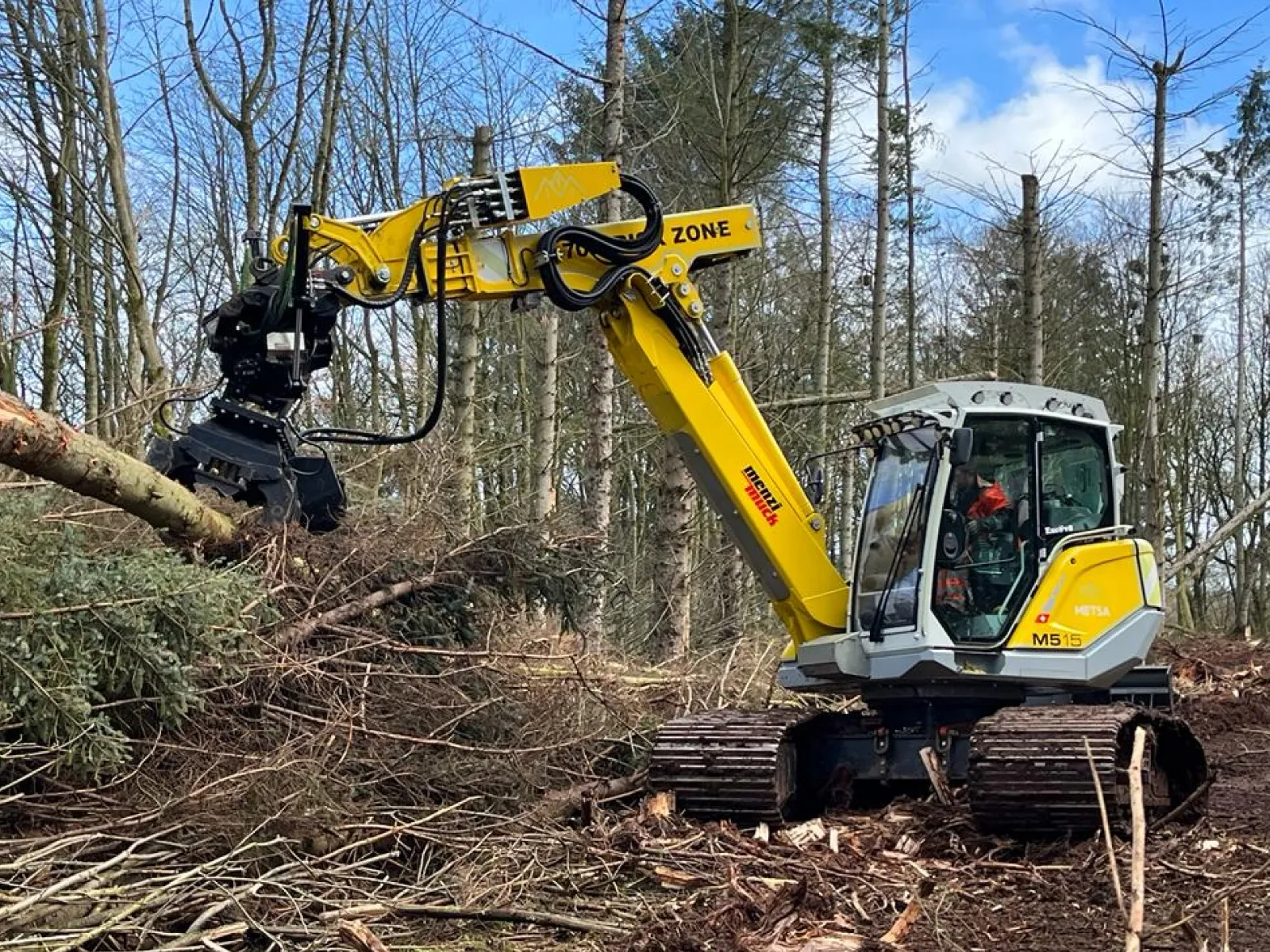

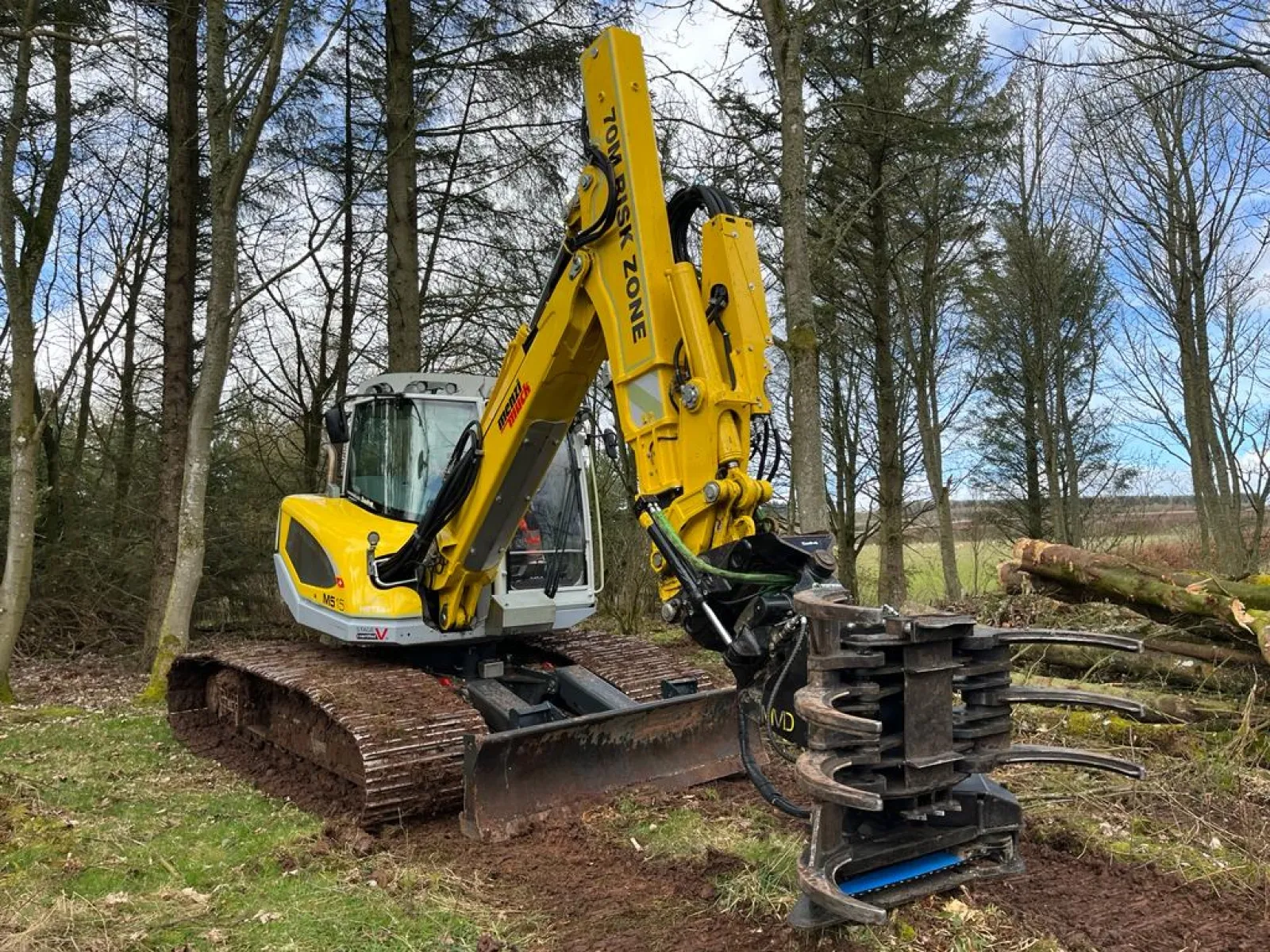

A 115 kW Deutz Turbo-Diesel engine drives Rexroth load-sensing hydraulics with four circuits on the boom (circuits 3 and 4 are options), a return line for a hydraulic hammer, a winch preparation on the chassis and an optional Powerline of up to 220 l/min on a separate pump for hydraulic attachments. The APM controller cuts fuel use by up to 30% by matching engine and hydraulics moment to moment. Lifting capacity reaches 9,200 kg at a 3 m radius, from an unladen weight of 14,500 kg, so it can carry heavy attachments on a machine this size, in low-ground-pressure, forestry, environmental, conservation, waterways, clearance, demolition and recycling work.

Menzi Muck M515

Power
115 kW (157 PS)
Weight
14,500 kg without tools
Lifting capacity
9,200 kg at 3.0 m
Undercarriage
3,800 mm long, adjustable gauge

Technical data: Menzi Muck M515

Features
Key features
  • Long track chassis with adjustable track gauge, 1,900 to 2,900 mm
  • Zero tail swing
  • Tracks 600 mm wide (0.35 kg/cm² ground pressure) or 900 mm (0.25 kg/cm²)
  • Climbing ability 94%
  • APM controller — fuel savings of up to 30%
Engine and hydraulics
Engine
Deutz 4-cylinder Turbo-Diesel — 115 kW / 157 PS at 2,000 rpm
Displacement
4,100 cm³
Hydraulic system
Load Sensing by Rexroth
Powerline
Optional: up to 220 l/min, on a separate pump with priority supply
Hydraulic circuits
Boom: circuit 1 up to 200 l/min, circuit 2 up to 100 l/min, circuit 3 up to 50 l/min (option), circuit 4 for a hydraulic quick changer (option), return line for a hydraulic hammer. Chassis: winch preparation up to 80 l/min
Undercarriage, lifting and weight
Undercarriage length
3,800 mm
Lifting capacity @ 3.0 m
9,200 kg
Weight (without tools)
14,500 kg
Transport speed
up to 6 km/h

Applications
