Jakob Square-Link Forestry Chain Class 10
Jakob's square-link forestry chain, class 10, is a high-strength chain painted blue with 2-fold safety, in 8 mm (working load limit 50 kN) and 10 mm (80 kN). It is not approved for lifting loads.
- Square-link forestry chain, class 10, in high-strength quality
- Painted blue, with 2-fold safety
- 8 mm (working load limit 50 kN) and 10 mm (80 kN)
- Not approved for lifting loads
Overview
The chain comes in two sizes: 8 mm with a working load limit of 50 kN, and 10 mm with 80 kN. It is made for safe and reliable work, in high-strength quality.
This chain is not approved for lifting loads.
Sizes

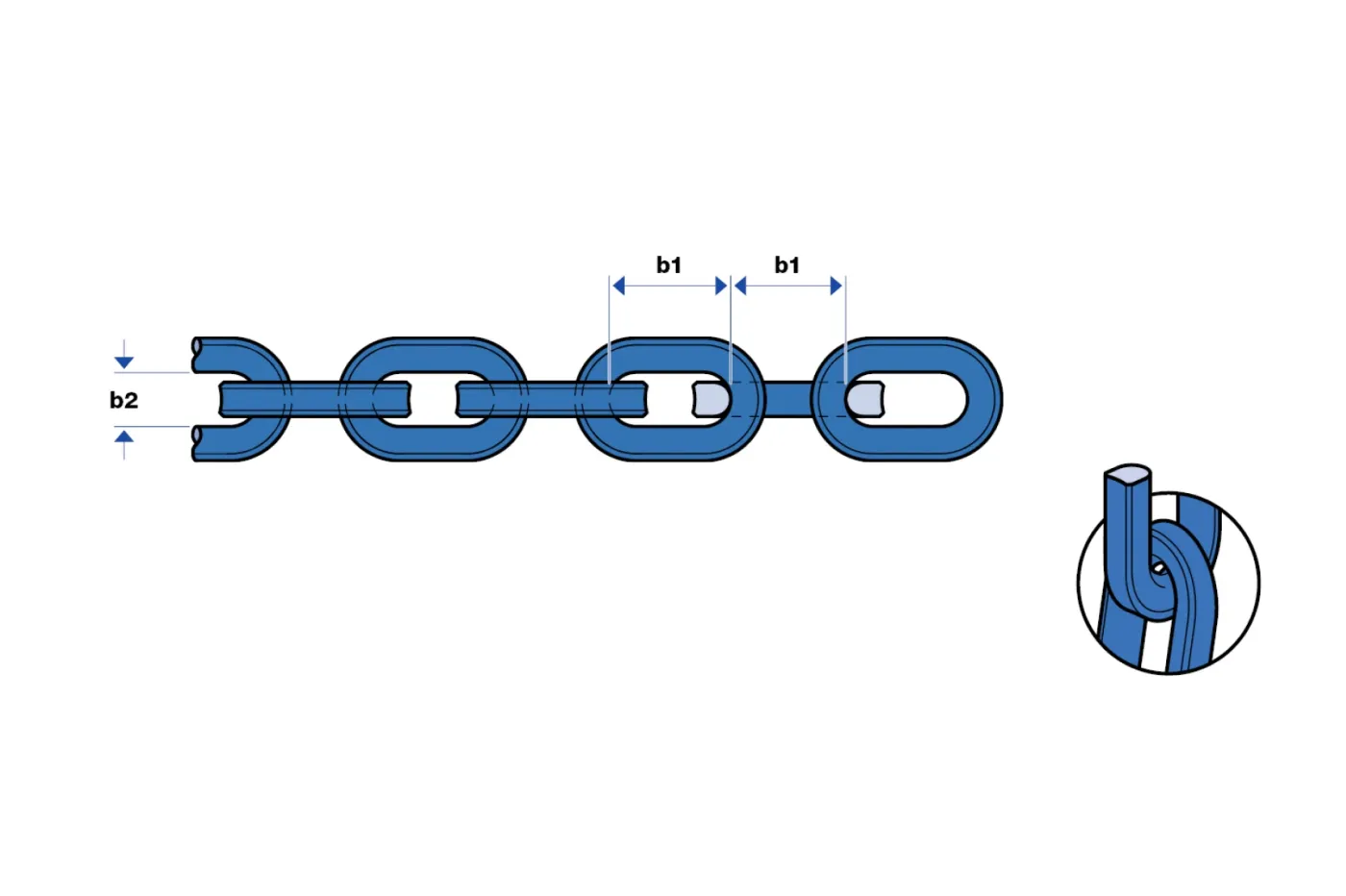

The table gives each size’s Jakob article number, link dimensions b1 and b2 (as marked on the drawing), working load limit and weight. Jakob makes other sizes on request.
Ordering
Tell us the size and length you need and we will confirm what can be supplied.
Quick answers
Can I use it for lifting? No. This chain is not approved for lifting loads.
Can I buy Jakob forestry chain in the UK? Yes. Exc@v8 supplies Jakob’s forestry rope and chain across the UK and Ireland. Use the form below or call us.
Sizes in this range
| Designation | Jakob article no. | b1 (mm) | b2 (mm) | Working load limit (kN) | Weight (kg) |
|---|---|---|---|---|---|
| 8 mm | 80100-0800-0410 | 28 | 12 | 50 | 1.963 |
| 10 mm | 80100-1000-0410 | 35 | 13 | 80 | 2.353 |
