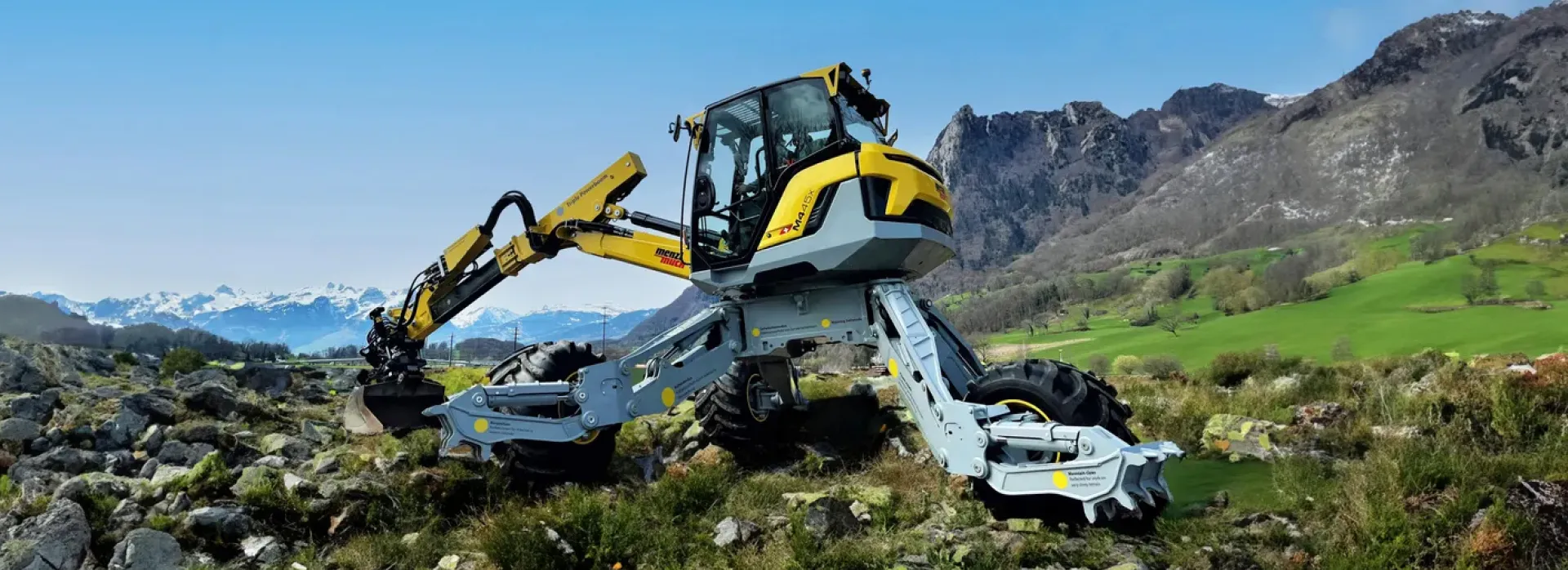

Menzi Muck M4X
The Menzi Muck M4X walking spider excavator comes in three models, the M425X, M435X and M445X, from 10,600 kg to 11,500 kg. All three share a 105 kW Deutz engine and Menzi's I-Control hydraulics, with an X-basis undercarriage for stability and manoeuvrability in demanding terrain and an overhead boom cylinder that raises push-off force to over 200%.
One engine, one hydraulic system
All three M4X models — M445X, M435X and M425X — share the same 105 kW Deutz engine and Menzi's I-Control hydraulics. They differ in undercarriage, drive and weight (from 10,600 kg on the M425X, 11,400 kg on the M435X and 11,500 kg on the M445X), so the choice between them comes down to ground conditions and weight, not power.
Read more
All three M4X models — M445X, M435X and M425X — share the same 105 kW Deutz engine and Menzi's I-Control hydraulics. They differ in undercarriage, drive and weight (from 10,600 kg on the M425X, 11,400 kg on the M435X and 11,500 kg on the M445X), so the choice between them comes down to ground conditions and weight, not power.
P-Vation symmetrical stabilisation
P-Vation moves the wheels in parallel, both horizontally and vertically, so the machine can work close to the slope, with a maximum wheel width adjustment of over 5,500 mm. It's fitted to the M435X and M445X.
Read more
P-Vation moves the wheels in parallel, both horizontally and vertically, so the machine can work close to the slope, with a maximum wheel width adjustment of over 5,500 mm. It's fitted to the M435X and M445X.
Choose from the Menzi Muck M4X models

Menzi Muck M425X
- Hydrostatic Menzi drive
- Two removable quick-release axles with wheels
- Hydraulic telescopic stabiliser
- Weight: down to 10’600 kg
From 10.6 tonnes

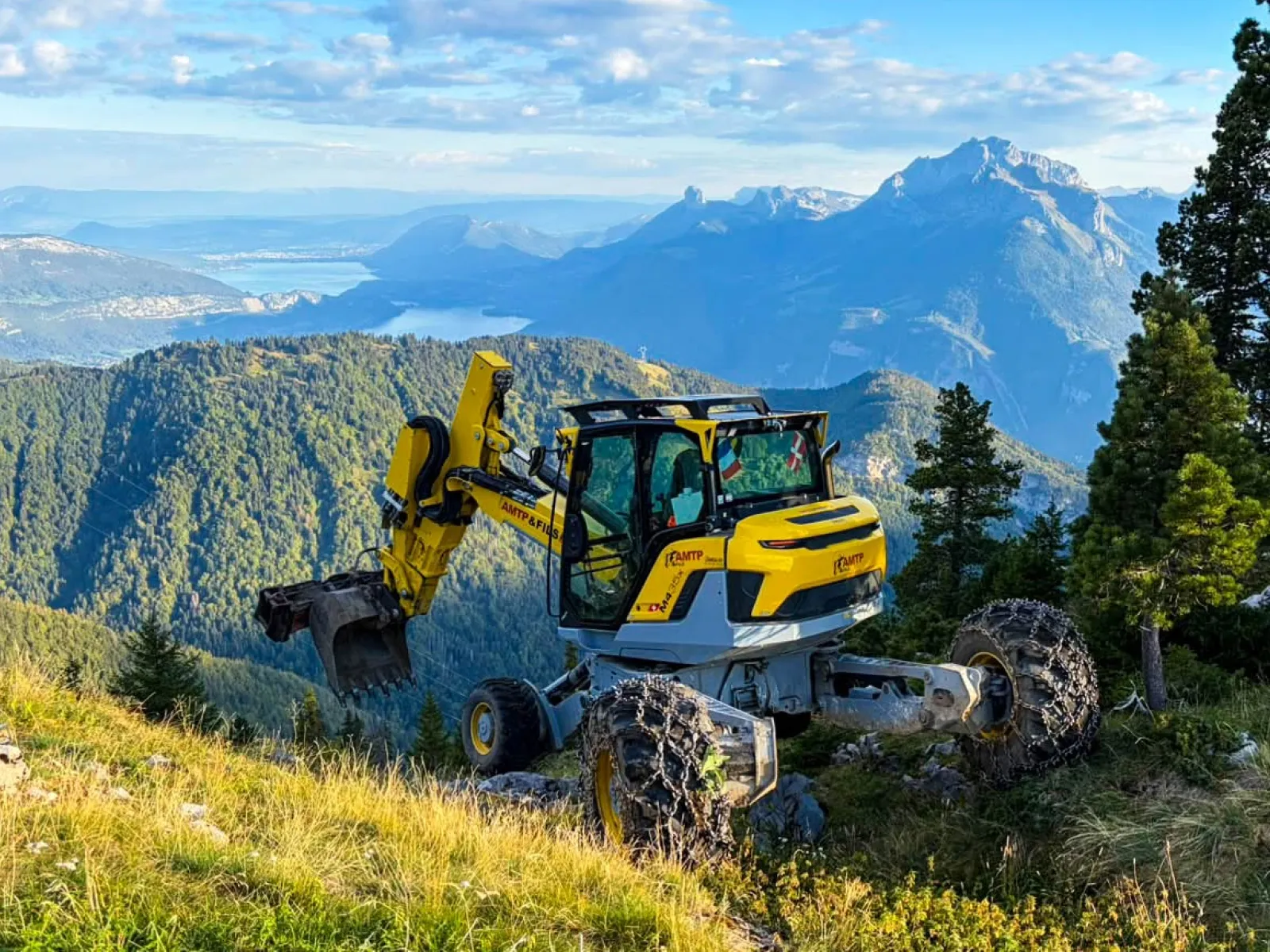

Menzi Muck M435X
- Hydrostatic Menzi H-Drive all-wheel drive
- P-Vation parallel support by Menzi
- Hydraulic wheel height adjustment of the steering wheels
- Hydraulic telescopic stabiliser
- Weight: down to 11’400 kg
From 11.4 tonnes

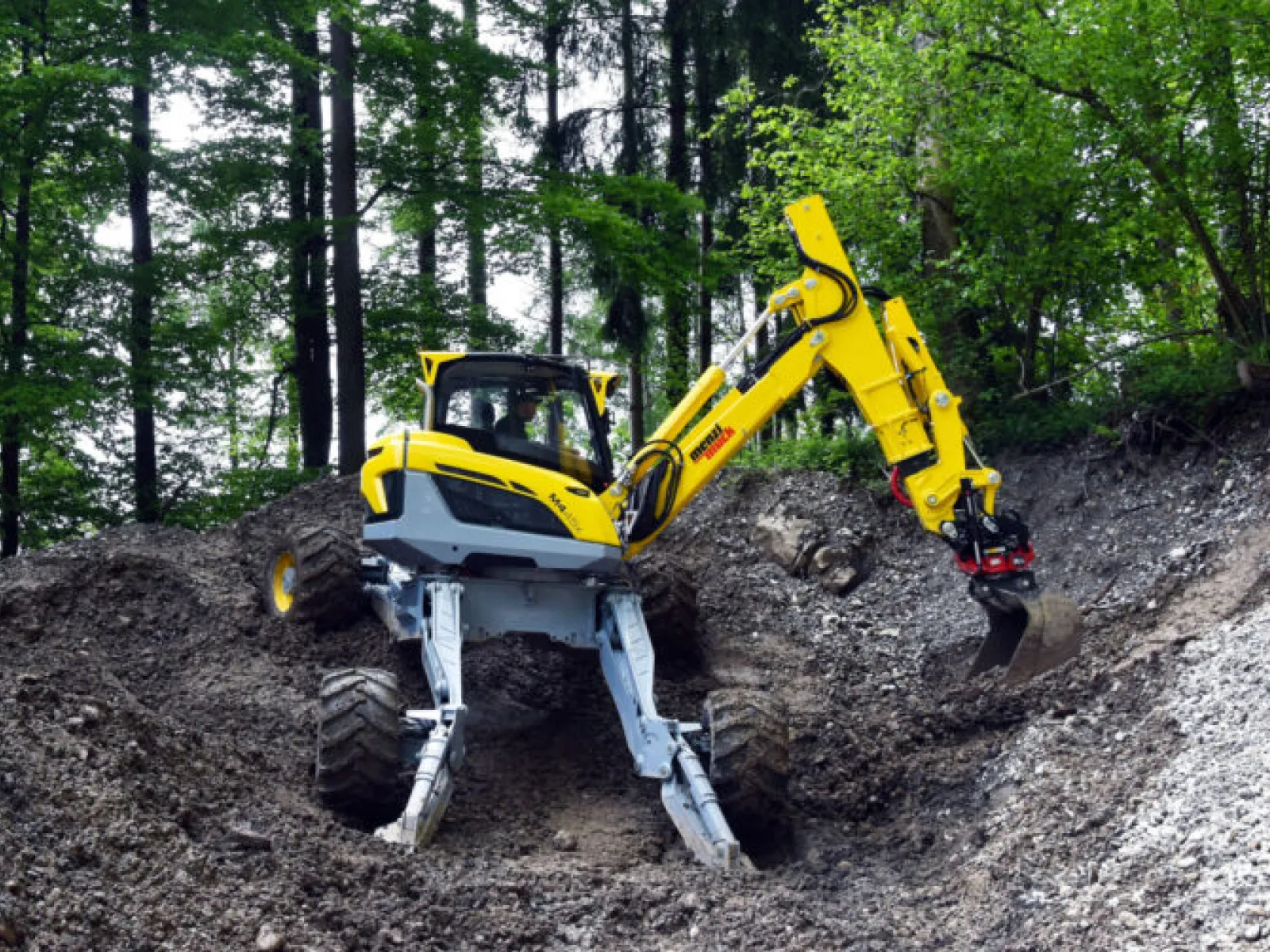

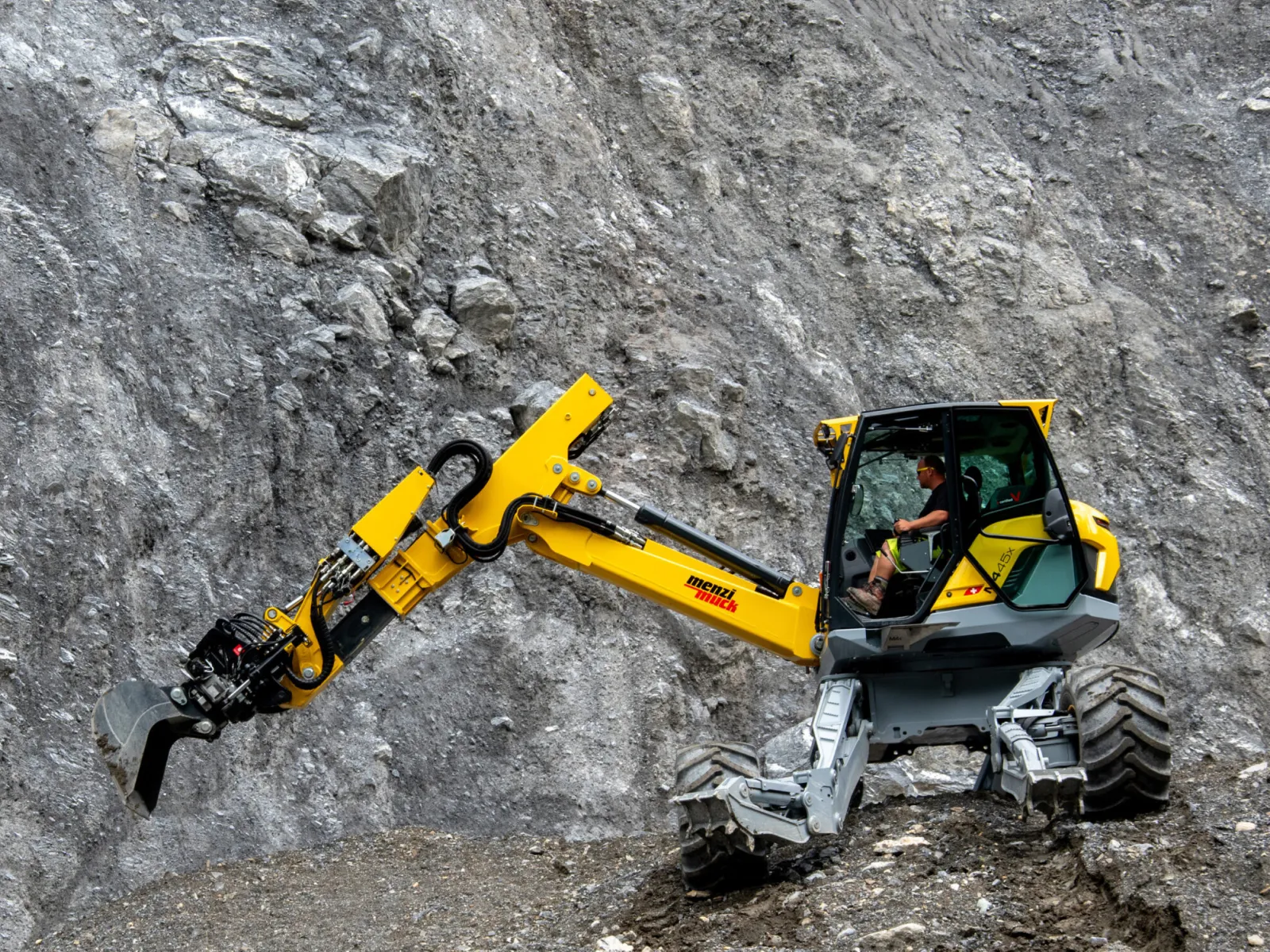

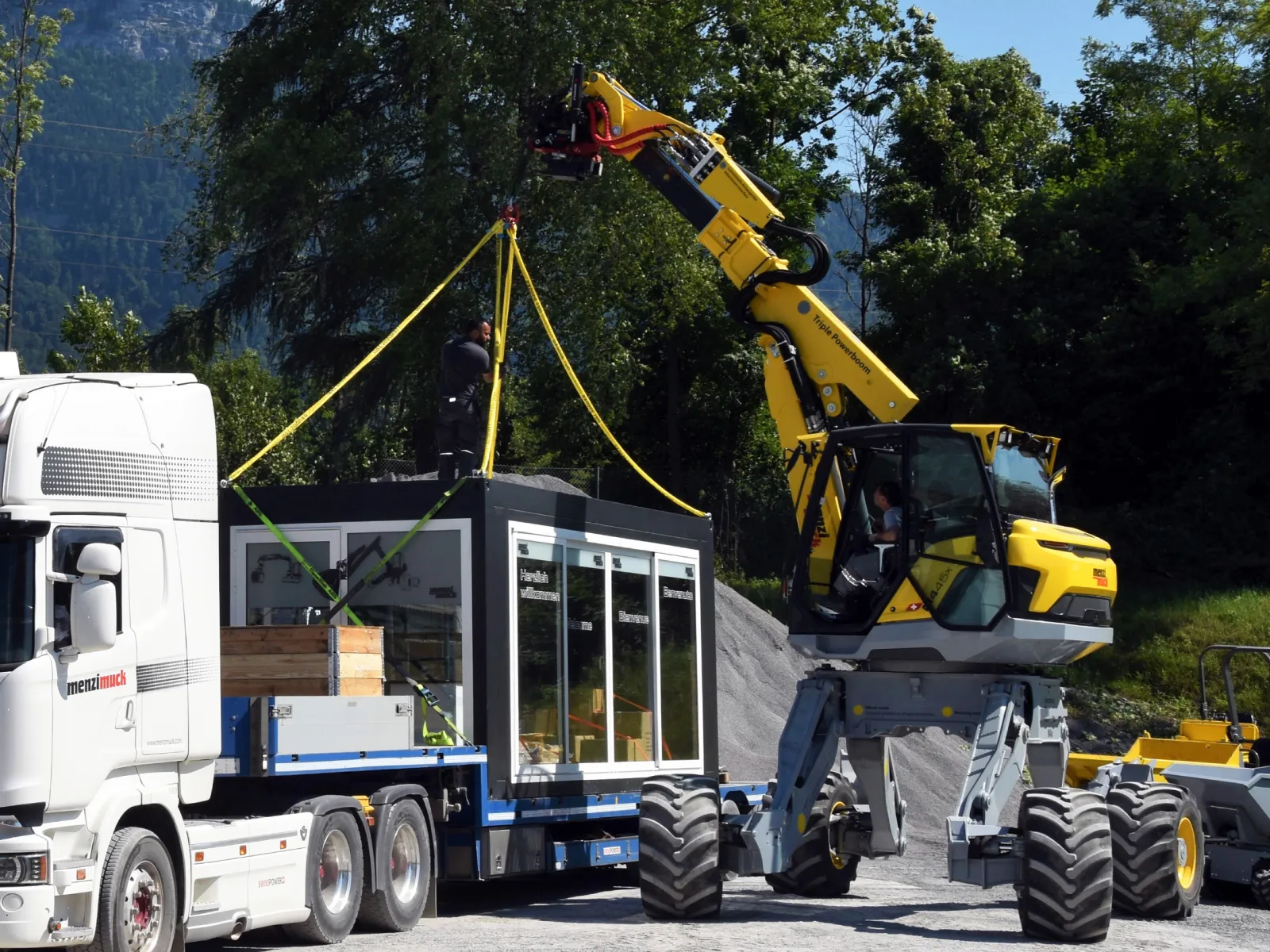

Menzi Muck M445X
- Hydrostatic Menzi H-Drive all-wheel drive
- P-Vation parallel support by Menzi Muck
- Four equally sized wheels, width up to 710 mm
- Hill supports (front and/or rear optional)
- Weight: down to 11’500 kg
From 11.5 tonnes
Speak to us about theMenzi Muck M4X
EnquireCompare the models
Every specification listed for the 3 models, side by side.
Key figures
| Specification | M425X | M435X | M445X |
|---|---|---|---|
| Power | 105 kW (143 hp) | 105 kW (143 hp) | 105 kW (143 hp) |
| Weight | From 10,600 kg | From 11,400 kg | From 11,500 kg |
| Drive | Hydrostatic Menzi drive | Hydrostatic H-Drive all-wheel drive | Hydrostatic H-Drive all-wheel drive |
| Undercarriage | Two removable quick-release axles | Hydraulic wheel height adjustment | Four wheels, up to 710 mm wide |
Chassis
| Specification | M425X | M435X | M445X |
|---|---|---|---|
| Drive | Hydrostatic Menzi drive | Hydrostatic Menzi H-Drive all-wheel drive | Hydrostatic Menzi H-Drive all-wheel drive |
| Features |
|
|
|
| Weight | From 10,600 kg | From 11,400 kg | From 11,500 kg |
Engine and electrics
| Specification | M425X | M435X | M445X |
|---|---|---|---|
| Engine | Deutz Turbo diesel engine 4-cylinder — 105 kW / 143 hp | Deutz Turbo diesel engine 4-cylinder — 105 kW / 143 hp | Deutz Turbo diesel engine 4-cylinder — 105 kW / 143 hp |
| Displacement | 3,621 cm³ | 3,621 cm³ | 3,621 cm³ |
| Electrical system | 24 V | 24 V | 24 V |
| Starter motor | 4.0 kW | 4.0 kW | 4.0 kW |
| Service intervals | 500 h | 500 h | 500 h |
Hydraulics
| Specification | M425X | M435X | M445X |
|---|---|---|---|
| Hydraulic system | I-Control by Menzi Muck | I-Control by Menzi Muck | I-Control by Menzi Muck |
| Working pump | 260 l/min; 300 bar | 260 l/min; 300 bar | 260 l/min; 300 bar |
| Travelling pump | 180 l/min; 400 bar | 180 l/min; 400 bar | 180 l/min; 400 bar |
| Powerline | 150 l/min (optional) | 150 l/min (optional) | 150 l/min (optional) |
Slewing
| Specification | M425X | M435X | M445X |
|---|---|---|---|
| Swivelling speed | up to 10 rpm | up to 10 rpm | up to 10 rpm |
Applications
Documents and data sheets
Menzi Muck's full data sheet covers every model in one file: full data sheet (PDF)
