M220
The M220 is Menzi Muck's M2 walking excavator — an economical option for demanding work, with a 75 hp turbo diesel and an assembly concept that breaks it down for transport by helicopter, cable car or crane.
- Two-stage travel drive with self-adjusting parallel steering
- Two removable quick-release axles with wheels
- Hydraulic telescopic stabiliser
- Weight: down to 7’100 kg
Technical data
| Engine | Deutz Turbo diesel engine 4-cylinder — 55 kW / 75 HP |
|---|---|
| Displacement | 2,900 ccm |
| Electrical system | 12 V |
| Service intervals | 500 h |
| Hydraulic system | Load Sensing by Rexroth |
| Working pump | 230 L/min.; 280 bar |
| Travelling pump | 60 L/min.; 250 bar |
| Swivelling speed | up to 9 U/min. |
Overview

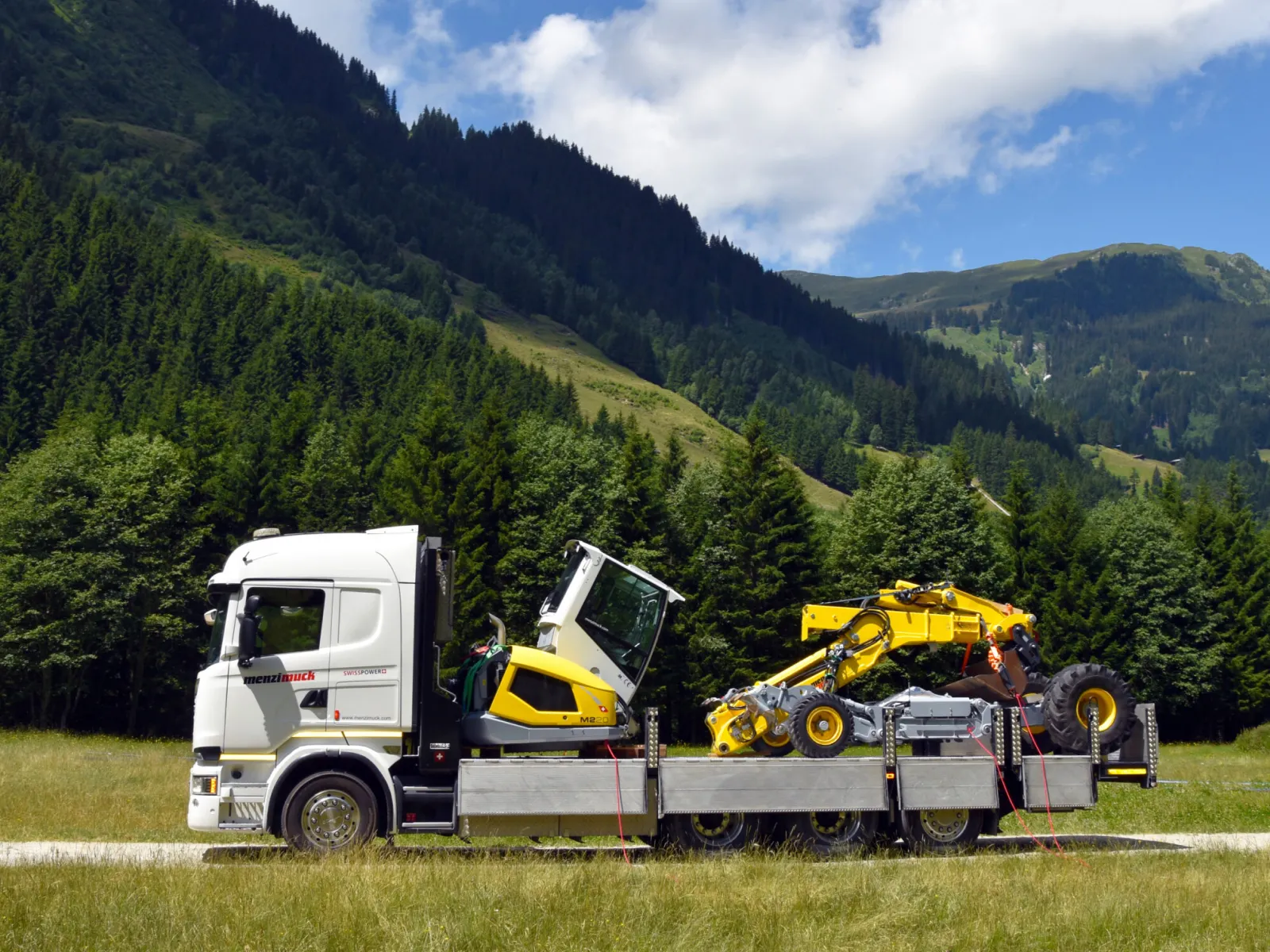

The M220’s assembly concept lets it be dismantled in a few steps into the package sizes needed for transport by helicopter, cable car or crane, with auxiliary equipment that makes the job much easier. It runs on two removable quick-release axles with wheels and a hydraulic telescopic stabiliser, with a two-stage travel drive and self-adjusting parallel steering. Its 75 hp four-cylinder Deutz turbo diesel complies with the latest emission standards.
