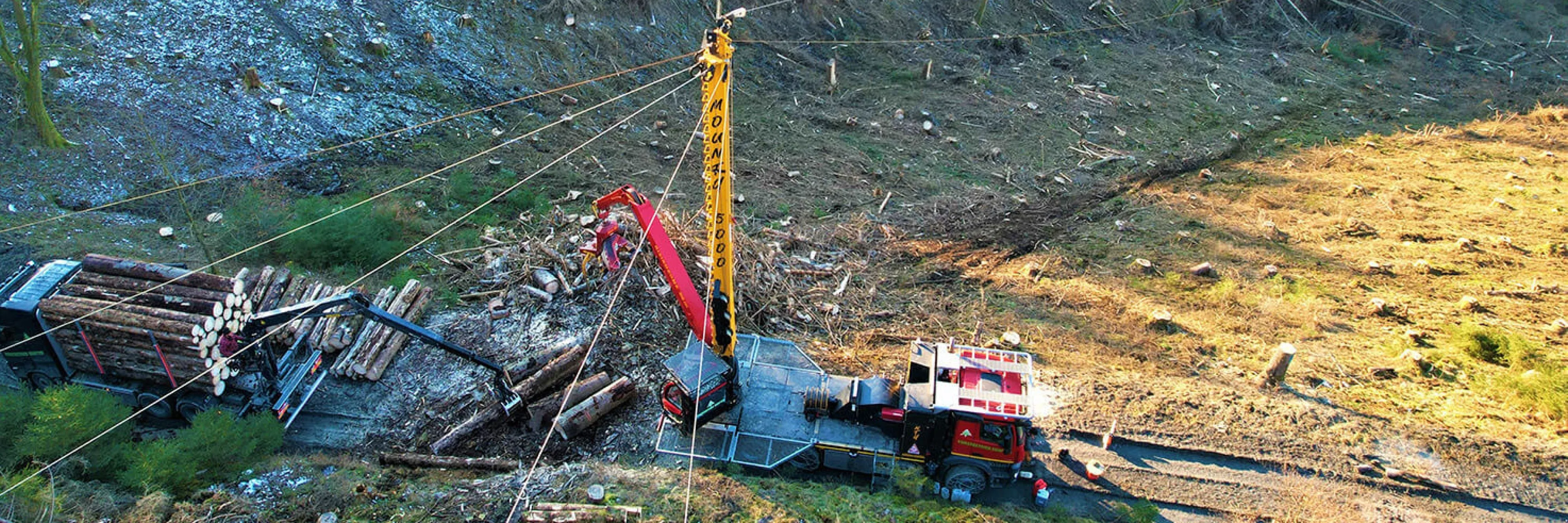

Konrad Mounty 5000 Tower Yarder
The largest Mounty, developed for long cable lines and strong timber on steep slopes: a cable crane system on a four-axle Mercedes Arocs 8×6 truck, with a 14.2 m tower and lines of 800 m.
Truck-mounted
Every Mounty is built on a Mercedes Arocs 6×6 or 8×6 truck, with other carriers on request, and a tower of 13.0 to 14.2 m.
Read more
Every Mounty is built on a Mercedes Arocs 6×6 or 8×6 truck, with other carriers on request, and a tower of 13.0 to 14.2 m.
Uphill and downhill
The Mounty works uphill and downhill. Downhill it runs Konrad's radio-controlled Liftliner carriage in the haul-back system, and the wide tower protects the operator.
Read more
The Mounty works uphill and downhill. Downhill it runs Konrad's radio-controlled Liftliner carriage in the haul-back system, and the wide tower protects the operator.
Crane and head on board
A loading crane of 200 or 220 kNm with a reach of 9.6 to 9.9 m carries a Konrad Woody harvester head, all run on Konrad's KTC 1.0 control and KFS radio remote control.
Read more
A loading crane of 200 or 220 kNm with a reach of 9.6 to 9.9 m carries a Konrad Woody harvester head, all run on Konrad's KTC 1.0 control and KFS radio remote control.
Speak to us about theMounty 5000
EnquireKonrad Mounty 5000
- Tower height
- 14.2 m
- Main line pull
- 47 kN
- Operating length
- 800 m
- Power
- 450 PS
Technical data: Konrad Mounty 5000
General
- Carrier vehicle
- Mercedes Arocs AK 4145 8×6; other carriers on request
- Power
- 450 PS
- Weight
- 31,000–35,000 kg, depending on version
- Transport dimensions (L × W × H)
- 13.09 × 2.50 × 4.00 m
- Tower height
- 14.2 m (3-rope version with skyline discharger)
- Tilt angle
- ±6.5°
- Control system
- KTC 1.0
- Radio remote control
- KFS-16, KFS-20
- Harvester heads
- Konrad Woody W52, WH50-1 or WH60-1
Cable crane
- Skyline winch
- 22 mm, 800 m (standard and long-rope); 120 kN
- Main line winch
- Standard: 12 mm, 700 m
- Long-rope: 12 mm, 800 m
- Pulling force: 47 kN
- Guy line winch
- Standard: 20 mm, 60 m
- Long-rope: 18 mm, 70 m
- Pulling force: 9 kN
- Straw line winch (optional)
- Standard: 7 mm, 1,400 m
- Long-rope: 7 mm, 1,600 m
- Pulling force: 18 kN
- Haul-back winch (optional)
- Standard: 11 mm, 1,400 m
- Long-rope: 11 mm, 1,600 m
- Pulling force: 40 kN
Crane
- Crane
- MT24
- Lifting torque
- 220 kNm
- Slewing torque
- 40 kNm
- Slewing range
- 350°
- Reach
- 9.9 m
Hydraulics
- Cable crane pumps
- Axial piston pumps, closed circuit, max. 460 bar
- Working pump
- Axial piston pump, open circuit, max. 350 bar
- Power take-off pump
- Axial piston pump, open circuit, max. 100 bar
- Hydraulic oil tank
- 400 l
Working uphill and downhill
The Mounty works uphill and downhill. Downhill, it runs Konrad’s radio-controlled Liftliner carriage in the haul-back system: the lifting winch in the carriage lets it travel along the skyline and pull in logs at the same time, which takes load off the crew and shortens work cycles. When working downhill, the wide tower protects the operator.
