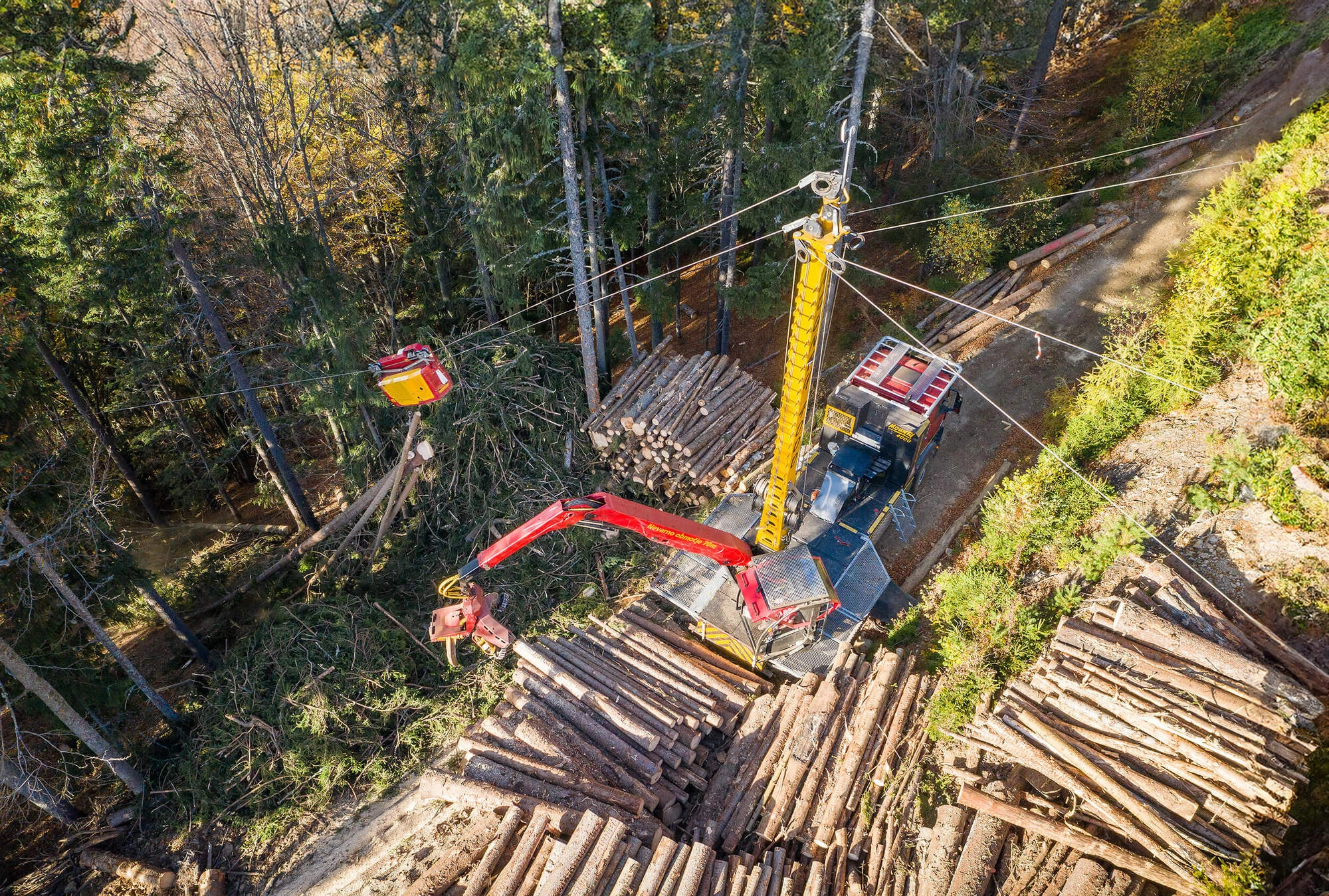

Konrad Mounty Tower Yarder

Name: Exc@v8 Group
Address: Unit 15A, Mealbank Mill Industrial Estate, Kendal, Cumbria, LA8 9DL, GB
Telephone: 01539 729999

The Konrad Mounty is a truck-mounted tower yarder for timber harvesting on steep slopes, with a cable crane system and loading crane on a Mercedes Arocs truck, in three sizes: the Mounty 3000, 4000 and 5000.

Truck-mounted
Every Mounty is built on a Mercedes Arocs 6×6 or 8×6 truck, with other carriers on request, and a tower of 13.0 to 14.2 m.
Read more
Every Mounty is built on a Mercedes Arocs 6×6 or 8×6 truck, with other carriers on request, and a tower of 13.0 to 14.2 m.
Uphill and downhill
The Mounty works uphill and downhill. Downhill it runs Konrad's radio-controlled Liftliner carriage in the haul-back system, and the wide tower protects the operator.
Read more
The Mounty works uphill and downhill. Downhill it runs Konrad's radio-controlled Liftliner carriage in the haul-back system, and the wide tower protects the operator.
Crane and head on board
A loading crane of 200 or 220 kNm with a reach of 9.6 to 9.9 m carries a Konrad Woody harvester head, all run on Konrad's KTC 1.0 control and KFS radio remote control.
Read more
A loading crane of 200 or 220 kNm with a reach of 9.6 to 9.9 m carries a Konrad Woody harvester head, all run on Konrad's KTC 1.0 control and KFS radio remote control.

Konrad Mounty 3000

The Mounty for thinning on steep slopes, with a cable crane system and loading crane designed for processing mainly small-diameter wood quickly, on a Mercedes Arocs 6×6 truck.

Tower height: 13.0 m
Main line pull: 30 kN
Operating length: 500 m, 700 m long-rope
Power: 420 PS

Konrad Mounty 4000

The all-round Mounty, from thinning to heavy timber harvesting, on a Mercedes Arocs 6×6 or 8×6 truck, with lines up to 800 m long.

Tower height: 13.0 m
Main line pull: 47 kN
Operating length: 600 m, 800 m long-rope
Power: 420 or 450 PS

Konrad Mounty 5000

The largest Mounty, developed for long cable lines and strong timber on steep slopes: a cable crane system on a four-axle Mercedes Arocs 8×6 truck, with a 14.2 m tower and lines of 800 m.

Tower height: 14.2 m
Main line pull: 47 kN
Operating length: 800 m
Power: 450 PS

Compare the models

Only what differs. Everything else is the same on all 3 models.

Key figures

Specification	Mounty 3000	Mounty 4000	Mounty 5000
Tower height	13.0 m	13.0 m	14.2 m
Main line pull	30 kN	47 kN	47 kN
Operating length	500 m, 700 m long-rope	600 m, 800 m long-rope	800 m
Power	420 PS	420 or 450 PS	450 PS

General

Specification	Mounty 3000	Mounty 4000	Mounty 5000
Carrier vehicle	Mercedes Arocs AK 3342 6×6; other carriers on request	Mercedes Arocs AK 3342 6×6 or Mercedes Arocs AK 4145 8×6; other carriers on request	Mercedes Arocs AK 4145 8×6; other carriers on request
Power	420 PS	420 or 450 PS	450 PS
Weight	26,000–29,000 kg, depending on version	28,000–32,000 kg, depending on version	31,000–35,000 kg, depending on version
Transport dimensions (L × W × H)	11.90 × 2.50 × 4.00 m	11.90 × 2.50 × 4.00 m	13.09 × 2.50 × 4.00 m
Tower height	13.0 m (3-rope version with skyline discharger)	13.0 m (3-rope version with skyline discharger)	14.2 m (3-rope version with skyline discharger)
Harvester heads	Konrad Woody WH50-1 or WH60-1	Konrad Woody WH50-1 or WH60-1	Konrad Woody W52, WH50-1 or WH60-1

Cable crane

Specification	Mounty 3000	Mounty 4000	Mounty 5000
Skyline winch	Standard: 18 mm, 500 m Long-rope: 18 mm, 700 m Pulling force: 100 kN	22 mm, 800 m (standard and long-rope); 120 kN	22 mm, 800 m (standard and long-rope); 120 kN
Main line winch	Standard: 11 mm, 500 m Long-rope: 11 mm, 700 m Pulling force: 30 kN	Standard: 12 mm, 700 m Long-rope: 12 mm, 800 m Pulling force: 47 kN	Standard: 12 mm, 700 m Long-rope: 12 mm, 800 m Pulling force: 47 kN
Guy line winch	Standard: 18 mm, 60 m Long-rope: 18 mm, 70 m Pulling force: 9 kN	Standard: 20 mm, 60 m Long-rope: 18 mm, 70 m Pulling force: 9 kN	Standard: 20 mm, 60 m Long-rope: 18 mm, 70 m Pulling force: 9 kN
Straw line winch (optional)	Standard: 7 mm, 1,000 m Long-rope: 7 mm, 1,400 m Pulling force: 18 kN	Standard: 7 mm, 1,400 m Long-rope: 7 mm, 1,600 m Pulling force: 18 kN	Standard: 7 mm, 1,400 m Long-rope: 7 mm, 1,600 m Pulling force: 18 kN
Haul-back winch (optional)	Standard: 10 mm, 1,100 m Long-rope: 10 mm, 1,400 m Pulling force: 30 kN	Standard: 11 mm, 1,400 m Long-rope: 11 mm, 1,600 m Pulling force: 40 kN	Standard: 11 mm, 1,400 m Long-rope: 11 mm, 1,600 m Pulling force: 40 kN

Crane

Specification	Mounty 3000	Mounty 4000	Mounty 5000
Crane	MT22	MT24	MT24
Lifting torque	200 kNm	220 kNm	220 kNm
Reach	9.6 m	9.9 m	9.9 m

Konrad Liftliner carriage on the skyline above a Mounty tower yarder

Working uphill and downhill

The Mounty works uphill and downhill. Downhill, it runs Konrad’s radio-controlled Liftliner carriage in the haul-back system: the lifting winch in the carriage lets it travel along the skyline and pull in logs at the same time, which takes load off the crew and shortens work cycles. When working downhill, the wide tower protects the operator.

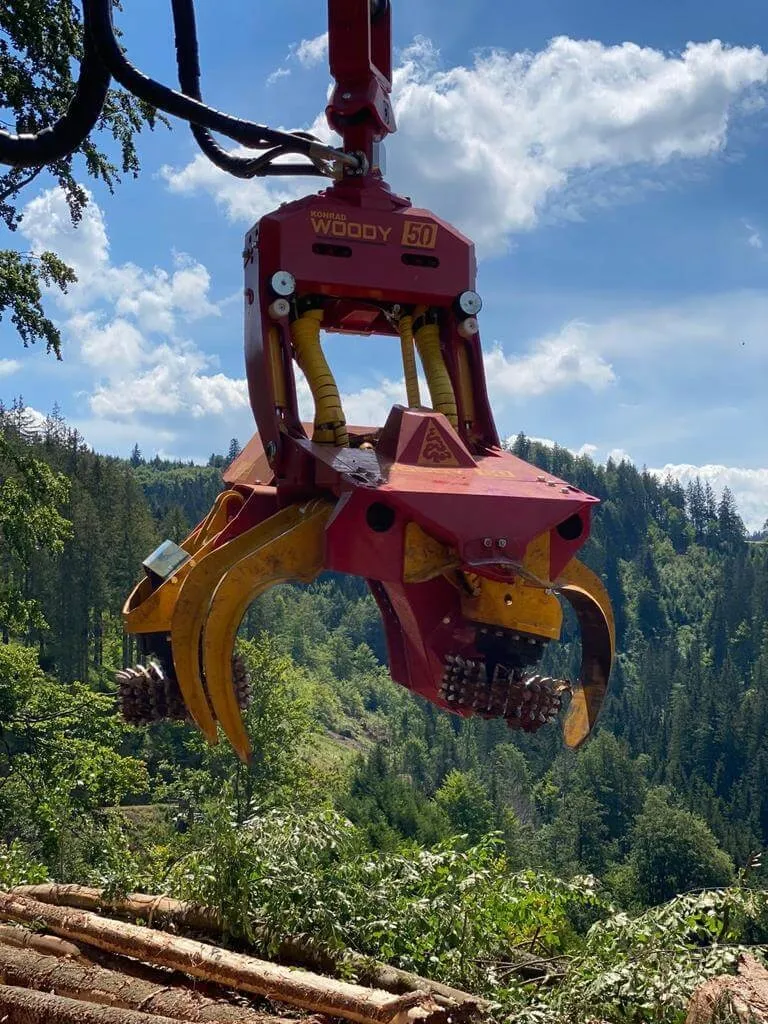

Konrad Woody WH50-1 harvester head on a crane

Harvester heads

The Mounty’s loading crane takes Konrad’s own Woody harvester heads, the WH50-1 or the WH60-1.

Technical data: Konrad Mounty 3000

General

Carrier vehicle: Mercedes Arocs AK 3342 6×6; other carriers on request
Power: 420 PS
Weight: 26,000–29,000 kg, depending on version
Transport dimensions (L × W × H): 11.90 × 2.50 × 4.00 m
Tower height: 13.0 m (3-rope version with skyline discharger)
Tilt angle: ±6.5°
Control system: KTC 1.0
Radio remote control: KFS-16, KFS-20
Harvester heads: Konrad Woody WH50-1 or WH60-1

Cable crane

Skyline winch: Standard: 18 mm, 500 m
Long-rope: 18 mm, 700 m
Pulling force: 100 kN
Main line winch: Standard: 11 mm, 500 m
Long-rope: 11 mm, 700 m
Pulling force: 30 kN
Guy line winch: Standard: 18 mm, 60 m
Long-rope: 18 mm, 70 m
Pulling force: 9 kN
Straw line winch (optional): Standard: 7 mm, 1,000 m
Long-rope: 7 mm, 1,400 m
Pulling force: 18 kN
Haul-back winch (optional): Standard: 10 mm, 1,100 m
Long-rope: 10 mm, 1,400 m
Pulling force: 30 kN

Crane

Crane: MT22
Lifting torque: 200 kNm
Slewing torque: 40 kNm
Slewing range: 350°
Reach: 9.6 m

Hydraulics

Cable crane pumps: Axial piston pumps, closed circuit, max. 460 bar
Working pump: Axial piston pump, open circuit, max. 350 bar
Power take-off pump: Axial piston pump, open circuit, max. 100 bar
Hydraulic oil tank: 400 l

Technical data: Konrad Mounty 4000

General

Carrier vehicle: Mercedes Arocs AK 3342 6×6 or Mercedes Arocs AK 4145 8×6; other carriers on request
Power: 420 or 450 PS
Weight: 28,000–32,000 kg, depending on version
Transport dimensions (L × W × H): 11.90 × 2.50 × 4.00 m
Tower height: 13.0 m (3-rope version with skyline discharger)
Tilt angle: ±6.5°
Control system: KTC 1.0
Radio remote control: KFS-16, KFS-20
Harvester heads: Konrad Woody WH50-1 or WH60-1

Cable crane

Skyline winch: 22 mm, 800 m (standard and long-rope); 120 kN
Main line winch: Standard: 12 mm, 700 m
Long-rope: 12 mm, 800 m
Pulling force: 47 kN
Guy line winch: Standard: 20 mm, 60 m
Long-rope: 18 mm, 70 m
Pulling force: 9 kN
Straw line winch (optional): Standard: 7 mm, 1,400 m
Long-rope: 7 mm, 1,600 m
Pulling force: 18 kN
Haul-back winch (optional): Standard: 11 mm, 1,400 m
Long-rope: 11 mm, 1,600 m
Pulling force: 40 kN

Crane

Crane: MT24
Lifting torque: 220 kNm
Slewing torque: 40 kNm
Slewing range: 350°
Reach: 9.9 m

Hydraulics

Cable crane pumps: Axial piston pumps, closed circuit, max. 460 bar
Working pump: Axial piston pump, open circuit, max. 350 bar
Power take-off pump: Axial piston pump, open circuit, max. 100 bar
Hydraulic oil tank: 400 l

Technical data: Konrad Mounty 5000

General

Carrier vehicle: Mercedes Arocs AK 4145 8×6; other carriers on request
Power: 450 PS
Weight: 31,000–35,000 kg, depending on version
Transport dimensions (L × W × H): 13.09 × 2.50 × 4.00 m
Tower height: 14.2 m (3-rope version with skyline discharger)
Tilt angle: ±6.5°
Control system: KTC 1.0
Radio remote control: KFS-16, KFS-20
Harvester heads: Konrad Woody W52, WH50-1 or WH60-1

Cable crane

Skyline winch: 22 mm, 800 m (standard and long-rope); 120 kN
Main line winch: Standard: 12 mm, 700 m
Long-rope: 12 mm, 800 m
Pulling force: 47 kN
Guy line winch: Standard: 20 mm, 60 m
Long-rope: 18 mm, 70 m
Pulling force: 9 kN
Straw line winch (optional): Standard: 7 mm, 1,400 m
Long-rope: 7 mm, 1,600 m
Pulling force: 18 kN
Haul-back winch (optional): Standard: 11 mm, 1,400 m
Long-rope: 11 mm, 1,600 m
Pulling force: 40 kN
