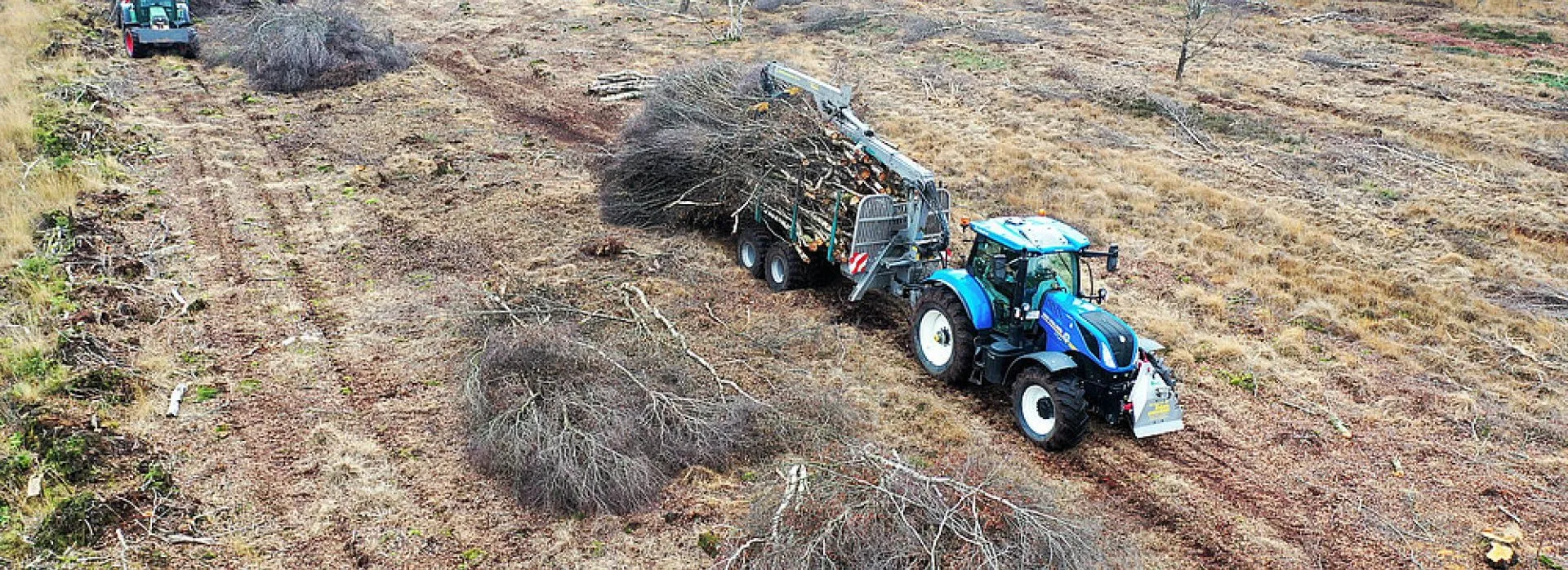

Pfanzelt logLINE L14 Forwarding Trailer
The smallest logLINE: 13 t off-road, a Pfanzelt LK 6280 crane (61 kNm net, 7.75 m reach) and a 1,210 mm bogie wheelbase.
13 to 17 t off-road
Three sizes on a reinforced central tube frame, with a 1,500 mm frame extension and stanchions that extend sideways by 300 mm.
Read more
Three sizes on a reinforced central tube frame, with a 1,500 mm frame extension and stanchions that extend sideways by 300 mm.
Heavy cranes
Pfanzelt cranes of the 6 or 7 mt class with EHC control and two Danfoss joysticks, on an independent oil supply with a load-sensing pump.
Read more
Pfanzelt cranes of the 6 or 7 mt class with EHC control and two Danfoss joysticks, on an independent oil supply with a load-sensing pump.
Draw bar and drive
A four-wheel pneumatic brake as standard, a draw bar suspension and tilt option on the L16 and L19, and powerDRIVE wheel hub drive on every size.
Read more
A four-wheel pneumatic brake as standard, a draw bar suspension and tilt option on the L16 and L19, and powerDRIVE wheel hub drive on every size.
Speak to us about theL14
EnquirePfanzelt L14
- Load capacity off-road
- 13.0 t
- Crane reach
- 7,800 mm
- Lift moment, net
- 61 kNm
- Dead weight with crane
- approx. 4.5 t
Technical data: Pfanzelt L14
Frame
- Frame
- Central tube frame
- Central tube
- 200 × 200 × 10 mm
- Frame extension
- 1,500 mm
- Long flat bed
- 3,900–5,500 mm
- Stanchion pairs
- 4 (extensible sideways by 300 mm)
- Hydraulic pivoting draw bar, 2 cylinders
- Standard
- Draw bar pivoting moment
- 22.5 kNm
- Front cage area
- 2.98–3.37 m²
- Running gear
- Bogie chassis, 1,210 mm wheelbase
- Bogie oscillation
- ±17°, ±180 mm
- Track width
- 1,850 mm
Loads
- Load capacity off-road
- 13.0 t
- Dead weight with crane
- approx. 4.5 t
Brakes and tyres
- Brake system
- 4-wheel pneumatic braking system with spring-loading
- Tyres
- 560/45-22.5″, 12 PR stud profile
- Rim flange reinforcement, spar sleeve protection
- Standard
Crane
- Loading crane
- Pfanzelt LK 6280
- Reach
- 7,800 mm
- Lift moment, net
- 61 kNm
- Pivoting moment
- 25 kNm
- Independent oil supply with load-sensing pump
- Standard
- Crane control
- EHC control with 2 Danfoss Profi1 joysticks
- Clamshell gripper
- Pm 230
Options
- Tyres
- 500/60-22.5″ Tianli Forestry Flotation
- 600/50-22.5″ Trelleborg T404
- 600/50-22.5″ Tianli Forestry Flotation
- Fitted as standard
- 560/45-22.5″
- Cranes and control
- EHC control with remote control unit
- Loading crane LK 62100 (9,800 mm, 61 kNm)
- Loading crane LK 7185 (8,300 mm, 70 kNm)
- Loading crane LK 71100 (10,000 mm, 70 kNm)
- Drive
- powerDRIVE
Frame
The logLINE frame is built on a torsion-resistant central spar of fine-grained steel. An integrated, extensible frame lengthens the flat bed by up to 1,500 mm, and every stanchion extends sideways by 300 mm, adding 0.5 m² of bed area.
Draw bar and hitch
The draw bar is bottom-hitched, on adjustable spherical bearings, with a large steering angle (up to ±860 mm from the centre) and two hydraulic cylinders, so a laden trailer can be turned uphill. On the L16 and L19, an additional cylinder turns the draw bar into a suspension and tilt system that levels the flat bed and keeps the crane column vertical on slopes. With an independent oil supply, the piston pump is concealed above or below the draw bar.
Axle and brakes
The bogie axle runs on adjustable spherical bearings with up to 360 mm of pendulum travel, and the underside is smooth, with cables and hoses concealed, so it passes over trunks and branches without damage. A pneumatically actuated brake acting on all four wheels is standard, with encapsulated diaphragm cylinders. The LED lights are protected by a plexiglass panel, and two lockable storage bins hold chainsaws, fuel cans and straps.
powerDRIVE
The optional powerDRIVE hydraulic wheel hub drive gives up to 6.1 t of thrust, with proportional drive forwards and backwards, a hill start assist, automatic switch-off when braking, freewheel for road travel and control from the tractor cab; Pfanzelt notes that the figures depend on the hydraulic oil quantity and pressure.
Exc@v8 supplies and supports Pfanzelt forwarding trailers in the UK.
Documents and data sheets
Pfanzelt's data sheet covers every model in one file.
Data sheet (PDF)Pfanzelt logLINE L14 Forwarding Trailer: https://excav8.co.uk/pfanzelt/forwarding-trailers/logline-l14
