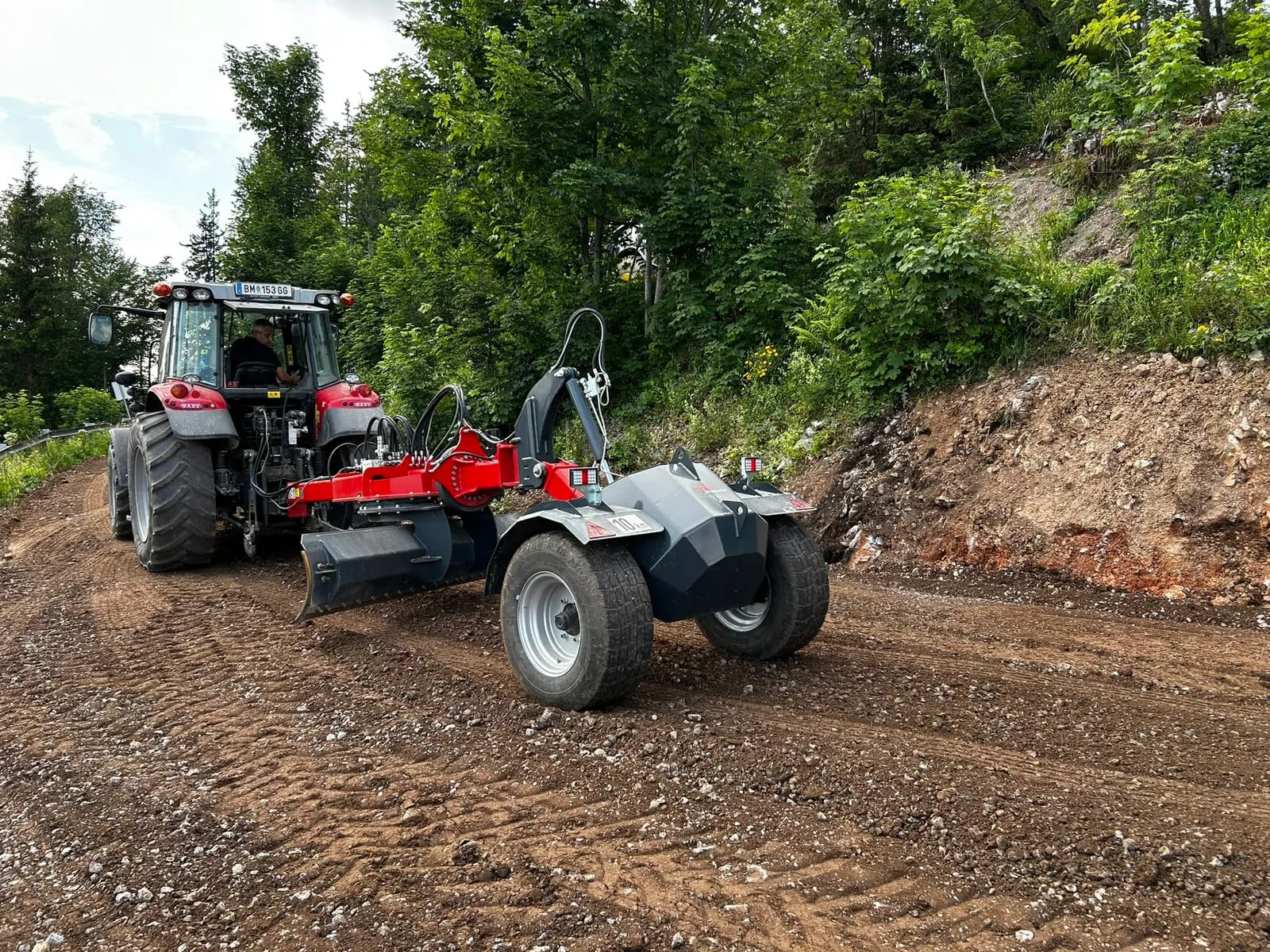

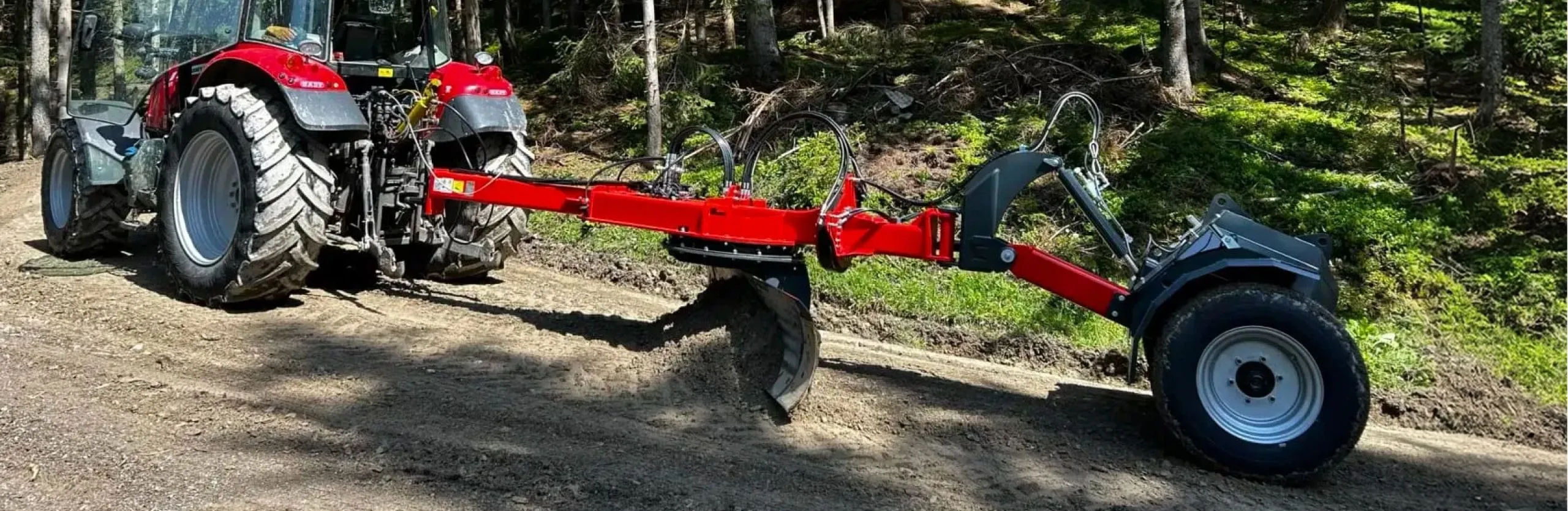

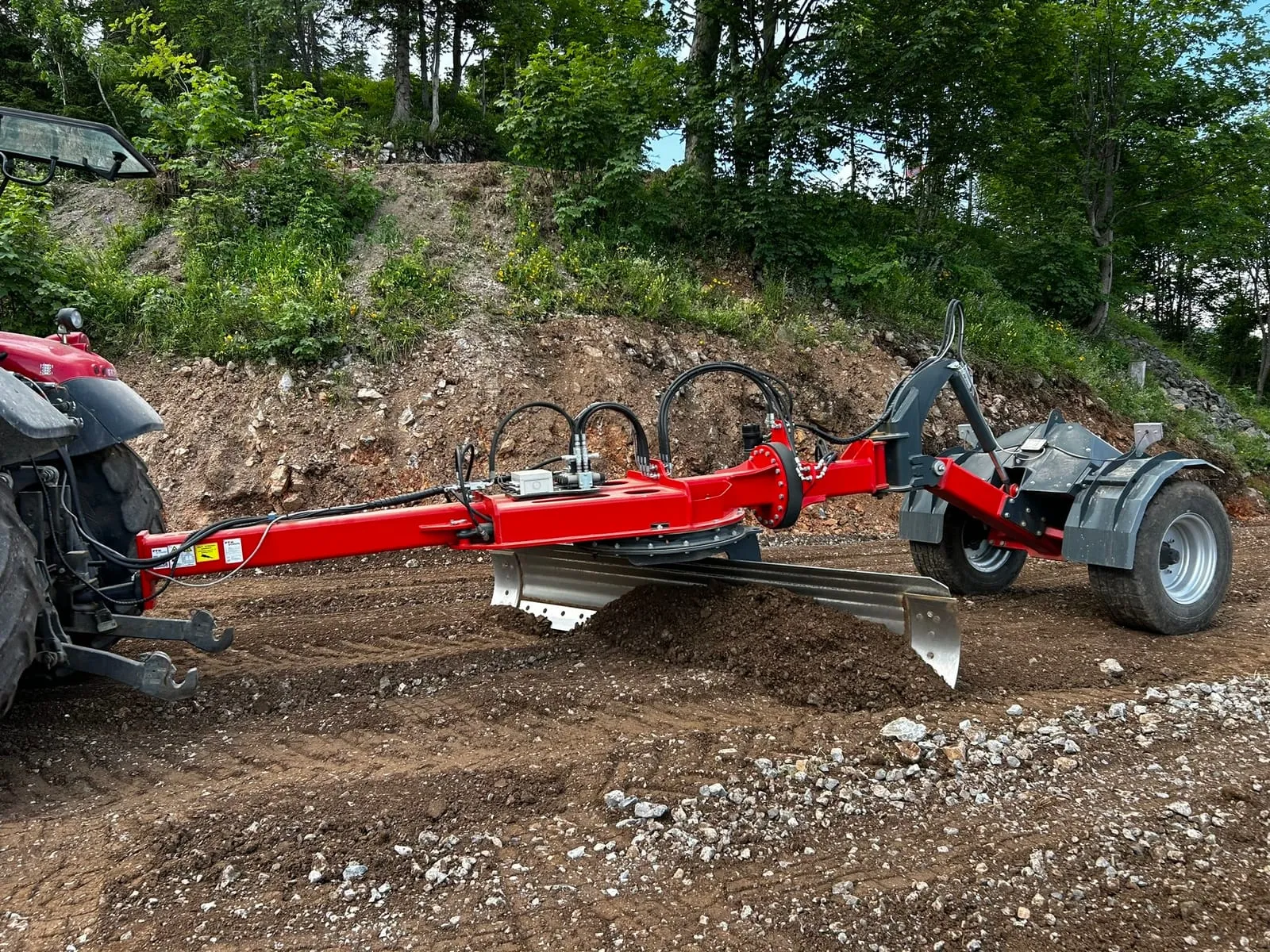

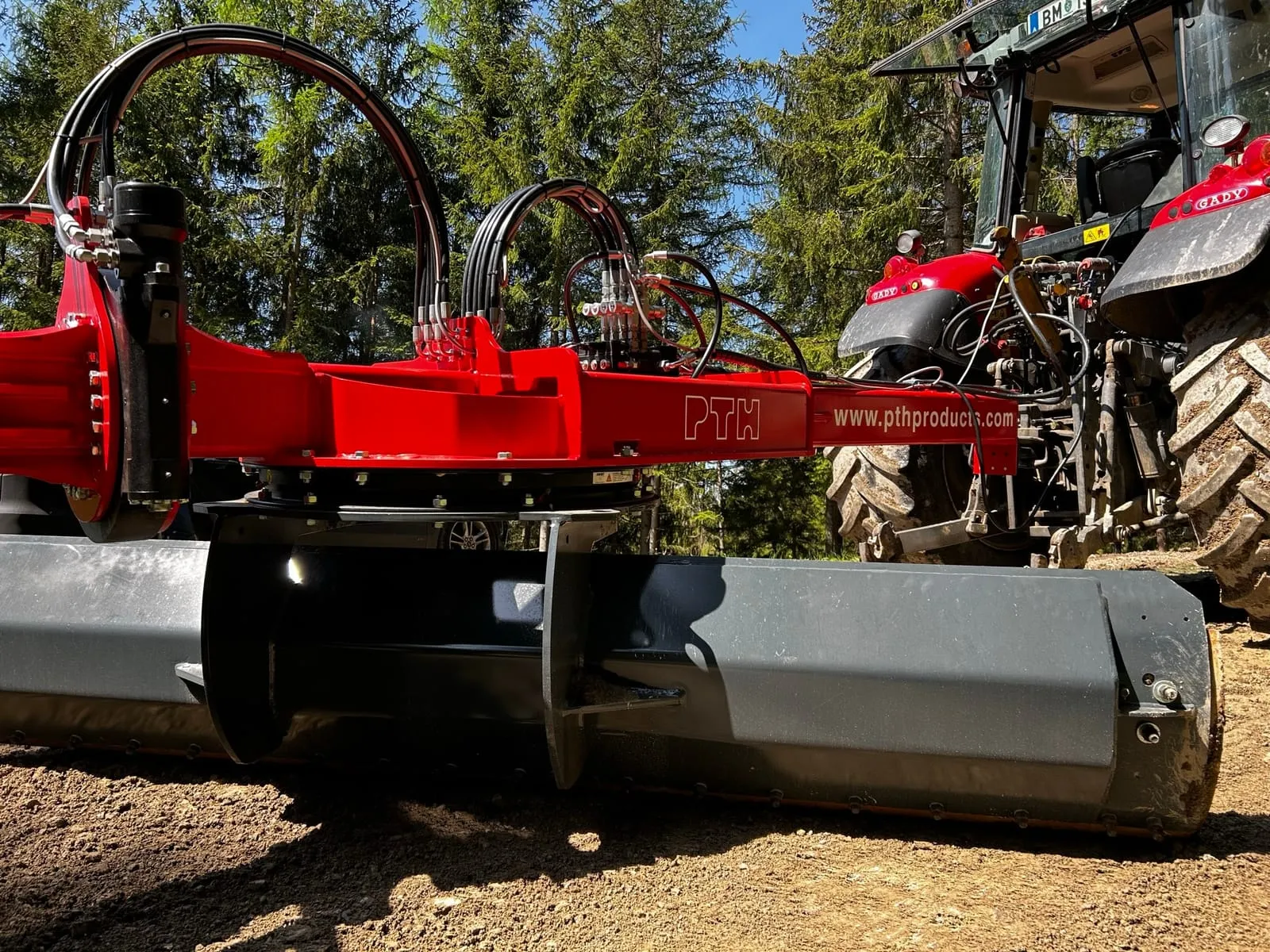

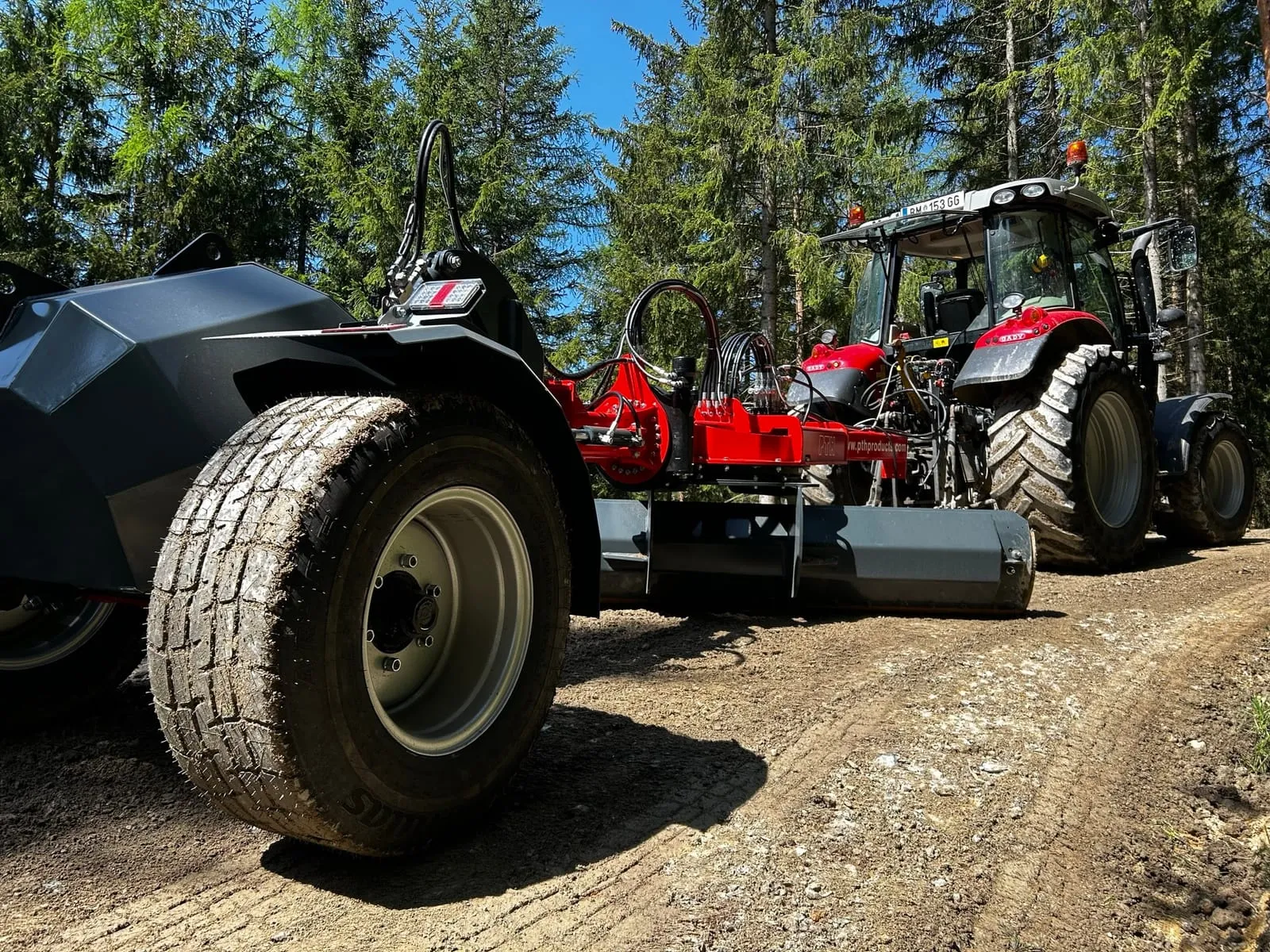

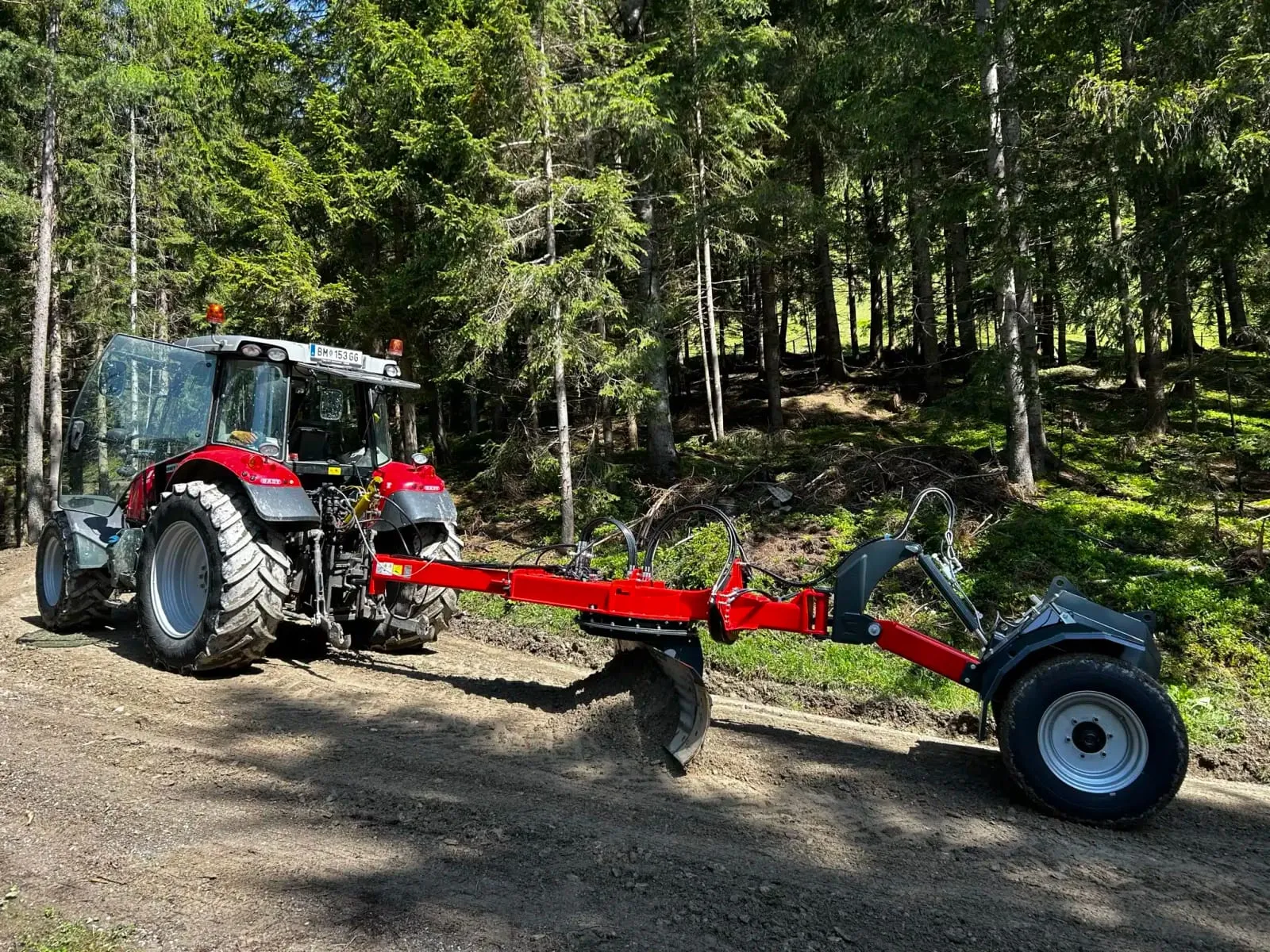

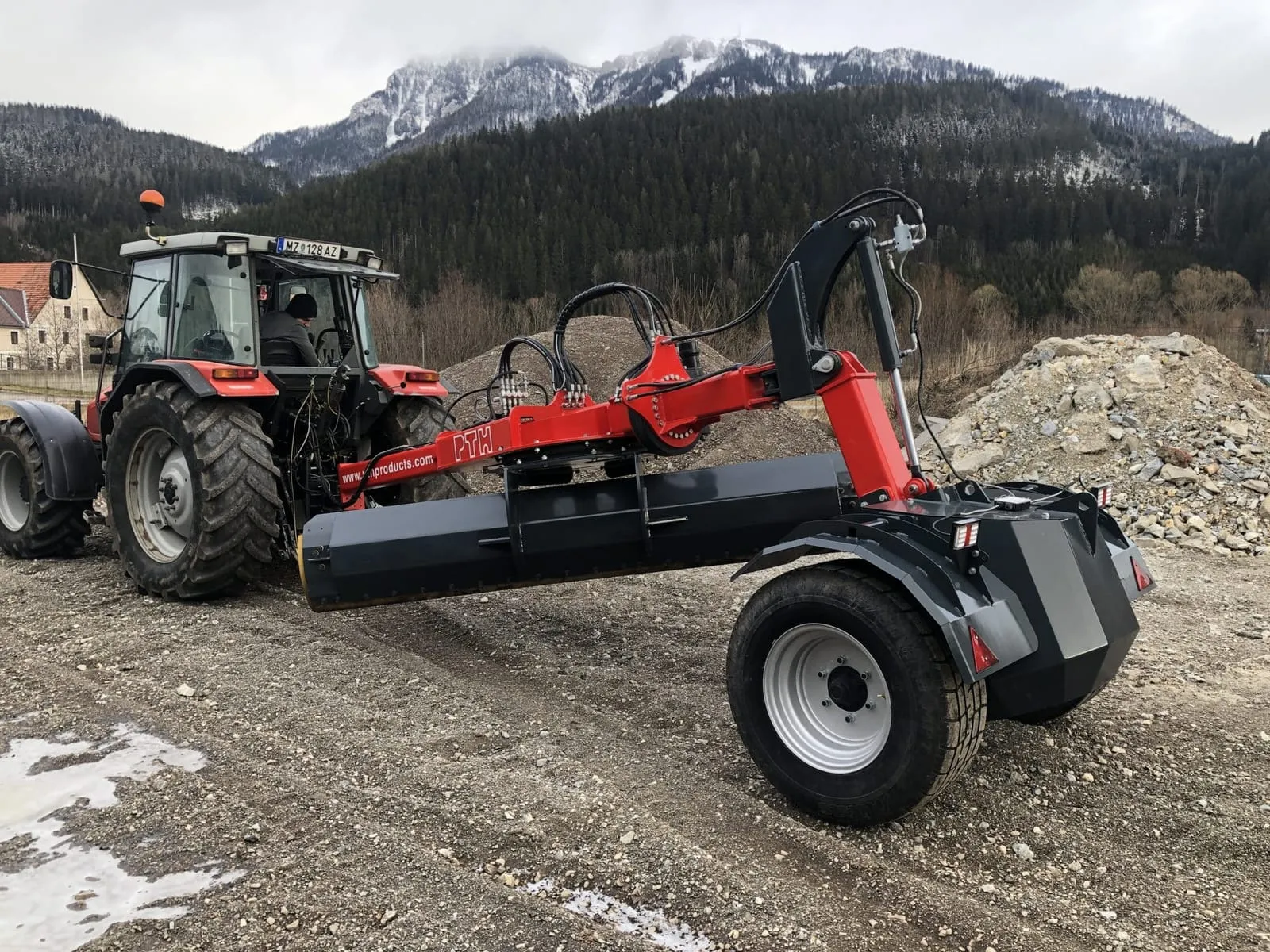

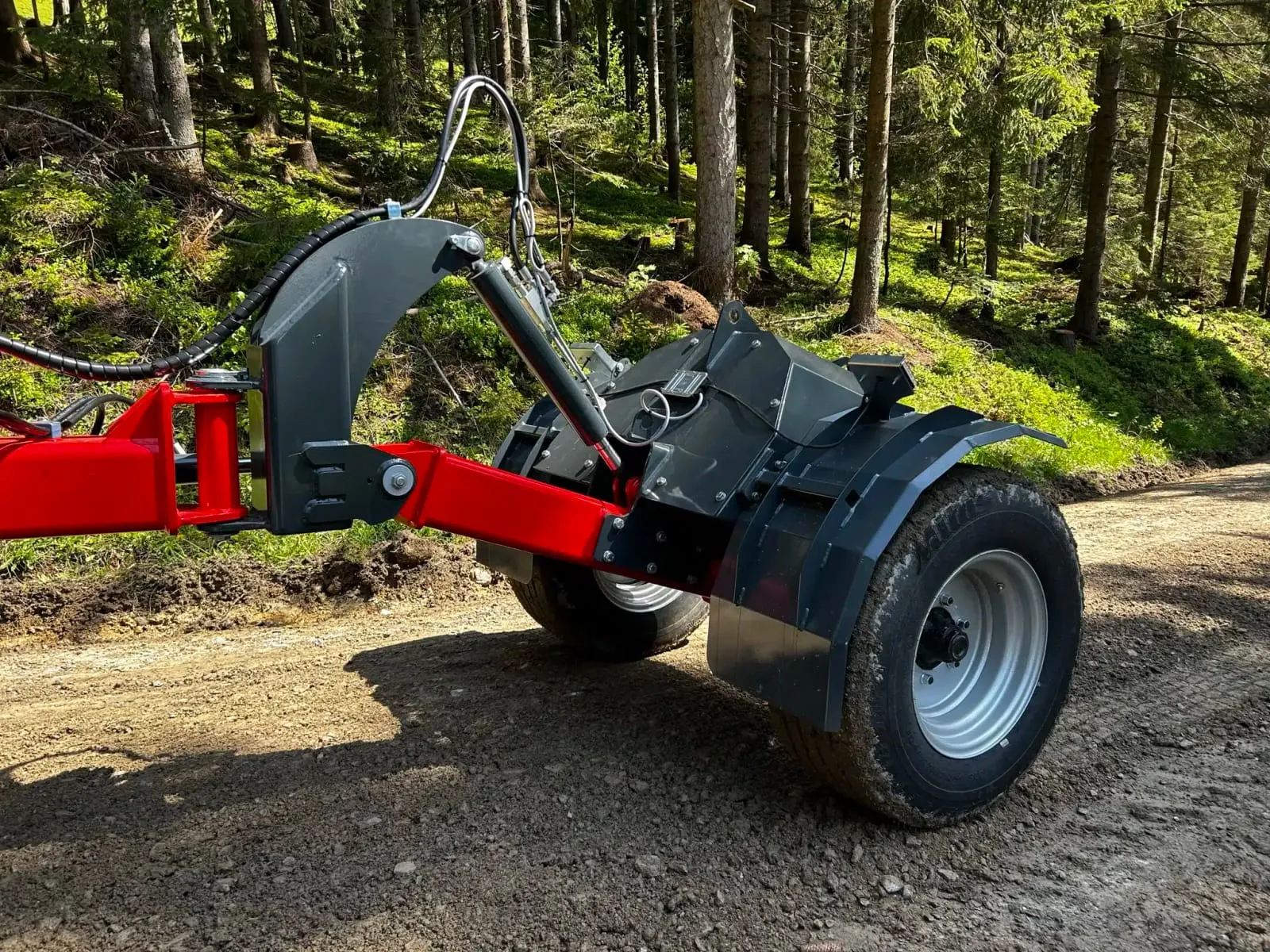

PTH Rear Grader
The PTH Rear Grader is a small, light grader that hitches to the back of a tractor from 60 hp and 2 t. With articulated steering and a 3 m blade, it maintains and renovates forest roads, council roads, gravel roads, cycle paths and alpine paths.
For smaller tractors
Hitches to the drawbar eye of a tractor from 60 hp and 2 t, for councils, farmers, foresters and machinery rings that look after their own roads and paths.
Read more
Hitches to the drawbar eye of a tractor from 60 hp and 2 t, for councils, farmers, foresters and machinery rings that look after their own roads and paths.
Small and manoeuvrable
Articulated steering and a light build, from about 1,500 kg, with a 3,000 mm blade that rotates ±50° and lifts 750 mm.
Read more
Articulated steering and a light build, from about 1,500 kg, with a 3,000 mm blade that rotates ±50° and lifts 750 mm.
Simple to run
The driver lifts, rotates and tilts the blade and steers the grader from one control panel.
Read more
The driver lifts, rotates and tilts the blade and steers the grader from one control panel.
Speak to us about theRear Grader
EnquirePTH Rear Grader
- Carrier
- From 60 hp and 2 t
- Blade length
- 3,000 mm
- Max. lift height
- 750 mm
- Dead weight
- From approx. 1,500 kg
Technical data: PTH Rear Grader
Carrier and mounting
- Carrier
- Tractors from 60 hp and 2 t
- Mounting
- Rear, by drawbar eye (38 mm pin)
- Oil flow
- From 20 l/min at 180 bar
Dimensions and weight
- Dead weight
- From approx. 1,500 kg
- Total length
- 5,700 mm
Blade
- Blade length
- 3,000 mm
- Blade rotation
- ±50°
- Max. lift height
- 750 mm
- Max. cutting depth
- 150 mm
Steering and control
- Steering
- Articulated
- Control
- Control panel, 4 functions: lift, rotate, tilt, steer
Options
- Equipment
- Rear weight
- Road lighting
- PTH Tronic control system
- Side discharge plates
- Own oil supply from a PTO pump
- Special RAL paint finish
Built for everyday use
Forest and gravel roads need regular maintenance to stay in good order. PTH developed the Rear Grader with councils, farmers and foresters for exactly that: maintaining and renovating forest roads, alpine paths and council roads. It’s small, light (from about 1,500 kg) and easy to manoeuvre, and it’s built for the councils, farmers, foresters and machinery rings that look after their own roads and paths.
- Road building and forest roads
- Gravel roads and cycle paths
- Road and path maintenance and renovation
Hitch, steering and control
The grader hitches to the tractor’s drawbar eye (38 mm pin) and steers through an articulated joint, which keeps it easy to manoeuvre. From one control panel the driver lifts, rotates and tilts the blade and steers the grader. It needs at least 20 l/min of oil at 180 bar from the tractor, or you can fit its own oil supply, driven by a PTO pump.
Options
The options are a rear weight, road lighting, the PTH Tronic control system, side discharge plates, its own oil supply from a PTO pump, and a special RAL paint finish.
If you’d rather grade from the front and keep the back of the carrier free for a compactor, look at the PTH Front Grader: the Speed Grader and compact Speedy fit tractors and wheel loaders from 2 t and 80 hp.
Quick answers
Which tractors does it suit? Tractors from 60 hp and 2 t with a drawbar eye. It needs at least 20 l/min of oil at 180 bar, or the optional own oil supply from a PTO pump. Send us your tractor’s make and model and we’ll check the fit.
Can I buy the PTH Rear Grader in the UK? Yes. Exc@v8 supplies PTH’s range in the UK. Use the form below or call us for prices and availability.
