PTH Front Grader
The PTH Front Grader turns a tractor or wheel loader into a motor grader for building and maintaining roads, paths and verges. It mounts on the front, leaving the rear free for a compactor, and comes in two sizes: the Speed Grader for carriers from 6 t and the compact Speedy from 2 t.
A motor grader on your tractor
Does a motor grader's job from the front of a tractor, wheel loader or other carrier: the Speed Grader from 6 t and around 130 hp, the compact Speedy from 2 t and around 80 hp.
Read more
Does a motor grader's job from the front of a tractor, wheel loader or other carrier: the Speed Grader from 6 t and around 130 hp, the compact Speedy from 2 t and around 80 hp.
Grade and compact in one pass
With the grader on the front, the rear stays free for a plate compactor, and the driver gets a clear view of the work.
Read more
With the grader on the front, the rear stays free for a plate compactor, and the driver gets a clear view of the work.
One joystick
Steering, blade rotation, side shift and blade tilt, all from the seat with one joystick over CAN bus.
Read more
Steering, blade rotation, side shift and blade tilt, all from the seat with one joystick over CAN bus.
Speak to us about theSpeed Grader
EnquireChoose a model
PTH Speed Grader
The bigger of the two, for carriers from 6 t and around 130 hp. It takes a 3,000 or 3,600 mm blade with 600 mm of side shift and 550 mm of lift above grade, and it's the only size that can carry a front blade.
- Carrier
- From 6 t
- Power required
- From approx. 130 hp
- Blade length
- 3,000 or 3,600 mm
- Dead weight
- Approx. 4,400 kg

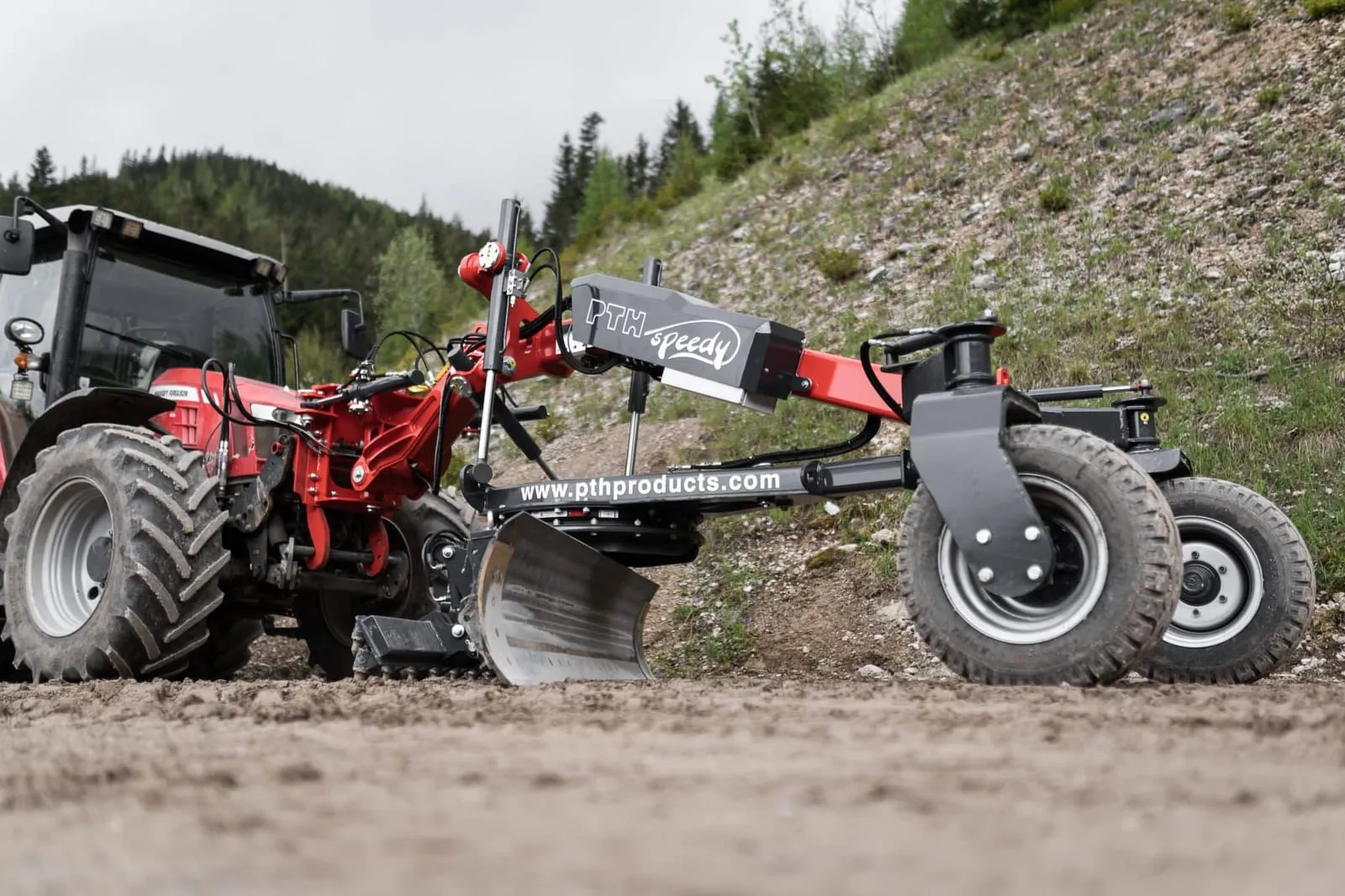

PTH Speedy
The compact one, for smaller tractors and wheel loaders from 2 t and around 80 hp. It has a 3,000 mm blade and weighs about 2,100 kg, less than half as much as the Speed Grader.
- Carrier
- From 2 t
- Power required
- From approx. 80 hp
- Blade length
- 3,000 mm
- Dead weight
- Approx. 2,100 kg
A motor grader on your carrier

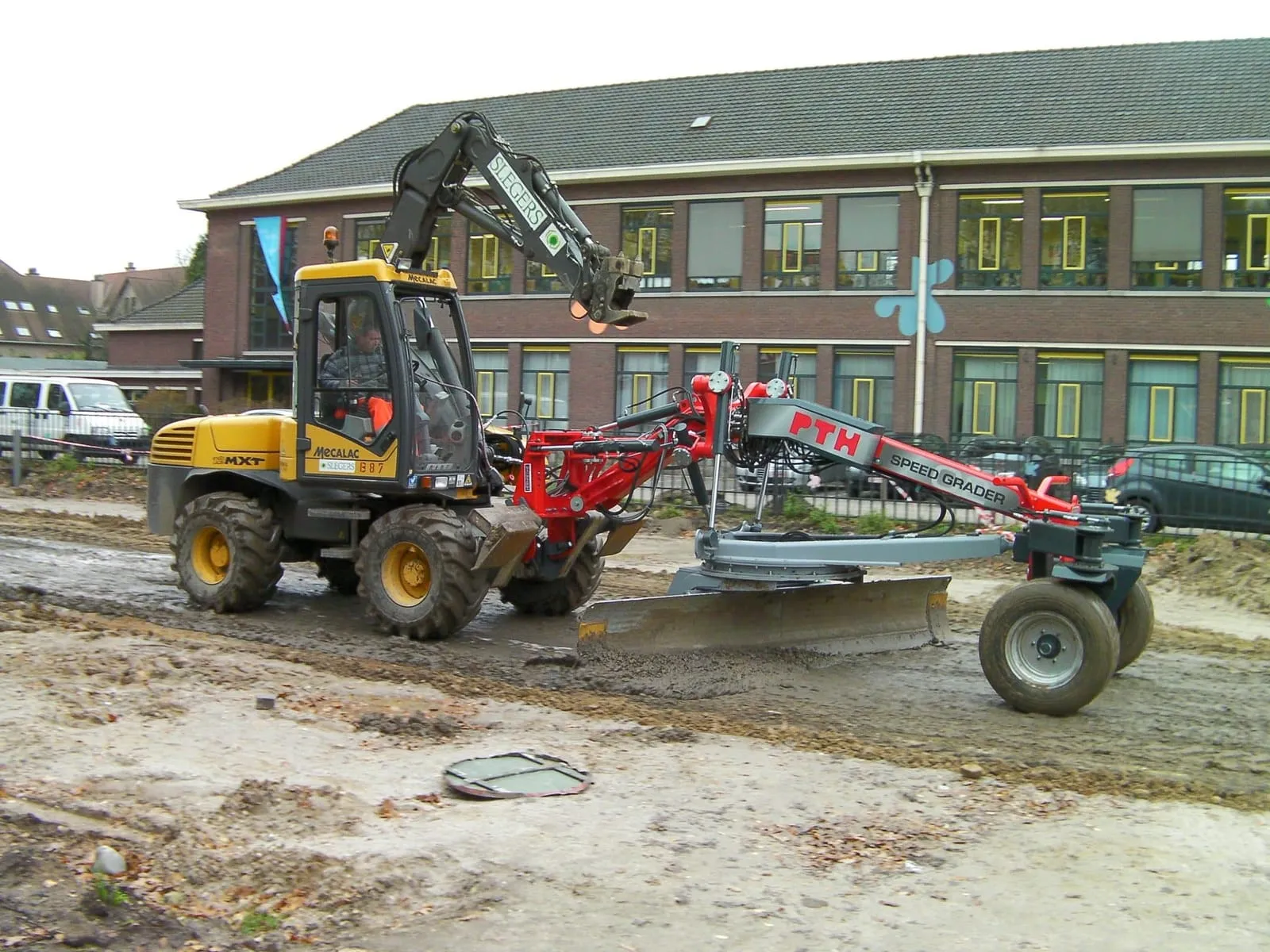

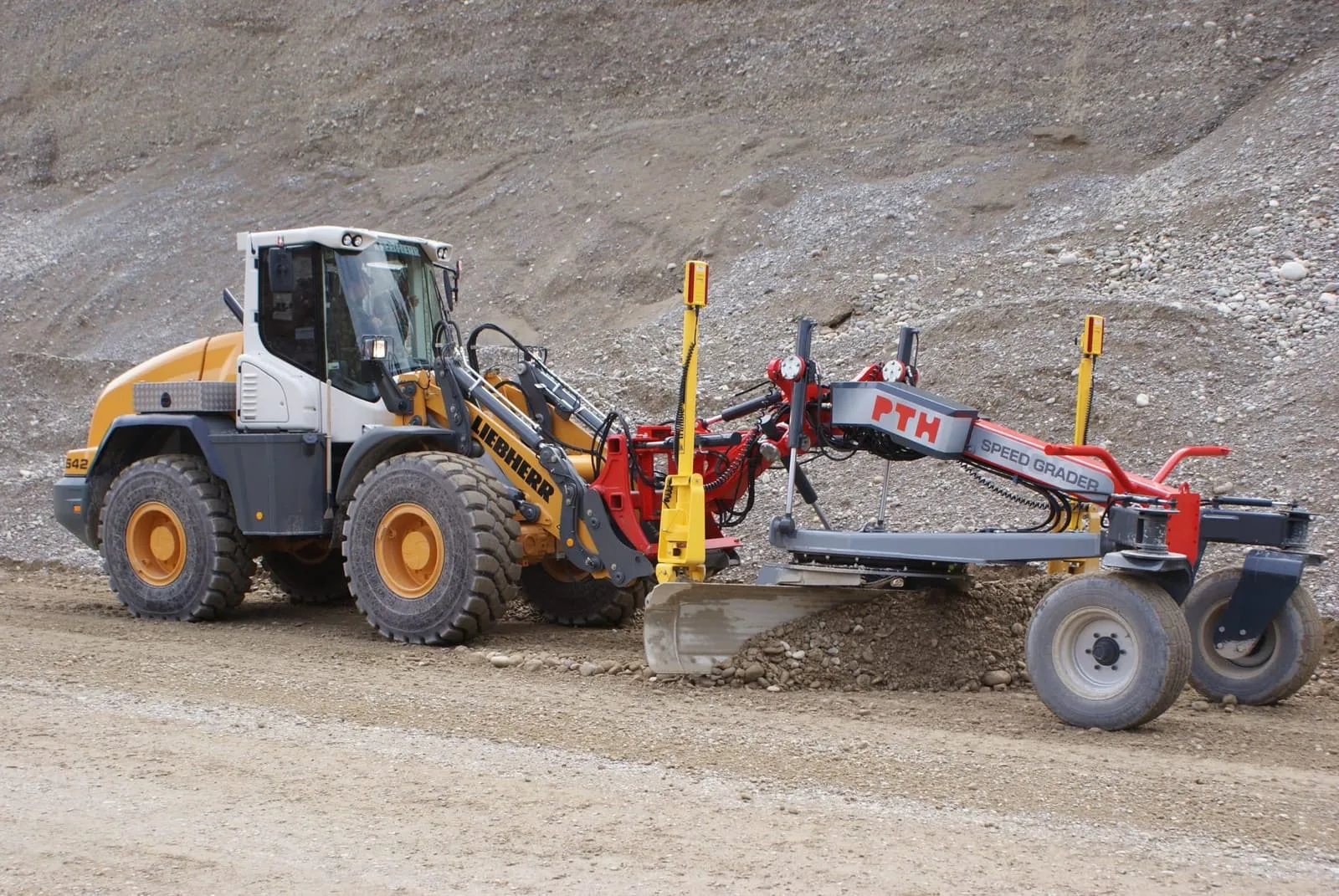

The PTH Front Grader is a grader attachment that does a motor grader’s job from the front of a tractor, wheel loader or other carrier. It removes and spreads material, levels the surface and cuts profiles such as a cross-slope, so you can build, maintain and renovate roads and paths without bringing in a separate grader. There are two sizes: the Speed Grader for carriers from 6 t and around 130 hp, and the compact Speedy from 2 t and around 80 hp.
- Road building and maintenance
- Verge maintenance and verge profiling

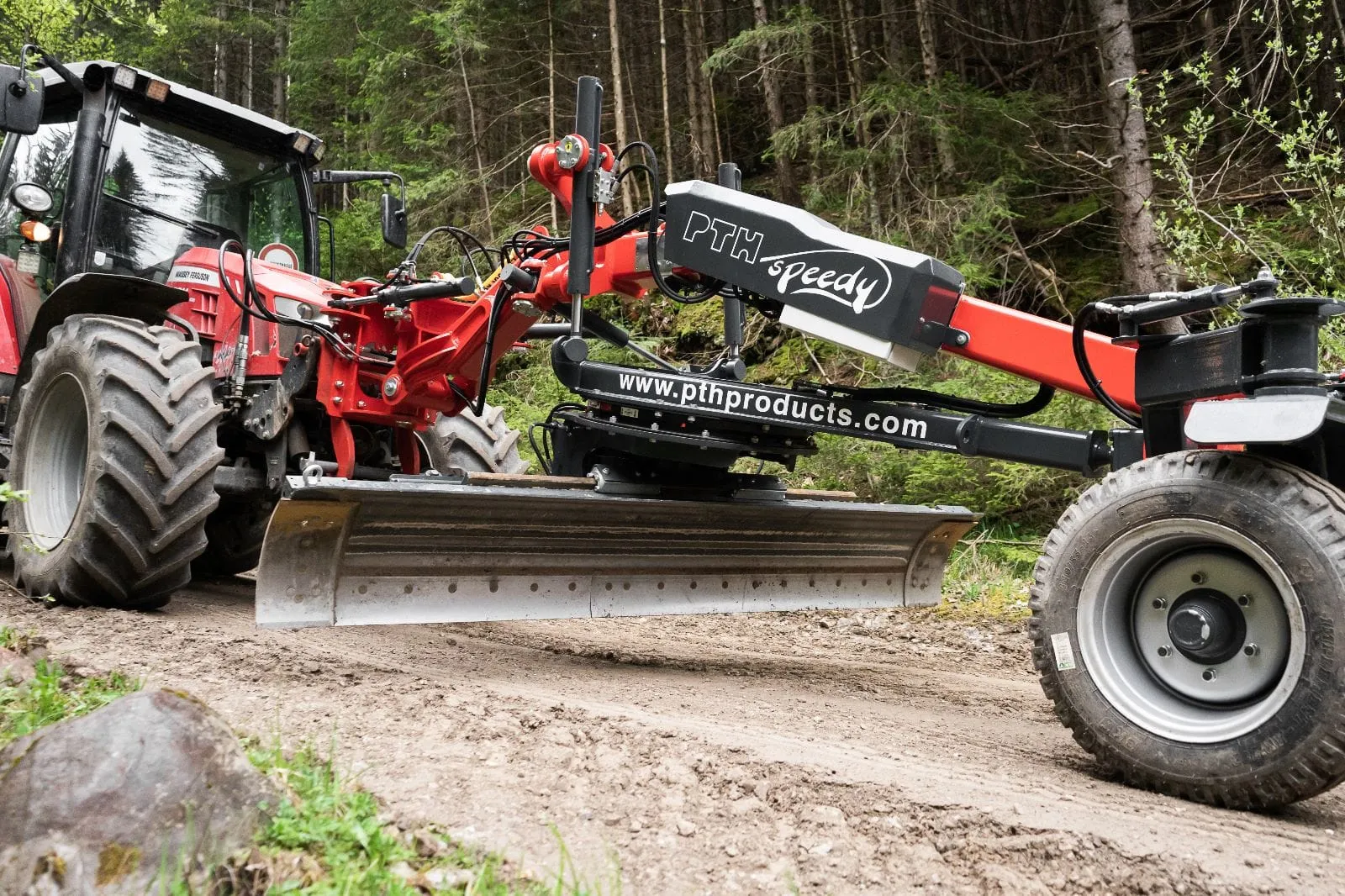

- Forest roads, alpine paths and cycle paths
- Road and path renovation, and fine grading
- Construction sites
Front mounting
With the grader on the front, the back of the carrier is free for a plate compactor, so you can grade and compact in one pass. The driver also gets a clear view of the working area. The grader goes on with a quick-coupling system (an adapter plate for your carrier is an option) and travels on a low-loader with the rest of your attachments.
Construction and control
The front carriage is built from engineering steel for fatigue strength, with a full frame, a double ball-bearing slewing ring and a strong front axle whose wheels turn through 360°. The driver controls everything from the seat with one joystick, over CAN bus and a load-sensing hydraulic block: the articulated steering (45°), blade rotation, side shift and blade tilt. The blade’s cutting angle sets precisely, the feed flap adjusts hydraulically, and the blade has a replaceable wear rail and side wear protection. It runs on 12 or 24 V.
Options

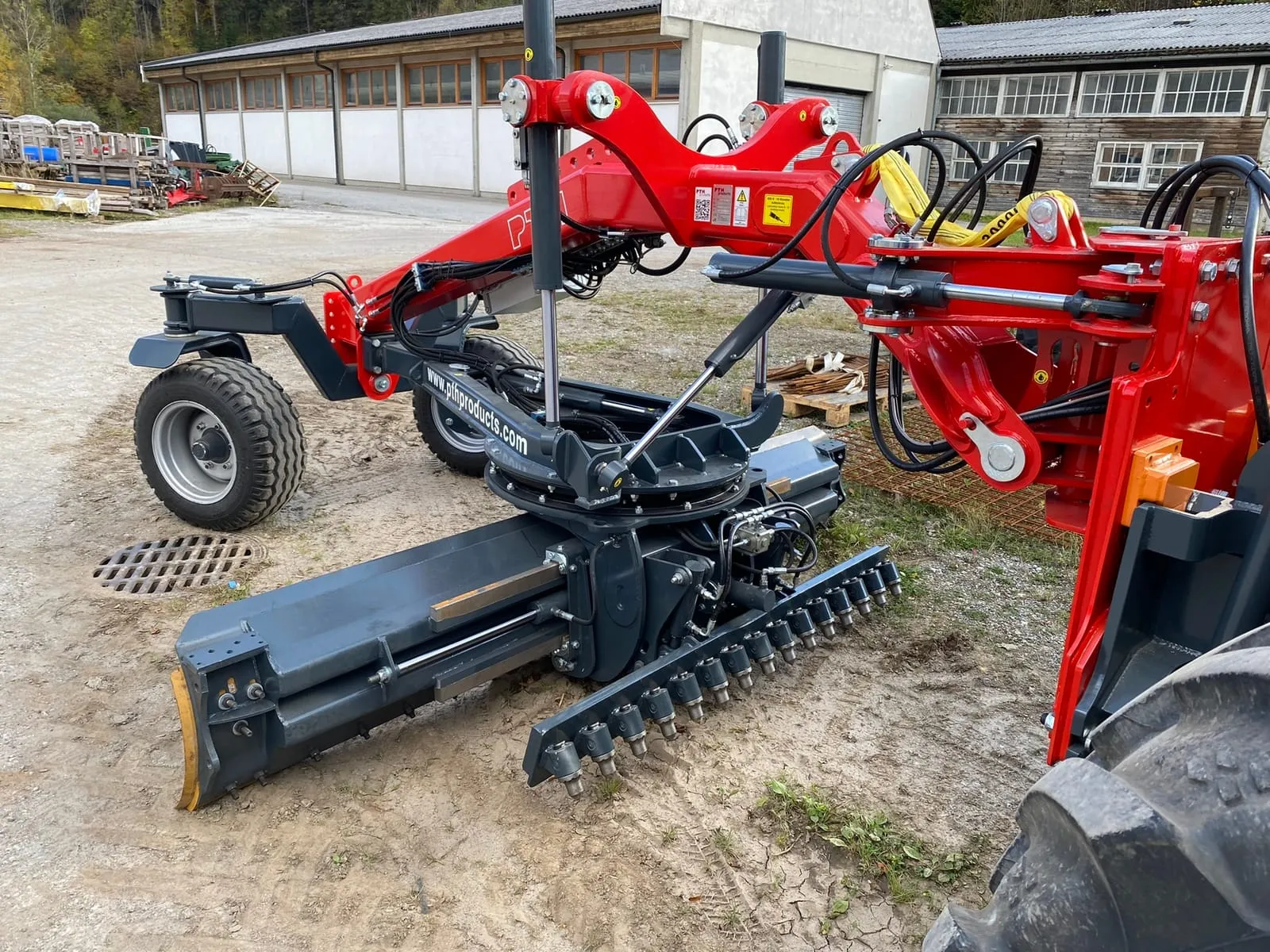

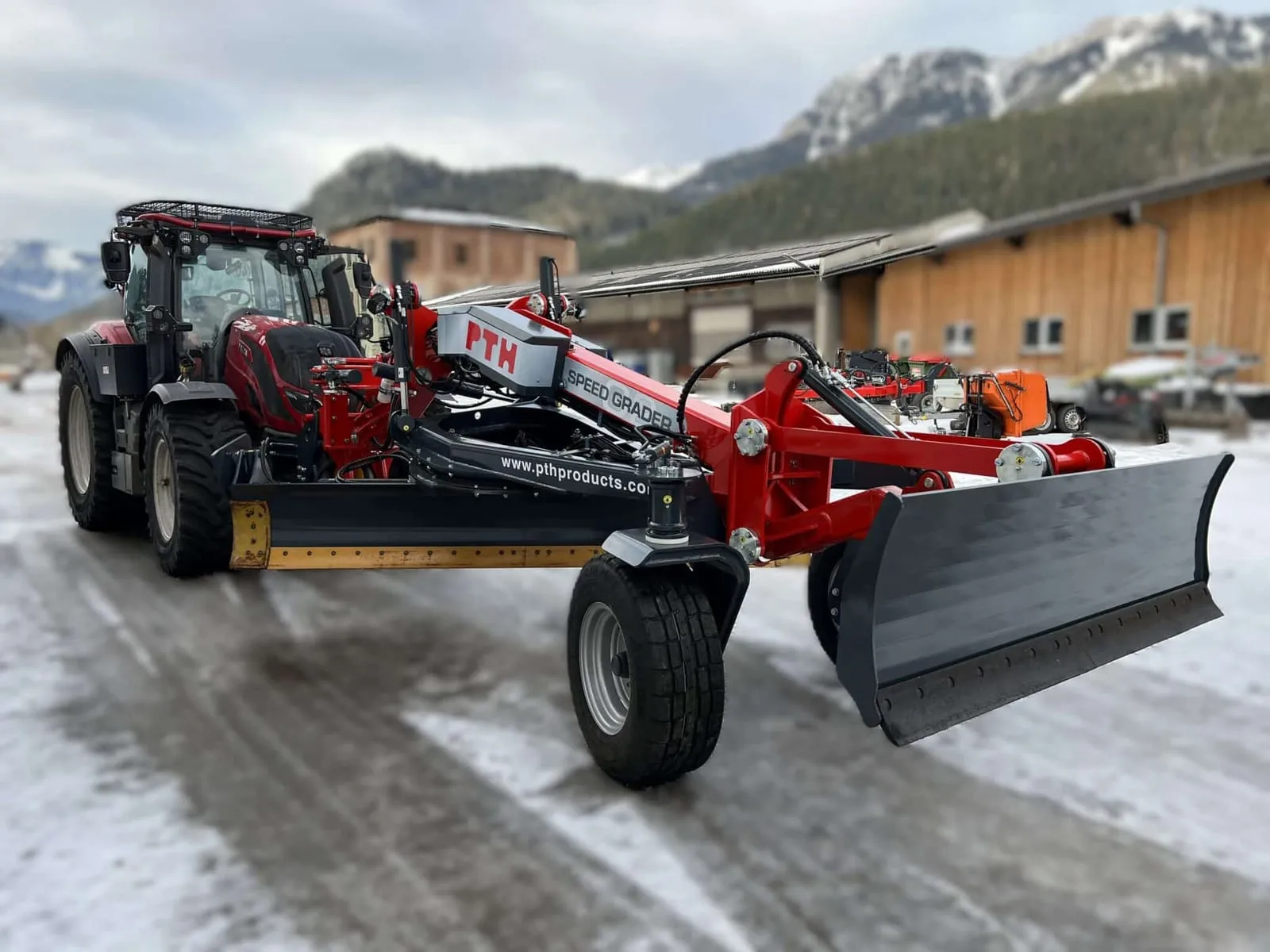

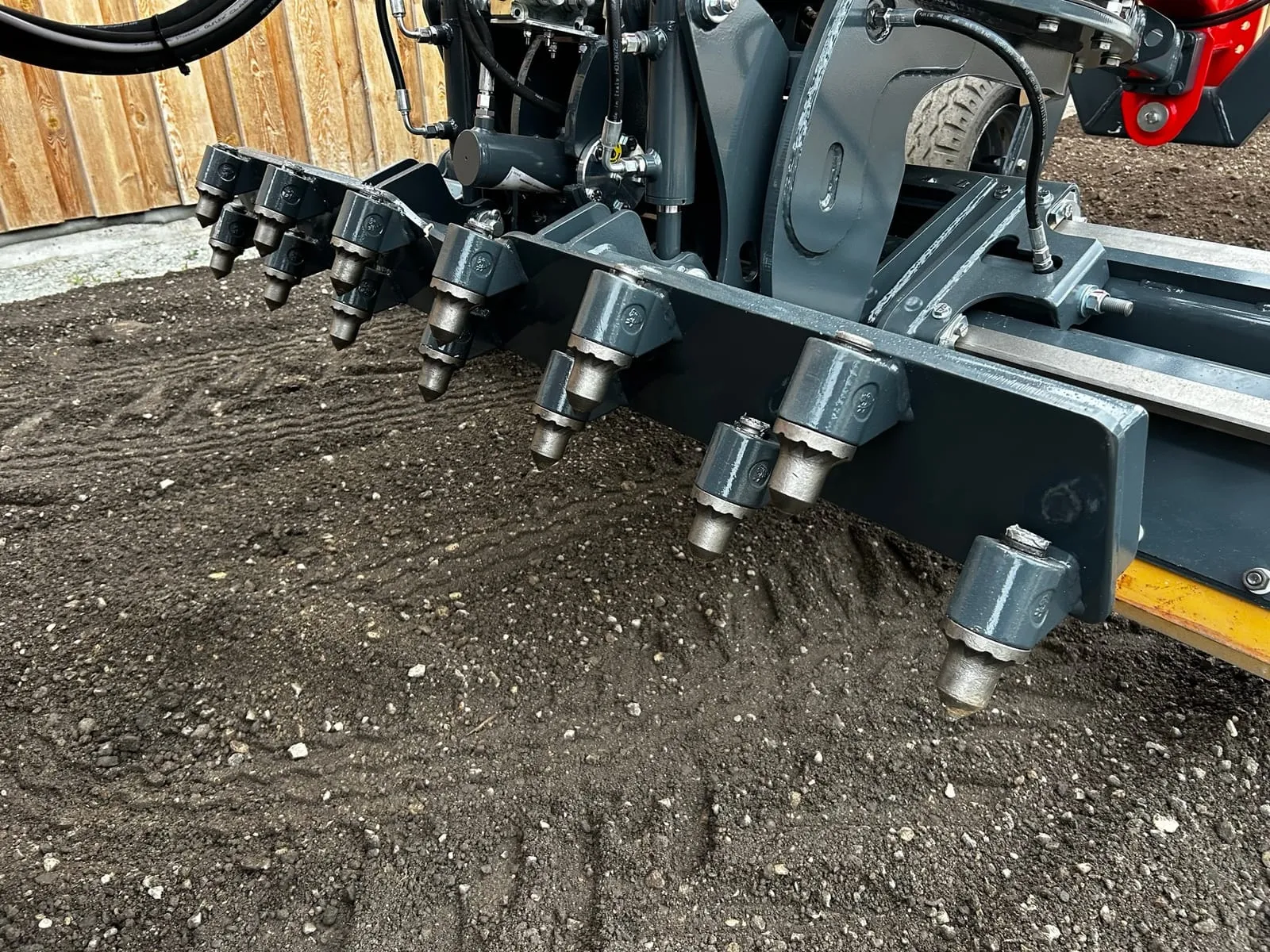

The options are a scarifier bar, fixed or hydraulic; side discharge plates, left and right, fixed or hydraulic; a mounting kit for Trimble and Leica machine control; a front blade for the Speed Grader; a hydraulic steering aid; work lights; an adapter plate for your carrier; and a special RAL paint finish.
Quick answers
Which carriers does it suit? Tractors, wheel loaders and other carriers: the Speed Grader from 6 t and around 130 hp, the Speedy from 2 t and around 80 hp. Send us your carrier’s make and model and we’ll check the fit.
Can it work with machine control? Yes. A mounting kit for Trimble and Leica machine-control systems is an option.
Can I buy the PTH Speed Grader or Speedy in the UK? Yes. Exc@v8 supplies PTH’s range in the UK. Use the form below or call us for prices and availability.
Technical data: PTH Speed Grader and Speedy
The 2 models side by side. A value across both columns is the same on both.
Carrier and mounting
| Specification | Speed Grader | Speedy |
|---|---|---|
| Carrier | From 6 t | From 2 t |
| Power required | From approx. 130 hp | From approx. 80 hp |
| Oil flow | Approx. 40 l/min at 210 bar | Not listed |
| Mounting | Front, by quick-coupling system; carrier adapter plate optional | |
| Voltage | 12 or 24 V | |
Dimensions and weight
| Specification | Speed Grader | Speedy |
|---|---|---|
| Dead weight | Approx. 4,400 kg | Approx. 2,100 kg |
| Total length | 4,800 mm | 4,000 mm |
Blade
| Specification | Speed Grader | Speedy |
|---|---|---|
| Blade length | 3,000 or 3,600 mm | 3,000 mm |
| Blade rotation | ±65° | ±50° |
| Side shift (left/right) | 600 mm | 450 mm |
| Max. bank angle (left/right) | 60° | 47° |
| Max. lift above grade | 550 mm | 270 mm |
| Max. cutting depth | 300 mm | 290 mm |
| Blade features |
| |
Construction and control
| Specification | Speed Grader | Speedy |
|---|---|---|
| Frame | Full frame; front carriage of engineering steel | |
| Front axle | Strong front axle; wheels rotate 360° | |
| Slewing ring | Double ball-bearing | |
| Steering | Articulated joint, 45° steering angle | |
| Control | CAN bus with joystick; load-sensing hydraulic control block | |
Options
| Specification | Speed Grader | Speedy |
|---|---|---|
| Equipment |
| |
