Konrad Woody WH50-1 Harvester Head
The Konrad Woody WH50-1 is a versatile harvester head: 1,100 kg with its rotator, three feed rollers with 32 kN of feed force, a 1,030 mm grapple opening and a 550 mm cut.
- Cuts up to 550 mm, delimbs 40–550 mm
- 3 feed rollers, 32 kN feed force
- 1,030 mm grapple opening
- Integrated Konrad endless rotator and KTC 1.0 control
- Optional top saw, cutting up to 300 mm
Technical data
| Weight (with rotator, oil filled) | 1,100 kg (1,160 kg with optional top saw) |
|---|---|
| Recommended engine power | 88 kW (120 PS) |
| Operating pressure | 300–350 bar |
| Oil requirement | 150–220 l/min |
| Rotator | Integrated Konrad endless rotator |
| Operating voltage | 24 V |
| Control system | KTC 1.0 |
| Max. cutting diameter | 550 mm (top saw: 300 mm) |
| Saw guide bar length | 750 mm (top saw: 420 mm) |
| Chain speed | 40 m/s |
| Chain tensioner | Hydraulic (top saw: manual) |
| Chain pitch | .404" |
| Drive links | 91 (top saw: 55) |
| Feed rollers | 3 |
| Max. feed force | 32 kN |
| Feed speed | 0–4 m/s |

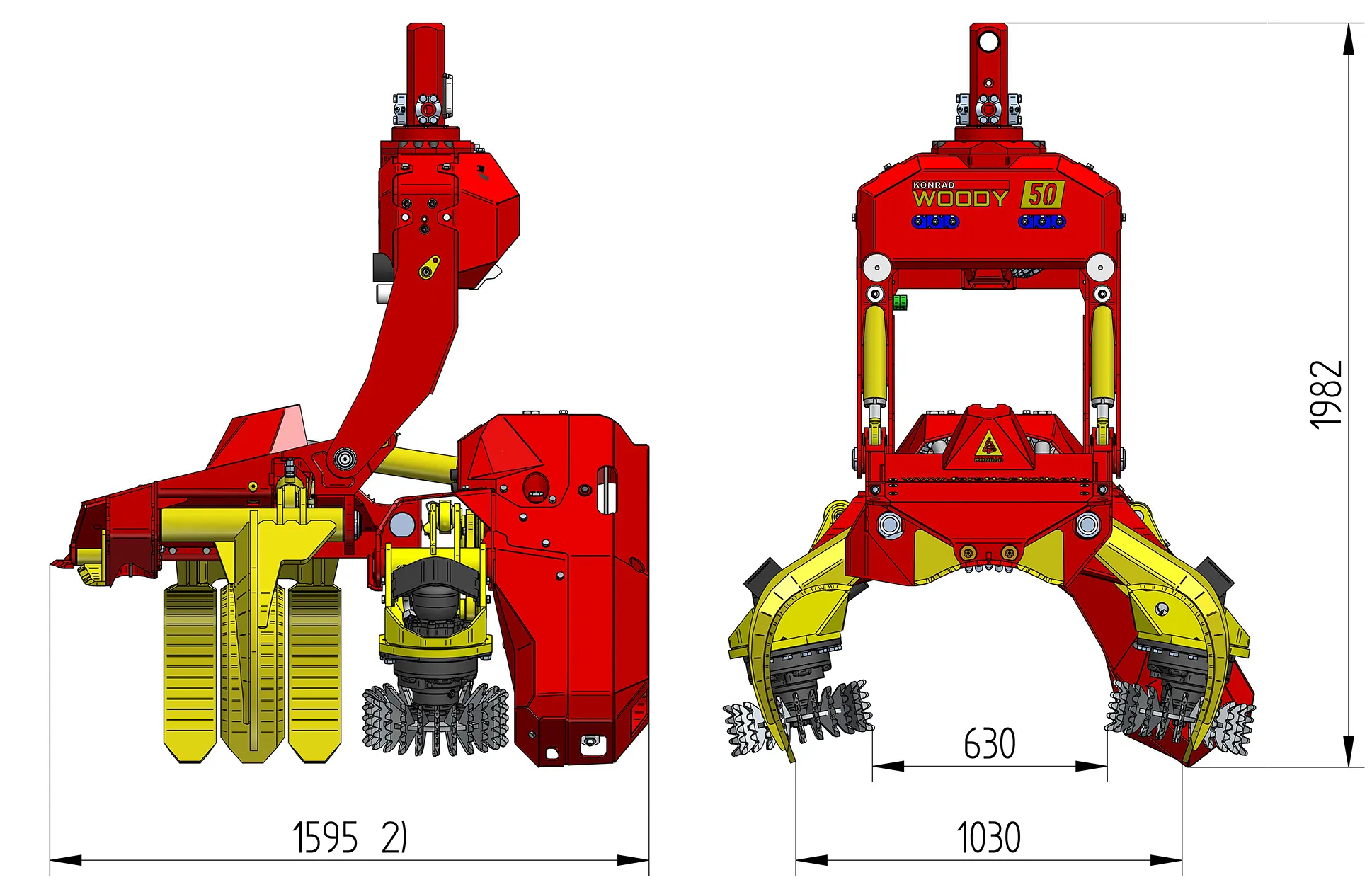

| Max. feed roller opening | 630 mm |
| Delimbing knives | 4 flexible, 1 static |
| Delimbing diameter | 40–550 mm |
| Max. grapple opening | 1,030 mm |
Overview
The Woody WH50-1 is a versatile harvester head that combines the manoeuvrability of its predecessor with the engineering of the larger Woody heads.
Frame and delimbing
The grapple frame is designed to take an optional top saw without losing frame stability. Both movable wing knives sit directly behind the fixed top knife, so they follow the stem closely as it is delimbed.
Control
Konrad’s KTC control sets the feed roller and knife pressure for the diameter and tree species, and the diameter-controlled cross cut follows the bucking instructions automatically, saving time on every stem. An automatic chain tensioner extends the life of the saw bar, and a photo sensor speeds up the processing of pre-cut wood. The Konrad endless rotator is standard.
Exc@v8 supplies and supports Konrad harvester heads in the UK and Ireland.
