Attachments
Forestry Heads

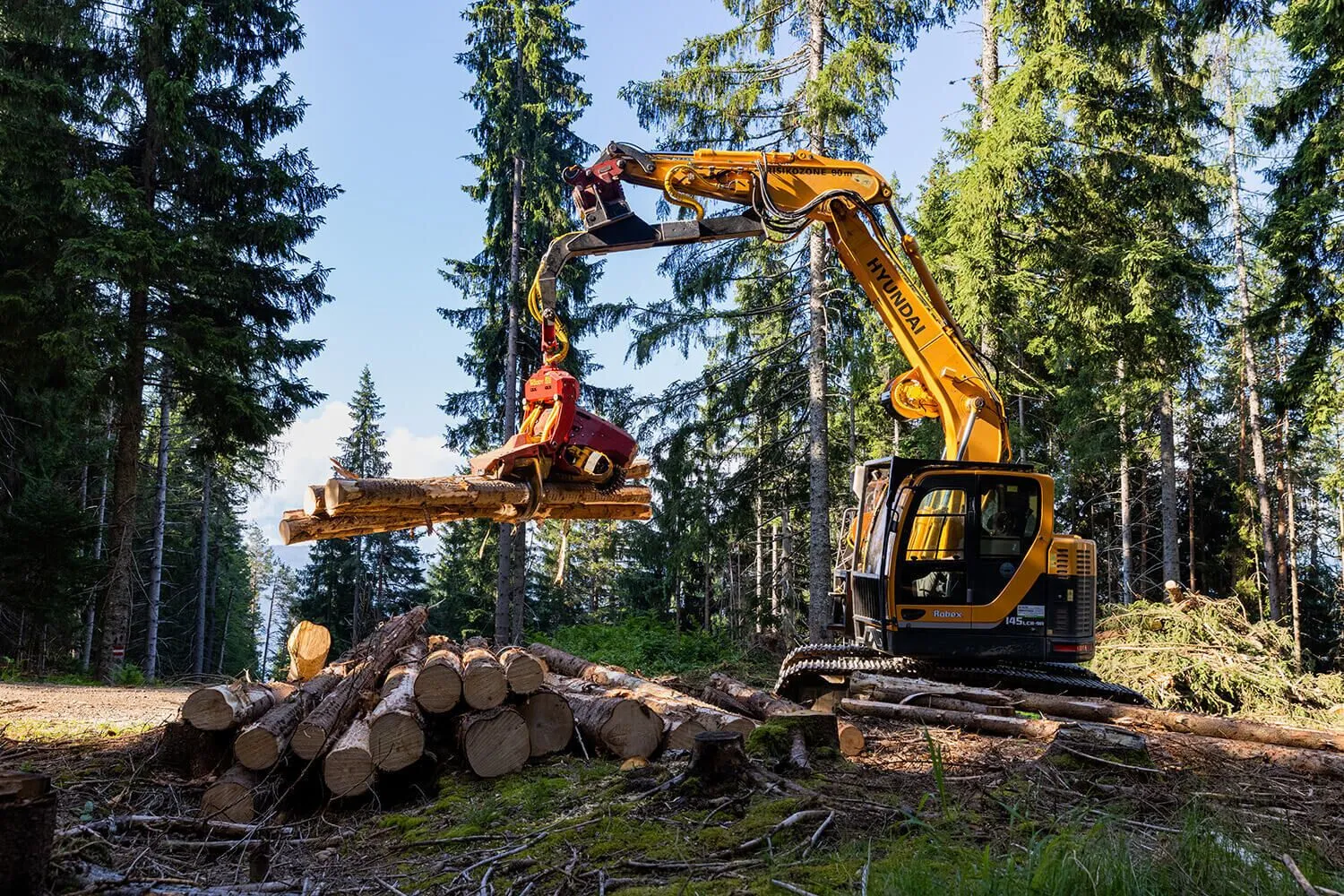

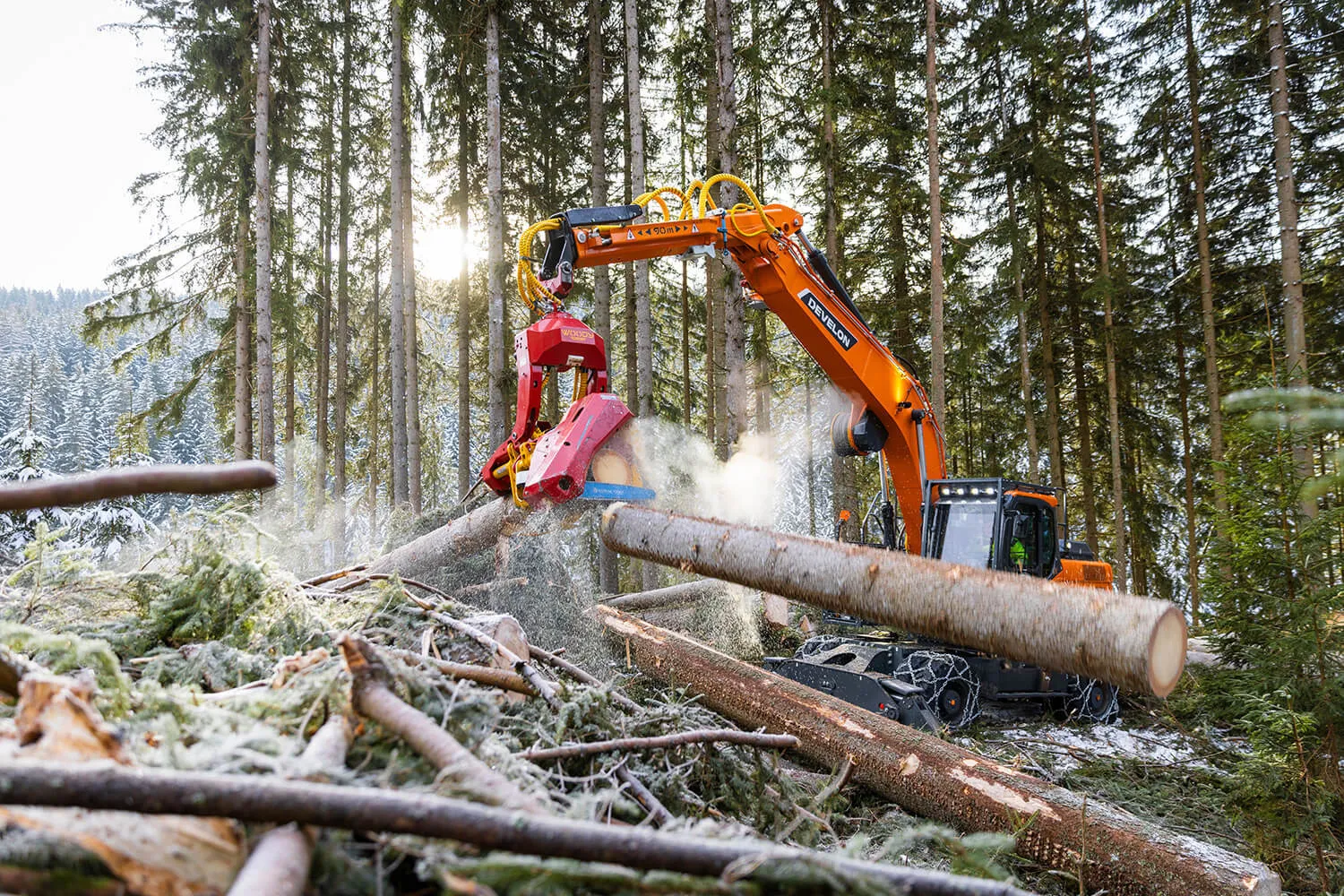

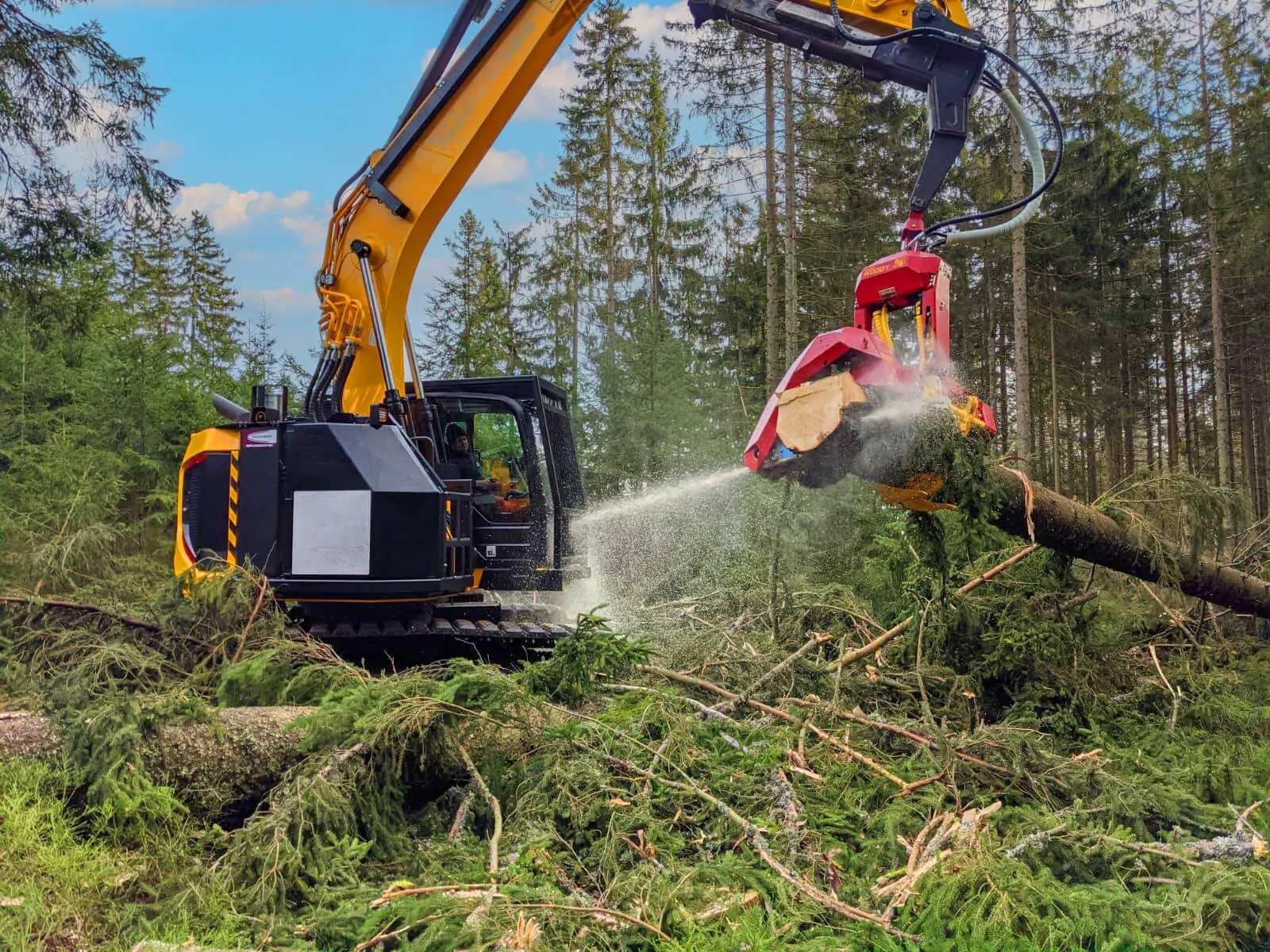

A harvesting head fells, delimbs and measures timber in one pass, on an excavator or a forestry machine. We supply Konrad’s Woody harvester heads, from the WH50-1, which cuts up to 550 mm, to the WH65-1 and WH70-1, which cut up to 750 mm for heavy timber.
Konrad Woody WH50-1 Harvester Head
- Cuts up to 550 mm, delimbs 40–550 mm
- 3 feed rollers, 32 kN feed force
- 1,030 mm grapple opening
- Integrated Konrad endless rotator and KTC 1.0 control
- Optional top saw, cutting up to 300 mm
Konrad Woody WH60-1 Harvester Head
- Cuts up to 680 mm, delimbs 40–650 mm
- 4 feed rollers, 35 kN feed force
- 1,200 mm grapple opening
- Integrated Konrad endless rotator and KTC 1.0 control
- Optional top saw, cutting up to 320 mm
Konrad Woody WH65-1 Harvester Head
- Cuts up to 750 mm, delimbs 40–650 mm
- 4 feed rollers, 40 kN feed force
- 1,350 mm grapple opening
- Integrated Konrad endless rotator and KTC 1.0 control
- Optional plunge saw, cutting up to 320 mm
Konrad Woody WH70-1 Harvester Head
- Cuts up to 750 mm, delimbs 90–750 mm
- 4 feed rollers, 37 kN feed force
- 1,260 mm grapple opening
- Integrated Konrad endless rotator and KTC 1.0 control
- Optional top saw, cutting up to 350 mm
