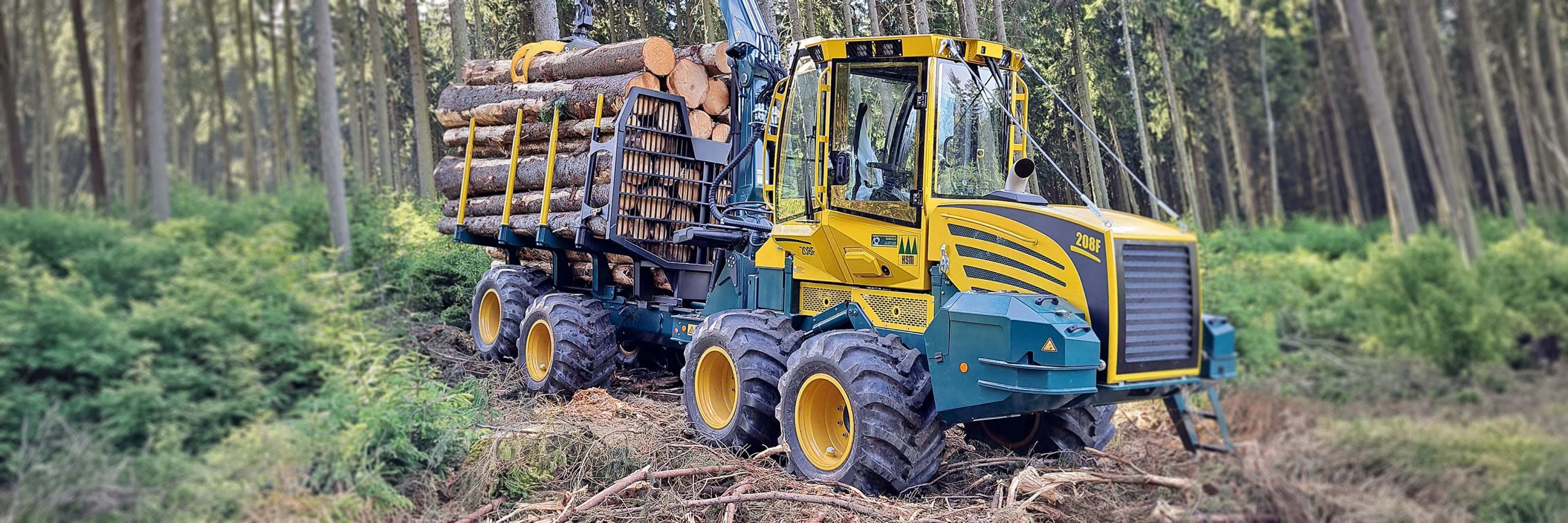

HSM 208F 10 t Forwarder

Name: Exc@v8 Group
Address: Unit 15A, Mealbank Mill Industrial Estate, Kendal, Cumbria, LA8 9DL, GB
Telephone: 01539 729999

The 10 t is a compact forwarder with a 129 kW four-cylinder Volvo Penta engine (175 kW optional) and room for larger cranes, up to the Epsilon S110 and Mesera M 92, for thick trunk timber.

Compare all 8 versions side by side

Narrow machine, wide tyres
Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
Read more
Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
One drivetrain across the range
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Read more
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Load-sensing hydraulics
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.
Read more
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.

HSM 208F 10 t

Payload: 10 t
Power: 129 kW (175 HP), 175 kW optional
Weight: From 17,200 kg
Load area: 4,400 mm long

Technical data: HSM 208F 10 t

Engine

Model: Volvo Penta TAD581VE, 4-cylinder, EU Stage V
Power: 129 kW (175 HP) from 1,700 rpm
Torque range: 800 Nm from 1,100 to 1,500 rpm
Maximum torque: 816 Nm at 1,380 rpm
Displacement: 5.13 litres

Engine (optional)

Model: Volvo Penta TAD583VE, 4-cylinder, EU Stage V
Power: 175 kW (238 HP) from 1,750 rpm
Torque range: 947 Nm from 1,200 to 1,750 rpm
Maximum torque: 969 Nm at 1,380 rpm
Displacement: 5.13 litres

Drive

Transfer gearbox: NAF 2-speed
Hydrostatic drive: HSM High Speed Drive (71 series), 0 to 14 km/h in first gear
Axles: NAF portal bogie axles
Differential locks: Front and rear, 100% selectable
Brakes: 2-circuit brake, multi-disc brakes running in an oil bath
Spring-loaded parking brake
Steering: Articulated steering with 2 cylinders
45° steering angle
Torsion lock: 2 hydraulic cylinders

Tyres

Standard: 710/45-26.5: 2,600 mm overall width, 2,700 mm with tracks
Optional: 600/55-26.5: 2,400 mm overall width, 2,500 mm with tracks
800/40-26.5: 2,700 mm overall width, 2,800 mm with tracks
870/40-26.5: 2,900 mm overall width, 3,000 mm with tracks
54 × 37-25: 2,900 mm overall width, 3,000 mm with tracks

Hydraulics

System: Load sensing
Pump: Variable pump (working pump)
Flow: 304 l/min at 1,600 rpm
Pressure: Up to 350 bar
Oil: Saturated synthetic ester, Panolin HLP SYNTH with Kleenoil microfiltration; WGK 1

Tanks

Diesel: 170 l
AdBlue: 25 l
Hydraulic oil: 130 l

Weight

Operating weight: From 17,200 kg
Weight distribution: 60% front axle, 40% rear axle

Crane

Standard crane: Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)
Other cranes: 11 more Epsilon and 10 Mesera cranes; see Crane options below

Load area

Rungs: 4 rungs
Length: 4,400 mm
Cross section: 4.0 m² (4.3 m² optional)
Payload: 10 t

Cab

Features: Parallel pivoting cab, raisable to the side
ROPS, FOPS and OPS tested safety cab
Swivel seat with pedals at the front and rear
Windscreen wipers front and rear, side wipers optional
Air-cushioned seat with seat heating
Hot water heating
Air conditioning

Electrics

Equipment: HSM Ecommand colour display
5 operator programs plus factory setting
Diagnostics function and error display
Graphical support for editing parameters
110 A (28 V) generator
2 maintenance-free dry-cell batteries, 75 Ah each

Equipment

Standard: 14 LED work lights on the cab
4 work lights on the crane
Voltage converter, 24 V to 12 V
Radio with CD
Fire extinguisher
First-aid kit
Warning triangle
Tool kit
Cooling box
Reversing camera with colour monitor
Rear work lights
Special: Front dozer blade
Front bogie lift
Turnable rung
Last rung plugged
Tiltable crane
Quick-change system for rungs
Clambunk
Auxiliary heating
Bogie tracks
Radio control for the winch
Drive by radio
Sun blinds
Pluggable front grid
Cab suspension HCS
Crane tip control xyControl (Epsilon cranes only)
Other accessories on request

Crane options

The 208F 10 t has the Epsilon M70 F80 as its standard crane and can be fitted with 21 other Epsilon and Mesera cranes. Lifting moments are gross / net. All are supplied with the FG43S grapple.

Epsilon cranes (12)

Crane	Lifting moment	Reach	Fit
Epsilon M70 F80	102 / 68 kNm	8.0 m	Standard
Epsilon M70 F86	102 / 68 kNm	8.6 m	Optional
Epsilon M70 F101	102 / 65 kNm	10.1 m	Optional
Epsilon M80 F80	114 / 79 kNm	8.0 m	Optional
Epsilon M80 F86	114 / 79 kNm	8.6 m	Optional
Epsilon M80 F101	114 / 75 kNm	10.1 m	Optional
Epsilon S100 F80	128 / 91 kNm	8.0 m	Optional
Epsilon S100 F86	128 / 90 kNm	8.6 m	Optional
Epsilon S100 F101	128 / 86 kNm	10.1 m	Optional
Epsilon S110 F80	143 / 104 kNm	8.0 m	Optional
Epsilon S110 F86	143 / 104 kNm	8.6 m	Optional
Epsilon S110 F101	143 / 100 kNm	10.1 m	Optional

Mesera cranes (10)

Crane	Lifting moment	Reach	Fit
Mesera F71 F72	99 / 75 kNm	7.2 m	Optional
Mesera F71 FT85	99 / 70 kNm	8.5 m	Optional
Mesera F71 FT100	99 / 66 kNm	10.0 m	Optional
Mesera F71 FT100i	99 / 66 kNm	10.0 m	Optional
Mesera F83 F72	106 / 82 kNm	7.2 m	Optional
Mesera F83 FT85	106 / 76 kNm	8.5 m	Optional
Mesera F83 FT100i	106 / 73 kNm	10.0 m	Optional
Mesera M 92 F80i	130 / 84 kNm	8.0 m	Optional
Mesera M 92 FT86i	130 / 84 kNm	8.6 m	Optional
Mesera M 92 FT100i	130 / 84 kNm	10.0 m	Optional
