Pfanzelt K Trac Implement Carrier

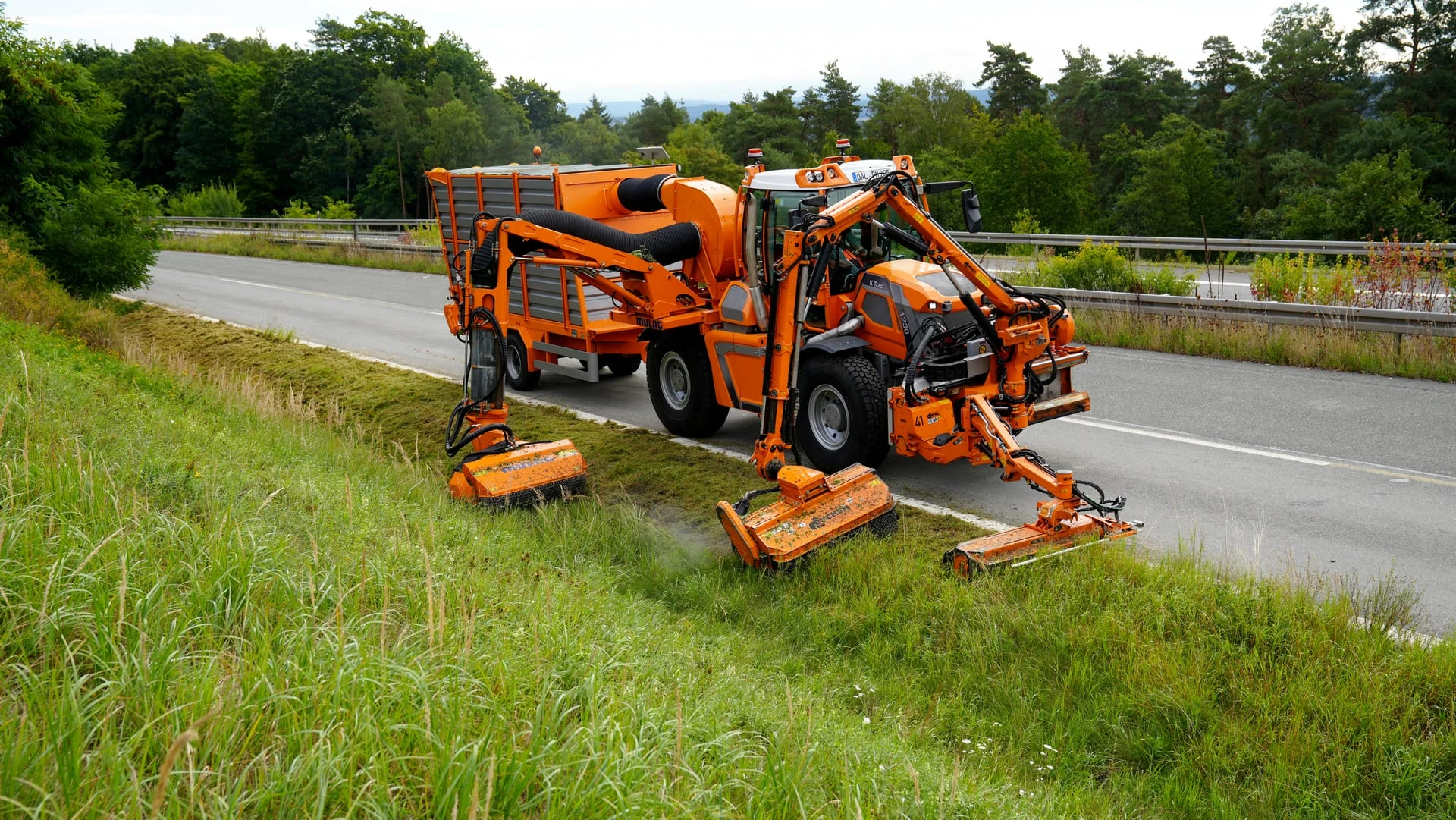

The Pfanzelt K Trac is a year-round municipal tractor and implement carrier for depots and landscape care, with four attachment and mounting bays, combined four-wheel steering, a mid-mounted XXL cab and three engine sizes from 205 to 292 hp.
Four attachment bays
Front and rear attachment and mounting bays for mowers, hedge trimmers, spreaders, snow blowers and a rear crane.
Read more
Front and rear attachment and mounting bays for mowers, hedge trimmers, spreaders, snow blowers and a rear crane.
Combined four-wheel steering
Front-axle or all-wheel steering, with a 10.5 m turning circle on all-wheel steering, for narrow streets and town centres.
Read more
Front-axle or all-wheel steering, with a 10.5 m turning circle on all-wheel steering, for narrow streets and town centres.
XXL cab
A mid-mounted, air-suspended cab with over 7 m² of glass, with a rotating operator stand or two air-suspended seats.
Read more
A mid-mounted, air-suspended cab with over 7 m² of glass, with a rotating operator stand or two air-suspended seats.
Choose a model
Speak to us about theK Trac 1230
EnquirePfanzelt K Trac 1220
The 151 kW (205 hp) K Trac, a year-round municipal tractor and implement carrier with four attachment and mounting bays, combined four-wheel steering and a mid-mounted XXL cab.
- Power
- 151 kW (205 hp)
- Top speed
- 85 km/h
- Hydraulics
- 160 l/min at 210 bar
- Permitted total weight
- 16,500 kg (18,000 kg optional)
Pfanzelt K Trac 1225
The 186 kW (253 hp) K Trac, with the same four bays, steering and cab, and more power for heavy mowing, snow-blowing and crane work.
- Power
- 186 kW (253 hp)
- Top speed
- 85 km/h
- Hydraulics
- 160 l/min at 210 bar
- Permitted total weight
- 16,500 kg (18,000 kg optional)
Pfanzelt K Trac 1230
The top K Trac, with 215 kW (292 hp), for the most demanding mowing, winter-service and crane work.
- Power
- 215 kW (292 hp)
- Top speed
- 85 km/h
- Hydraulics
- 160 l/min at 210 bar
- Permitted total weight
- 16,500 kg (18,000 kg optional)
Compare the models
Only what differs. Everything else is the same on all 3 models.
Key figures
| Specification | K Trac 1220 | K Trac 1225 | K Trac 1230 |
|---|---|---|---|
| Power | 151 kW (205 hp) | 186 kW (253 hp) | 215 kW (292 hp) |
Engine
| Specification | K Trac 1220 | K Trac 1225 | K Trac 1230 |
|---|---|---|---|
| Output | 151 kW (205 hp), EU Stage V, ISO 14396 | 186 kW (253 hp), EU Stage V, ISO 14396 | 215 kW (292 hp), EU Stage V, ISO 14396 |
Four bays, all year round

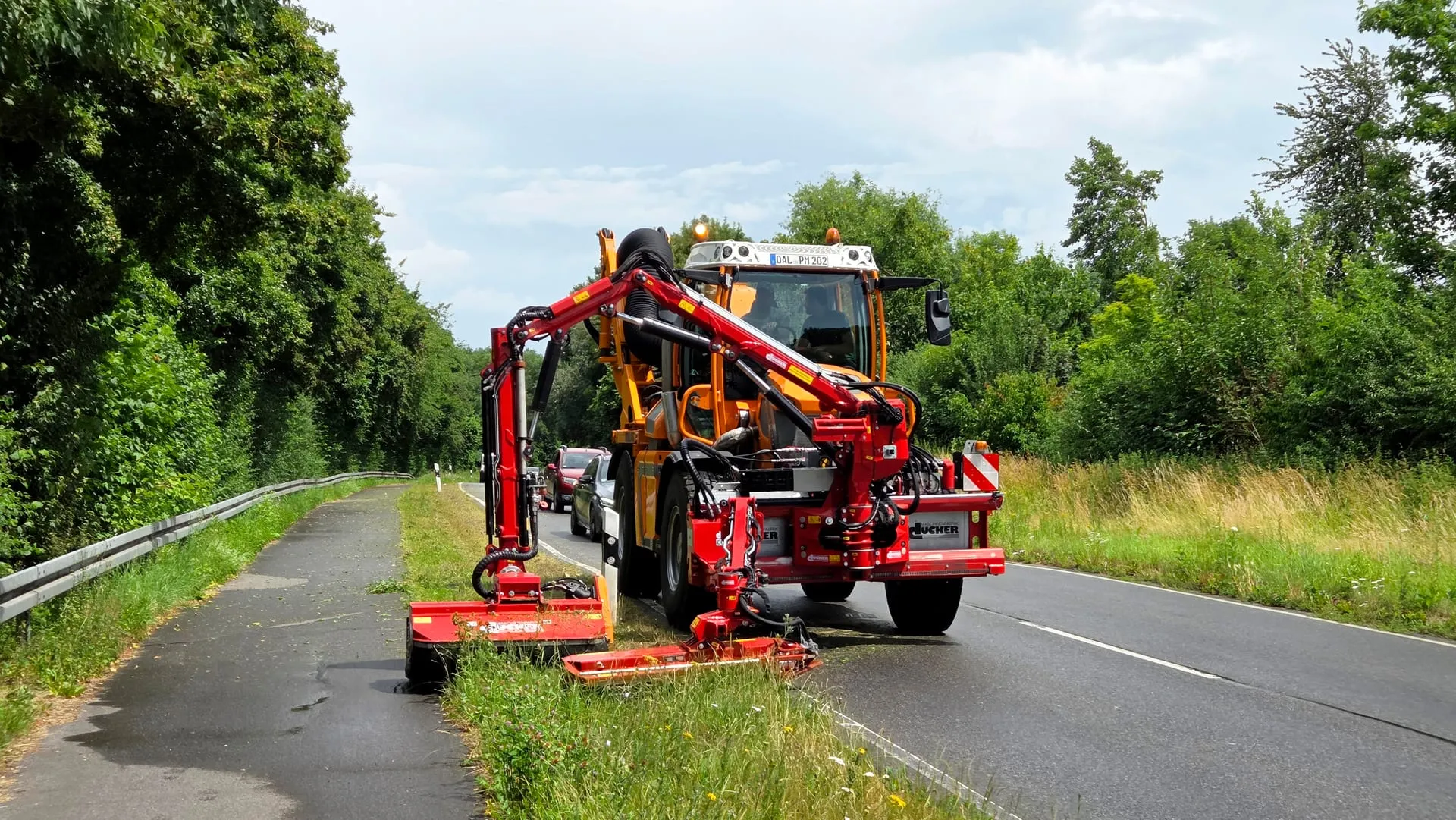

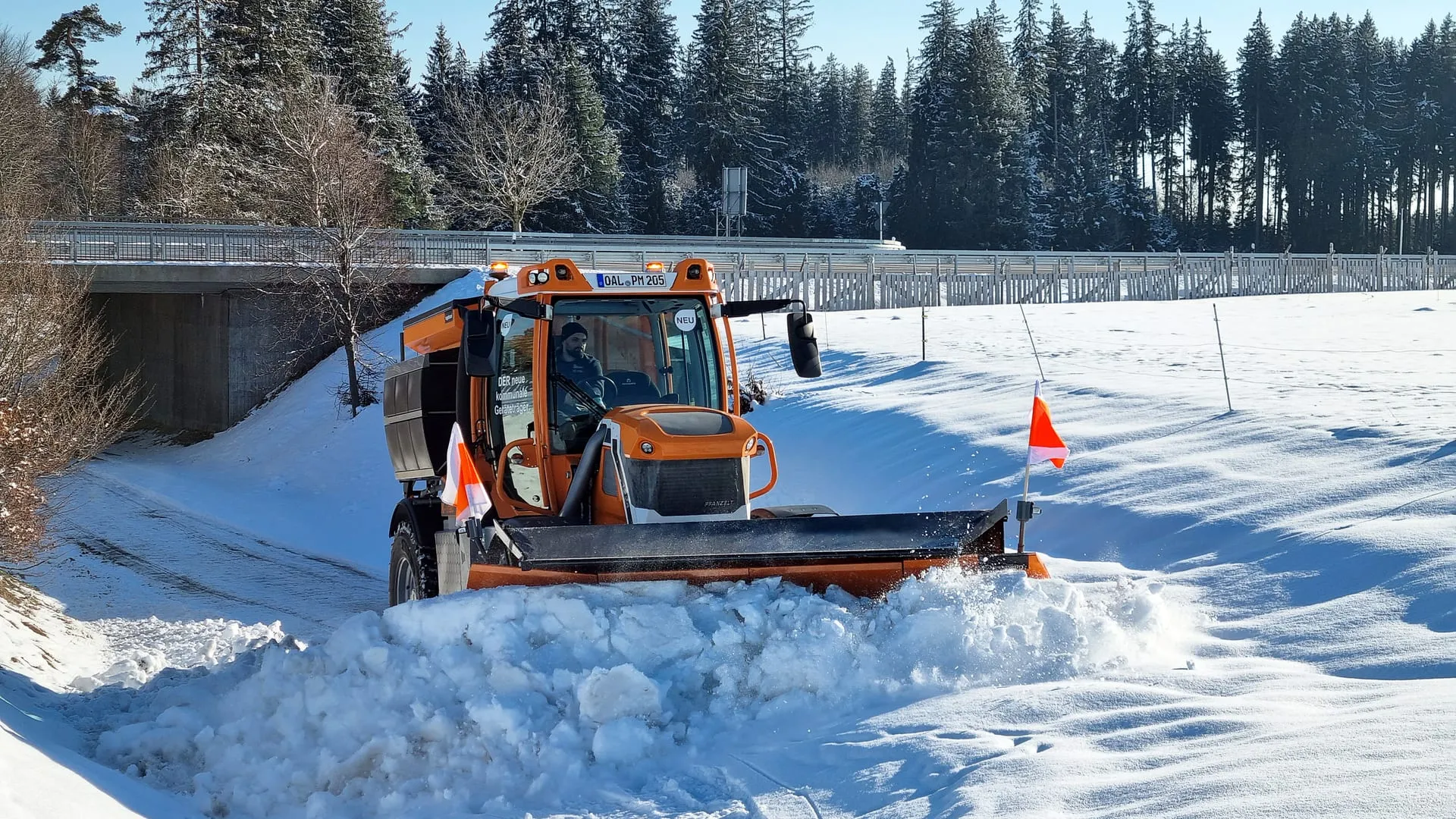

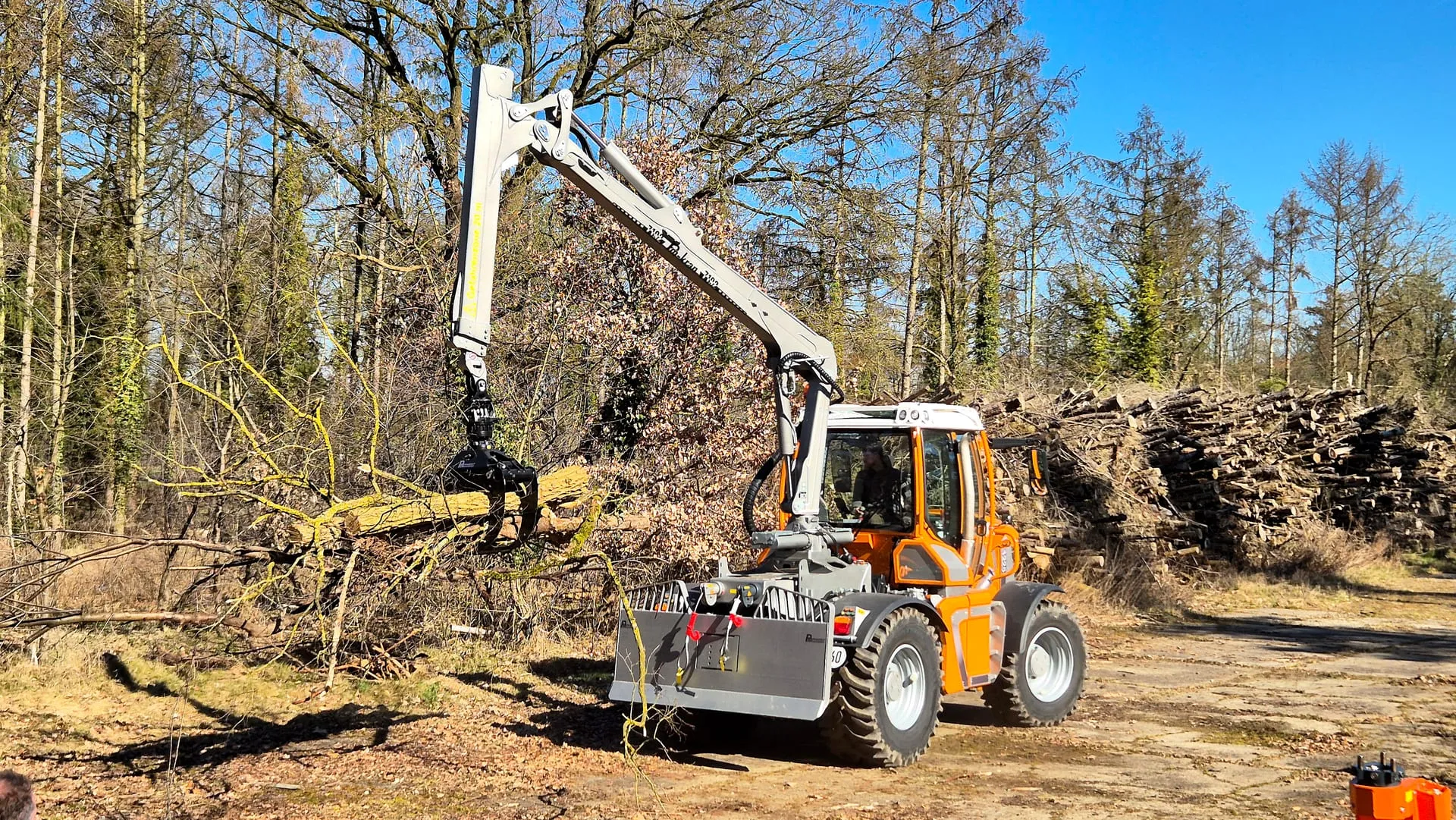

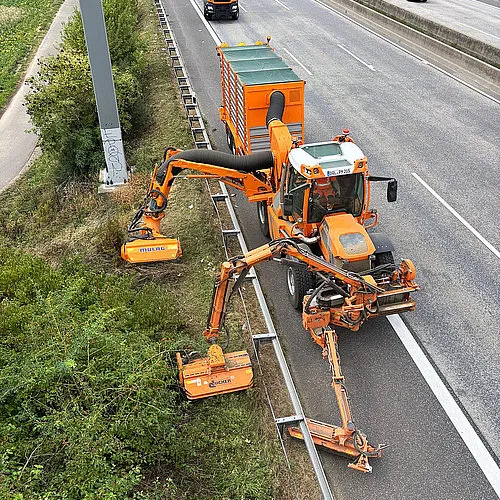

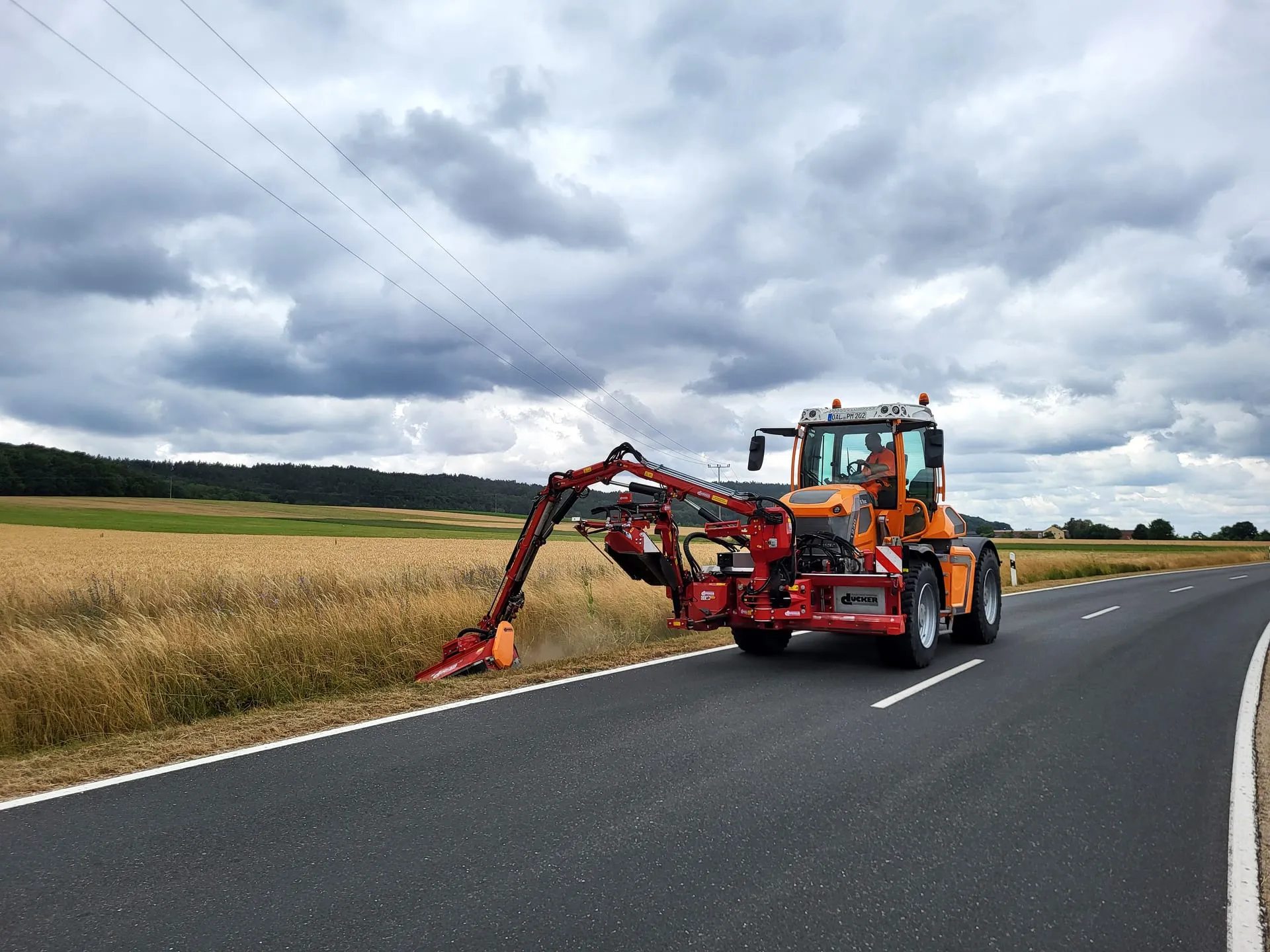

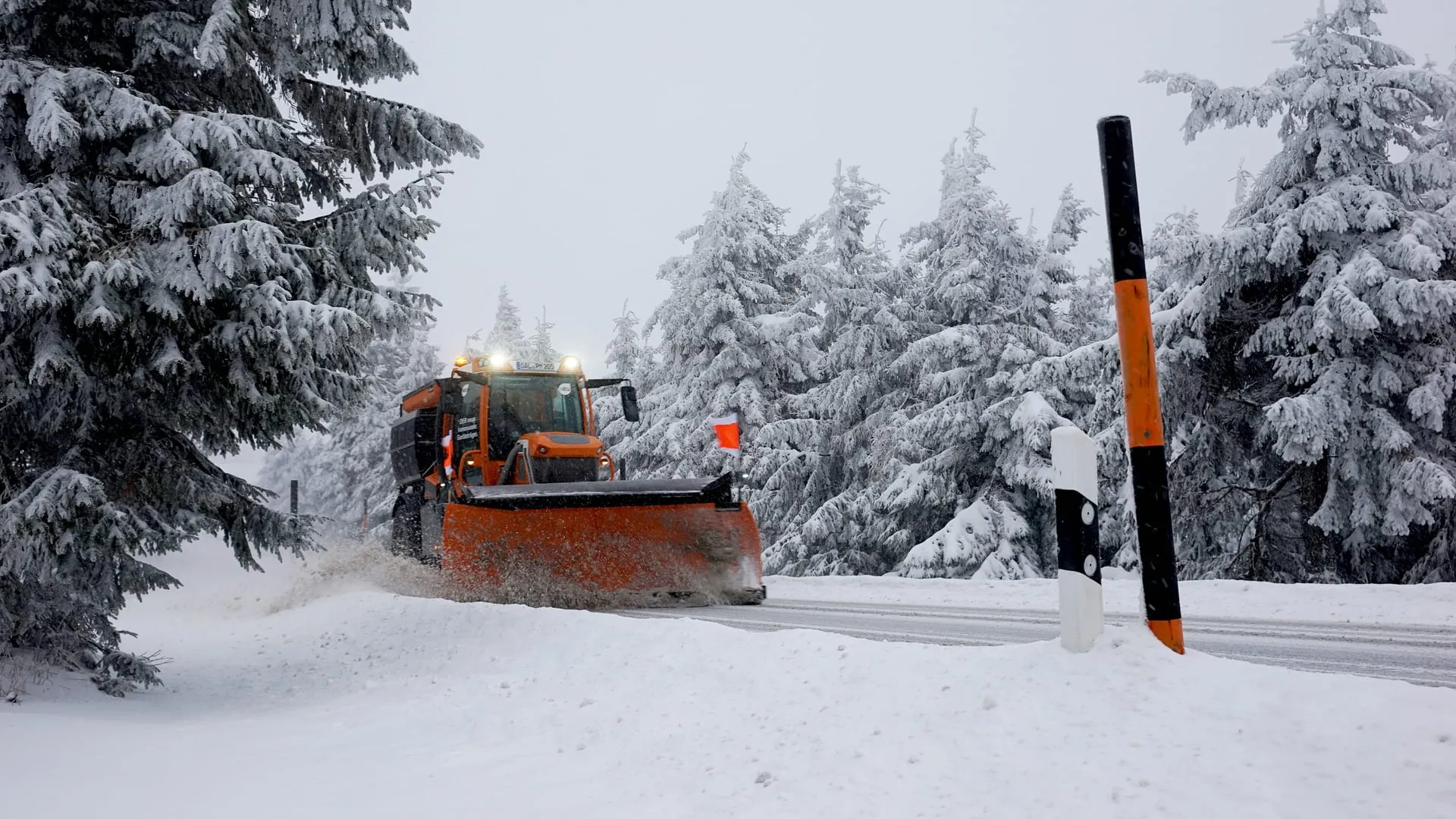

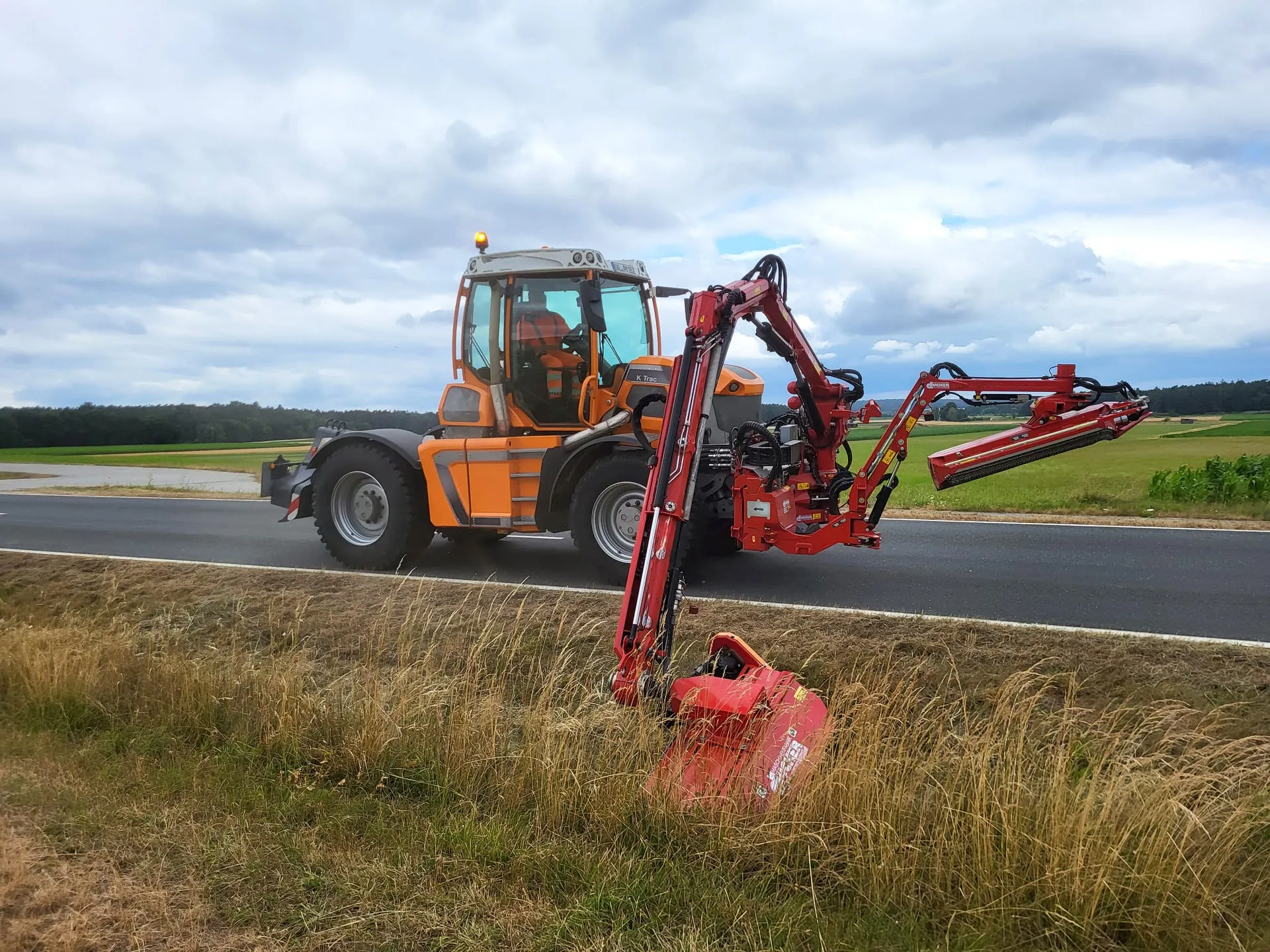

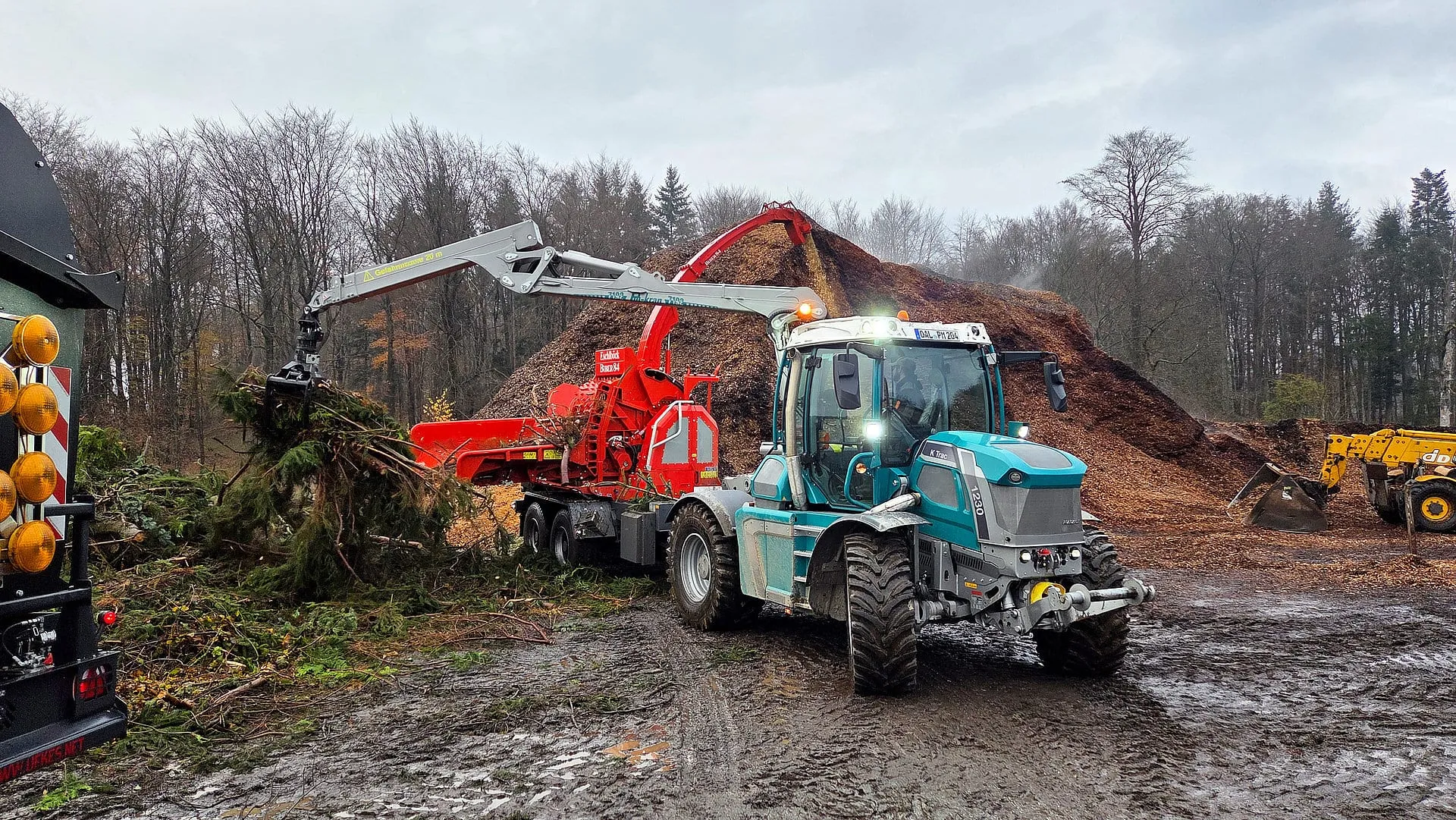

The K Trac’s four attachment and mounting bays, at the front and rear, let one vehicle cover the municipal year: hedge trimming and mowing with front and rear implements, salt and brine spreading in winter, snow blowers at the front and rear, and tree maintenance. A crane in the rear mounting bay can be a mower boom, a combination crane or a loading crane, which makes the K Trac a fast crane transporter too.
Manoeuvrable

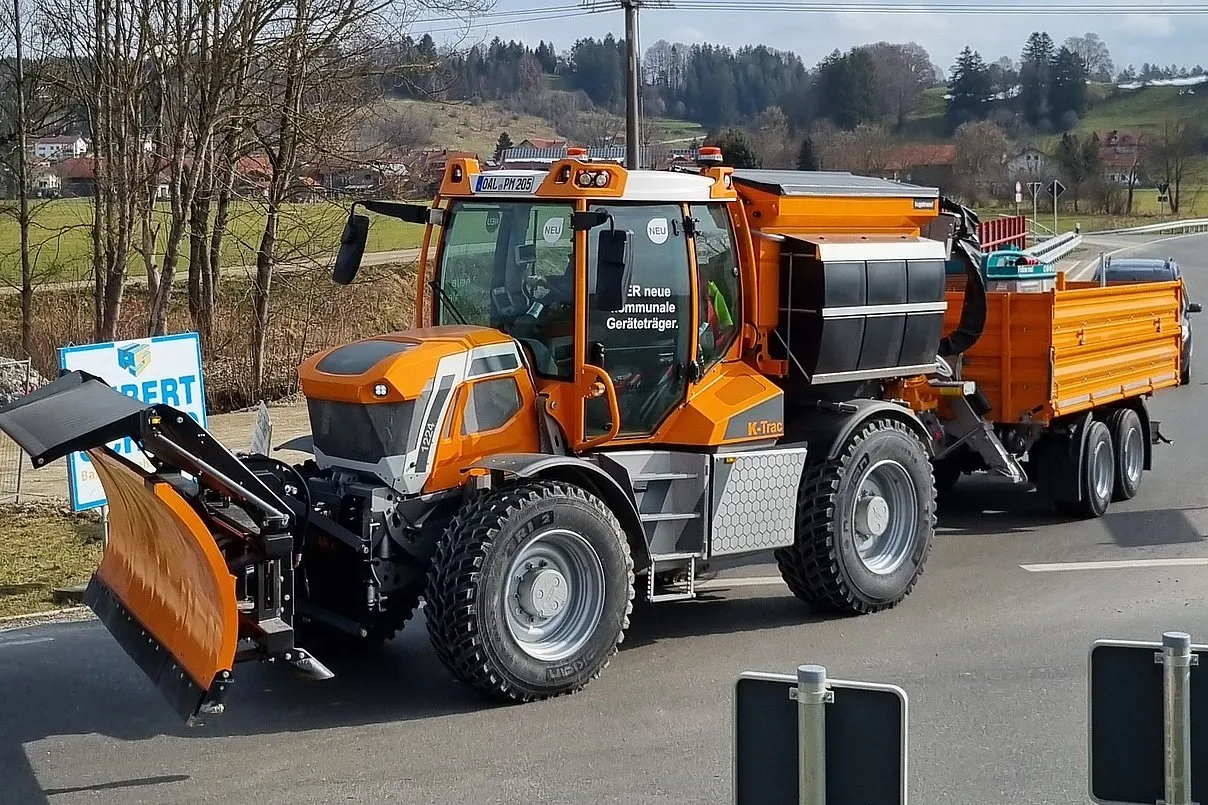

Combined four-wheel steering makes the K Trac manoeuvrable in narrow streets and small town centres, with a turning circle of 10.5 m on all-wheel steering, and the variaDRIVE continuously variable transmission takes it to its working sites quickly.

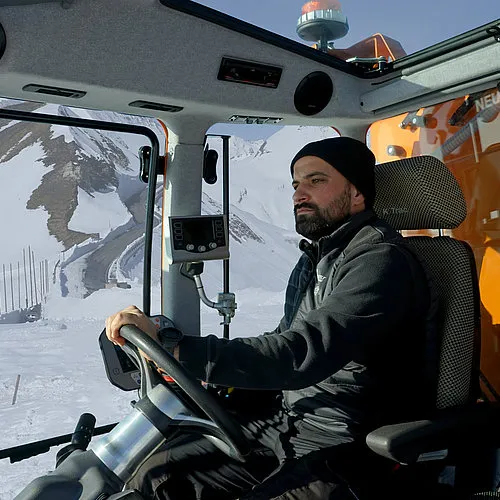

XXL cab
The air-suspended, large-volume cab sits in the middle of the vehicle, with over 7 m² of glass and noise insulation for quiet running at high engine speeds. It comes in two versions: with an operator stand that rotates electrically by up to 340°, with the controls, pedals and touchscreen turning with the seat, or as a two-seat cab whose seats can still turn slightly for a view of the verge.
Exc@v8 supplies and supports Pfanzelt machinery in the UK.
Technical data: Pfanzelt K Trac 1220
Engine
- Output
- 151 kW (205 hp), EU Stage V, ISO 14396
- Engine
- AGCO Power 74 HD
- Cylinders, capacity, nominal speed
- 6 cylinders, 7.4 litres, 1,950 rpm
- Tanks
- 310 l diesel, 40 l AdBlue
Drive
- Transmission
- variaDRIVE stepless, 0–85 km/h, with reduced engine speed; 3 forward and 2 reverse driving modes
- Rear PTO
- 570 / 1,000 rpm or 1,000 / 1,400 rpm
- Front PTO
- 1,000 rpm
- Turning circle
- 14.60 m (front-axle steering), 10.50 m (all-wheel steering), with standard tyres
Hydraulics
- Pump
- Axial piston variable displacement pump, 160 l/min, 210 bar (optional 200 l/min, 210 bar)
- Front and rear power lifts
- Optional
- Control valves
- 2 electric control valves at the rear (optional: 2 more, front and rear)
- LS connection
- Power-Beyond (LS connection) rear
Dimensions
- Length × width × height
- 4,940 mm or 5,690 mm long, 2,320–2,750 mm wide, 3,300 mm high
- Wheelbase
- 3,242 mm or 3,992 mm
- Mounting space
- Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width; height up to approx. 2,820 mm depending on tyres; length approx. 2,000 mm, also more depending on overhang
Weights
- Empty weight
- 7,920 kg
- Permitted total weight
- 16,500 kg (optional 18,000 kg)
- Permissible axle loads
- 8,740 kg at the front, 11,500 kg at the rear
- Weight distribution
- Front axle 55%, rear axle 45%
- Support load
- 2,000 kg automatic trailer coupling, 3,000 kg ball head with sliding carriage
Cab
- Cab
- Spacious, air-suspended mid-cab, hydraulically tiltable, 7 square metres of window area, roof windows, sun blinds, safety cab compliant with ISO standards (ROPS) with roof guard FOPS with an electrically swivelling operator’s station or two air-suspended comfort seats
Tyres
- Tyres
- 480/65 R28 Alliance 373 – Permissible gross weight 16,500 kg (various tyre options available)
Technical data: Pfanzelt K Trac 1225
Engine
- Output
- 186 kW (253 hp), EU Stage V, ISO 14396
- Engine
- AGCO Power 74 HD
- Cylinders, capacity, nominal speed
- 6 cylinders, 7.4 litres, 1,950 rpm
- Tanks
- 310 l diesel, 40 l AdBlue
Drive
- Transmission
- variaDRIVE stepless, 0–85 km/h, with reduced engine speed; 3 forward and 2 reverse driving modes
- Rear PTO
- 570 / 1,000 rpm or 1,000 / 1,400 rpm
- Front PTO
- 1,000 rpm
- Turning circle
- 14.60 m (front-axle steering), 10.50 m (all-wheel steering), with standard tyres
Hydraulics
- Pump
- Axial piston variable displacement pump, 160 l/min, 210 bar (optional 200 l/min, 210 bar)
- Front and rear power lifts
- Optional
- Control valves
- 2 electric control valves at the rear (optional: 2 more, front and rear)
- LS connection
- Power-Beyond (LS connection) rear
Dimensions
- Length × width × height
- 4,940 mm or 5,690 mm long, 2,320–2,750 mm wide, 3,300 mm high
- Wheelbase
- 3,242 mm or 3,992 mm
- Mounting space
- Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width; height up to approx. 2,820 mm depending on tyres; length approx. 2,000 mm, also more depending on overhang
Weights
- Empty weight
- 7,920 kg
- Permitted total weight
- 16,500 kg (optional 18,000 kg)
- Permissible axle loads
- 8,740 kg at the front, 11,500 kg at the rear
- Weight distribution
- Front axle 55%, rear axle 45%
- Support load
- 2,000 kg automatic trailer coupling, 3,000 kg ball head with sliding carriage
Cab
- Cab
- Spacious, air-suspended mid-cab, hydraulically tiltable, 7 square metres of window area, roof windows, sun blinds, safety cab compliant with ISO standards (ROPS) with roof guard FOPS with an electrically swivelling operator’s station or two air-suspended comfort seats
Tyres
- Tyres
- 480/65 R28 Alliance 373 – Permissible gross weight 16,500 kg (various tyre options available)
Technical data: Pfanzelt K Trac 1230
Engine
- Output
- 215 kW (292 hp), EU Stage V, ISO 14396
- Engine
- AGCO Power 74 HD
- Cylinders, capacity, nominal speed
- 6 cylinders, 7.4 litres, 1,950 rpm
- Tanks
- 310 l diesel, 40 l AdBlue
Drive
- Transmission
- variaDRIVE stepless, 0–85 km/h, with reduced engine speed; 3 forward and 2 reverse driving modes
- Rear PTO
- 570 / 1,000 rpm or 1,000 / 1,400 rpm
- Front PTO
- 1,000 rpm
- Turning circle
- 14.60 m (front-axle steering), 10.50 m (all-wheel steering), with standard tyres
Hydraulics
- Pump
- Axial piston variable displacement pump, 160 l/min, 210 bar (optional 200 l/min, 210 bar)
- Front and rear power lifts
- Optional
- Control valves
- 2 electric control valves at the rear (optional: 2 more, front and rear)
- LS connection
- Power-Beyond (LS connection) rear
Dimensions
- Length × width × height
- 4,940 mm or 5,690 mm long, 2,320–2,750 mm wide, 3,300 mm high
- Wheelbase
- 3,242 mm or 3,992 mm
- Mounting space
- Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width; height up to approx. 2,820 mm depending on tyres; length approx. 2,000 mm, also more depending on overhang
Weights
- Empty weight
- 7,920 kg
- Permitted total weight
- 16,500 kg (optional 18,000 kg)
- Permissible axle loads
- 8,740 kg at the front, 11,500 kg at the rear
- Weight distribution
- Front axle 55%, rear axle 45%
- Support load
- 2,000 kg automatic trailer coupling, 3,000 kg ball head with sliding carriage
Cab
- Cab
- Spacious, air-suspended mid-cab, hydraulically tiltable, 7 square metres of window area, roof windows, sun blinds, safety cab compliant with ISO standards (ROPS) with roof guard FOPS with an electrically swivelling operator’s station or two air-suspended comfort seats
Tyres
- Tyres
- 480/65 R28 Alliance 373 – Permissible gross weight 16,500 kg (various tyre options available)
Documents and data sheets
Pfanzelt's data sheet covers every model in one file.
