The KMS on a tandem trailer: a remote-controlled skyline crane in a 2-cable or 3-cable version, with an automatic drive function for the carriage as standard and a 1,000 m skyline.

Compare all 2 models side by side

Compact, on a trailer or tracks
The KMS is mounted on a tandem trailer with a hydrostatic auxiliary drive (optional on the KM40-3), or on a radio-controlled tracked undercarriage for the KR50-1, with a tower of 11.0 to 12.0 m.
Read more
The KMS is mounted on a tandem trailer with a hydrostatic auxiliary drive (optional on the KM40-3), or on a radio-controlled tracked undercarriage for the KR50-1, with a tower of 11.0 to 12.0 m.
Run from the remote
The set-up, the winches and the carriage are all radio-controlled, on Konrad's KTC 1.0 control system and KFS-16 or KFS-20 radio remote control.
Read more
The set-up, the winches and the carriage are all radio-controlled, on Konrad's KTC 1.0 control system and KFS-16 or KFS-20 radio remote control.
Long lines
A 22 mm skyline of 1,000 m on a 120 kN winch and a 1,000 m main line, driven by a 212 kW FPT six-cylinder engine.
Read more
A 22 mm skyline of 1,000 m on a 120 kN winch and a 1,000 m main line, driven by a 212 kW FPT six-cylinder engine.

Konrad KM/KR40-3

Tower height: 11.0 m
Main line pull: 40 kN
Skyline: 22 mm, 1,000 m
Weight: 13,260–14,550 kg

Technical data: Konrad KM/KR40-3

These figures are for the KM40-3 (tandem trailer). The KR40-3's tracked figures are to be confirmed.

General

Chassis: Tandem trailer
Weight: 13,260–14,550 kg, depending on version
Transport dimensions (L × W × H): 6.09 × 2.26 × 3.22 m
Tower height: 11.0 m (3-rope version with skyline discharger)
Control system: KTC 1.0
Radio remote control: KFS-16, KFS-20
Travel drive: Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control (optional)
Tandem axle: Air brakes, mechanical parking brake, design speed 40 km/h (up to 80 km/h in a special version)
Tyres: 445/45 R19.5

Cable crane

Skyline winch: 22 mm, 1,000 m; 120 kN
Main line winch: 12 mm, 1,000 m; 40 kN; rope speed 4–9 m/s
Guy line winches: 6 × 18 mm, 70 m; 9 kN
Straw line winch (optional): 8 mm, 2,000 m; 20 kN
Haul-back winch (optional): 8 mm, 2,000 m; 35 kN; rope speed 4–9 m/s

Engine

Engine: Water-cooled FPT 6-cylinder turbo diesel, EU Stage V
Power: 212 kW (288 PS) at 2,200 rpm
Torque: 1,160 Nm at 1,500 rpm
Displacement: 6.7 litres
Diesel tank: 170 l

Hydraulics

Cable crane pumps: Axial piston pumps, closed circuit, max. 460 bar
Power take-off pump: Axial piston pump, open circuit, max. 280 bar
Hydraulic oil tank: 160 l

Konrad KMS tower yarder on its trailer, rigged in a forest clearing

Remote control

Every function the crew needs for a quick, safe set-up is on the remote: the supports, raising the tower, the guy line drums and winch, the skyline and main line winches, the tensioning cylinder, carriage start and stop, the winch in the carriage, the automatic drive function, handing over radio control, and the horn.

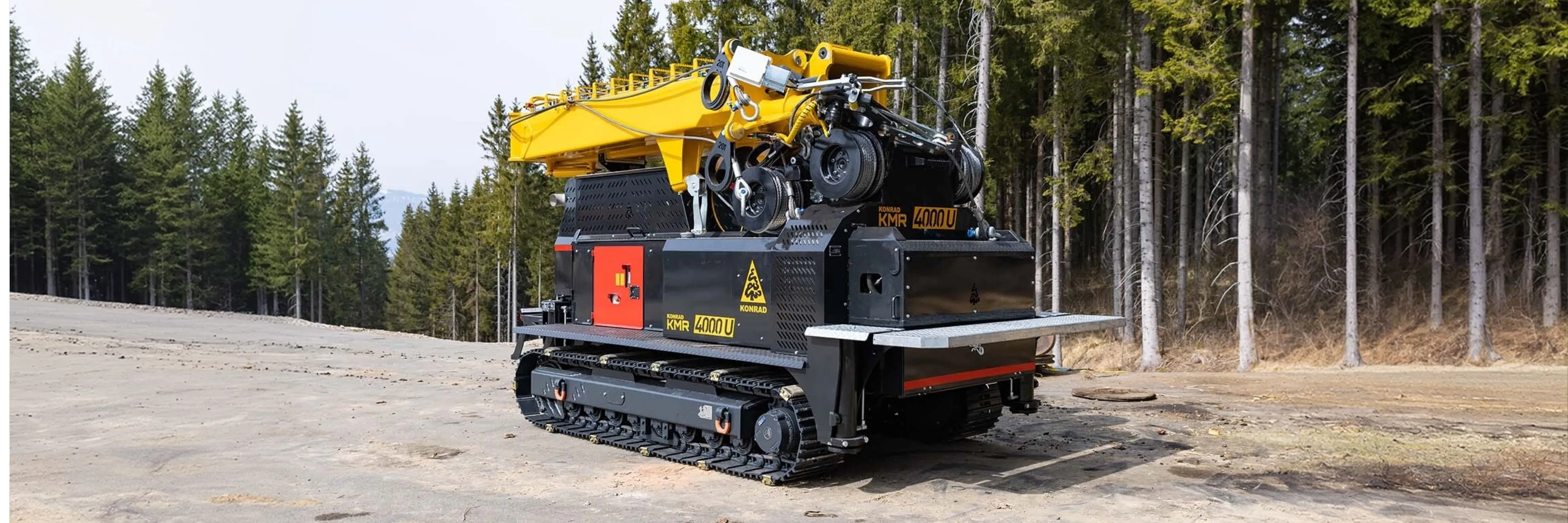

Konrad KMS on its tracked undercarriage

Versions and options

The KM40-3 comes as a 2-cable or 3-cable version. Options include a straw line winch, a long-cable version and additional guy line winches. The 50-1 runs on a tandem trailer with hydrostatic drive (KM50-1) or on a radio-controlled tracked undercarriage (KR50-1).
