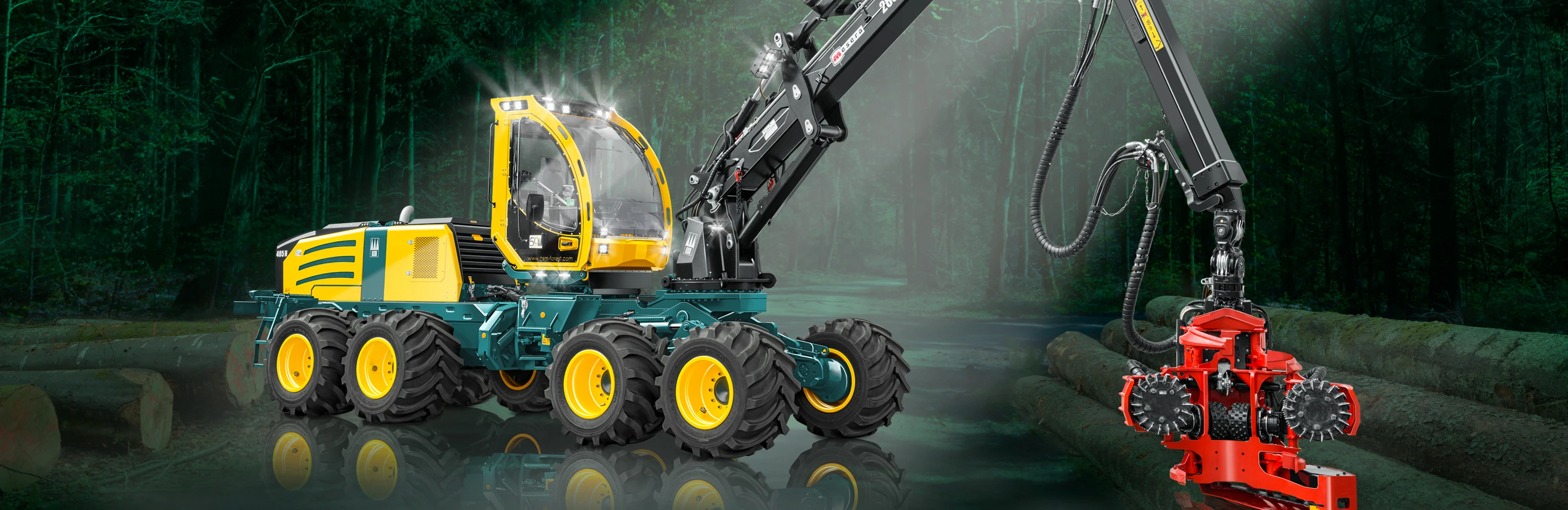

HSM 405H2 8WD Harvester

Name: Exc@v8 Group
Address: Unit 15A, Mealbank Mill Industrial Estate, Kendal, Cumbria, LA8 9DL, GB
Telephone: 01539 729999

The H2 covers medium to thick trunk timber operations, with a 210 kW Volvo Penta engine and a Mesera M221 crane with 10 m or 11 m reach.

One drivetrain across the range
The H2, H3 and H4 share a hydrostatic-mechanical drive with a NAF 2-speed transfer gearbox, balanced portal tandem axles with 100% selectable differential locks front and rear, and articulated steering with a 50° steering angle.
Read more
The H2, H3 and H4 share a hydrostatic-mechanical drive with a NAF 2-speed transfer gearbox, balanced portal tandem axles with 100% selectable differential locks front and rear, and articulated steering with a 50° steering angle.
Load-sensing hydraulics
A load-sensing system with two 190 cm³ variable pumps, one for the crane and one for the harvester head, delivering 532 l/min at up to 380 bar.
Read more
A load-sensing system with two 190 cm³ variable pumps, one for the crane and one for the harvester head, delivering 532 l/min at up to 380 bar.
A tested, adjustable safety cab
The cab is ROPS, FOPS and OPS tested and height-adjustable at the front and rear, with air conditioning and auxiliary heating that preheats the hydraulic oil. A rotating cab, turning through 270°, is an option.
Read more
The cab is ROPS, FOPS and OPS tested and height-adjustable at the front and rear, with air conditioning and auxiliary heating that preheats the hydraulic oil. A rotating cab, turning through 270°, is an option.

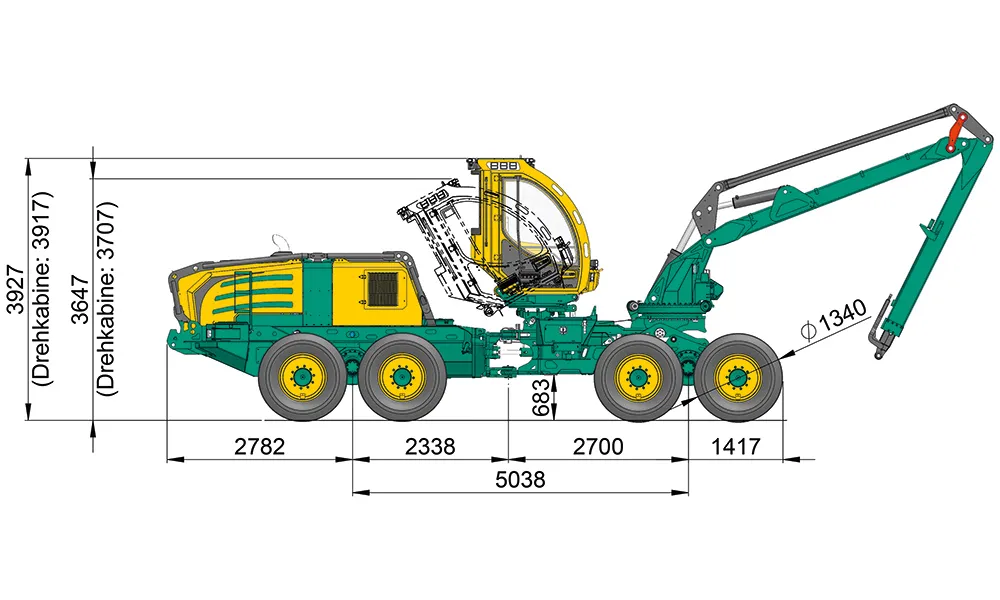

HSM 405H2 8WD

Engine

Drive

Transmission: Hydrostatic-mechanical
Transfer gearbox: NAF 2-speed
Axles: NAF balanced portal tandem axles
Differential locks: Front and rear, 100% selectable
Brakes: 2-circuit brake, disc brakes running in an oil bath
Spring-loaded parking brake
Steering: Articulated steering with 2 cylinders
50° steering angle
Torsion lock: 2 hydraulic cylinders

Tyres

Standard: 710/45-26.5, 2,880 mm wide with tapes and chains
Optional: 800/40-26.5: 2,980 mm wide with tapes only, 3,060 mm wide with tapes and chains
600/55-26.5: 2,660 mm wide with tapes and chains

Hydraulics

System: Load sensing
Pumps: Variable (working pumps): crane pump 190 cm³, head pump 190 cm³
Flow: 532 l/min at 1,400 rpm
Pressure: Up to 380 bar
Oil: Saturated synthetic ester, Panolin HLP SYNTH with Kleenoil microfiltration; WGK 1

Tanks

Weight

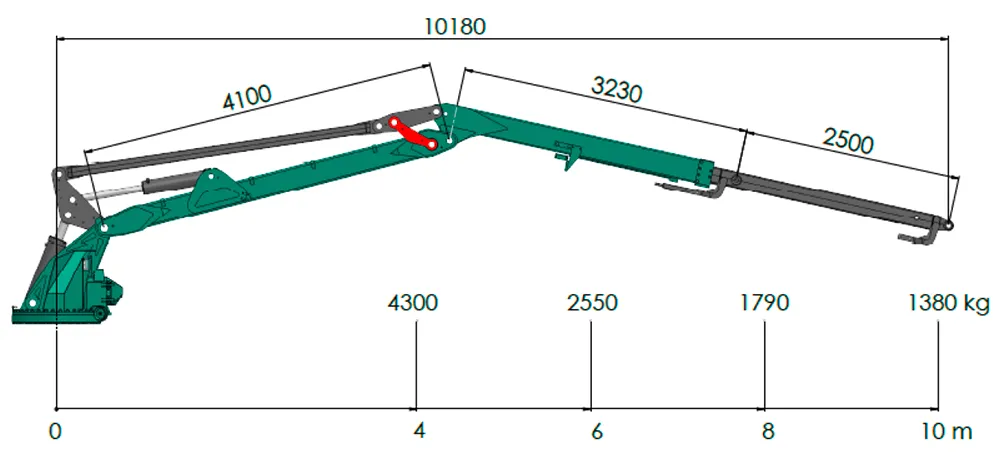

Crane

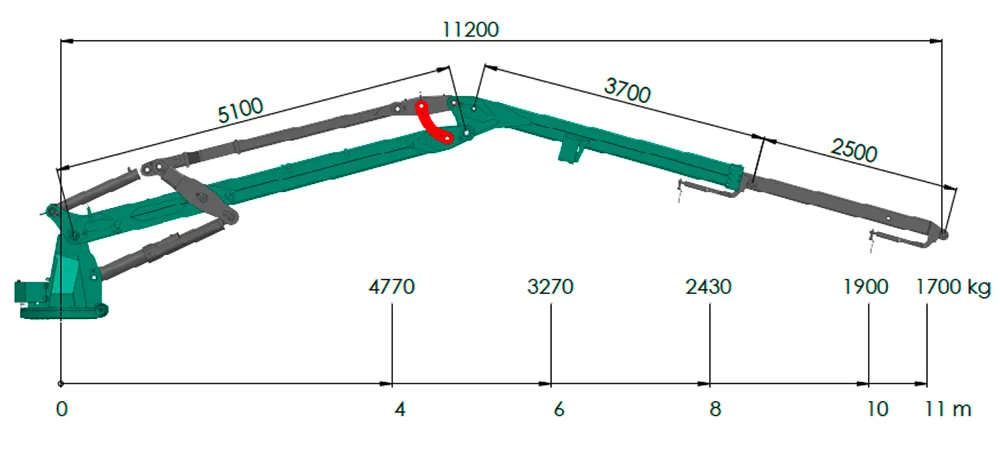

Crane (optional)

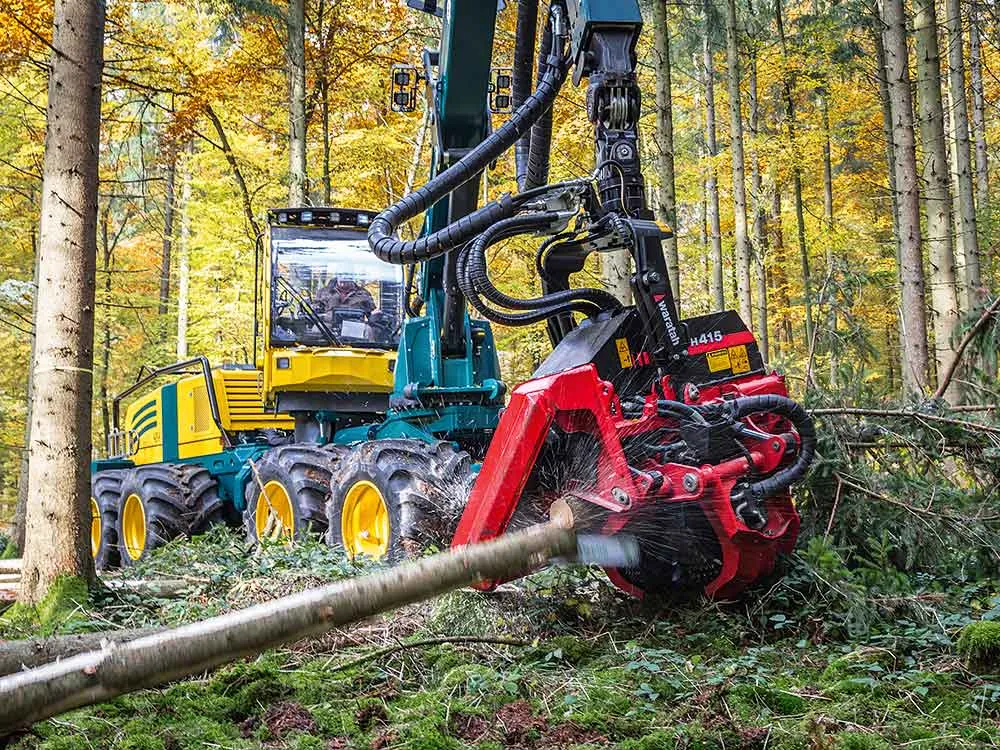

Harvester head

Cab

Features: Height-adjustable at the front and rear, +10° / −29°
Bent Lexan windscreen
Windscreen wipers at the front and side
ROPS, FOPS and OPS tested safety cab
Air-cushioned seat with seat heating
Hot water heating
Auxiliary heating with cooling water and hydraulic oil preheating
Air conditioning
Optional: height-adjustable and rotatable (270°), front and rear +10° / −12° (restricted to −24°), lateral ±9°
Optional: sun blinds

Electrics

Equipment: HSM Ecommand colour display
5 operator programs plus factory setting
Diagnostics function and error display
Graphical support for editing parameters
110 A (28 V) generator
2 maintenance-free dry-cell batteries, 75 Ah each

Equipment

Standard: 20 LED work lights on the cab
4 work lights in front of the crane
2 LED work lights on the crane column
2 LED work lights on the rear frame
Front bogie lift, separately switchable
Voltage converter, on-board voltage 24 V to 12 V
End cushioning for crane and steering cylinder
Radio
Fire extinguisher
First-aid kit
Warning triangle
Tool set
Bypass filter
Diesel fill pump
Hydraulic fill pump
Vacuum pump
Special: GPS system
Data transfer
Bogie lift engine carriage
Steep slope winch attachment, traction constant 120 kN, maximum 150 kN
Air compressor 24 V
Guard bracket, bonnet
