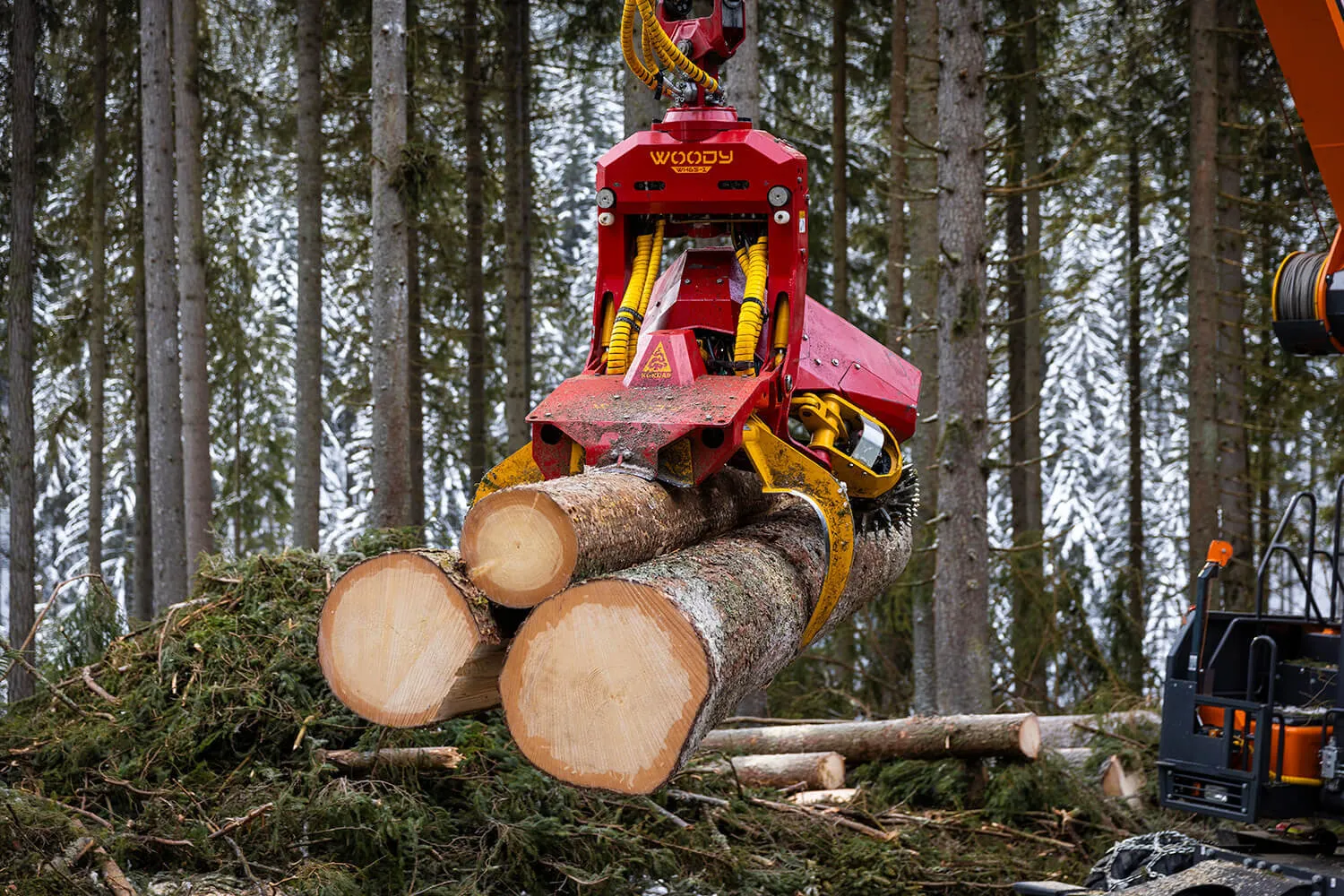

Konrad Woody WH65-1 Harvester Head
The Konrad Woody WH65-1 is the latest generation of Woody harvester head, built with a heavy frame for damaged and heavy timber on carriers such as tracked excavators from 20 tonnes, with a 750 mm cut and 40 kN of feed force.
- Cuts up to 750 mm, delimbs 40–650 mm
- 4 feed rollers, 40 kN feed force
- 1,350 mm grapple opening
- Integrated Konrad endless rotator and KTC 1.0 control
- Optional plunge saw, cutting up to 320 mm
Technical data
| Weight (with rotator, oil filled) | 1,950 kg (1,930 kg with optional plunge saw) |
|---|---|
| Recommended drive power | 118 kW (160 PS) |
| Carrier | Heavy base machines, such as tracked excavators from 20 tonnes |
| Oil requirement | 200–250 l/min |
| Rotator | Integrated Konrad endless rotator |
| Operating voltage | 24 V |
| Control system | KTC 1.0 |
| Max. cutting diameter | 750 mm (plunge saw: 320 mm) |
| Saw guide bar length | 900 mm (plunge saw: 420 mm) |
| Chain speed | 40 m/s (plunge saw: 35 m/s) |
| Chain tensioner | Hydraulic (plunge saw: manual) |
| Chain pitch | .404" |
| Drive links | 106 (plunge saw: 55) |
| Feed rollers | 4 |
| Max. feed force | 40 kN |
| Feed speed | 0–4 m/s |
| Max. feed roller opening | 790 mm |
| Delimbing knives | 4 flexible, 1 static |
| Delimbing diameter | 40–650 mm |
| Max. grapple opening | 1,350 mm |
Overview
The Woody WH65-1 is the latest generation of Konrad’s harvester heads, developed for the new challenges of forestry work.
Heavy and damaged timber
Its robust frame is built for damaged timber and for processing heavy timber. Konrad developed it to be mounted on heavy base machines, such as tracked excavators from 20 tonnes.
Saws
The main saw has a hydraulic chain tensioner and a 900 mm bar for cuts up to 750 mm. An optional plunge saw, with a manual tensioner, cuts up to 320 mm.
Exc@v8 supplies and supports Konrad harvester heads in the UK and Ireland.
