Dynaset HVB Hydraulic Vibra
Dynaset's HVB Hydraulic Vibra turns an excavator's or backhoe's hydraulic power into vibration at the bucket, for digging into frozen, hard or rocky ground, emptying sticky soil, compacting, driving piles and cutting asphalt, on machines up to 20 tonnes.
- Vibration at the bucket from the excavator's own hydraulics
- For digging into frozen, hard or rocky ground, compaction, pile driving and asphalt cutting
- Three models for carriers from 0 to 20 tonnes, 19 to 30 Hz
- Switched on from a joystick button
- 13 kg, fitted on the boom alongside the bucket cylinder
Overview
Dynaset’s HVB Hydraulic Vibra adds vibration to an excavator’s or backhoe’s bucket, or another attachment, using the machine’s own hydraulics. It helps a compact excavator take on work that would otherwise need a larger machine.
What vibration adds

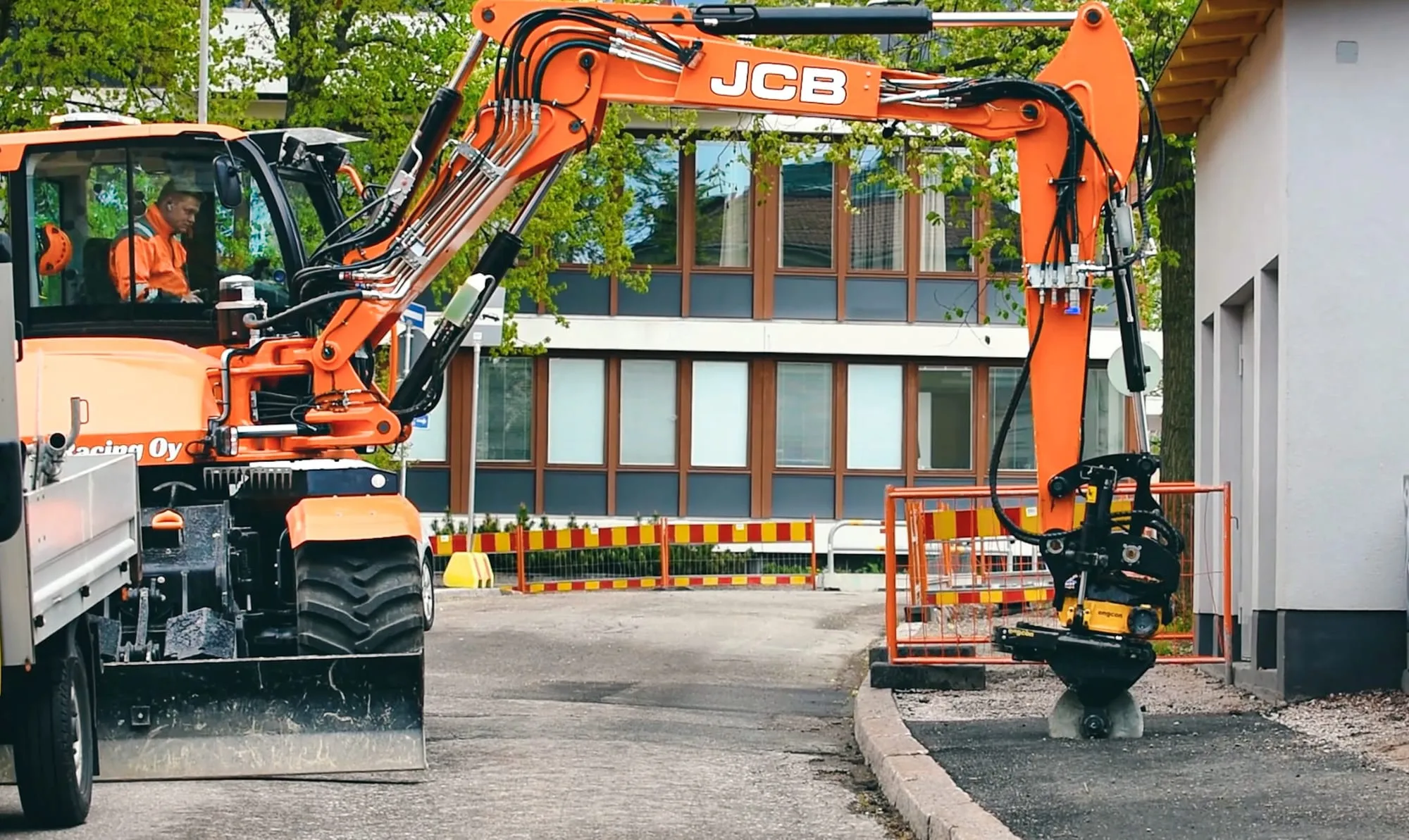

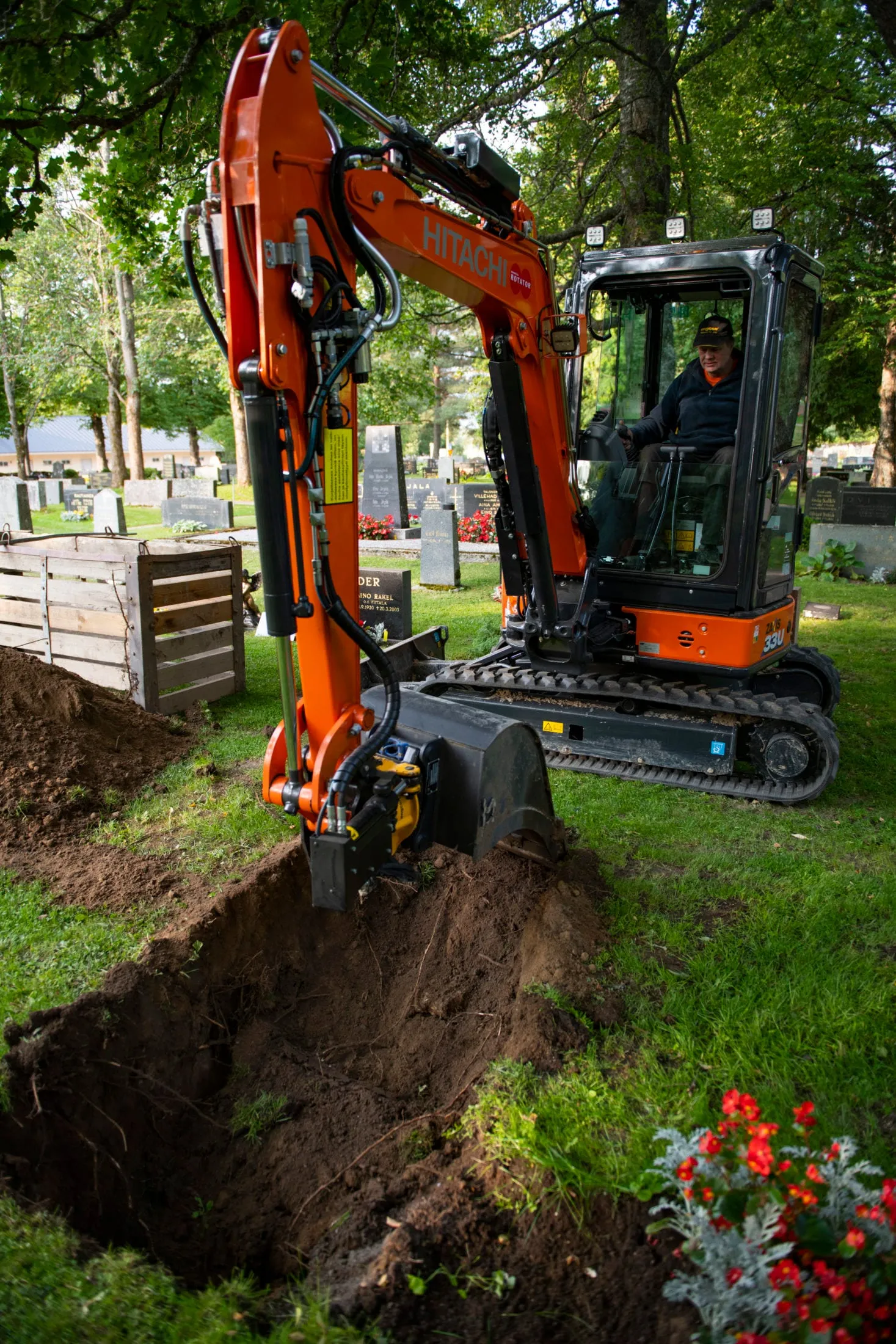

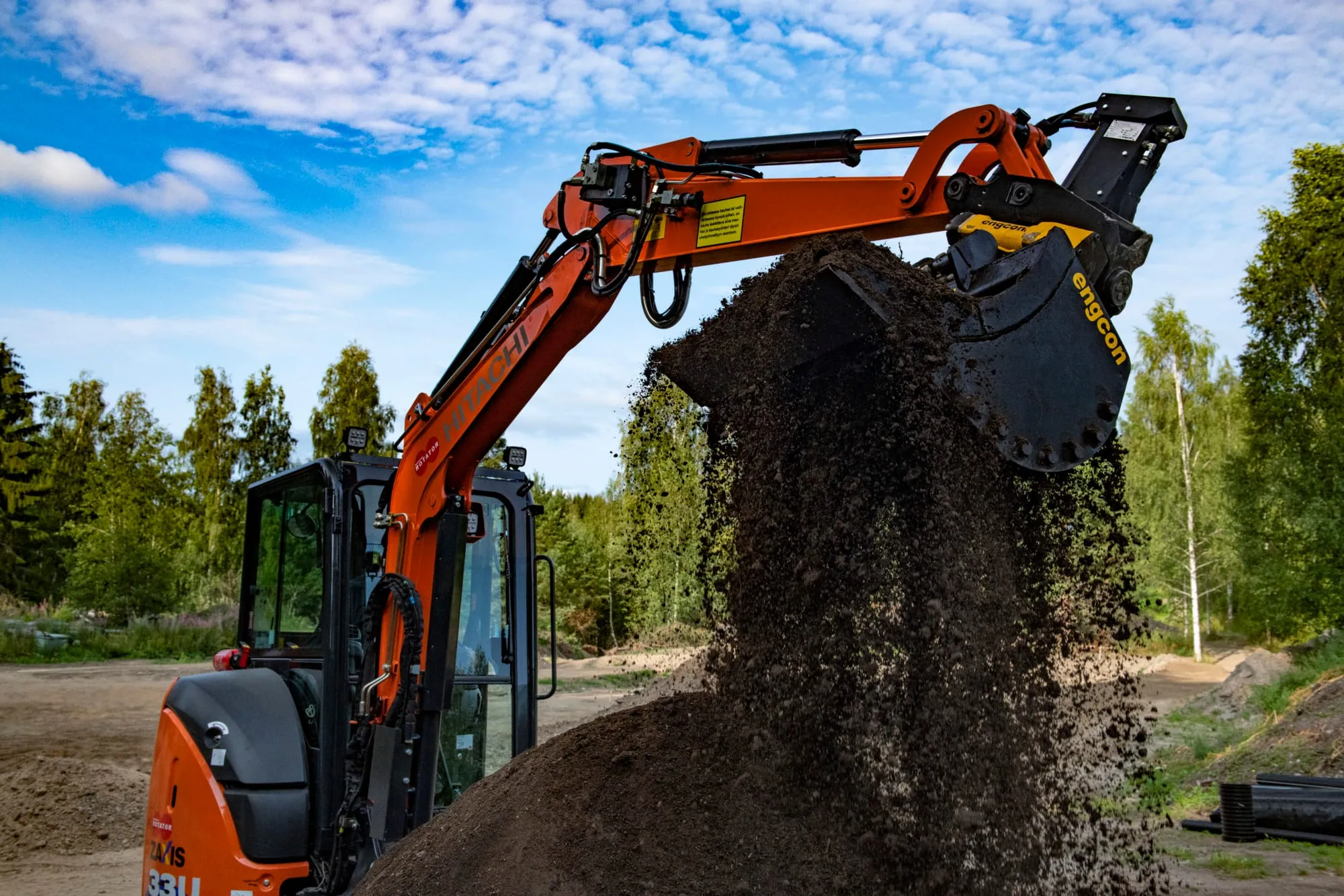

The bucket penetrates frozen, hard and rocky ground more easily, and sticky soil empties from it without shaking the joystick. The same vibration compacts soil, drives piles and adds force to the blade when cutting asphalt, leaving fewer cracks in the surface.
How it works
The Vibra connects to one of the excavator’s auxiliary hydraulic lines, with its output in parallel with the bucket cylinder connections. It creates a controlled pulsation in the bucket cylinder’s oil supply, which shakes the bucket or attachment at 19 to 30 Hz, depending on the model, and the operator switches it on from a joystick button.
On the machine

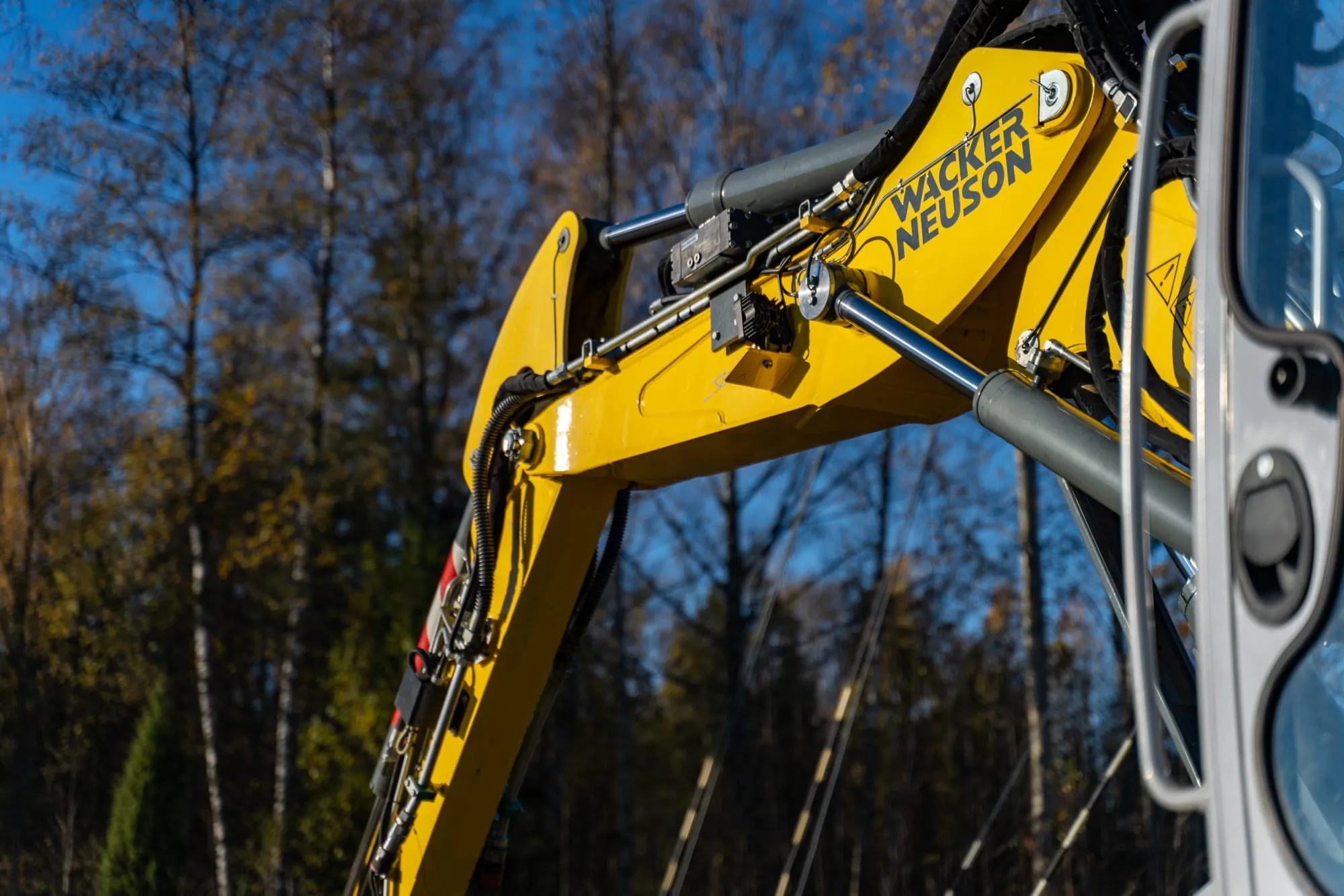

The unit is compact and fits on the boom. With proper lubrication it doesn’t wear the pins or bushings, and it puts less strain on the boom than a hydraulic hammer or rock breaker.
Choosing a size
The three models are matched to the carrier: up to 5 tonnes, 4 to 10 tonnes and 7 to 20 tonnes. The table gives each one’s frequency, oil flow, pressure, size and weight.
Sizes in this range
| Designation | Carrier size (t) | Frequency (Hz) | Max. oil flow (l/min) | Max. pressure (bar) | L × W × H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| HVB 350 9-40 | 0–5 | 30 | 40 | 350 | 253 × 155 × 130 | 13 |
| HVB 350 18-60 | 4–10 | 23 | 60 | 350 | 253 × 155 × 130 | 13 |
| HVB 350 27-80 | 7–20 | 19 | 80 | 350 | 253 × 155 × 130 | 13 |
Exc@v8 supplies and supports Dynaset’s hydraulic power units in the UK.
