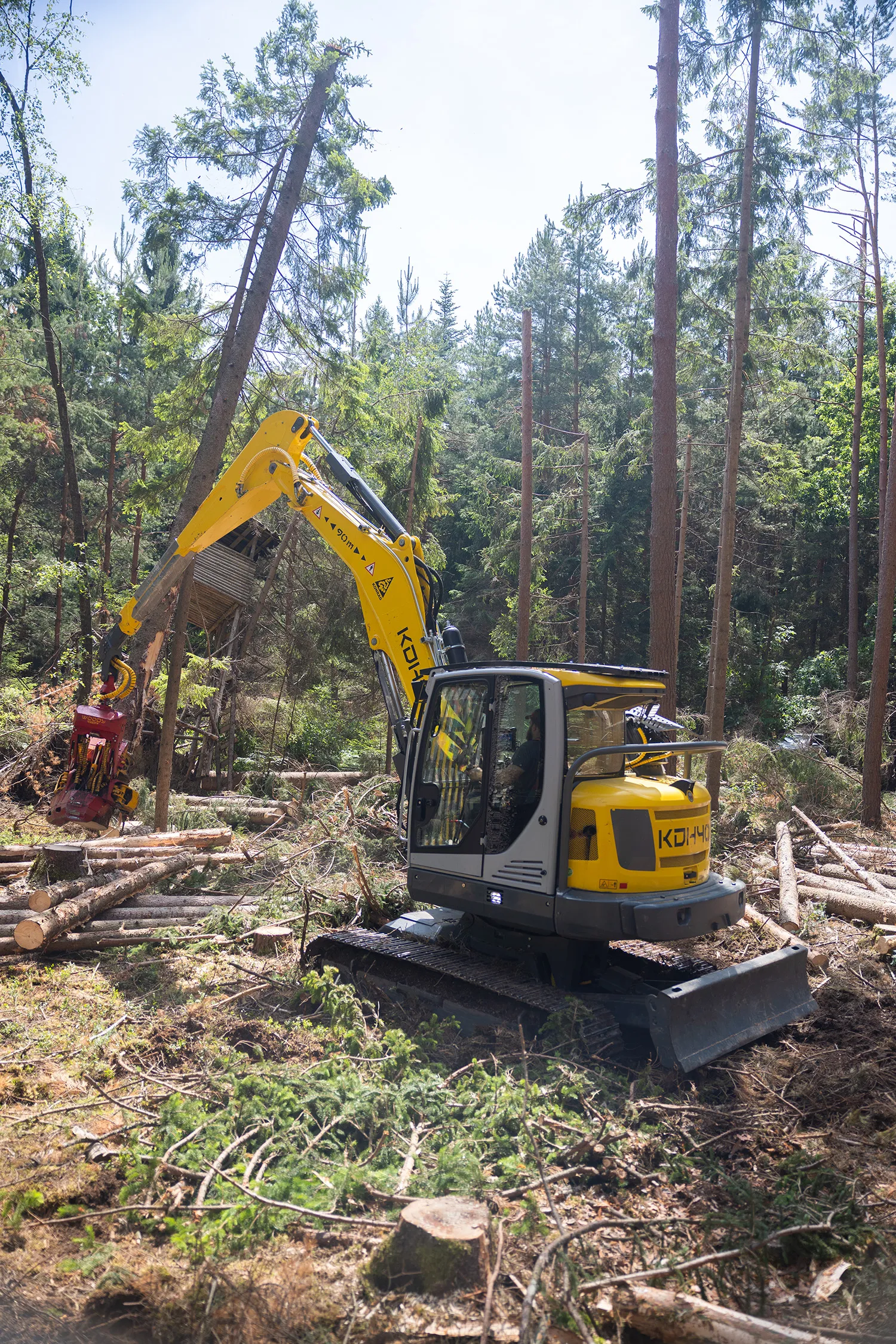

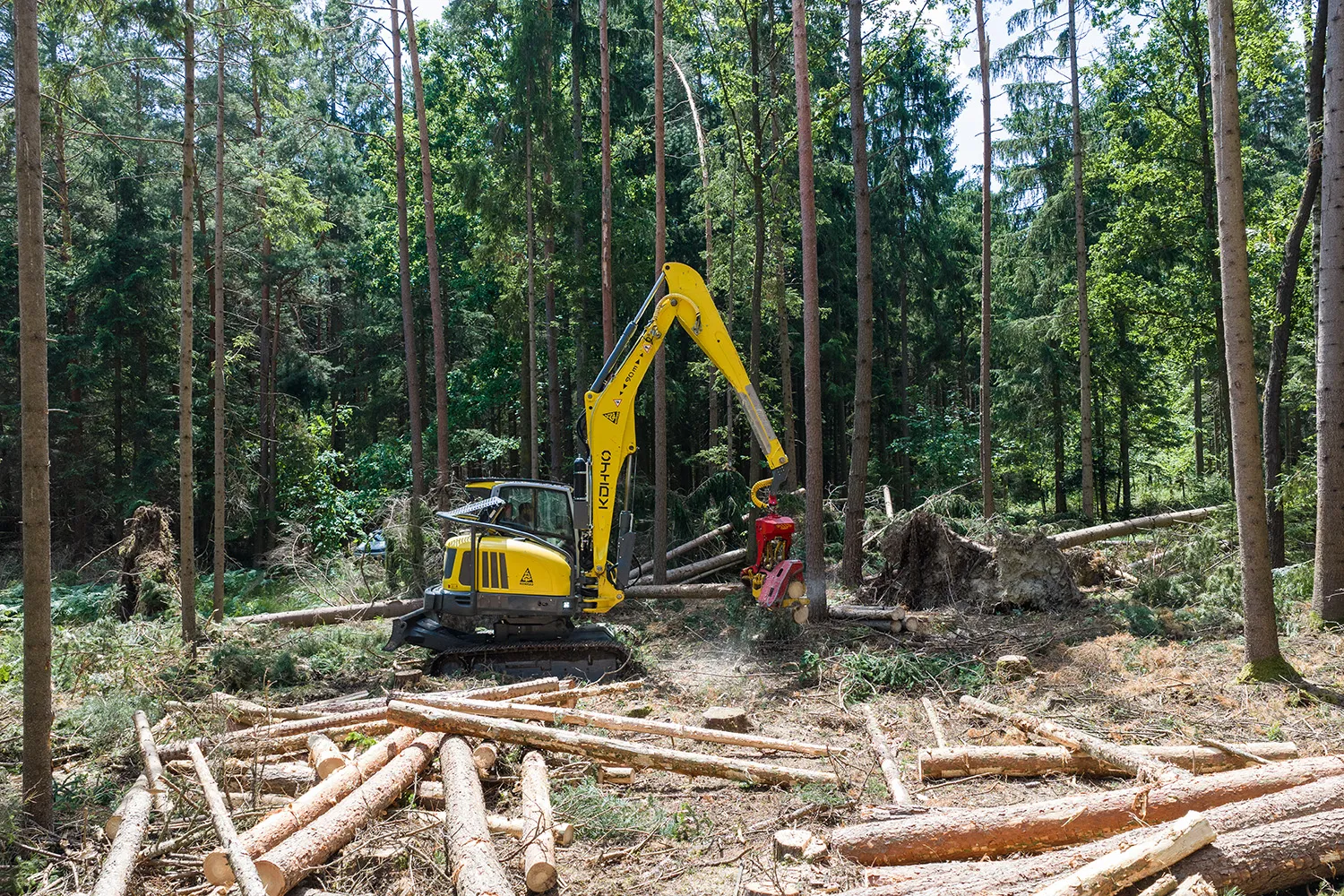

Konrad KDH40-1 Thinning Harvester
The Konrad KDH40-1 is a tracked thinning harvester built on a Wacker Neuson ET90, with a Woody WH40-2 harvester head, a 9.3 m reach and an upper carriage that tilts up to 22° to compensate on slopes.
- Built on a Wacker Neuson ET90, 11,600 kg typical
- Konrad Woody WH40-2 head with gripper function and endless rotator
- 9.3 m reach with a 1,500 mm telescopic extension
- Upper carriage tilts up to 22° on slopes
- KDH Multi option for a feller, mulcher, embankment rake or grapple
Technical data
| Base machine | Wacker Neuson ET90 |
|---|---|
| Typical operating weight | 11,600 kg, with the WH40-2 head and a rigging winch with cable and rope ejector |
| Control system | KTC 1.0 |
| Harvester head | Konrad Woody WH40-2 |
| Engine | Water-cooled Perkins 4-cylinder turbo diesel |
| Power | 55.4 kW at 1,825 rpm |
| Torque | 300 Nm at 1,600 rpm |
| Displacement | 2.8 litres |
| Diesel tank | 85 l |
| Telescopic extension | 1,500 mm |
| Reach | 9.3 m |
| Upper carriage tilt | +22° / 0° |
| Slewing range | 360°, endless |
| Undercarriage | Tracks |
| Travel speed | 5 km/h |
| Track gauge | 1,800 mm |
| Track width | 450 mm |
| Ground clearance | 370 mm |
| Hydraulic pumps (drive and working) | Variable-displacement pump, 180 l/min, 300 bar |
| Hydraulic oil | HVLP 46 |
| Hydraulic oil tank | 92 l |
| Rigging winch RW40-1 (option) | Max. 30 kN pulling force (adjustable), 11 mm cable, 80 m, with rope ejector |
Overview
The KDH40-1 is Konrad’s tracked harvester for first thinnings, built to make them economical. It is modular, so it can be configured to the customer’s needs, and its light weight and compact design make it straightforward to transport.
On steep terrain
The upper carriage tilts to compensate on slopes, up to 22°. Climbing aids on the tracks, a hydraulic winch, the Power Boost hydraulic accumulator and an optional rear counterweight add grip and stability.
Crane and head
An optimised main boom improves the kinematics, and the 1,500 mm telescopic extension, with its hoses routed inside, takes the reach to 9.3 m. The KDH works with the Konrad Woody WH40-2 harvester head, which has a gripper function and the Konrad endless rotator.
KDH Multi
With the KDH Multi option, the KDH can also take a tree shear (feller), a mulcher, an embankment rake or a timber grapple, changed with a quick-change system.
Exc@v8 supplies and supports Konrad forestry machinery in the UK and Ireland.
