Konrad Carriages

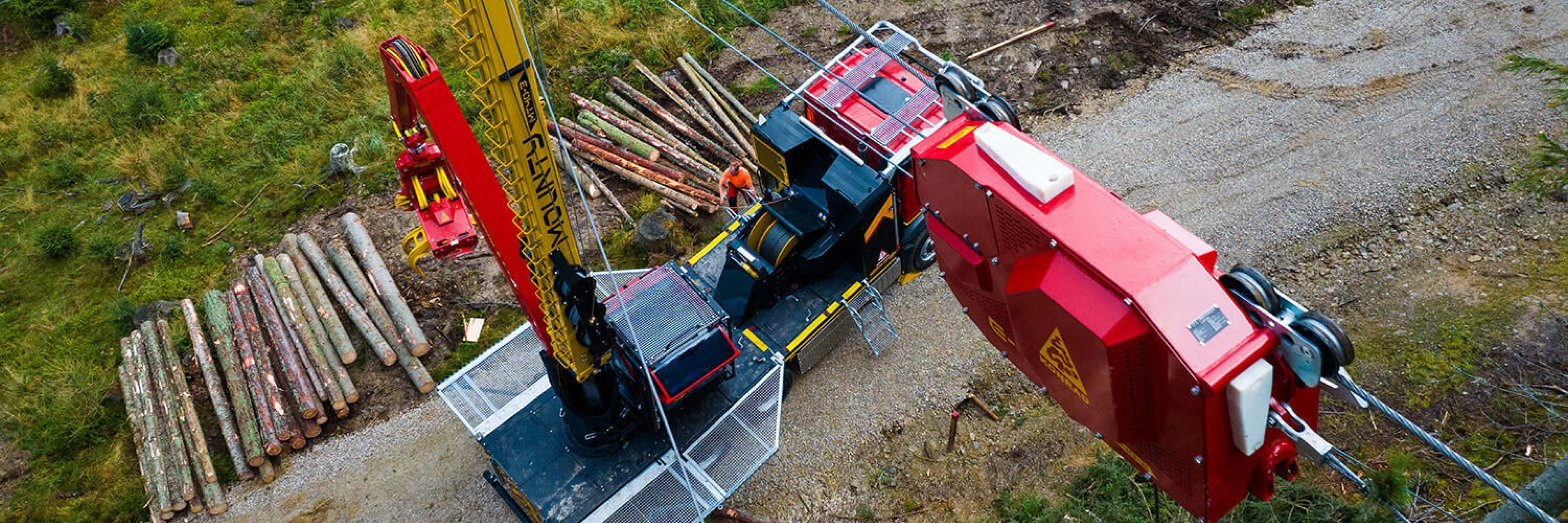

Konrad's carriages for cable crane systems: the diesel Liftliner LL40-2 with its own hoisting winch, and the electric E-Liner EL40-2.
Diesel or electric
The Liftliner LL40-2 has a 55 kW Hatz diesel engine and its own 40 kN hoisting winch. The E-Liner EL40-2 runs on capacitors that recharge as loads are hauled in.
Read more
The Liftliner LL40-2 has a 55 kW Hatz diesel engine and its own 40 kN hoisting winch. The E-Liner EL40-2 runs on capacitors that recharge as loads are hauled in.
18 to 22 mm skylines
Both carriages run on skylines of 18 to 22 mm and are radio-controlled on Konrad's KFS-16 or KFS-20 system.
Read more
Both carriages run on skylines of 18 to 22 mm and are radio-controlled on Konrad's KFS-16 or KFS-20 system.
Uphill and downhill
The E-Liner works uphill and downhill, and downhill the Konrad Mounty runs the Liftliner in the haul-back system.
Read more
The E-Liner works uphill and downhill, and downhill the Konrad Mounty runs the Liftliner in the haul-back system.
Choose from the Konrad carriages

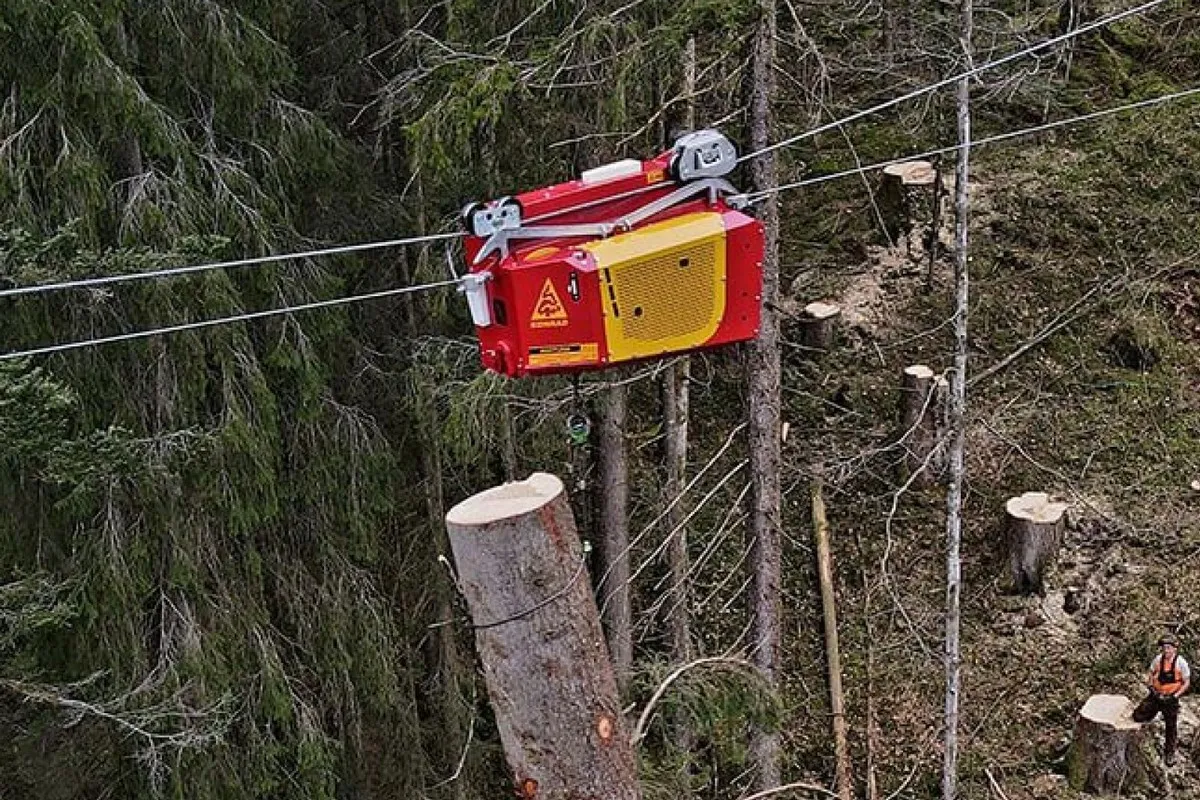

Konrad Liftliner LL40-2 Carriage
- Power: 55 kW
- Winch pulling force: 40 kN
- Skyline diameter: 18–22 mm
- Weight: 1,050 kg
55 kW

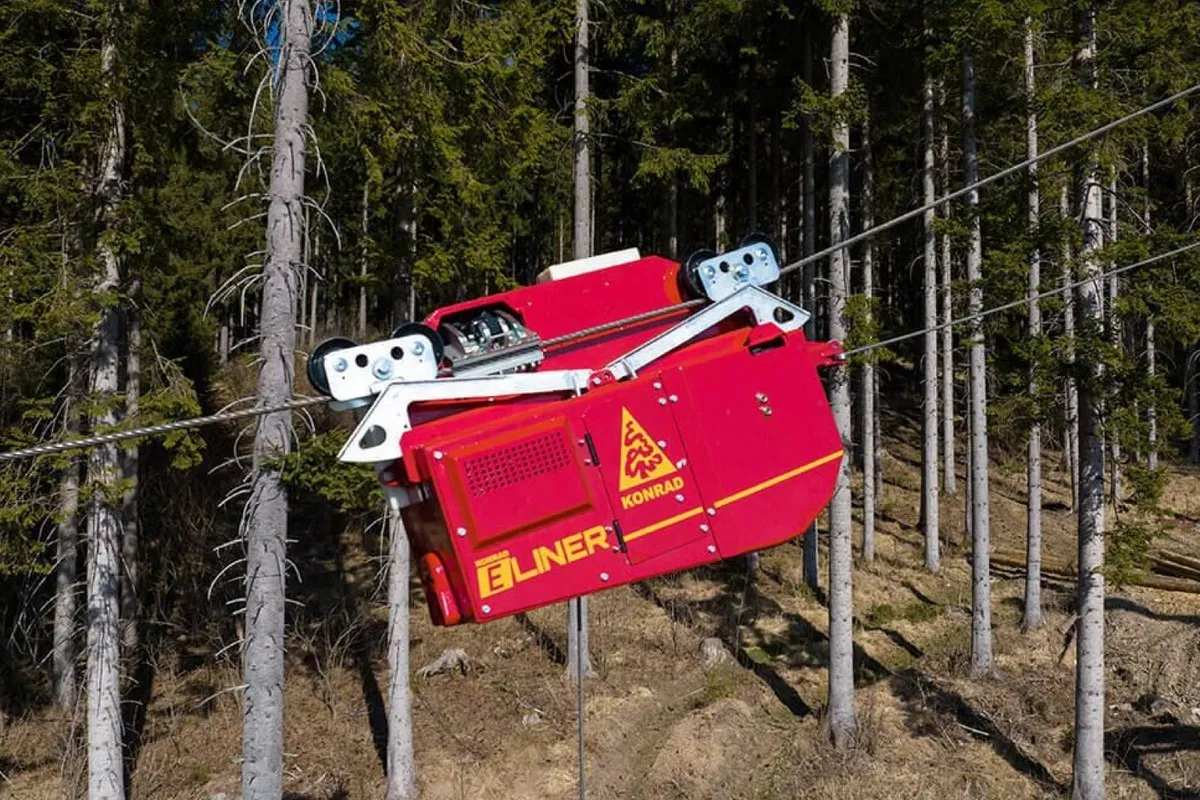

Konrad E-Liner EL40-2 Carriage
- Payload: 40 kN
- Max. spooling force: 2–5 kN
- Skyline diameter: 18–22 mm
- Weight: 790 kg
40 kN
Speak to us about theKonrad Carriages
EnquireCompare the models
Only what differs. Everything else is the same on all 2 models.
Key figures
| Specification | Liftliner LL40-2 | E-Liner EL40-2 |
|---|---|---|
| Power | 55 kW | –Not on this model |
| Winch pulling force | 40 kN | –Not on this model |
| Payload | –Not on this model | 40 kN |
| Max. spooling force | –Not on this model | 2–5 kN |
| Weight | 1,050 kg | 790 kg |
General
| Specification | Liftliner LL40-2 | E-Liner EL40-2 |
|---|---|---|
| Weight | 1,050 kg, with operating fluids, diesel tank empty | 790 kg, including equipment |
| Main line diameter | –Not on this model | 11–12 mm |
| Payload | –Not on this model | 40 kN |
| Operating voltage | 12 V | –Not on this model |
Engine
| Specification | Liftliner LL40-2 | E-Liner EL40-2 |
|---|---|---|
| Engine | Hatz 4H50 TICD, 4-cylinder diesel with turbo and intercooler | –Not on this model |
| Power | 55 kW at 2,300 rpm | –Not on this model |
| Torque | 240 Nm at 1,700 rpm | –Not on this model |
| Displacement | 1.95 litres | –Not on this model |
| Diesel tank | 25 l | –Not on this model |
Hoisting winch
| Specification | Liftliner LL40-2 | E-Liner EL40-2 |
|---|---|---|
| Drive | Radial piston motor | –Not on this model |
| Pulling force | 40 kN | –Not on this model |
| Standard rope | 11 mm, 100 m | –Not on this model |
Electric drive
| Specification | Liftliner LL40-2 | E-Liner EL40-2 |
|---|---|---|
| Max. spooling force | –Not on this model | 2–5 kN |
| Max. spooling speed | –Not on this model | 2.2 m/s |
| Capacitor voltage | –Not on this model | 60 V DC (max. 64 V DC) |
| Battery voltage | –Not on this model | 24 V DC |
| Battery | –Not on this model | 20 Ah, LiFePO4 |
Hydraulics
| Specification | Liftliner LL40-2 | E-Liner EL40-2 |
|---|---|---|
| Pump | Axial piston pump, closed circuit | Axial piston pump, open circuit |
| Max. operating pressure | 400 bar | 320 bar |
| Hydraulic oil | HVLP 46 | –Not on this model |
| Hydraulic system capacity | 22 l | 14 l |
