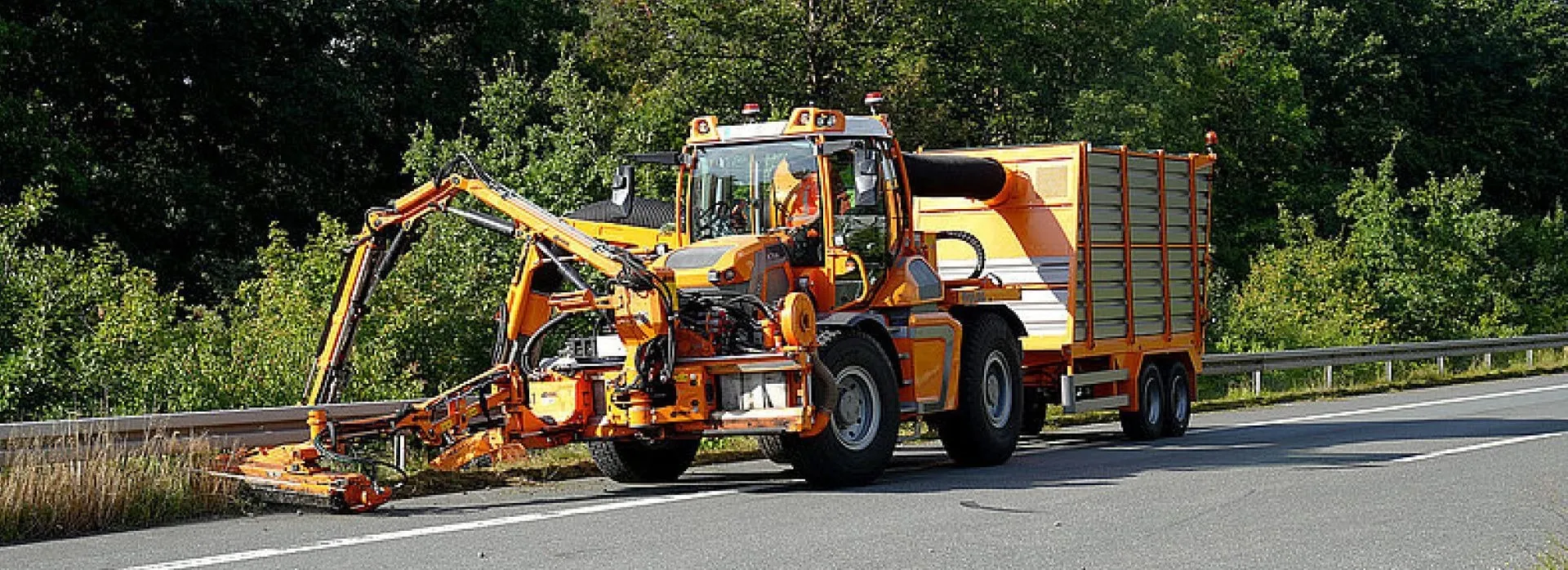

Pfanzelt K Trac 1225 Implement Carrier

• Four attachment bays

  Front and rear attachment and mounting bays for mowers, hedge trimmers, spreaders, snow blowers and a rear crane.

  Read more

  Front and rear attachment and mounting bays for mowers, hedge trimmers, spreaders, snow blowers and a rear crane.

• Combined four-wheel steering

  Front-axle or all-wheel steering, with a 10.5 m turning circle on all-wheel steering, for narrow streets and town centres.

  Read more

  Front-axle or all-wheel steering, with a 10.5 m turning circle on all-wheel steering, for narrow streets and town centres.

• XXL cab

  A mid-mounted, air-suspended cab with over 7 m² of glass, with a rotating operator stand or two air-suspended seats.

  Read more

  A mid-mounted, air-suspended cab with over 7 m² of glass, with a rotating operator stand or two air-suspended seats.

Pfanzelt K Trac 1225

Power

186 kW (253 hp)

Top speed

85 km/h

Hydraulics

160 l/min at 210 bar

Permitted total weight

16,500 kg (18,000 kg optional)

Technical data: Pfanzelt K Trac 1225

Engine

Output

186 kW (253 hp), EU Stage V, ISO 14396

Engine

AGCO Power 74 HD

Cylinders, capacity, nominal speed

6 cylinders, 7.4 litres, 1,950 rpm

Tanks

310 l diesel, 40 l AdBlue

Drive

Transmission

variaDRIVE stepless, 0–85 km/h, with reduced engine speed; 3 forward and 2 reverse driving modes

Rear PTO

570 / 1,000 rpm or 1,000 / 1,400 rpm

Front PTO

1,000 rpm

Turning circle

14.60 m (front-axle steering), 10.50 m (all-wheel steering), with standard tyres

Hydraulics

Pump

Axial piston variable displacement pump, 160 l/min, 210 bar (optional 200 l/min, 210 bar)

Front and rear power lifts

Optional

Control valves

2 electric control valves at the rear (optional: 2 more, front and rear)

LS connection

Power-Beyond (LS connection) rear

Dimensions

Length × width × height

4,940 mm or 5,690 mm long, 2,320–2,750 mm wide, 3,300 mm high

Wheelbase

3,242 mm or 3,992 mm

Mounting space

Width up to approx. 1,010 mm inside, above the mudguard up to max. outside width; height up to approx. 2,820 mm depending on tyres; length approx. 2,000 mm, also more depending on overhang

Weights

Empty weight

7,920 kg

Permitted total weight

16,500 kg (optional 18,000 kg)

Permissible axle loads

8,740 kg at the front, 11,500 kg at the rear

Weight distribution

Front axle 55%, rear axle 45%

Support load

2,000 kg automatic trailer coupling, 3,000 kg ball head with sliding carriage

Cab

Cab

Spacious, air-suspended mid-cab, hydraulically tiltable, 7 square metres of window area, roof windows, sun blinds, safety cab compliant with ISO standards (ROPS) with roof guard FOPS with an electrically swivelling operator’s station or two air-suspended comfort seats

Tyres

Tyres

480/65 R28 Alliance 373 – Permissible gross weight 16,500 kg (various tyre options available)

Four bays, all year round

The K Trac’s four attachment and mounting bays, at the front and rear, let one vehicle cover the municipal year: hedge trimming and mowing with front and rear implements, salt and brine spreading in winter, snow blowers at the front and rear, and tree maintenance. A crane in the rear mounting bay can be a mower boom, a combination crane or a loading crane, which makes the K Trac a fast crane transporter too.

Manoeuvrable

Combined four-wheel steering makes the K Trac manoeuvrable in narrow streets and small town centres, with a turning circle of 10.5 m on all-wheel steering, and the variaDRIVE continuously variable transmission takes it to its working sites quickly.

XXL cab

The air-suspended, large-volume cab sits in the middle of the vehicle, with over 7 m² of glass and noise insulation for quiet running at high engine speeds. It comes in two versions: with an operator stand that rotates electrically by up to 340°, with the controls, pedals and touchscreen turning with the seat, or as a two-seat cab whose seats can still turn slightly for a view of the verge.

Exc@v8 supplies and supports Pfanzelt machinery in the UK.

Documents and data sheets

Pfanzelt's data sheet covers every model in one file.

Data sheet (PDF)
