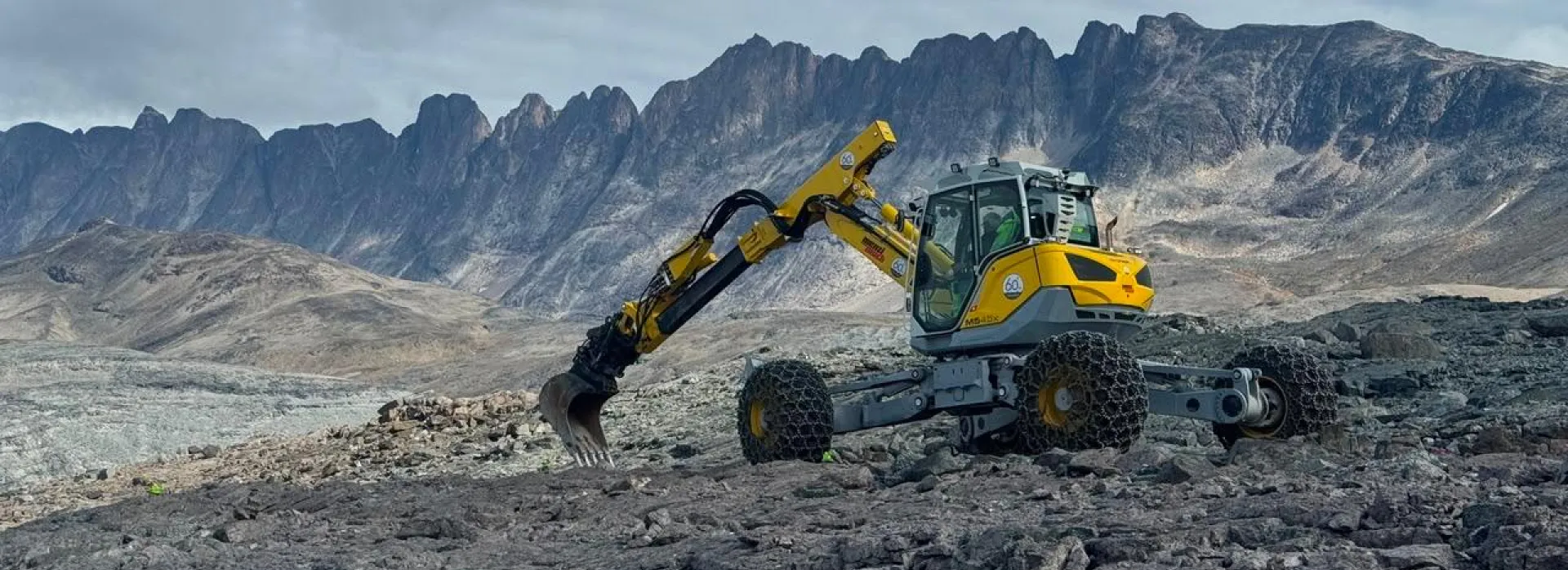

Menzi Muck M5X
The M5X walking excavator works safely on gradients up to 45°, its patented undercarriage and 6-metre width adjustment giving stability and precision where conventional machines can't.
One engine, one hydraulic system
All three M5X models — M545X, M535X and M525X — share the same 115 kW Deutz engine and Rexroth load-sensing hydraulics. Each is differentiated purely by its undercarriage and drive speed, so the choice between them comes down to ground conditions and reach, not power.
Read more
All three M5X models — M545X, M535X and M525X — share the same 115 kW Deutz engine and Rexroth load-sensing hydraulics. Each is differentiated purely by its undercarriage and drive speed, so the choice between them comes down to ground conditions and reach, not power.
P-Vation symmetrical stabilisation
The pinnacle of horizontal and parallel adjust systems, P-Vation is an innovative, patented chassis concept which gives ideal kinematics while maintaining ideal power ratios. The P-Vation stabilisation system is unique in the world — not only does P-Vation give support for gradients other machines can't, it also gives unparalleled proximity to the slope for lowest possible centre of gravity.
Read more
The pinnacle of horizontal and parallel adjust systems, P-Vation is an innovative, patented chassis concept which gives ideal kinematics while maintaining ideal power ratios. The P-Vation stabilisation system is unique in the world — not only does P-Vation give support for gradients other machines can't, it also gives unparalleled proximity to the slope for lowest possible centre of gravity.
Vx-Drive
Vx-Drive gives up to 20% more traction than previous models, its infinitely variable transmission keeping engine and hydraulics working in sync for maximum torque across the full range of adjustment. Automatic wheel speed adaptation — measuring steering angle and track width — combines with a hydraulic differential lock for continuous positive drive, giving strong propulsion and reduced ground disturbance on steep, slippery or soft terrain.
Read more
Vx-Drive gives up to 20% more traction than previous models, its infinitely variable transmission keeping engine and hydraulics working in sync for maximum torque across the full range of adjustment. Automatic wheel speed adaptation — measuring steering angle and track width — combines with a hydraulic differential lock for continuous positive drive, giving strong propulsion and reduced ground disturbance on steep, slippery or soft terrain.

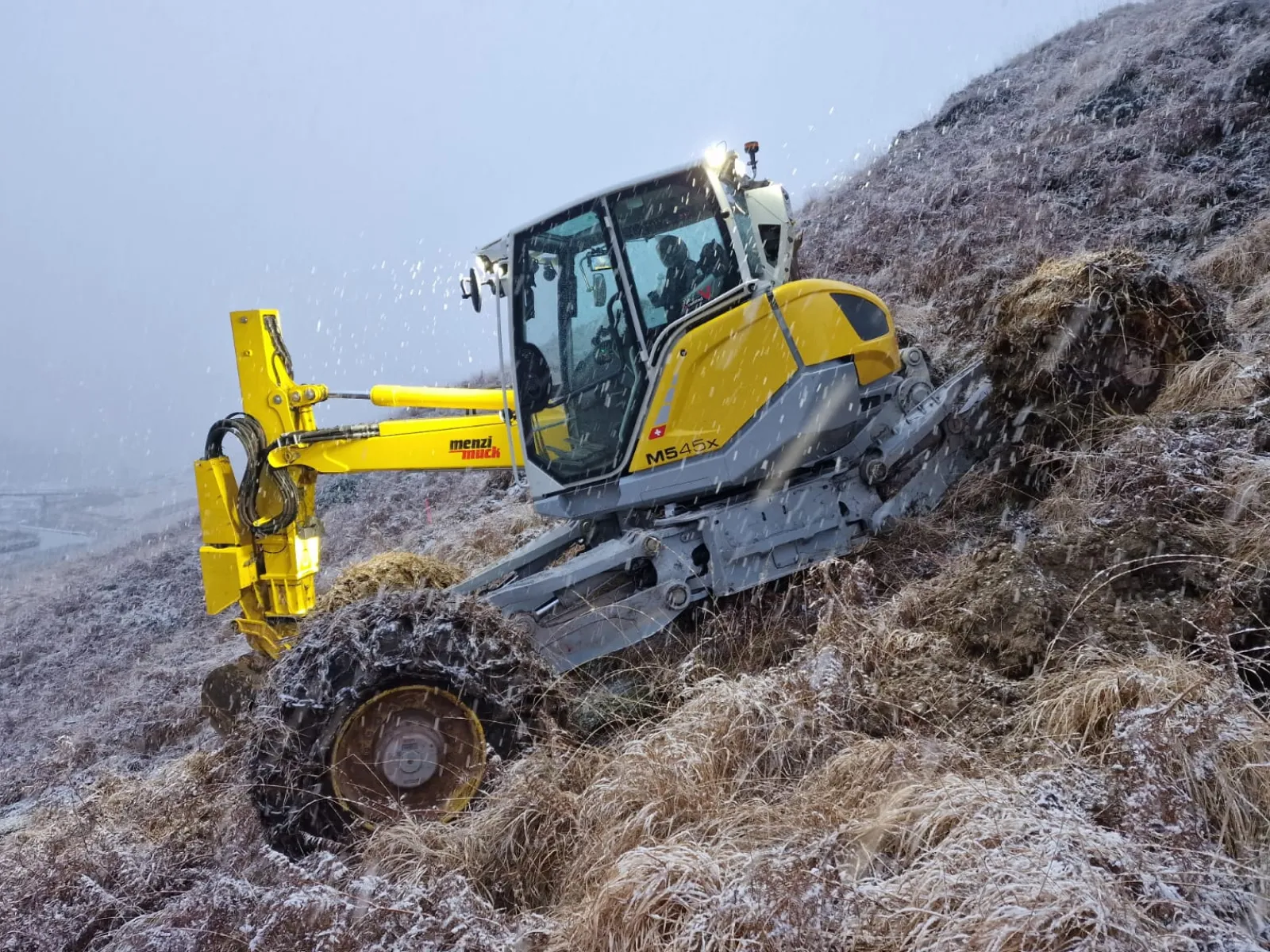

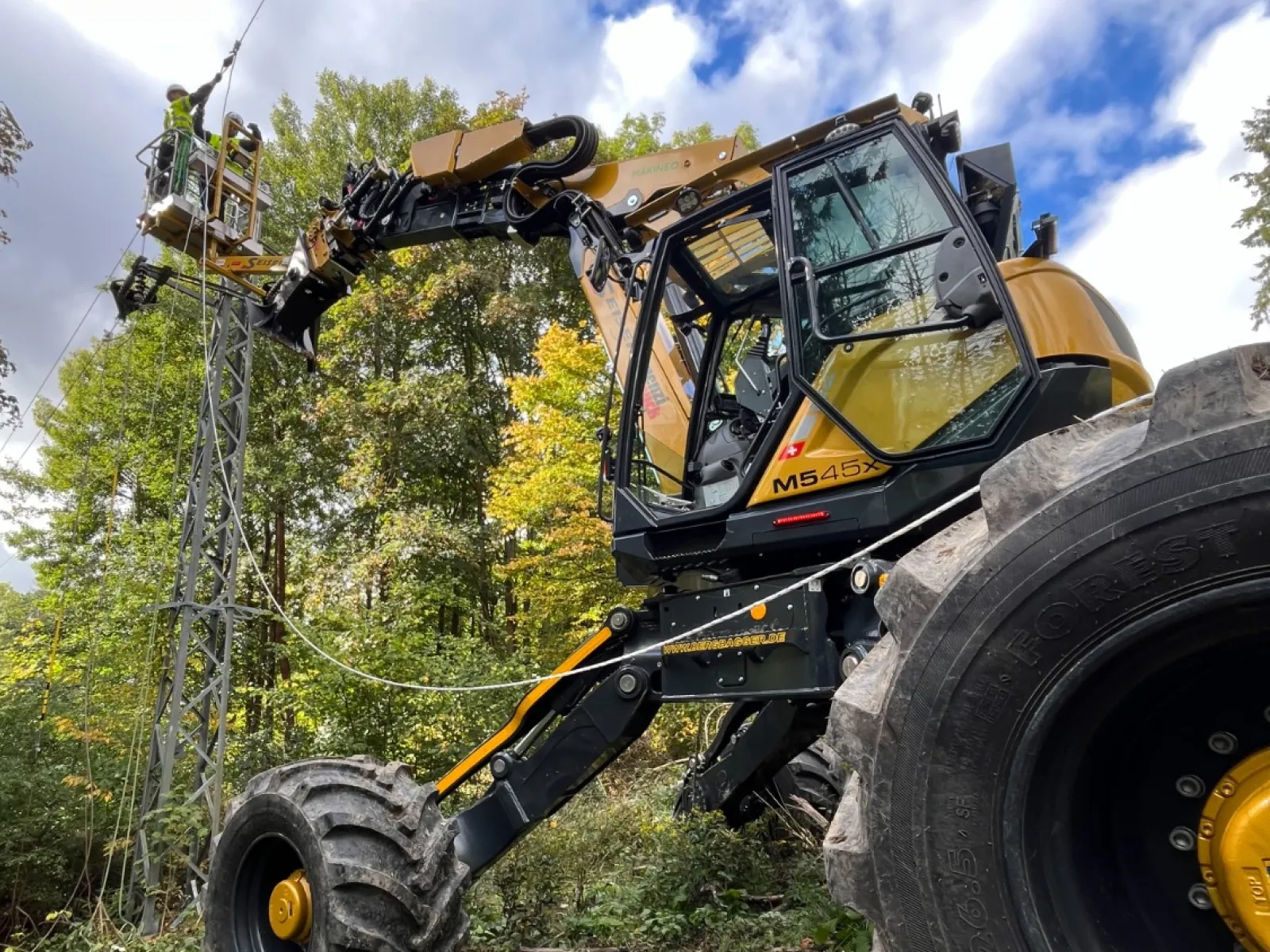

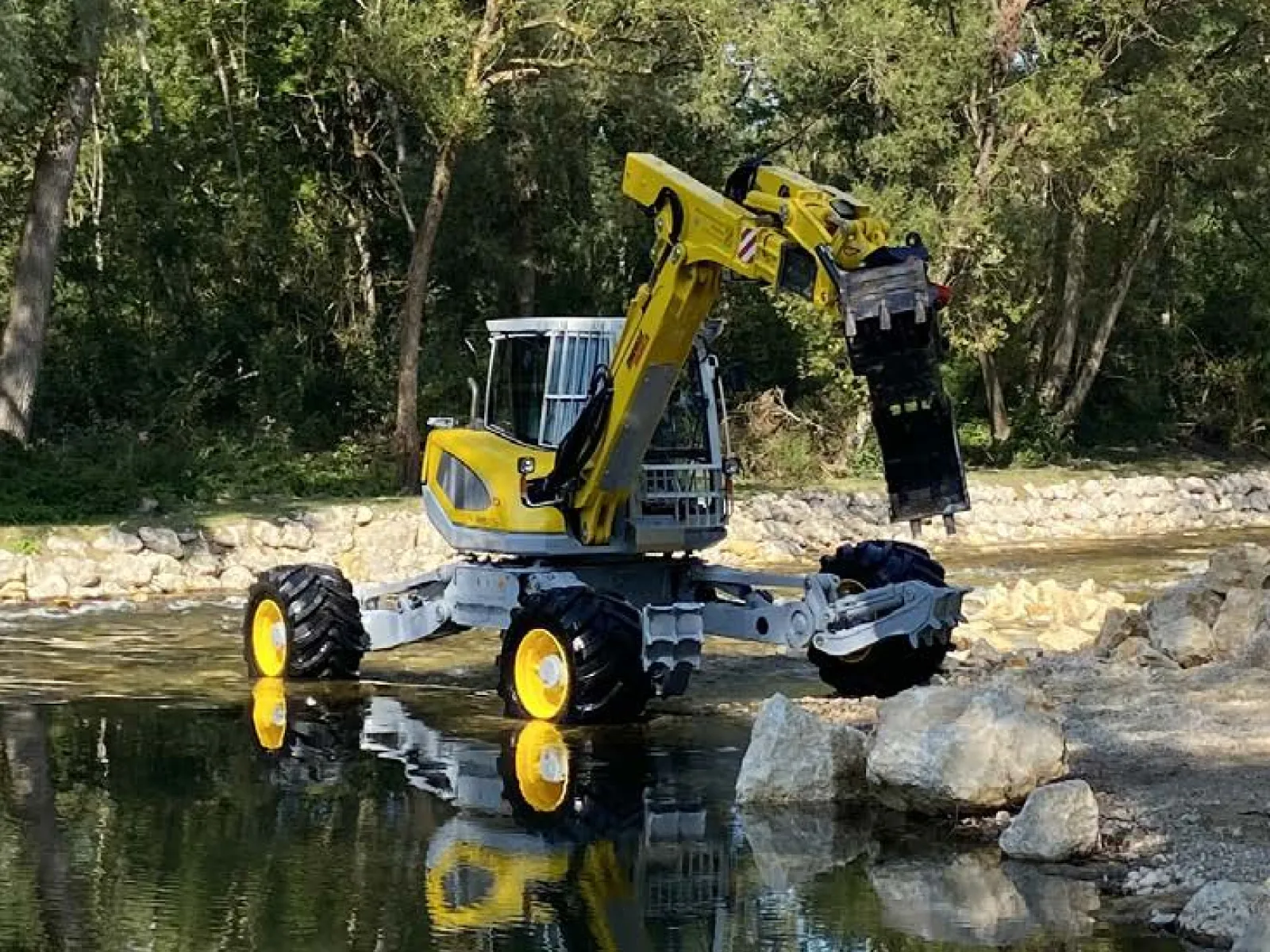

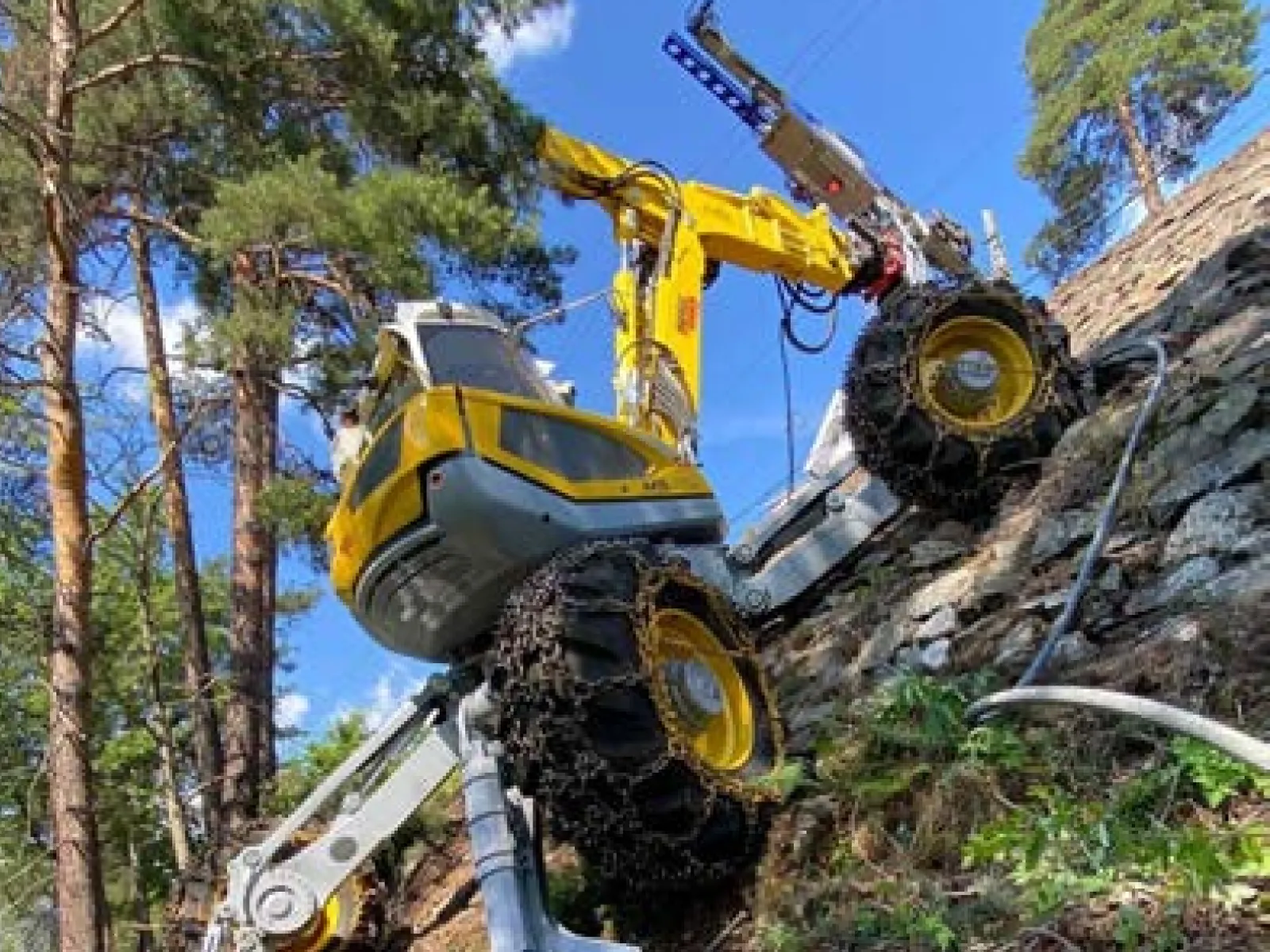

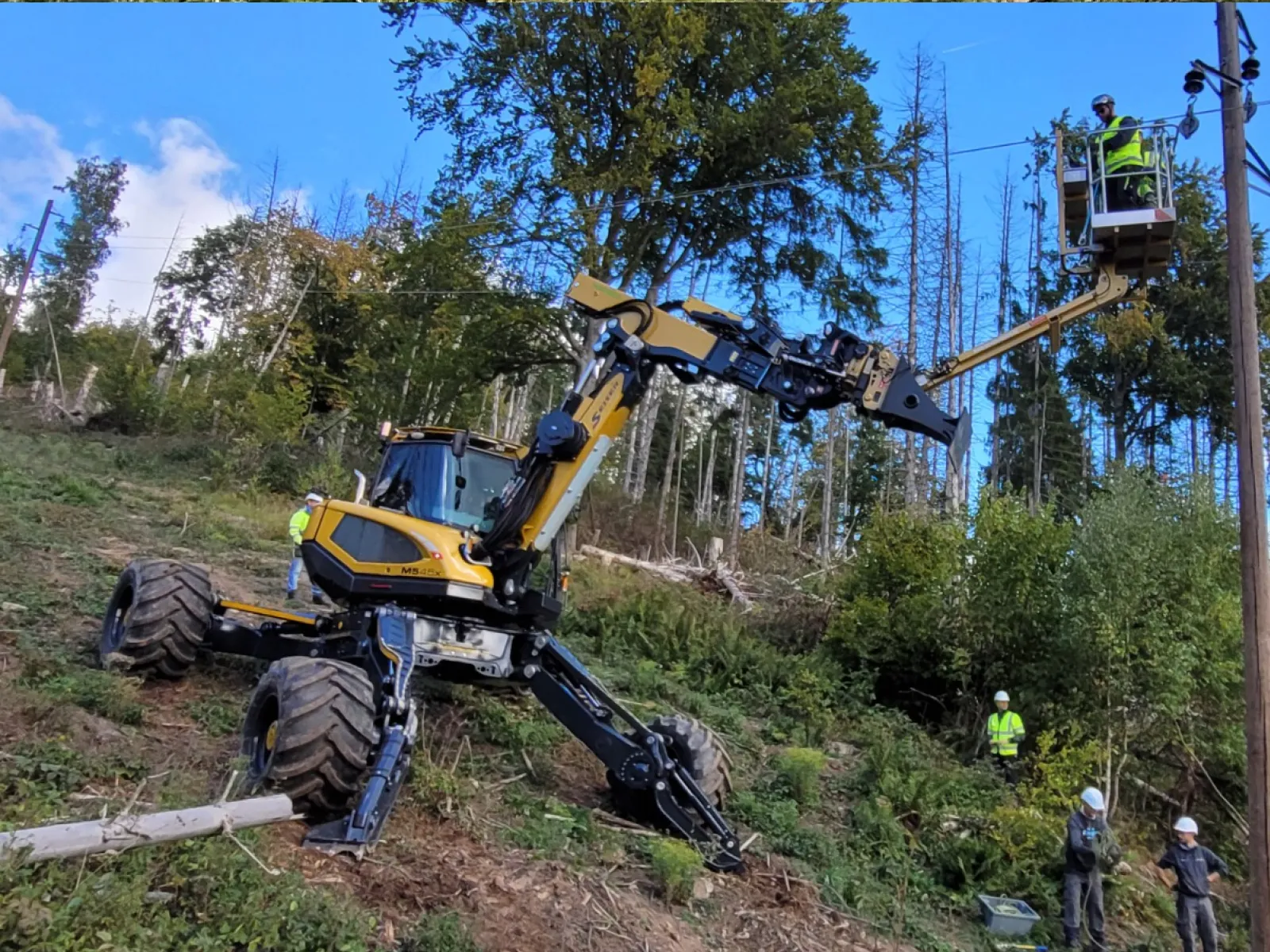

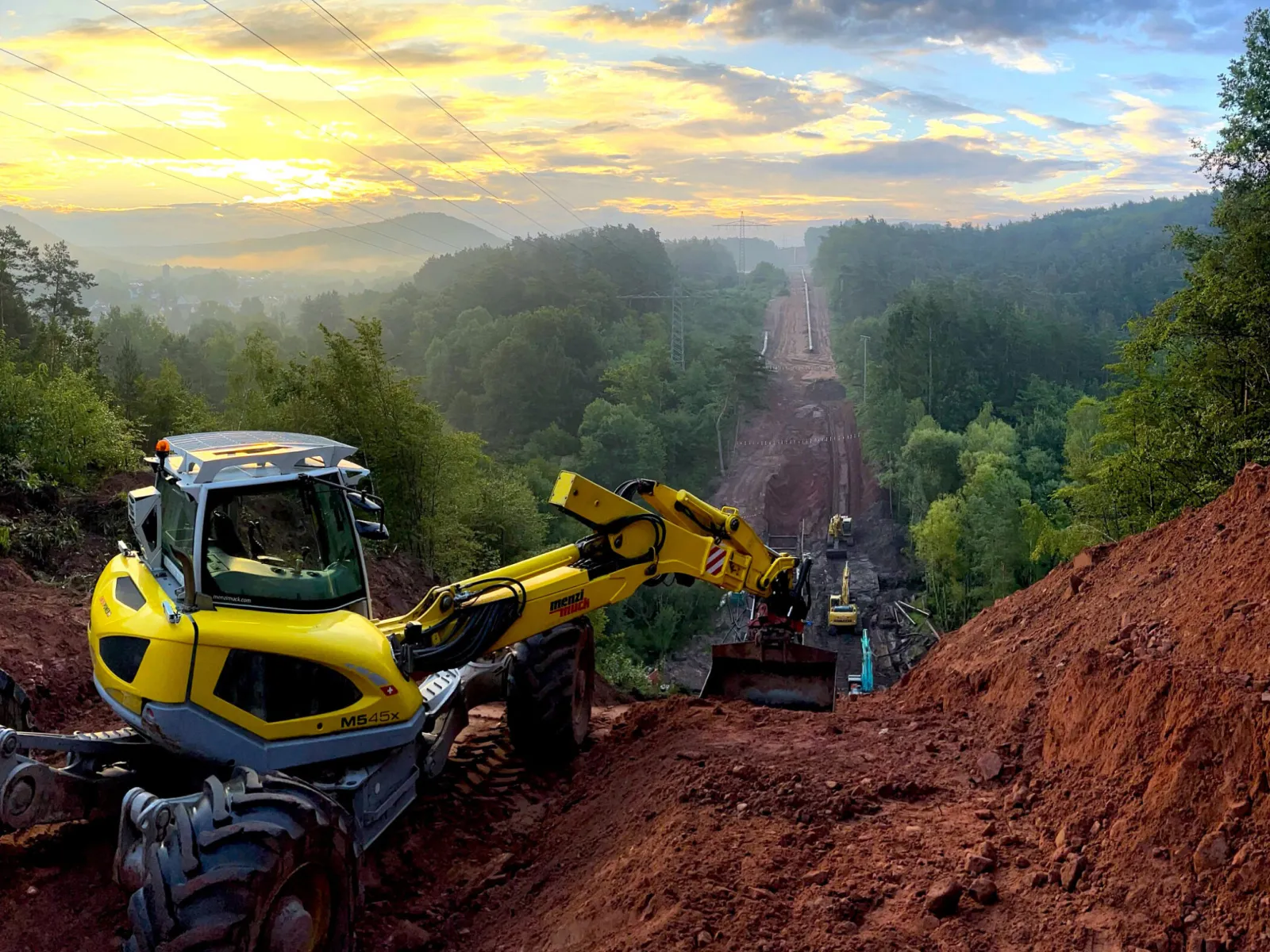

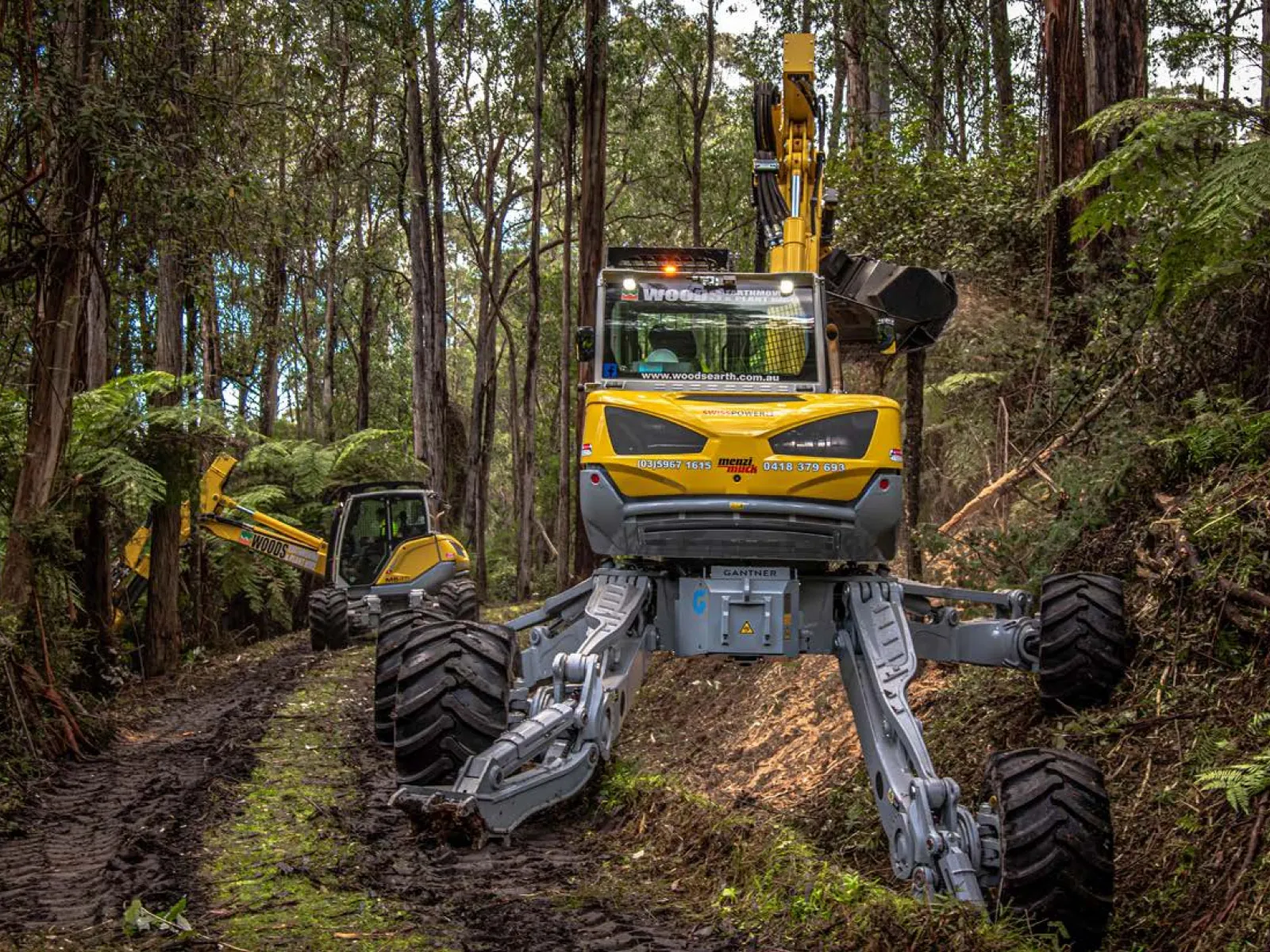

M545X
The M545X walking excavator pairs Menzi's P-Vation parallel support with infinitely variable Vx-Drive up to 15 km/h and four equally sized wheels up to 800 mm wide — the flagship of the M5X range, from 13,500 kg.
- Infinitely variable Vx-Drive by Menzi up to 15 km/h
- P-Vation parallel support by Menzi
- Four equally sized wheels up to 800 mm wide
- Hill supports (front and/or rear optional)
- Weight: down to 13’500 kg
Technical data
Engine Deutz Turbo diesel engine 4-cylinder — 115 kW / 156 HP Displacement 4,038 ccm Electrical system 24 V Starter motor 4.0 kW Service intervals 500 h Hydraulic system Load Sensing by Rexroth Working pump 290 L/min.; 300 bar Travelling pump 210 L/min.; 400 bar Powerline 220 L/min. (optional) Swivelling speed up to 10 U/min.

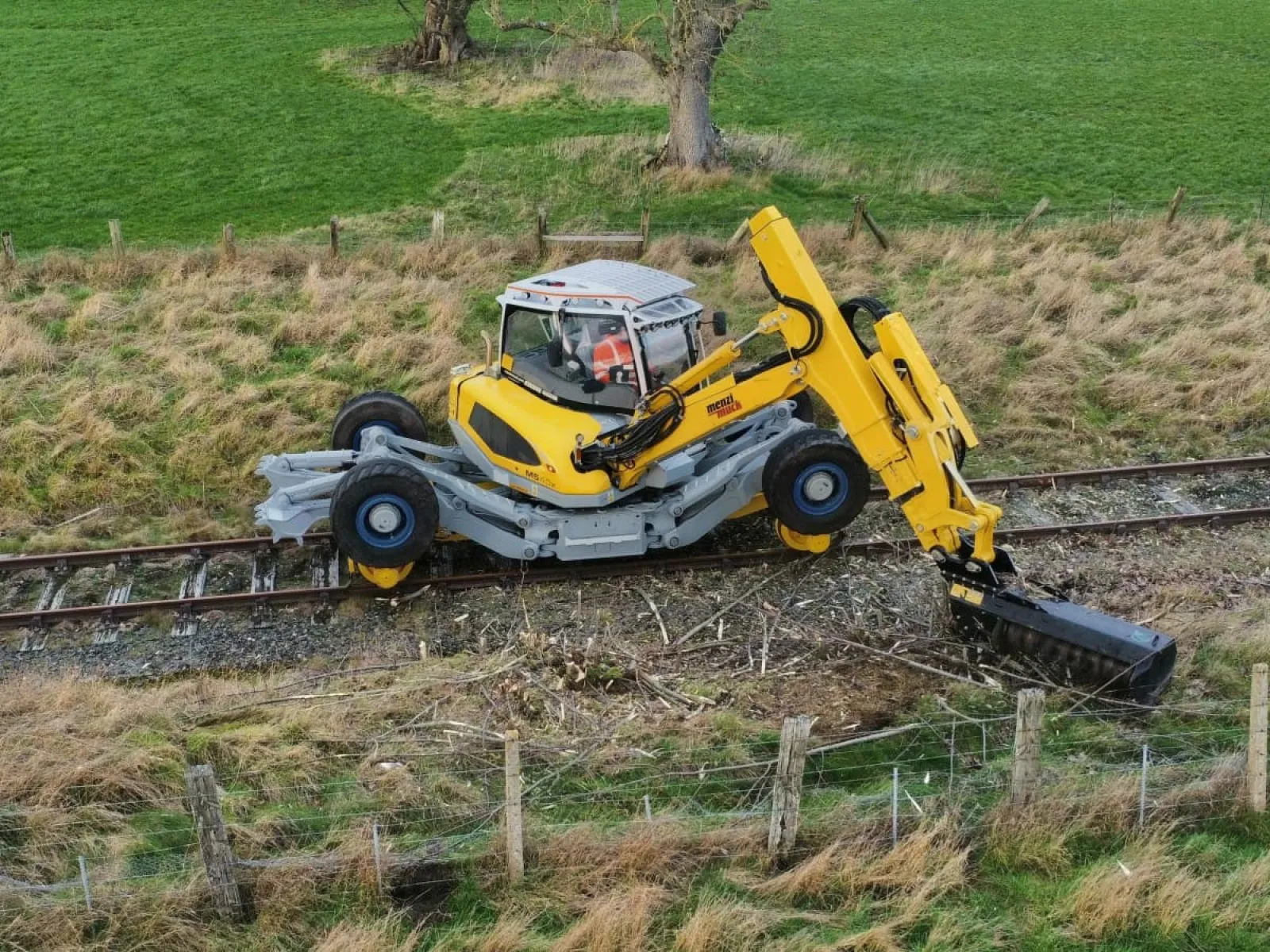

M545X RRV
The M545X-RRV is a completely unique road-rail excavator with power far beyond its weight class.
- Transformation from rail excavator to mobile walking excavator in minutes
- Available in Normal (1,435 mm), Meter (1,000 mm) or Narrow (760 mm) track widths
- Low centre of gravity for stability and low transport costs
Technical data
Weight with rail attachment 15,000–16,000 kg Axle load, front/rear 9,200 / 6,300 kg Towing capacity with brakes (optional) 90 tonnes Speed, max. 18.0 km/h Towing force, max. 32 kN Gradient, max. 70‰ (7%) Track width (Normal) 1,435 mm Total length (Normal track) 7,410 mm Width, max. (Normal track) 2,930 mm

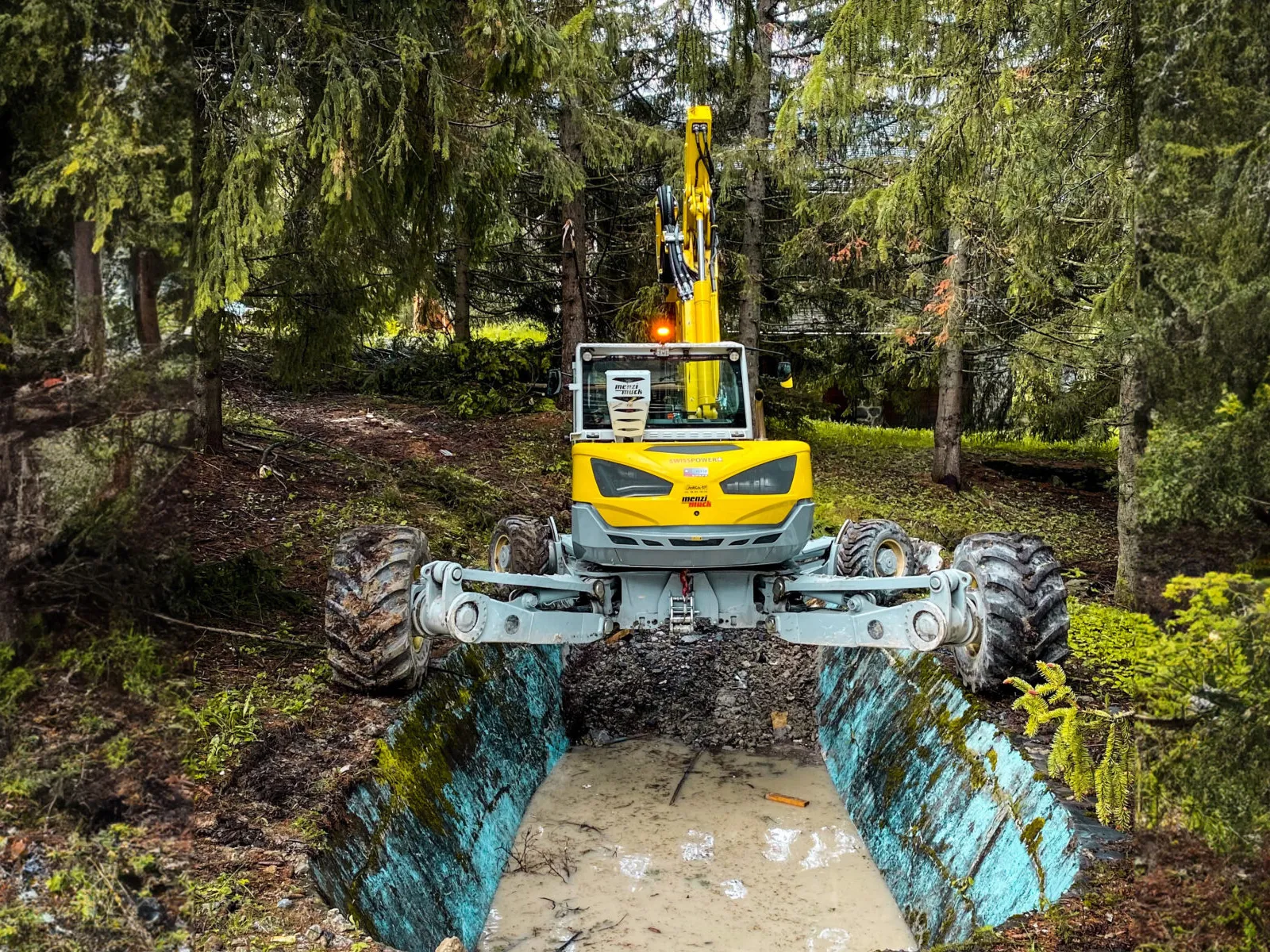

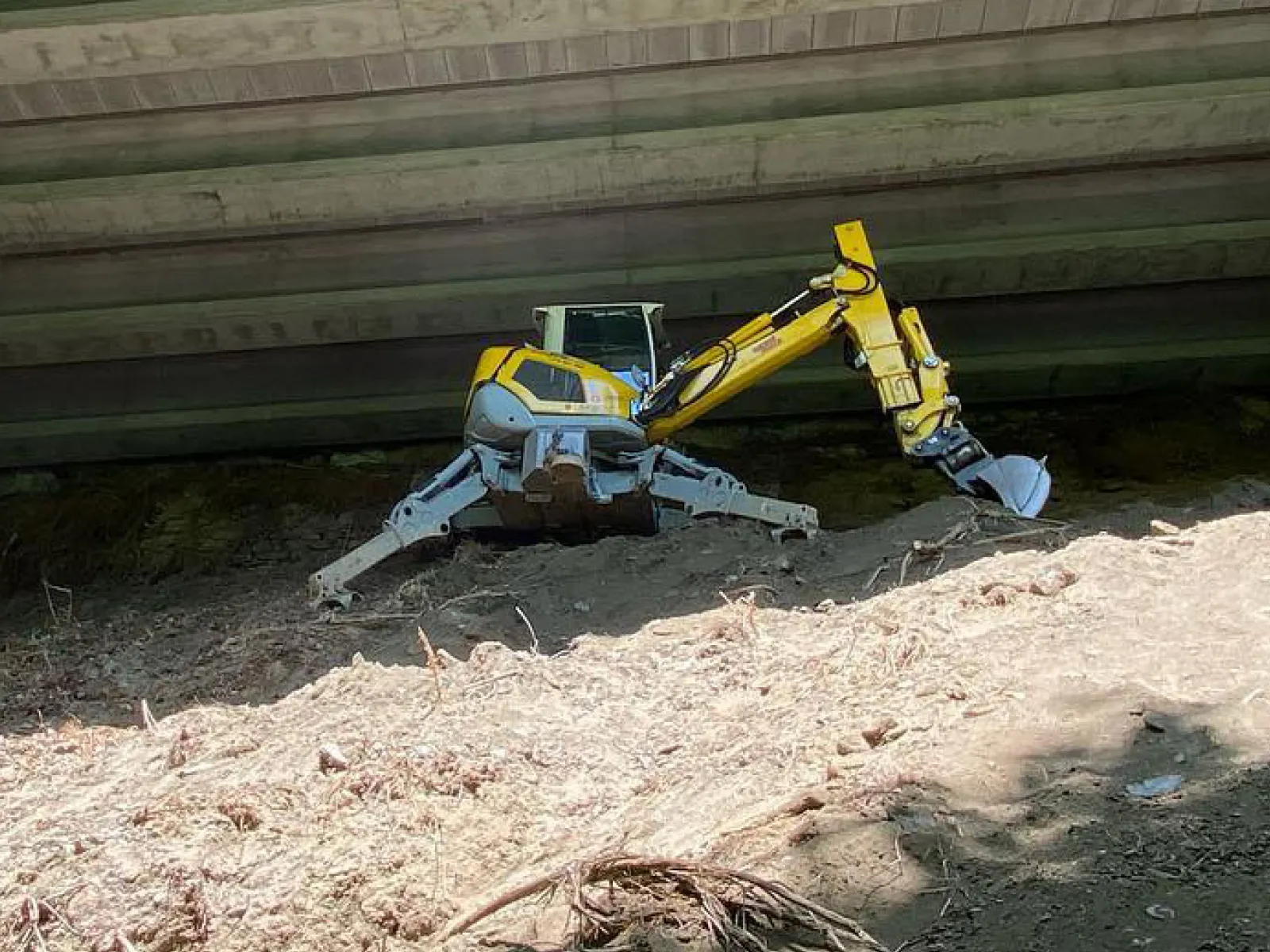

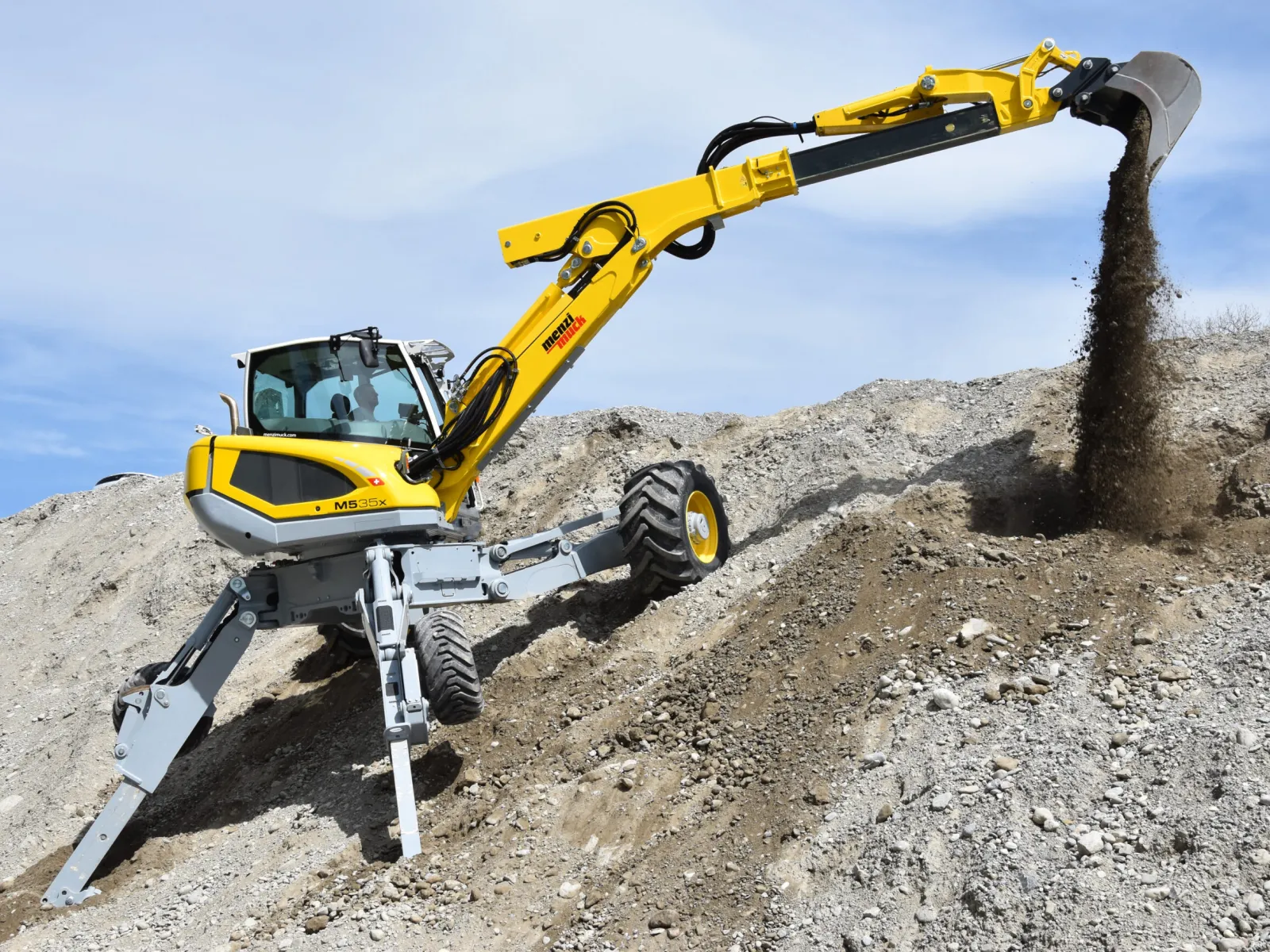

M535X
The M535X walking excavator combines Menzi's P-Vation parallel support with hydraulic height adjustment on the steering wheels and a hydraulically telescopic stabiliser — one of three models in the M5X range, built to work on slopes up to 45° in the fall line.
- Infinitely variable Vx-Drive by Menzi up to 11 km/h
- P-Vation parallel support by Menzi
- Hydraulic wheel height adjustment of the steering wheels
- Hydraulically telescopic stabiliser
- Weight: down to 13’000 kg
Technical data
Engine Deutz Turbo diesel engine 4-cylinder — 115 kW / 156 HP Displacement 4,038 ccm Electrical system 24 V Starter motor 4.0 kW Service intervals 500 h Hydraulic system Load Sensing by Rexroth Working pump 290 L/min.; 300 bar Travelling pump 210 L/min.; 400 bar Powerline 220 L/min. (optional) Swivelling speed up to 10 U/min.

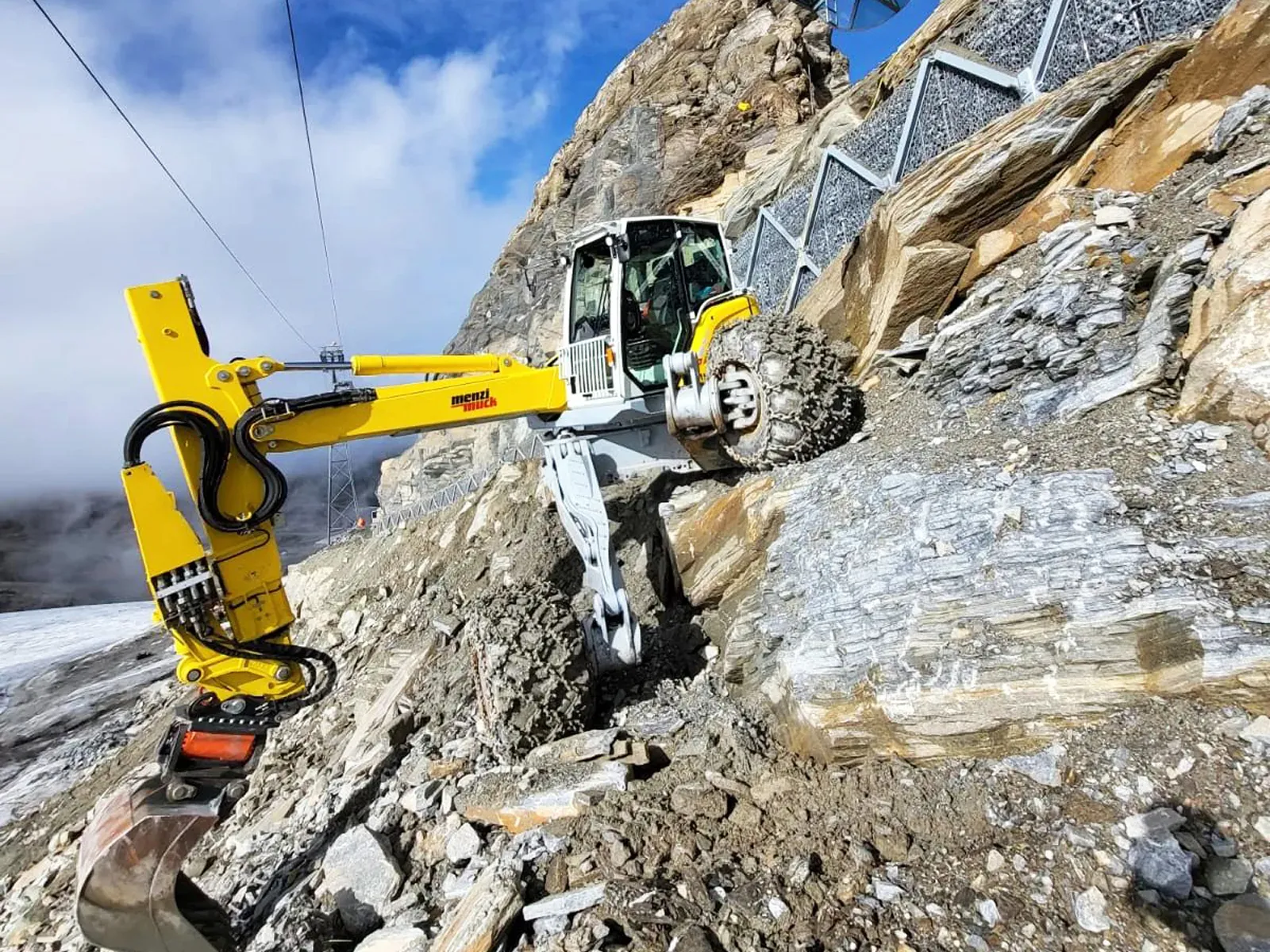

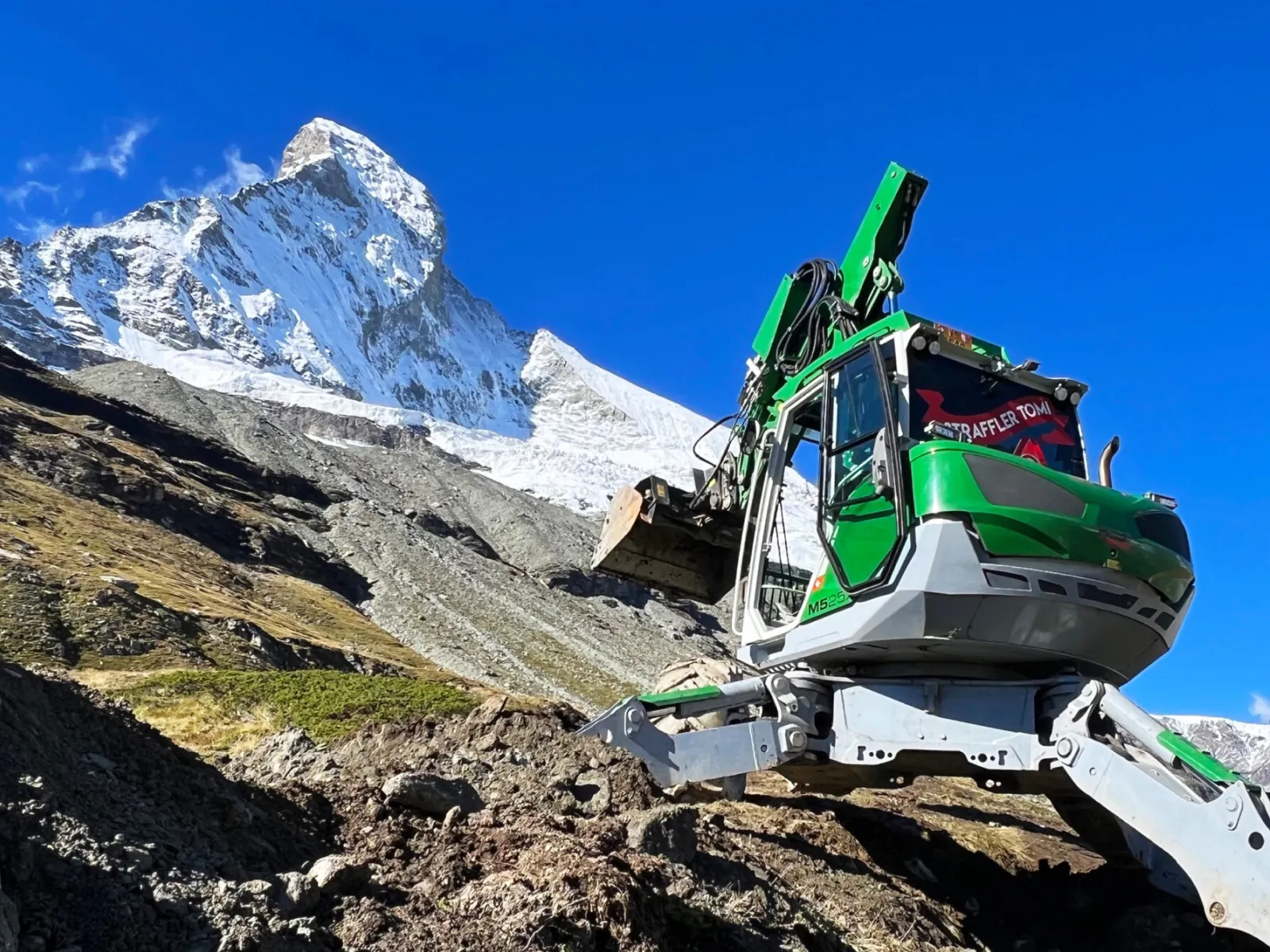

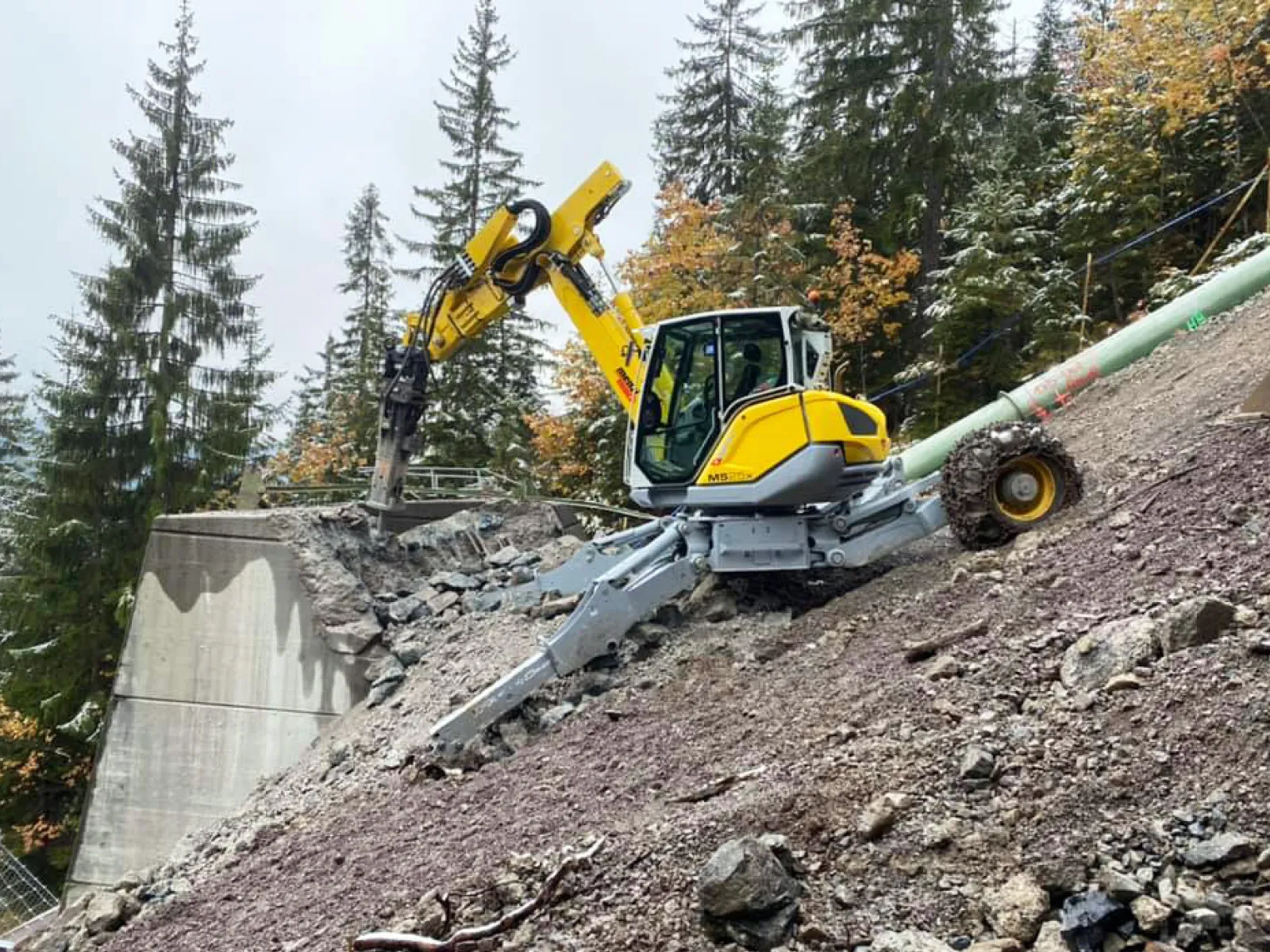

M525X
The M525X walking excavator runs on two removable quick-release axles with wheels, with a hydraulically telescopic stabiliser and Menzi's Vx-Drive up to 15 km/h — at a starting weight of 12,400 kg, the lightest of the three M5X models.
- Infinitely variable Vx-Drive by Menzi up to 15 km/h
- Two removable quick-release axles with wheels
- Hydraulic telescopic stabiliser
- Weight: down to 12’400 kg
Technical data
Engine Deutz Turbo diesel engine 4-cylinder — 115 kW / 156 HP Displacement 4,038 ccm Electrical system 24 V Starter motor 4.0 kW Service intervals 500 h Hydraulic system Load Sensing by Rexroth Working pump 290 L/min.; 300 bar Travelling pump 210 L/min.; 400 bar Powerline 220 L/min. (optional) Swivelling speed up to 10 U/min.
