Wyssen Universal Carriage

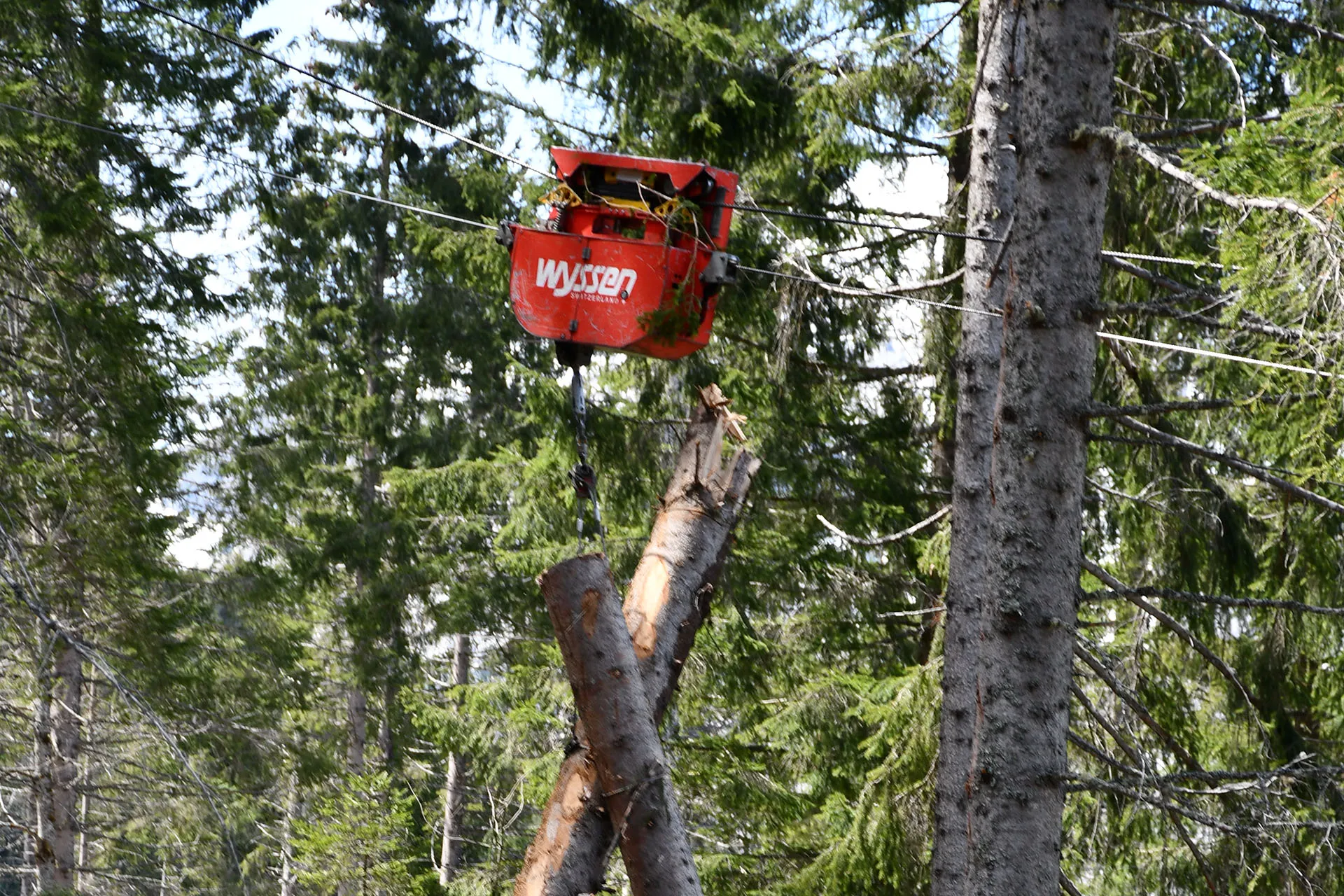

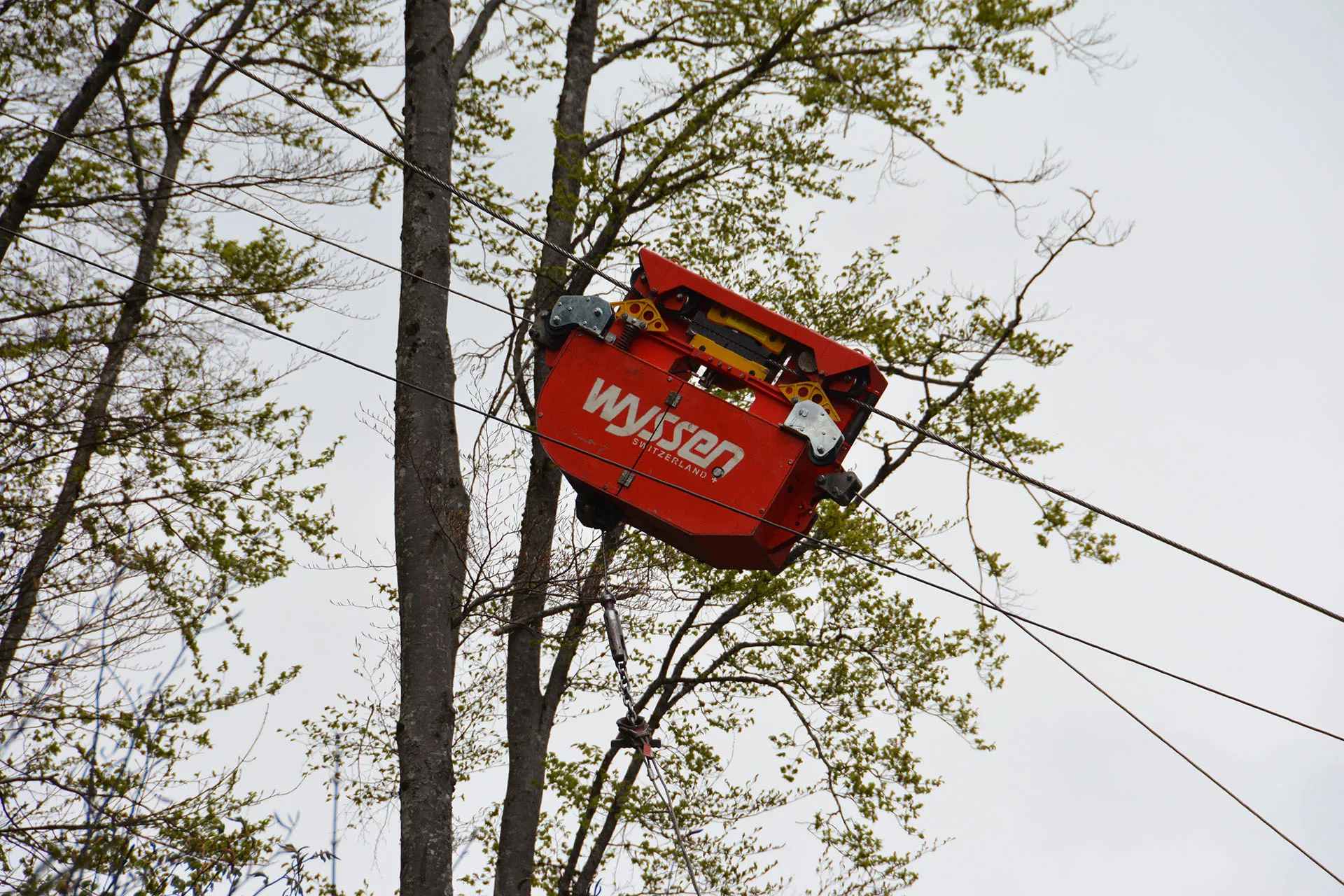

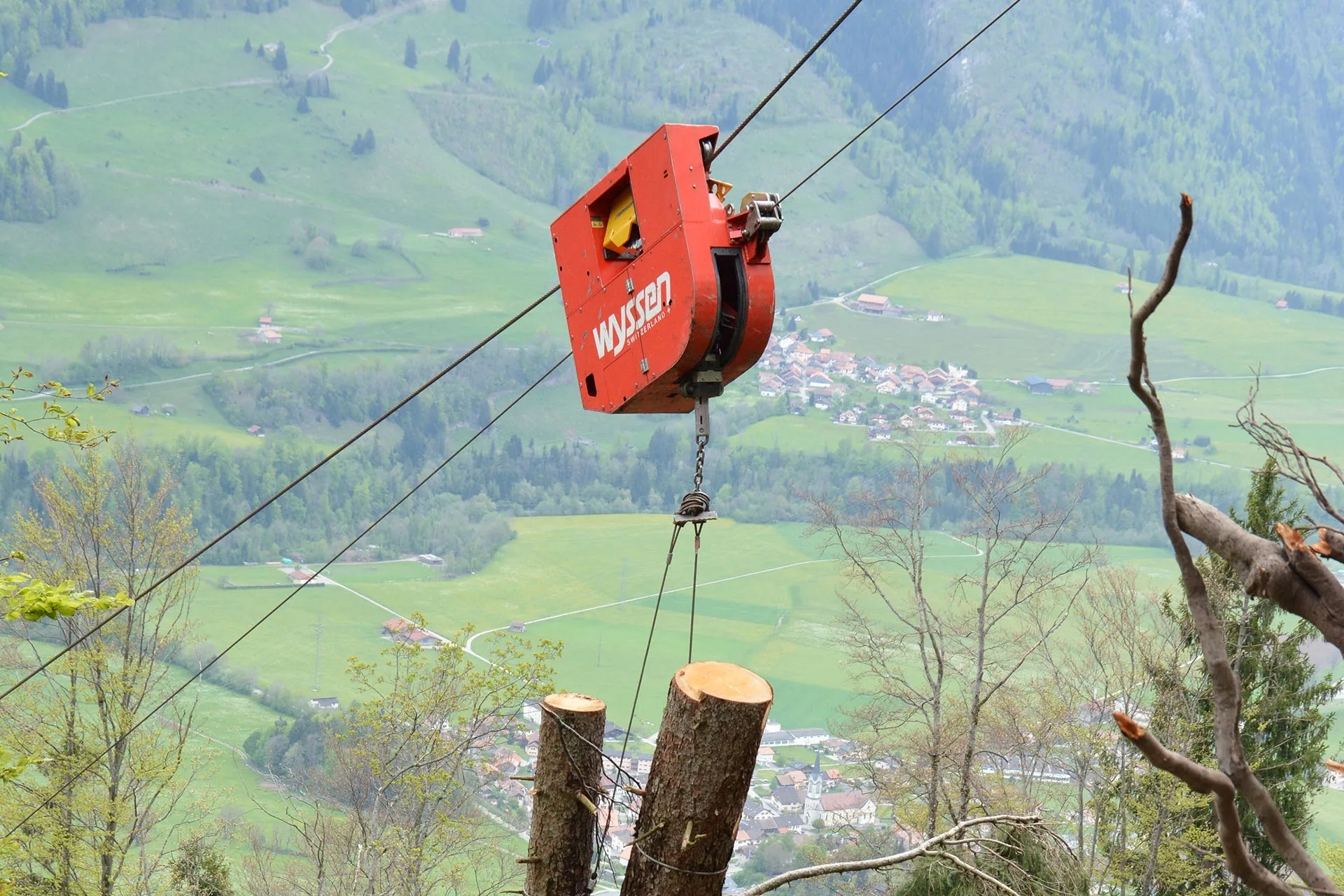

The Wyssen Universal carriage is a compact, radio-controlled carriage for 2- and 3-cable cable crane systems working uphill, downhill or horizontally, with a 3,000 kg load capacity, a large haul-back line drum and cable safety brakes on the mainline and haul-back line.
- For 2- and 3-cable systems, uphill, downhill or horizontal
- 3,000 kg load capacity, 680 kg unladen weight, made of high-strength steel
- Radio-controlled, with safety brakes on the mainline and haul-back line
- Large haul-back line drum: 136 m spool-out length for an 11 mm line
- Optional pendulum slack-pulling device
Technical data
| Load capacity | 3,000 kg |
|---|---|
| Unladen weight | 680 kg |
| Control system | Remote radio control, or conventional with a timer switch |
| Skyline diameter | 20–36 mm |
| Mainline diameter | 9–13 mm |
| Haul-back line diameter | 8–13 mm |
| Lifting height, haul-back line ø 8 mm | 248 m |
| Lifting height, haul-back line ø 9 mm | 204 m |
| Lifting height, haul-back line ø 10 mm | 167 m |
| Lifting height, haul-back line ø 11 mm | 136 m |
| Lifting height, haul-back line ø 12 mm | 111 m |
| Lifting height, haul-back line ø 13 mm | 89 m |
| Battery | 12 V, 50 Ah |
Overview
The Wyssen Universal carriage runs on 2- or 3-cable systems working uphill, downhill or horizontally. It is compact and made of high-strength steel, like all Wyssen carriages, and its large haul-back line drum gives a spool-out length of 136 m for an 11 mm haul-back line.
Safety and clamping
Two cable safety brakes, one on the mainline and one on the haul-back line, clamp immediately and stop the carriage if a cable breaks. They can be deactivated depending on the type of operation. The carriage also has a mainline clamp, so it can be driven anywhere with a half-lowered load.
To clamp to the skyline, the carriage is stopped at, or slowly driven to, the position and clamped with a button on the radio. The hook must first be raised slightly before the load can be lowered, and if the hook is fully retracted the skyline clamp opens automatically.
Radio control
The carriage is controlled with the normal portable radio, the same as every new Wyssen carriage, and every parameter can be adjusted through Wyssen’s own control system, the same one as on the slackpuller. It can also be fitted into the mobile cable crane’s control system, and a conventional timer-switch control is available. A 12 V, 50 Ah battery powers it, and the battery status shows on the carriage’s display.
The storage drum
The storage drum for the haul-back line is very large, for cables of 8 to 13 mm. It is coiled mechanically, and can be refilled at any time while a load is being lowered, using an extra button on the radio. A warning tone sounds if the drum is nearly empty or overfilled, and the hook comes out automatically even for horizontal or downhill transport.
Options
- A pendulum slack-pulling device; the carriage is also available without it
Wyssen control system FSI 2007
The control system is built into the Universal carriage, and also into the Slackpuller carriage, the Motorised Skyline Crane and the W-30, W-40 and W-90 cable winches.
- Operated by radio, and can be adapted to the mobile cable crane’s existing radio remote control
- Switches off automatically when not in use
- Automatic emergency stop if the programmed speed limit is exceeded
- Clamping by radio signal while travelling at the set speed is no longer possible
- Display for setting the parameters, with speed, clamping and delay times all adjustable
- Battery status display
- CAN-bus interface and an integrated 3D inclination sensor
- Completely enclosed electronics, resistant to moisture, vibration and impact, with a screw-secured plug
- Software updates and upgrades at any time
Quick answers
Which cable systems does it run on? 2- and 3-cable systems, uphill, downhill or horizontally. Skyline diameters are 20 to 36 mm, mainline 9 to 13 mm and haul-back line 8 to 13 mm.
What load can it carry? 3,000 kg, with a carriage weight of 680 kg unladen.
How far can the haul-back line spool out? It depends on the line’s diameter: 248 m for 8 mm, 136 m for 11 mm and 89 m for 13 mm, with the other sizes in the specifications.
Can I buy the Wyssen Universal carriage in the UK? Yes. Exc@v8 supplies the Wyssen range in the UK and Ireland. Use the form below or call us for pricing and availability.
