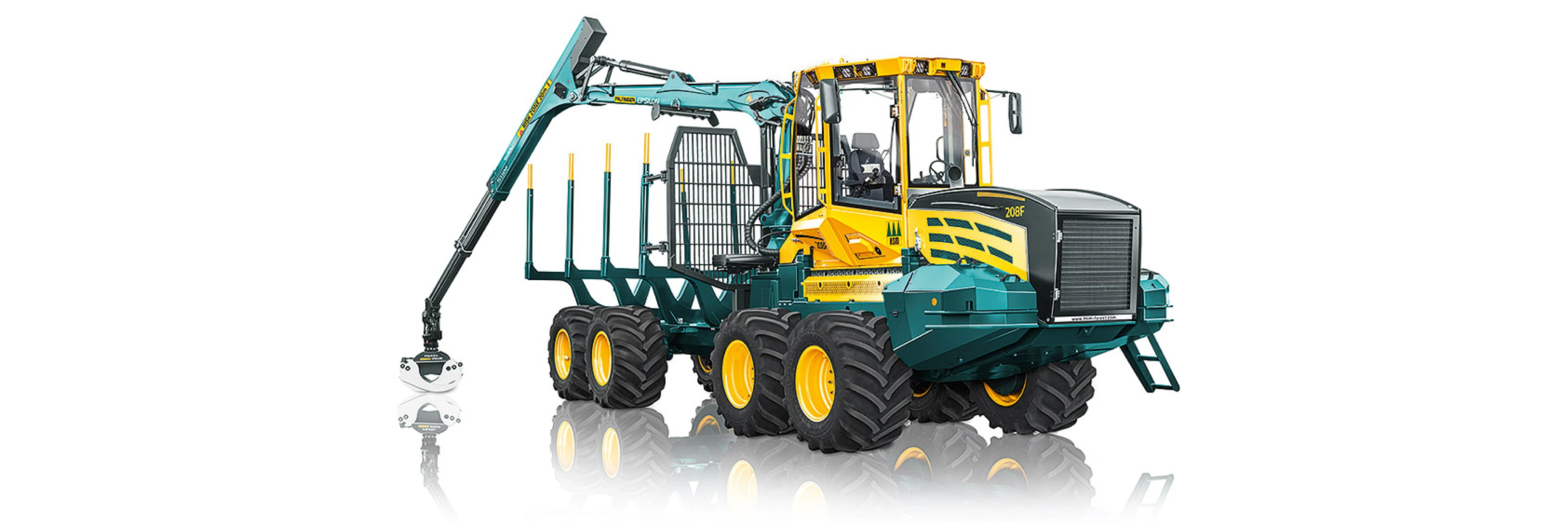

HSM 208F 12 t Forwarder
Takes two piles of 3 m timber on its optional 5,050 mm load area, with a 185 kW six-cylinder Volvo Penta engine (210 kW optional), a 12 t payload and a 2,600 mm overall width on standard tyres.
Narrow machine, wide tyres
Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
Read more
Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
One drivetrain across the range
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Read more
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Load-sensing hydraulics
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.
Read more
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.
Speak to us about the208F 12 t
EnquireHSM 208F 12 t
- Payload
- 12 t
- Power
- 185 kW (252 HP), 210 kW optional
- Weight
- From 18,200 kg
- Load area
- 3,700–4,650 mm long

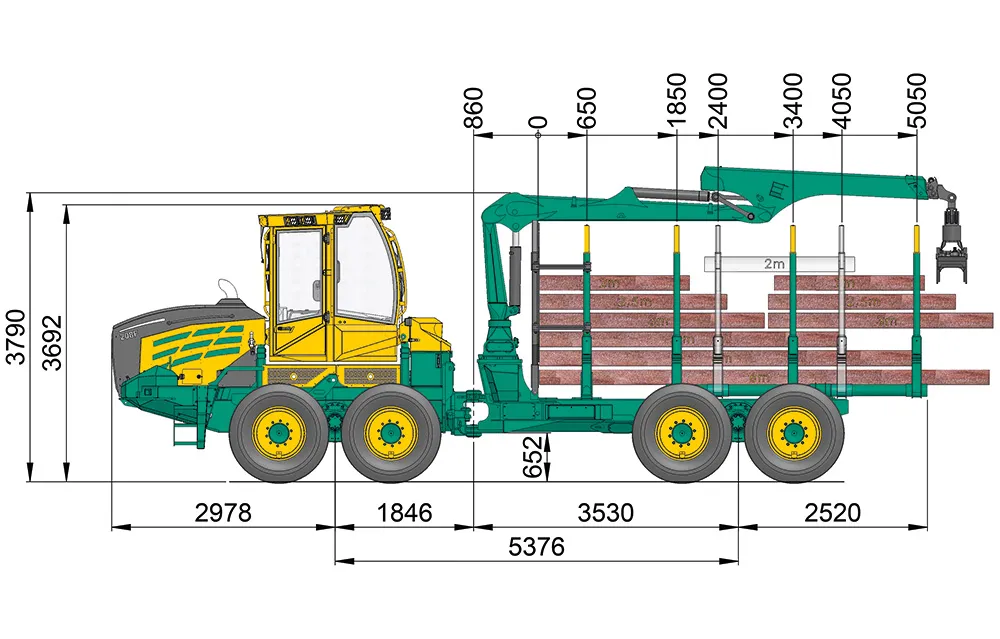

Technical data: HSM 208F 12 t
Engine
- Model
- Volvo Penta TAD881VE, 6-cylinder, EU Stage V
- Power
- 185 kW (252 HP) from 1,600 rpm
- Torque range
- 1,150 Nm from 1,100 to 1,500 rpm
- Maximum torque
- 1,175 Nm at 1,400 rpm
- Displacement
- 7.7 litres
Engine (optional)
- Model
- Volvo Penta TAD882VE, 6-cylinder, EU Stage V
- Power
- 210 kW (286 HP) from 1,700 rpm
- Torque range
- 1,225 Nm from 1,100 to 1,600 rpm
- Maximum torque
- 1,255 Nm at 1,400 rpm
- Displacement
- 7.7 litres
Drive
- Transfer gearbox
- NAF 2-speed
- Hydrostatic drive
- HSM High Speed Drive (71 series), 0 to 14 km/h in first gear
- Axles
- NAF portal bogie axles
- Differential locks
- Front and rear, 100% selectable
- Brakes
- 2-circuit brake, multi-disc brakes running in an oil bath
- Spring-loaded parking brake
- Steering
- Articulated steering with 2 cylinders
- 45° steering angle
- Torsion lock
- 2 hydraulic cylinders
Tyres
- Standard
- 710/45-26.5: 2,600 mm overall width, 2,700 mm with tracks
- Optional
- 600/55-26.5: 2,400 mm overall width, 2,500 mm with tracks
- 800/40-26.5: 2,700 mm overall width, 2,800 mm with tracks
- 870/40-26.5: 2,900 mm overall width, 3,000 mm with tracks
- 54 × 37-25: 2,900 mm overall width, 3,000 mm with tracks
Hydraulics
- System
- Load sensing
- Pump
- Variable pump (working pump)
- Flow
- 304 l/min at 1,600 rpm
- Pressure
- Up to 350 bar
- Oil
- Saturated synthetic ester, Panolin HLP SYNTH with Kleenoil microfiltration; WGK 1
Tanks
- Diesel
- 190 l
- AdBlue
- 45 l
- Hydraulic oil
- 130 l
Weight
- Operating weight
- From 18,200 kg
- Weight distribution
- 60% front axle, 40% rear axle
Crane
- Standard crane
- Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)
- Other cranes
- 14 more Epsilon and 21 Mesera cranes; see Crane options below
Load area
- Rungs
- 4 rungs, the last one extensible
- Length
- 3,700 to 4,650 mm
- 5,050 mm optional (2 × 3 m)
- Cross section
- 4.0 m² (4.3 m² optional)
- Payload
- 12 t
Cab
- Features
- Parallel pivoting cab, raisable to the side
- ROPS, FOPS and OPS tested safety cab
- Swivel seat with pedals at the front and rear
- Windscreen wipers front and rear, side wipers optional
- Air-cushioned seat with seat heating
- Hot water heating
- Air conditioning
Electrics
- Equipment
- HSM Ecommand colour display
- 5 operator programs plus factory setting
- Diagnostics function and error display
- Graphical support for editing parameters
- 110 A (28 V) generator
- 2 maintenance-free dry-cell batteries, 75 Ah each
Equipment
- Standard
- 14 LED work lights on the cab
- 4 work lights on the crane
- Voltage converter, 24 V to 12 V
- Radio with CD
- Fire extinguisher
- First-aid kit
- Warning triangle
- Tool kit
- Cooling box
- Reversing camera with colour monitor
- Rear work lights
- Special
- Front dozer blade
- Front bogie lift
- Turnable rung
- Last rung plugged
- Tiltable crane
- Quick-change system for rungs
- Clambunk
- Auxiliary heating
- Bogie tracks
- Radio control for the winch
- Drive by radio
- Sun blinds
- Pluggable front grid
- Cab suspension HCS
- Crane tip control xyControl (Epsilon cranes only)
- Other accessories on request
Crane options
The 208F 12 t has the Epsilon M70 F80 as its standard crane and can be fitted with 35 other Epsilon and Mesera cranes. Lifting moments are gross / net. All are supplied with the FG43S grapple.
Epsilon cranes (15)
| Crane | Lifting moment | Reach | Fit |
|---|---|---|---|
| Epsilon M70 F80 | 102 / 68 kNm | 8.0 m | Standard |
| Epsilon M70 F86 | 102 / 68 kNm | 8.6 m | Optional |
| Epsilon M70 F101 | 102 / 65 kNm | 10.1 m | Optional |
| Epsilon M80 F80 | 114 / 79 kNm | 8.0 m | Optional |
| Epsilon M80 F86 | 114 / 79 kNm | 8.6 m | Optional |
| Epsilon M80 F101 | 114 / 75 kNm | 10.1 m | Optional |
| Epsilon S100 F80 | 128 / 91 kNm | 8.0 m | Optional |
| Epsilon S100 F86 | 128 / 90 kNm | 8.6 m | Optional |
| Epsilon S100 F101 | 128 / 86 kNm | 10.1 m | Optional |
| Epsilon S110 F80 | 143 / 104 kNm | 8.0 m | Optional |
| Epsilon S110 F86 | 143 / 104 kNm | 8.6 m | Optional |
| Epsilon S110 F101 | 143 / 100 kNm | 10.1 m | Optional |
| Epsilon X120 F80 | 159 / 111 kNm | 8.0 m | Optional |
| Epsilon X120 F86 | 159 / 110 kNm | 8.6 m | Optional |
| Epsilon X120 F102 | 159 / 107 kNm | 10.2 m | Optional |
Mesera cranes (21)
| Crane | Lifting moment | Reach | Fit |
|---|---|---|---|
| Mesera F71 F72 | 99 / 75 kNm | 7.2 m | Optional |
| Mesera F71 FT85 | 99 / 70 kNm | 8.5 m | Optional |
| Mesera F71 FT100 | 99 / 66 kNm | 10.0 m | Optional |
| Mesera F71 FT100i | 99 / 66 kNm | 10.0 m | Optional |
| Mesera F83 F72 | 106 / 82 kNm | 7.2 m | Optional |
| Mesera F83 FT85 | 106 / 76 kNm | 8.5 m | Optional |
| Mesera F83 FT100i | 106 / 73 kNm | 10.0 m | Optional |
| Mesera M 92 F80i | 130 / 84 kNm | 8.0 m | Optional |
| Mesera M 92 FT86i | 130 / 84 kNm | 8.6 m | Optional |
| Mesera M 92 FT100i | 130 / 84 kNm | 10.0 m | Optional |
| Mesera F111 F72 | 151 / 111 kNm | 7.2 m | Optional |
| Mesera F111 F85 | 151 / 100 kNm | 8.5 m | Optional |
| Mesera F111 FT85 | 151 / 100 kNm | 8.5 m | Optional |
| Mesera F111 FT91 | 151 / 98 kNm | 9.1 m | Optional |
| Mesera F111 FT100 | 151 / 101 kNm | 10.0 m | Optional |
| Mesera M122 F85i | 155 / 110 kNm | 8.5 m | Optional |
| Mesera M122 F96i | 155 / – kNm | 9.6 m | Optional |
| Mesera M122 FT100i | 155 / – kNm | 10.0 m | Optional |
| Mesera M142 F85i | 178 / 132 kNm | 8.5 m | Optional |
| Mesera M142 F96i | 178 / 124 kNm | 9.6 m | Optional |
| Mesera M142 FT100i | 178 / – kNm | 10.0 m | Optional |
A low crane column (1,730 mm high) is available on the HSM 208F 12 t, and is standard on HSM’s steep-slope and Kombi versions.
Documents and data sheets
HSM's data sheet for the 208F 12 t: data sheet (PDF)
