Pfanzelt Loading Cranes, Upright Boom Cylinder
Pfanzelt's loading cranes with an upright main boom cylinder, its piston rod protected by the forwarding trailer's fender grille: eleven sizes from 6.37 to 9.8 m of crane length and 56 to 79 kNm gross lift moment.
- Eleven sizes, 4267 to 62100
- 6,370 to 9,800 mm crane length
- 56 to 79 kNm gross lift moment
- Upright main boom cylinder, protected by the fender grille
- Single or double telescope; 4.5 or 6.0 t infinite rotator
Overview

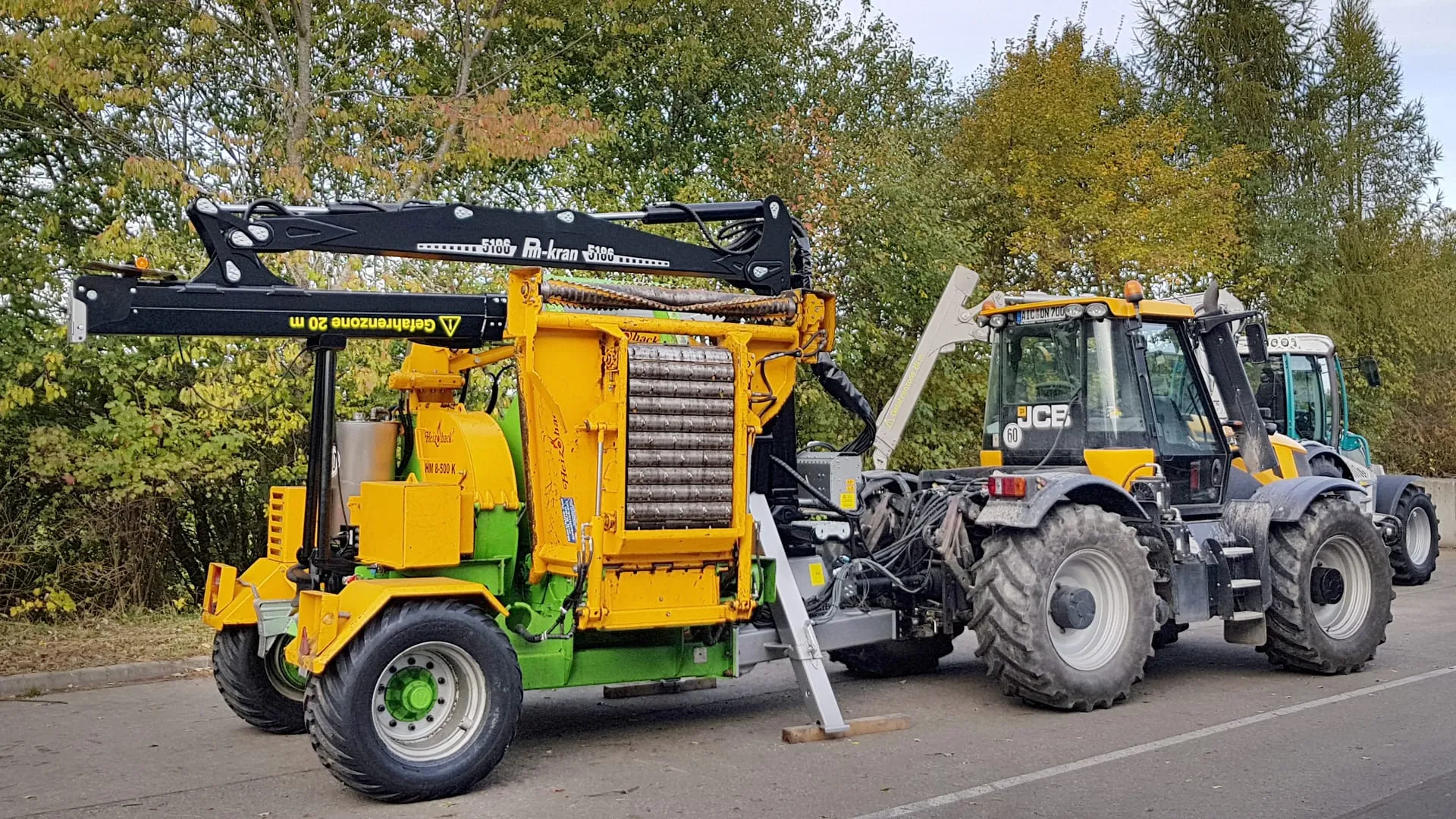

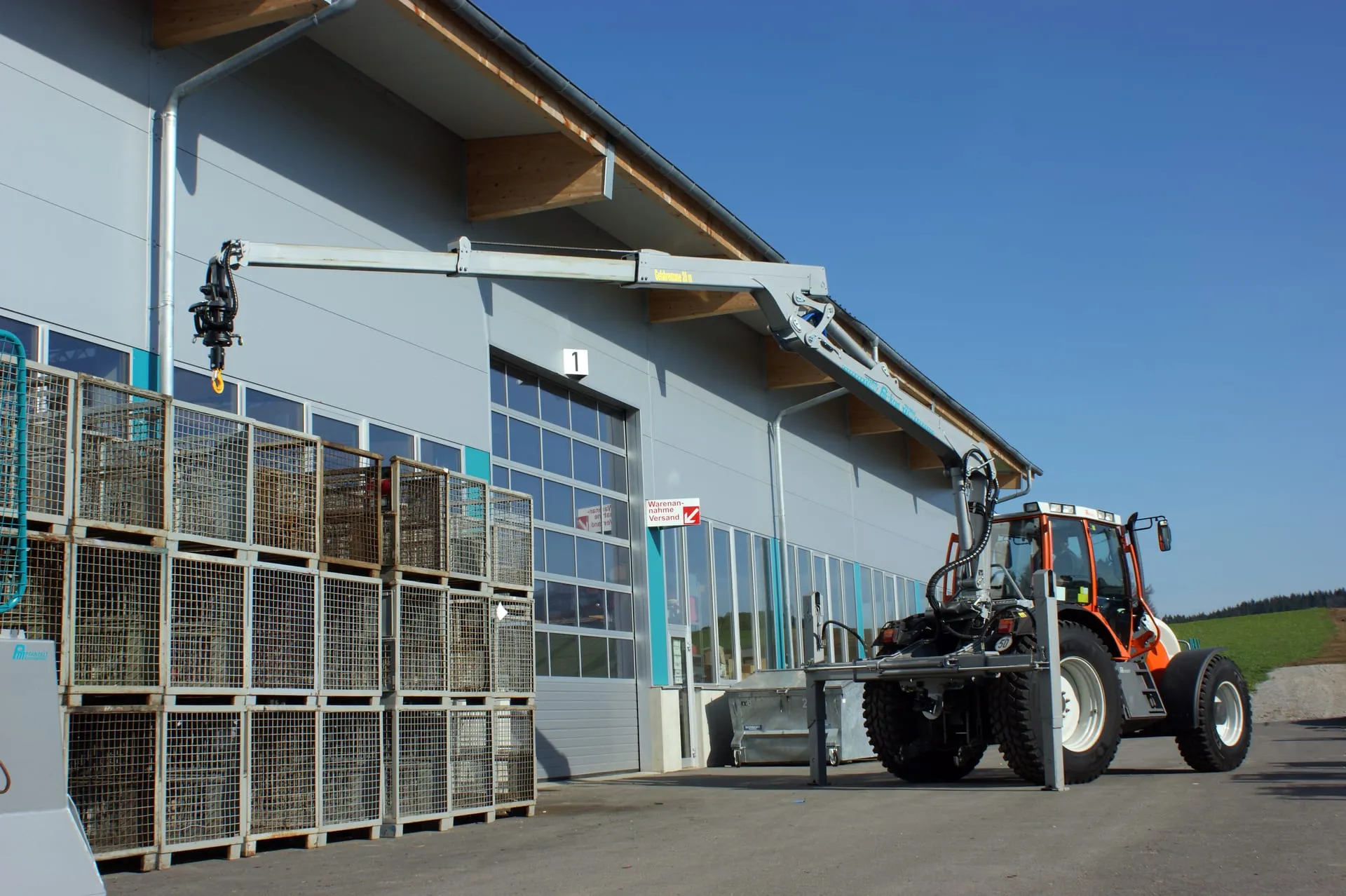

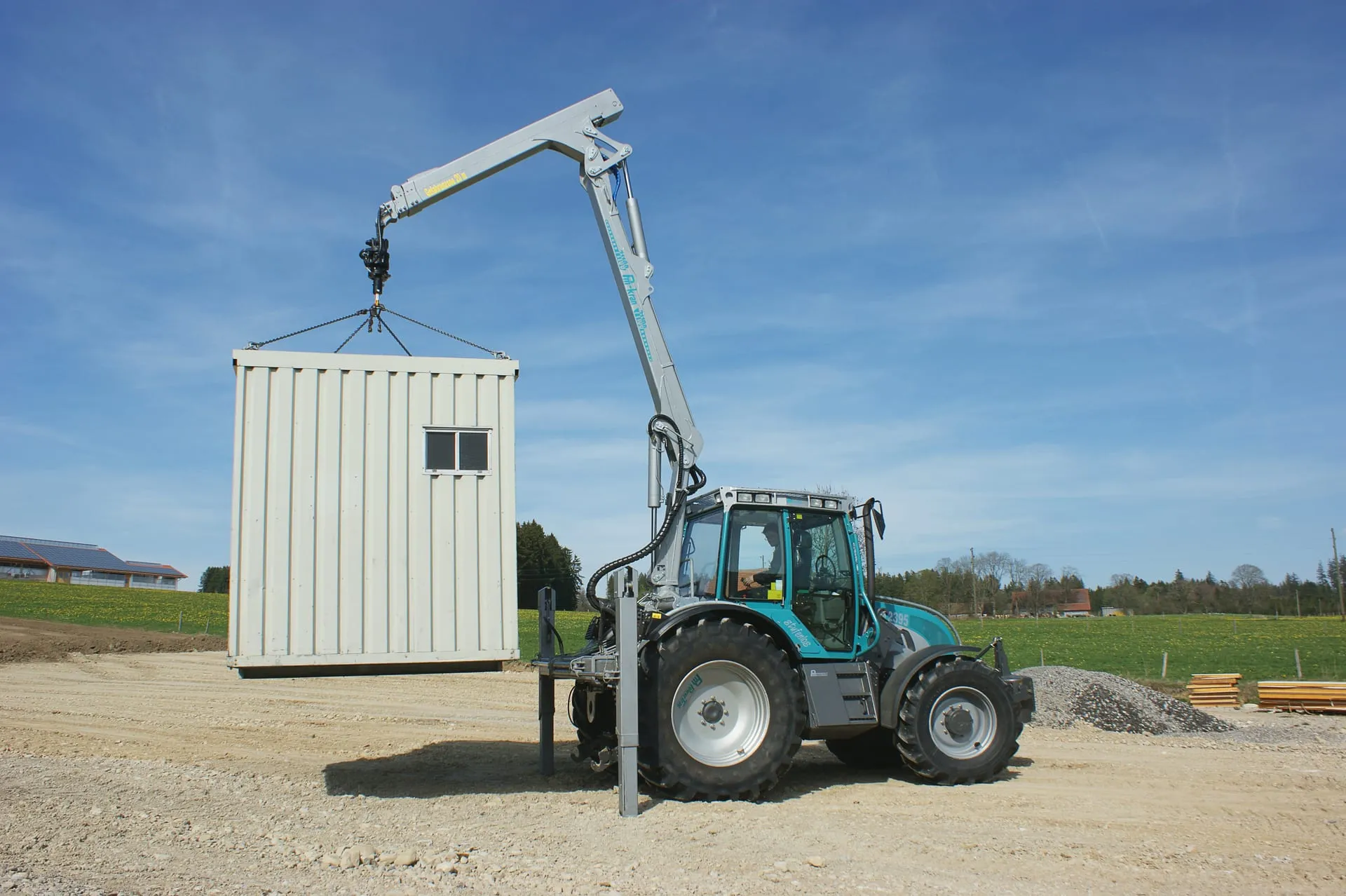

Pfanzelt builds its loading cranes in two versions, which differ in the position of the main boom cylinder. On these cranes the cylinder stands upright, mounted so that its piston rod is protected by the forwarding trailer’s fender grille.
Slewing gear and geometry
Pfanzelt cranes have a robust 4-cylinder slewing gear; the high pivoting moment means loading work can also be done working uphill. The power link (toggle) system between the main and folding booms gives the crane its loading geometry, so timber can be placed directly against the headache rack, with constant force, more reach and a higher working speed. A rapid traverse valve, standard on every crane, extends the telescope about 1.5 times faster.
Hoses and bearings
The hydraulic hoses are concealed from the control block to the crane tip, laid in a hose shaft at points of high load and near the control stand, and the telescopic cylinder is mounted inside the boom. An optional pendulum with internal hoses and a double pendulum brake protects them right to the tip. All crane pins run in lubricated, hardened bronze bushes with adjustable axial play.
Control and options
Pfanzelt cranes come with a mechanical control block and two control toggles, each with an electrical switch, so the boom movements can be combined without changing levers. Options include:
- EHC control with a cord or wireless panel
- Two Danfoss Pro 1 joysticks on a rotary seat
- An independent hydraulic oil supply
- Crane floodlights
- A hydraulic oil cooler
- An operating hours counter
- A trunk scraper
- The exTEND crane cable winch (1.5 t, 50 m of cable, with radio control)

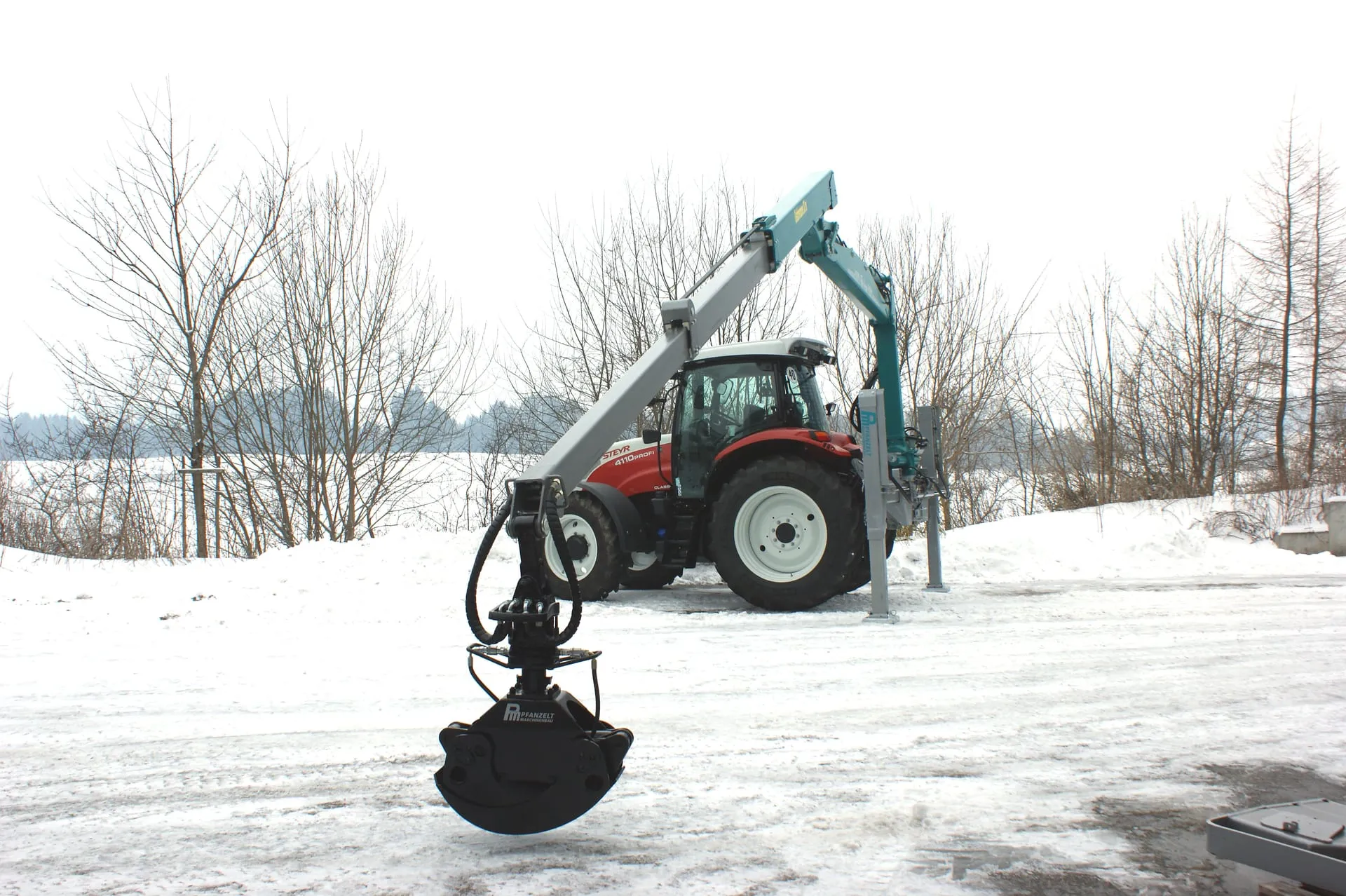

- Grippers for logs, branches, bulk material and round bales
Sizes in this range
| Designation | Crane length | Crane pillar height | Lift moment, gross / net | Telescope | Pivoting torque | Slewing range | Infinite rotator | Gripper | Operating pressure | Recommended pump flow | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4267 | 6,370 mm | 2,000 mm | 56 / 40.5 kNm | Single | 15.2 kNm | 370° | 4.5 t | Pm 230 | 190 bar | 35–90 l/min | approx. 1,050 kg |
| 4272 | 7,140 mm | 2,000 mm | 56 / 40.5 kNm | Single | 15.2 kNm | 370° | 4.5 t | Pm 230 | 190 bar | 35–90 l/min | approx. 1,100 kg |
| 4280 | 7,850 mm | 2,000 mm | 56 / 41 kNm | Single | 15.2 kNm | 370° | 4.5 t | Pm 230 | 190 bar | 35–90 l/min | approx. 1,150 kg |
| 4282 | 7,960 mm | 2,000 mm | 58 / 42 kNm | Double | 15.2 kNm | 370° | 4.5 t | Pm 230 | 190 bar | 35–90 l/min | approx. 1,120 kg |
| 5280 | 7,800 mm | 2,076 mm | 70 / 50 kNm | Single | 21.5 kNm | 370° | 4.5 t | Pm 230 | 205 bar | 50–100 l/min | approx. 1,250 kg |
| 5287 | 8,730 mm | 2,076 mm | 69 / 52 kNm | Double | 21.5 kNm | 370° | 4.5 t | Pm 230 | 190 bar | 50–120 l/min | approx. 1,270 kg |
| 5286 | 8,600 mm | 2,076 mm | 70 / 50 kNm | Double | 21.5 kNm | 370° | 4.5 t | Pm 230 | 205 bar | 50–120 l/min | approx. 1,400 kg |
| 52100 | 9,800 mm | 2,076 mm | 70 / 51 kNm | Double | 21.5 kNm | 370° | 4.5 t | Pm 230 | 210 bar | 50–120 l/min | approx. 1,400 kg |
| 6280 | 7,800 mm | 2,076 mm | 79 / 61 kNm | Single | 25 kNm | 370° | 6.0 t | Pm 230 | 220 bar | 50–120 l/min | approx. 1,300 kg |
| 6286 | 8,600 mm | 2,076 mm | 79 / 62 kNm | Double | 25 kNm | 370° | 6.0 t | Pm 230 | 220 bar | 50–120 l/min | approx. 1,450 kg |
| 62100 | 9,800 mm | 2,076 mm | 79 / 62 kNm | Double | 25 kNm | 370° | 6.0 t | Pm 230 | 220 bar | 50–120 l/min | approx. 1,500 kg |
