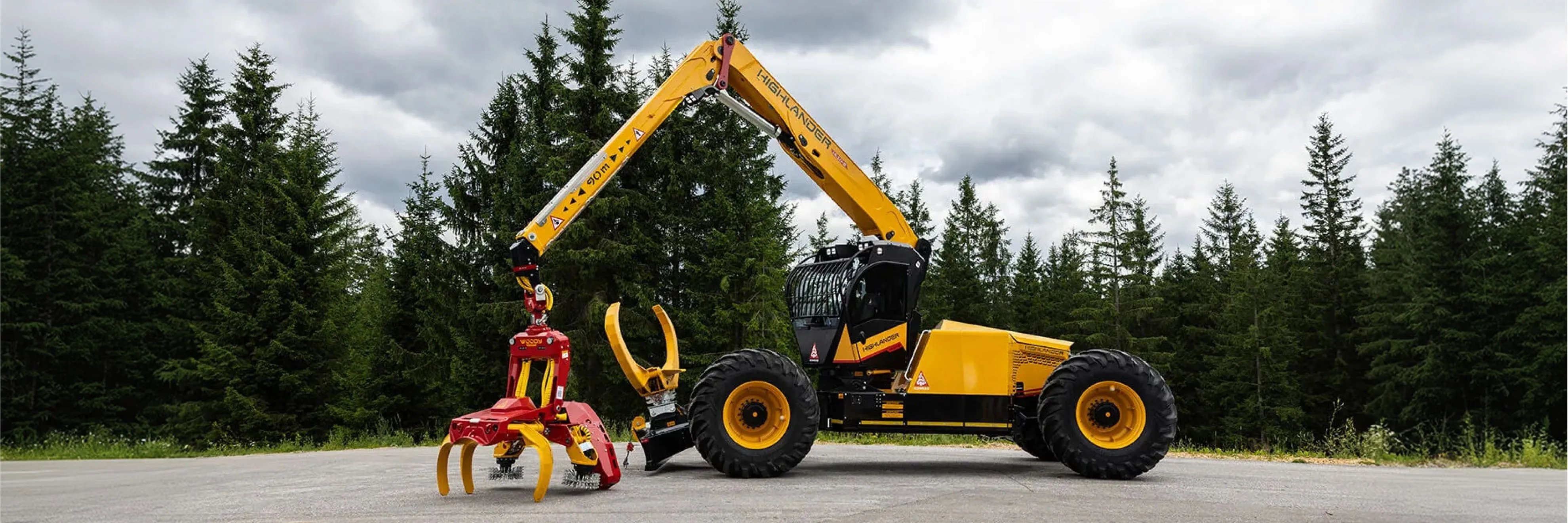

Konrad Highlander HL10-2 Harvester
The four-wheel Highlander, as suited to thinning as to final felling: a short wheelbase with two-wheel, four-wheel and crab steering, and four-wheel drive with an engageable hydraulic differential lock.
Built for steep terrain
Developed specifically for steep terrain, the Highlander works where other harvesters give way to cable crane systems. Automatic level compensation keeps it stable on the slope, and an optional traction winch supports it on steep ground.
Read more
Developed specifically for steep terrain, the Highlander works where other harvesters give way to cable crane systems. Automatic level compensation keeps it stable on the slope, and an optional traction winch supports it on steep ground.
Crane and cab turn as one
The HL24 crane, with 240 kNm of lifting torque and a 10.8 m reach, turns endlessly together with the cab, and carries a Konrad Woody WH50-1 or WH60-1 harvester head.
Read more
The HL24 crane, with 240 kNm of lifting torque and a 10.8 m reach, turns endlessly together with the cab, and carries a Konrad Woody WH50-1 or WH60-1 harvester head.
Every wheel driven and steered
Four or six driven wheels, with front-wheel, rear-wheel, all-wheel and crab steering, a ±27° steering angle and a top speed of 18 km/h.
Read more
Four or six driven wheels, with front-wheel, rear-wheel, all-wheel and crab steering, a ±27° steering angle and a top speed of 18 km/h.
Speak to us about theHL10-2
EnquireKonrad HL10-2
- Drive
- 4WD
- Power
- 212 kW
- Pulling force
- 235 kN
- Operating weight
- 22,500 kg
Technical data: Konrad HL10-2
General
- Typical operating weight
- 22,500 kg, with traction winch and cable, clam bunk and a Woody WH60-1 head, tank half full, without chains
- Control system
- KTC 1.0
- Harvester heads
- Konrad Woody WH50-1 or WH60-1
Engine
- Engine
- FPT 6-cylinder common rail, EU Stage V
- Power
- 212 kW at 2,200 rpm
- Torque
- 1,160 Nm at 1,500 rpm
- Displacement
- 6.7 litres
- Diesel tank
- 340 l
Crane
- Crane
- HL24
- Lifting torque
- 240 kNm
- Reach
- 10.8 m
- Slewing torque
- 44 kNm
- Slewing range
- 360°, endless (crane and cab turn together)
- Tilt angle
- +23.6° / −9.5°
- Tilt angle with wheel rockers
- +28° / −14°
Chassis
- Drive
- Axial piston motor with gearbox
- Brakes
- Multiple-disc brakes
- Steering modes
- Front-wheel, rear-wheel, all-wheel and crab steering
- Steering
- Steering axle, fixed; single-wheel steering
- Steering angle
- ±27° (without chains)
- Tyres
- 710/70 R34
- Pulling force
- 235 kN
- Speed
- 18 km/h
- Axle track
- 2,240 mm
Hydraulics
- Drive pumps
- Axial piston pump, closed circuit, max. 450 bar
- Working pump
- Axial piston pump, open circuit, max. 350 bar
- Power take-off pump
- Axial piston pump, open circuit, max. 350 bar
- Hydraulic oil tank
- 250 l
Options
- Traction winch TW90-1
- Max. 90 kN pulling force (adjustable), with a cable wrap arm; usable as a rigging winch; 14 mm cable, 300 m
- Rigging winch RW90-1
- Max. 80 kN pulling force (adjustable); 13 mm cable, 120 m
- Clam bunk
- Integrated quick-change system, adjustable pivot and swing brake, approx. 2 m² loading area
Harvester heads
Both Highlanders work with Konrad’s own Woody harvester heads: the Woody WH50-1 or the Woody WH60-1. The crane and the cab turn together, endlessly, on the slewing ring.
Built for steep ground
The Highlander climbs and drives with a synchronised stepping and driving motion, and automatic level compensation keeps the machine stable and its slewing moment constant on the slope. The HL20-2 adds telescopic extension feet. The TW90-1 traction winch, an option integrated in the machine, supports driving on steep terrain and can also be used as a rigging winch.
