The Konrad Highlander is a wheel harvester developed for steep terrain, working where other harvesters give way to cable cranes, in two versions: the four-wheel HL10-2 and the six-wheel HL20-2, both with a 212 kW FPT engine and a Woody harvester head.

Built for steep terrain
Developed specifically for steep terrain, the Highlander works where other harvesters give way to cable crane systems. Automatic level compensation keeps it stable on the slope, and an optional traction winch supports it on steep ground.
Read more
Developed specifically for steep terrain, the Highlander works where other harvesters give way to cable crane systems. Automatic level compensation keeps it stable on the slope, and an optional traction winch supports it on steep ground.
Crane and cab turn as one
The HL24 crane, with 240 kNm of lifting torque and a 10.8 m reach, turns endlessly together with the cab, and carries a Konrad Woody WH50-1 or WH60-1 harvester head.
Read more
The HL24 crane, with 240 kNm of lifting torque and a 10.8 m reach, turns endlessly together with the cab, and carries a Konrad Woody WH50-1 or WH60-1 harvester head.
Every wheel driven and steered
Four or six driven wheels, with front-wheel, rear-wheel, all-wheel and crab steering, a ±27° steering angle and a top speed of 18 km/h.
Read more
Four or six driven wheels, with front-wheel, rear-wheel, all-wheel and crab steering, a ±27° steering angle and a top speed of 18 km/h.

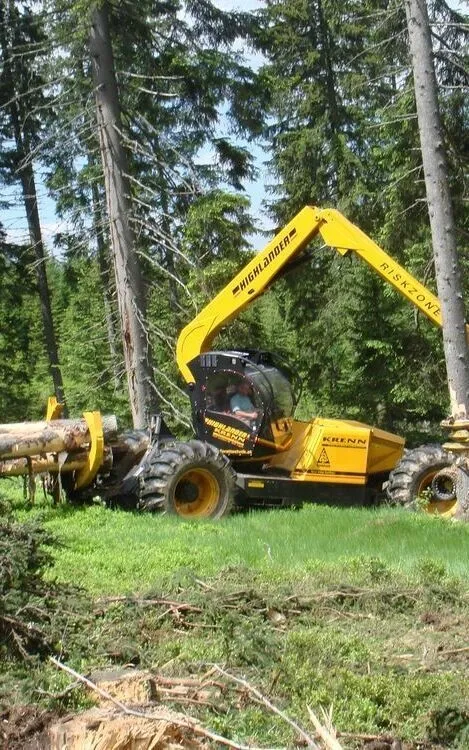

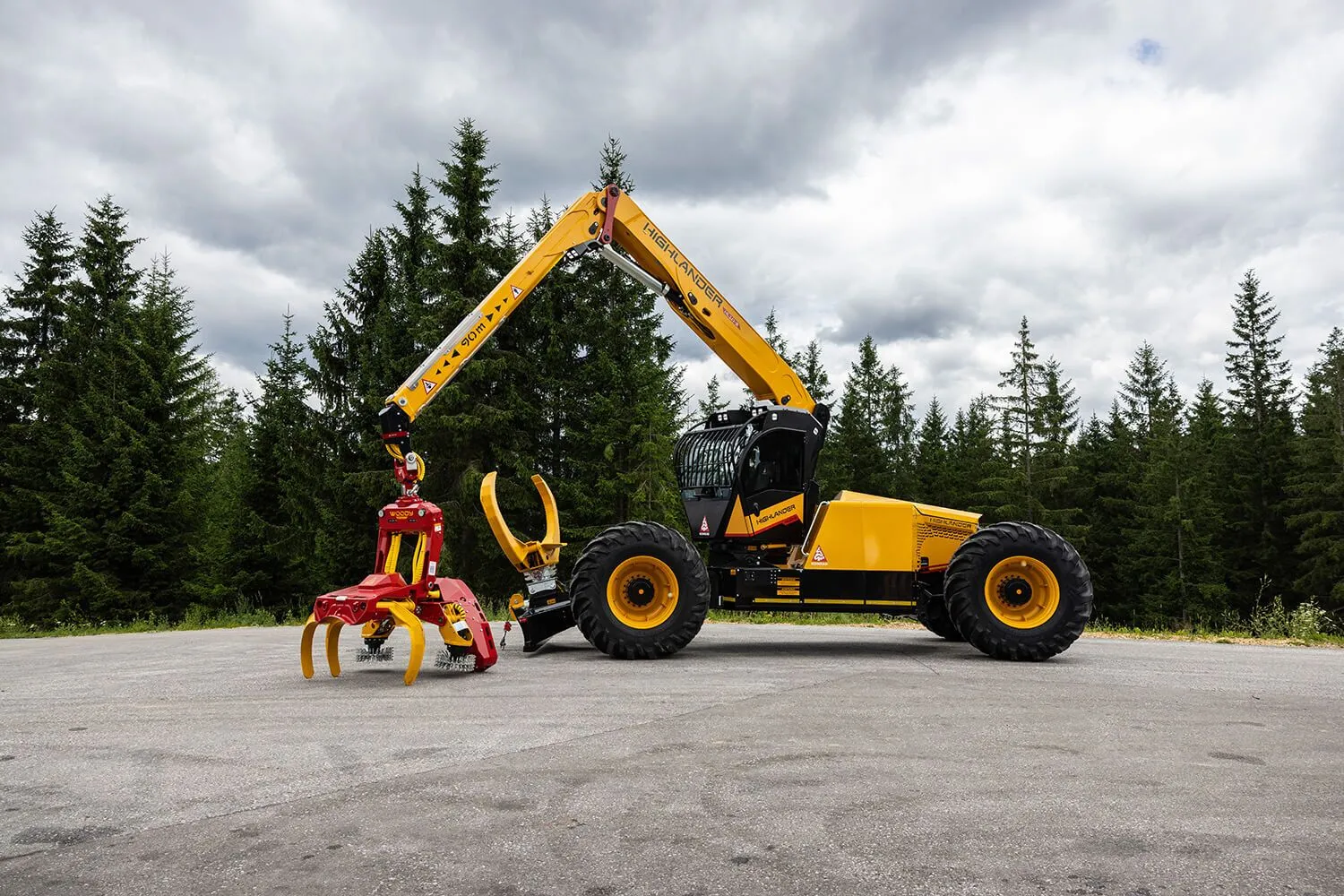

Konrad HL10-2

The four-wheel Highlander, as suited to thinning as to final felling: a short wheelbase with two-wheel, four-wheel and crab steering, and four-wheel drive with an engageable hydraulic differential lock.

Drive: 4×4
Power: 212 kW
Pulling force: 235 kN
Operating weight: 22,500 kg

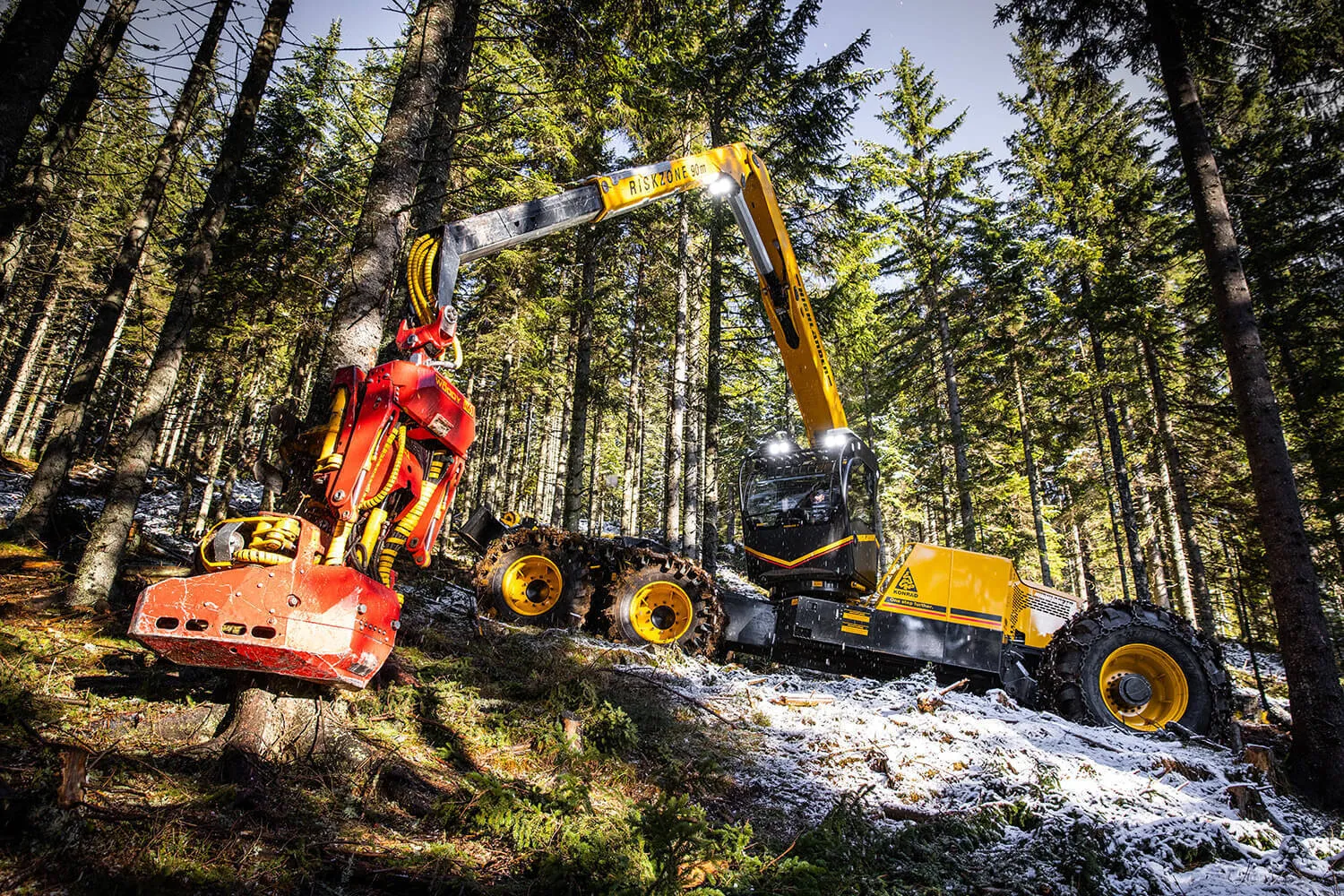

Konrad HL20-2

The six-wheel Highlander, mainly for medium to big timber: a portal tandem axle at the front, a balanced weight distribution for lower ground pressure on soft ground, and 272 kN of pulling force.

Drive: 6×6
Power: 212 kW
Pulling force: 272 kN
Operating weight: 25,500 kg

Compare the models

Only what differs. Everything else is the same on all 2 models.

Key figures

Specification	HL10-2	HL20-2
Drive	4×4	6×6
Pulling force	235 kN	272 kN
Operating weight	22,500 kg	25,500 kg

General

Specification	HL10-2	HL20-2
Typical operating weight	22,500 kg, with traction winch and cable, clam bunk and a Woody WH60-1 head, tank half full, without chains	25,500 kg, with traction winch and cable, clam bunk and a Woody WH60-1 head, tank half full, without chains

Chassis

Specification	HL10-2	HL20-2
Drive	Axial piston motor with gearbox	Portal tandem axle: axial piston motor and 2-speed gearbox Rear axle: axial piston motor with gearbox
Steering	Steering axle, fixed; single-wheel steering	Portal tandem axle: articulated steering Rear axle: single-wheel steering
Tyres	710/70 R34	Portal tandem axle: 710/45 R26.5 Rear axle: 710/70 R34
Ground clearance	Not on this model	640 mm
Pulling force	235 kN	272 kN

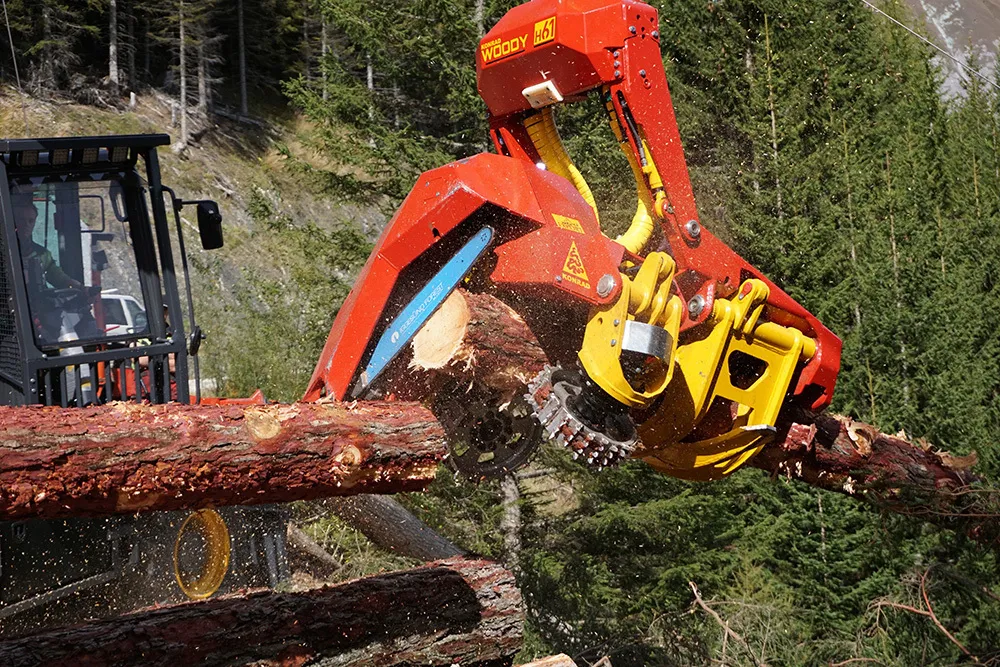

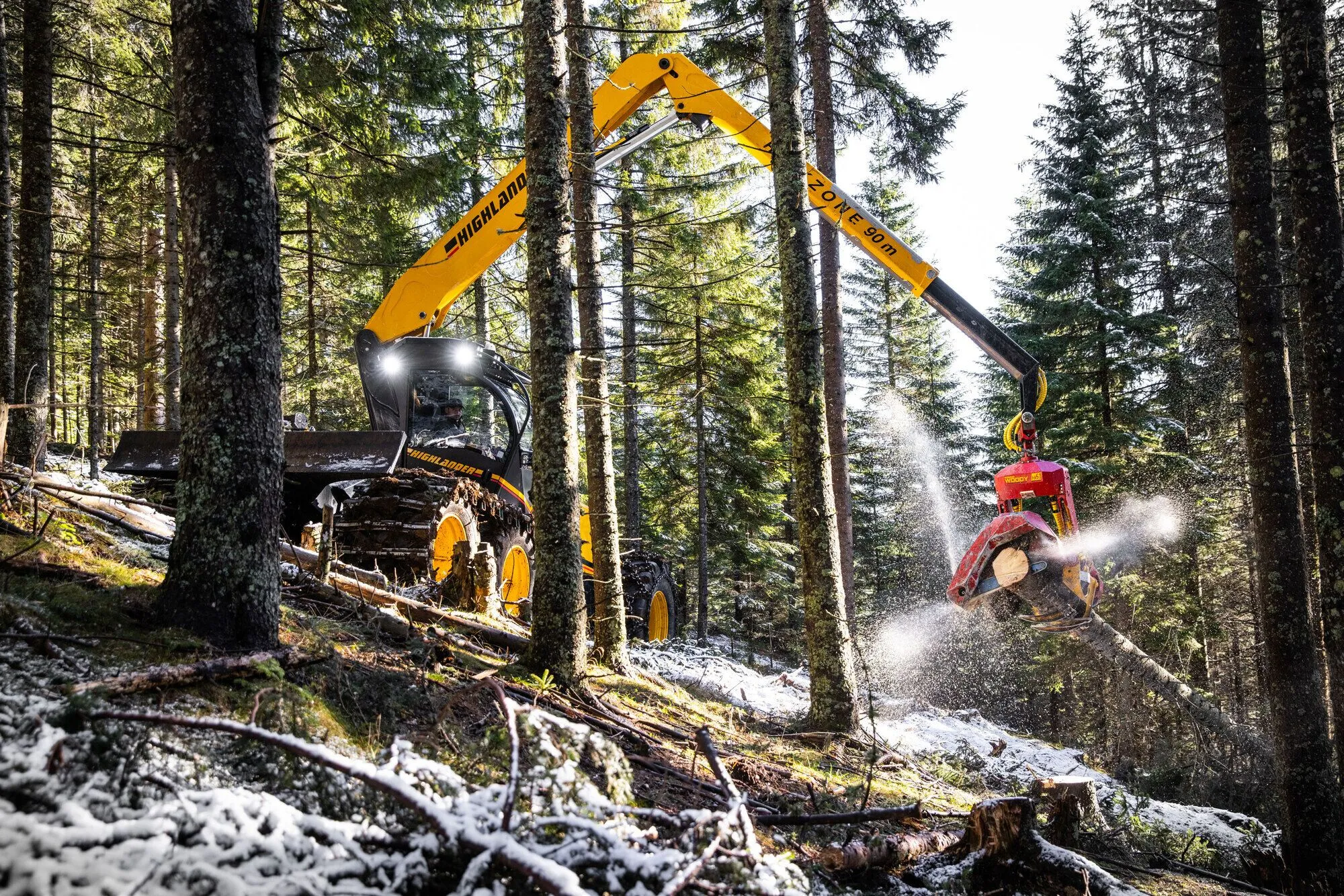

Konrad Woody WH60-1 harvester head processing a log

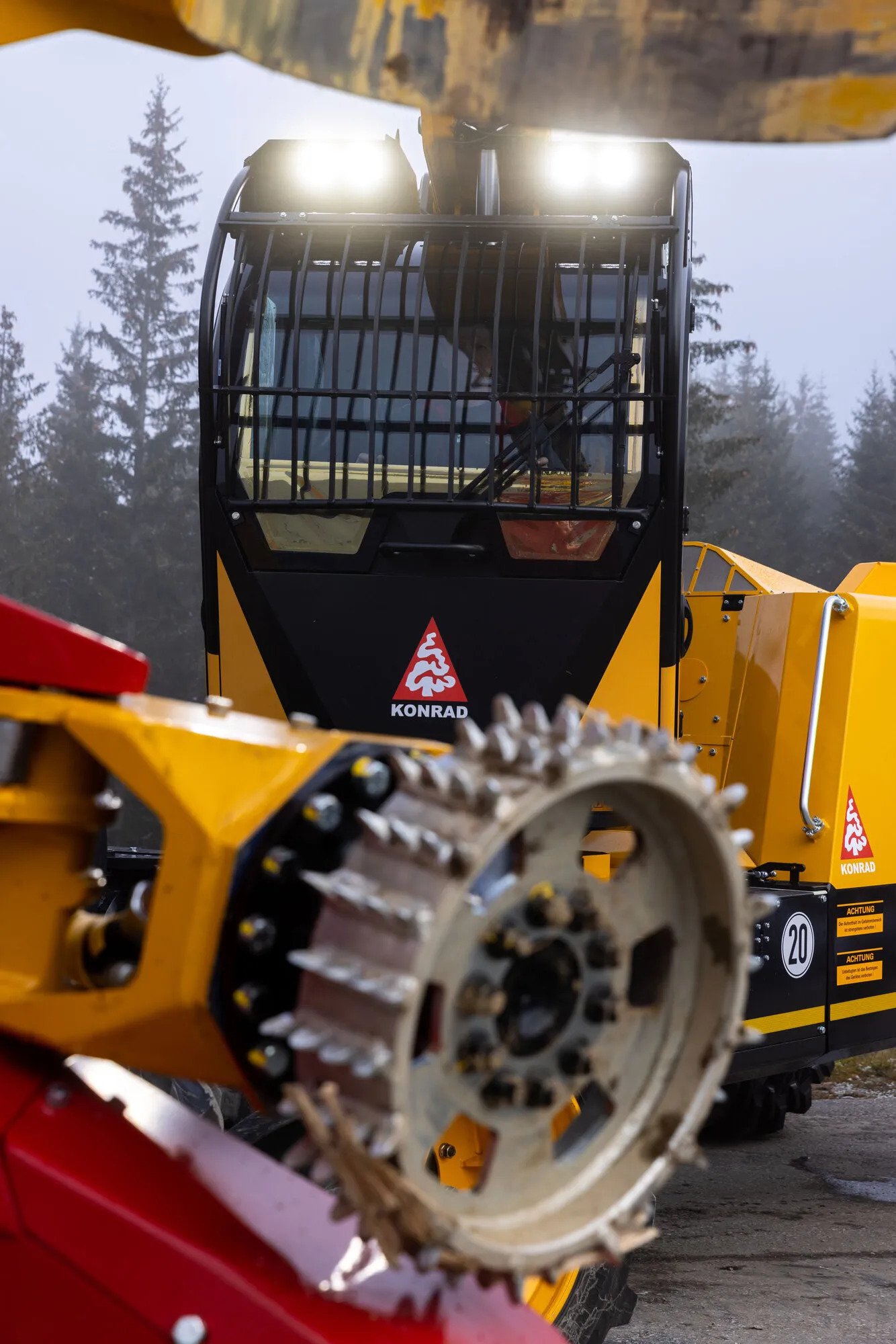

Harvester heads

Both Highlanders work with Konrad’s own Woody harvester heads: the Woody WH50-1 or the Woody WH60-1. The crane and the cab turn together, endlessly, on the slewing ring.

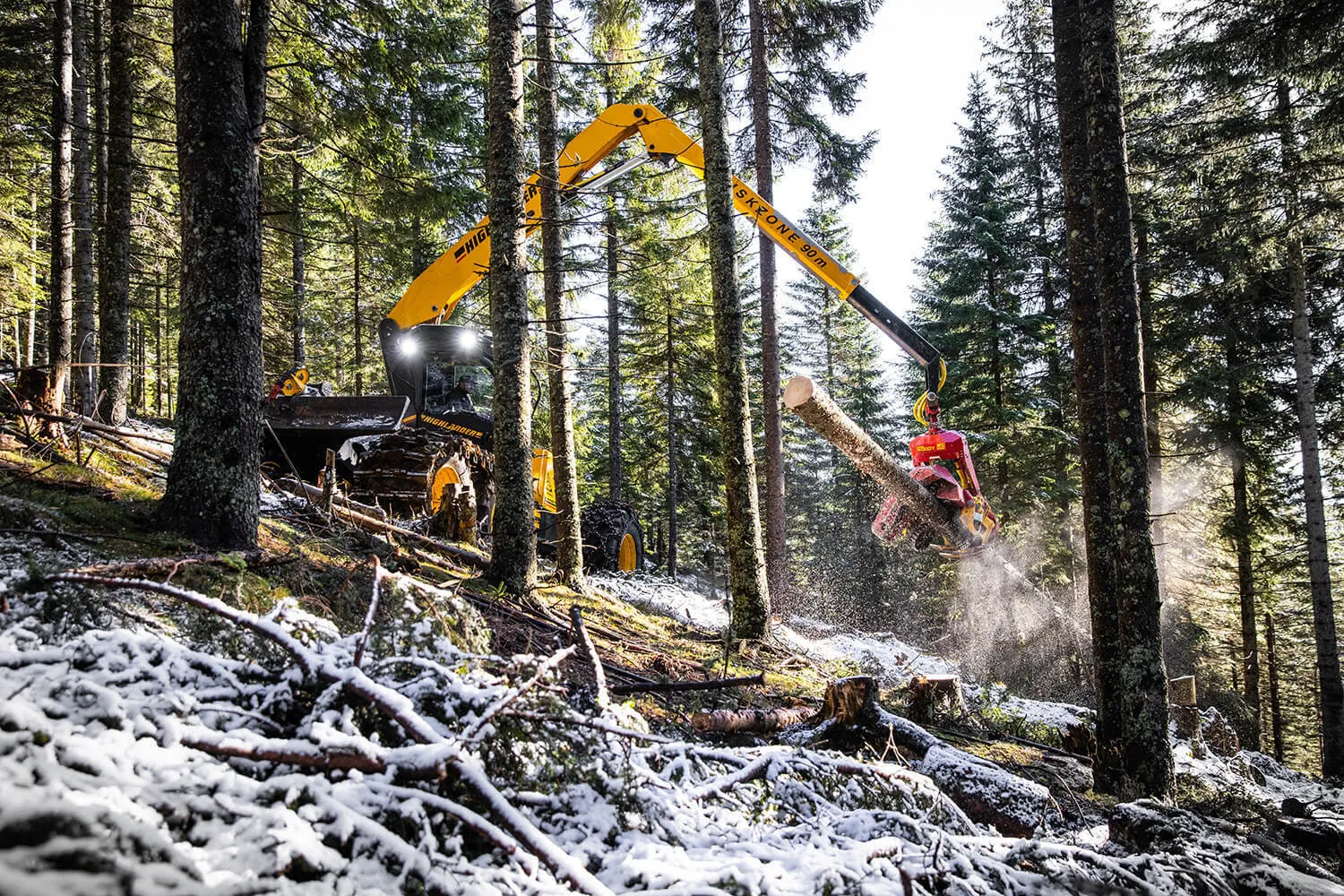

Konrad Highlander harvester felling on a steep forest slope

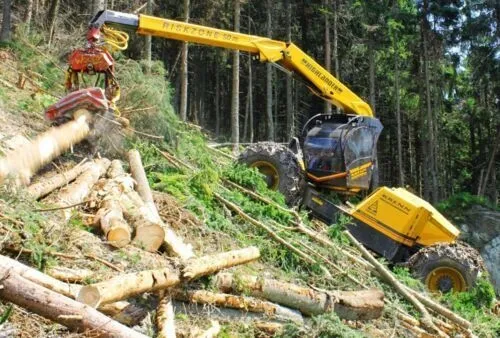

Built for steep ground

The Highlander climbs and drives with a synchronised stepping and driving motion, and automatic level compensation keeps the machine stable and its slewing moment constant on the slope. The HL20-2 adds telescopic extension feet. The TW90-1 traction winch, an option integrated in the machine, supports driving on steep terrain and can also be used as a rigging winch.

Technical data: Konrad HL10-2

General

Typical operating weight: 22,500 kg, with traction winch and cable, clam bunk and a Woody WH60-1 head, tank half full, without chains
Control system: KTC 1.0
Harvester heads: Konrad Woody WH50-1 or WH60-1

Engine

Engine: FPT 6-cylinder common rail, EU Stage V
Power: 212 kW at 2,200 rpm
Torque: 1,160 Nm at 1,500 rpm
Displacement: 6.7 litres
Diesel tank: 340 l

Crane

Crane: HL24
Lifting torque: 240 kNm
Reach: 10.8 m
Slewing torque: 44 kNm
Slewing range: 360°, endless (crane and cab turn together)
Tilt angle: +23.6° / −9.5°
Tilt angle with wheel rockers: +28° / −14°

Chassis

Drive: Axial piston motor with gearbox
Brakes: Multiple-disc brakes
Steering modes: Front-wheel, rear-wheel, all-wheel and crab steering
Steering: Steering axle, fixed; single-wheel steering
Steering angle: ±27° (without chains)
Tyres: 710/70 R34
Pulling force: 235 kN
Speed: 18 km/h
Axle track: 2,240 mm

Hydraulics

Drive pumps: Axial piston pump, closed circuit, max. 450 bar
Working pump: Axial piston pump, open circuit, max. 350 bar
Power take-off pump: Axial piston pump, open circuit, max. 350 bar
Hydraulic oil tank: 250 l

Options

Traction winch TW90-1: Max. 90 kN pulling force (adjustable), with a cable wrap arm; usable as a rigging winch; 14 mm cable, 300 m
Rigging winch RW90-1: Max. 80 kN pulling force (adjustable); 13 mm cable, 120 m
Clam bunk: Integrated quick-change system, adjustable pivot and swing brake, approx. 2 m² loading area

Technical data: Konrad HL20-2

General

Typical operating weight: 25,500 kg, with traction winch and cable, clam bunk and a Woody WH60-1 head, tank half full, without chains
Control system: KTC 1.0
Harvester heads: Konrad Woody WH50-1 or WH60-1

Engine

Engine: FPT 6-cylinder common rail, EU Stage V
Power: 212 kW at 2,200 rpm
Torque: 1,160 Nm at 1,500 rpm
Displacement: 6.7 litres
Diesel tank: 340 l

Crane

Crane: HL24
Lifting torque: 240 kNm
Reach: 10.8 m
Slewing torque: 44 kNm
Slewing range: 360°, endless (crane and cab turn together)
Tilt angle: +23.6° / −9.5°
Tilt angle with wheel rockers: +28° / −14°

Chassis

Drive: Portal tandem axle: axial piston motor and 2-speed gearbox
Rear axle: axial piston motor with gearbox
Brakes: Multiple-disc brakes
Steering modes: Front-wheel, rear-wheel, all-wheel and crab steering
Steering: Portal tandem axle: articulated steering
Rear axle: single-wheel steering
Steering angle: ±27° (without chains)
Tyres: Portal tandem axle: 710/45 R26.5
Rear axle: 710/70 R34
Ground clearance: 640 mm
Pulling force: 272 kN
Speed: 18 km/h
Axle track: 2,240 mm

Hydraulics

Drive pumps: Axial piston pump, closed circuit, max. 450 bar
Working pump: Axial piston pump, open circuit, max. 350 bar
Power take-off pump: Axial piston pump, open circuit, max. 350 bar
Hydraulic oil tank: 250 l

Options

Traction winch TW90-1: Max. 90 kN pulling force (adjustable), with a cable wrap arm; usable as a rigging winch; 14 mm cable, 300 m
Rigging winch RW90-1: Max. 80 kN pulling force (adjustable); 13 mm cable, 120 m
Clam bunk: Integrated quick-change system, adjustable pivot and swing brake, approx. 2 m² loading area

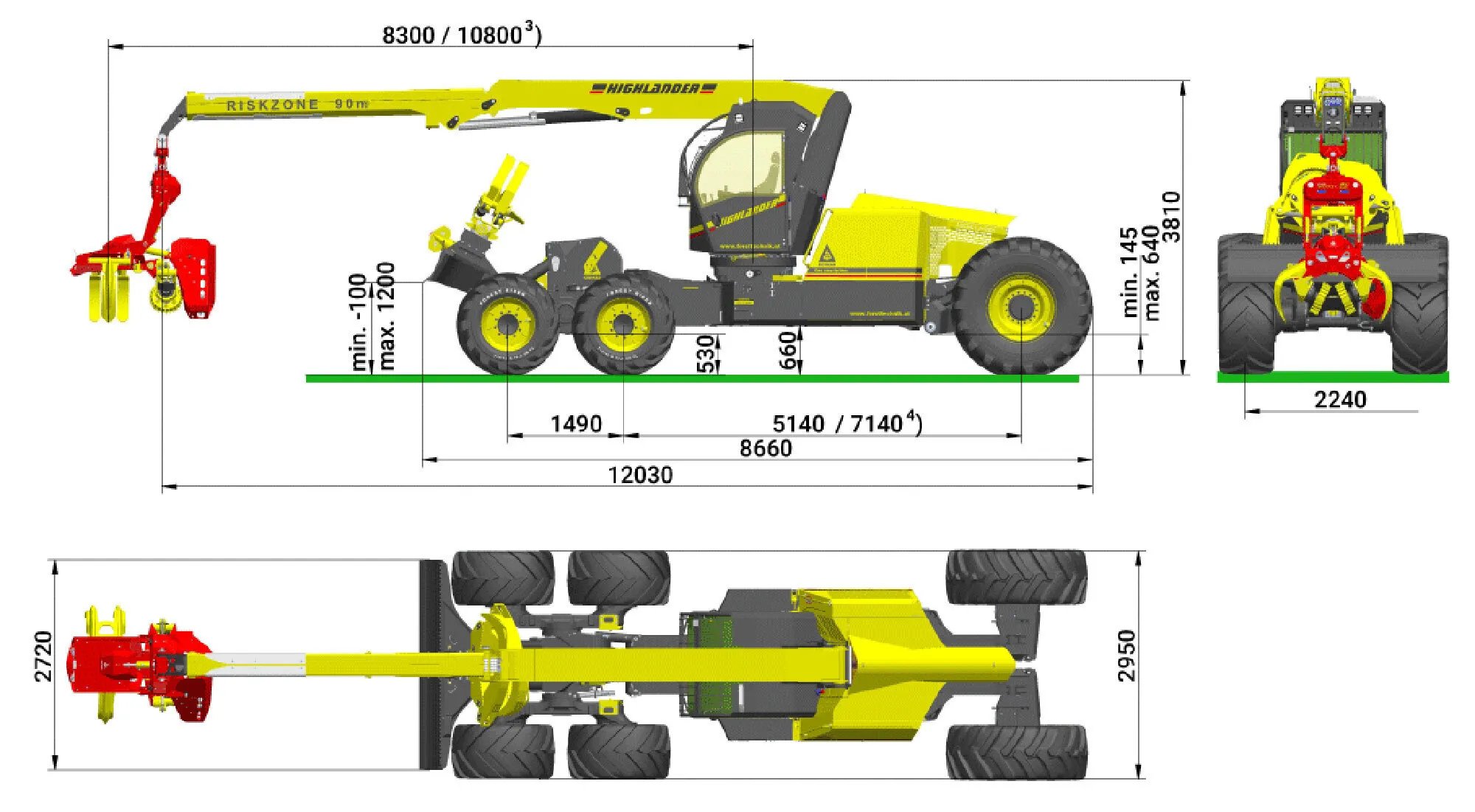

Dimension drawing
