Gjerstad Excavator Quick Couplers
0.5–55 tonnes
Gjerstad's hydraulic quick couplers for excavators from 0.5 to 55 tonnes, with hose-free hydraulic connections, a Secure Lip and a built-in hose rupture valve.
- Sizes from the G30 to the G90, for excavators from 0.5 to 55 tonnes
- Hose-free hydraulic connections
- Secure Lip keeps the tool on if the coupling fails
- Built-in hose rupture valve holds the tool if hydraulic pressure drops
- Indicator bars show whether the wedges are locked or unlocked
Overview
Gjerstad’s quick couplers for excavators run from the G30, for machines of 0.5 to 2 tonnes, up to the G90 for 35 to 55 tonnes. Gjerstad designs them to be simple and secure to use, and the hydraulic connection is entirely hose-free, so tools connect and disconnect without dealing with heavy hoses. Exc@v8 supplies Gjerstad in the UK.
Locking and safety

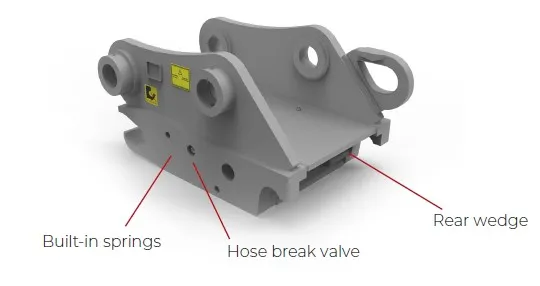

The locking system uses wedges that minimise movement and wear, and indicator bars show clearly whether the wedges are locked or unlocked. Built-in springs keep pressure on the wedges.
Several features keep the tool attached if something goes wrong. The Secure Lip stops the tool falling off if the coupling fails, and a hose rupture valve built into the cylinder keeps the tool in place even if hydraulic pressure from the machine drops.
Heavy duty and severe duty
The table marks each coupler HD or SD. A Gjerstad heavy duty (HD) coupler has one wedge against the rear axle. A severe duty (SD) coupler has two wedges, one against the rear axle and one against the front axle.
Wheel digger couplers
The table also includes two couplers for wheel diggers (wheeled excavators): a hydraulic G05 and a mechanical C05, both severe duty, for machines of 10 to 20 tonnes. They are marked “wheel digger” in the table.
Choosing a size
Match the coupler to the excavator’s weight. The table below gives Gjerstad’s recommended weight class for each size, along with the approximate weight of the coupler and its part number. When ordering a G40, specify the width: 200 mm or 240 mm. If you are not sure which size fits your machine, call us or use the form below.
Sizes in this range
| Designation | Part no. | Duty | Weight approx. (kg) | Recommended weight class (t) |
|---|---|---|---|---|
| G30 Semi-automatic | GE36XX | HD | 10 | 0.5–2 |
| G30 Hydr. Secure Lip | GE223XX | HD | 13 | 0.5–2 |
| G30 Semi-automatic | GE37XX | HD | 35 | 2–7 |
| G40 Hydr. Secure Lip | GE224XX | HD | 43 | 2–7 |
| G45 Hydr. Secure Lip | GE224XX | HD | 100 | 6–10 |
| G50 Hydr. Secure Lip | GE225XX | SD | 100 | 6–10 |
| G60 Hydr. Secure Lip | GE226XX | SD | 195 | 10–18 |
| G70 Hydr. Secure Lip | GE227XX | SD | 350 | 16–32 |
| G80 Hydr. Secure Lip | GE228XX | SD | 450 | 30–40 |
| G90-620 Hydr. Secure Lip | GE229XX | SD | 650 | 35–55 |
| G90-750 Hydr. Secure Lip | GE229XX | SD | 740 | 35–55 |
| G05 Hydraulic (wheel digger) | GE4516 | SD | 720 | 10–20 |
| C05 Mechanical (wheel digger) | P4077490 | SD | 180 | 10–20 |
Quick answers
What size excavator are Gjerstad’s quick couplers for? Excavators from 0.5 to 55 tonnes, depending on the coupler. The G30 is for 0.5 to 2 tonnes, and the G90 for 35 to 55 tonnes.
What is the difference between HD and SD? An HD coupler has one wedge against the rear axle; an SD coupler has two, one against each axle.
Can I buy Gjerstad couplers in the UK? Yes. Exc@v8 supplies Gjerstad products in the UK. Use the form below or call us for pricing and availability.
