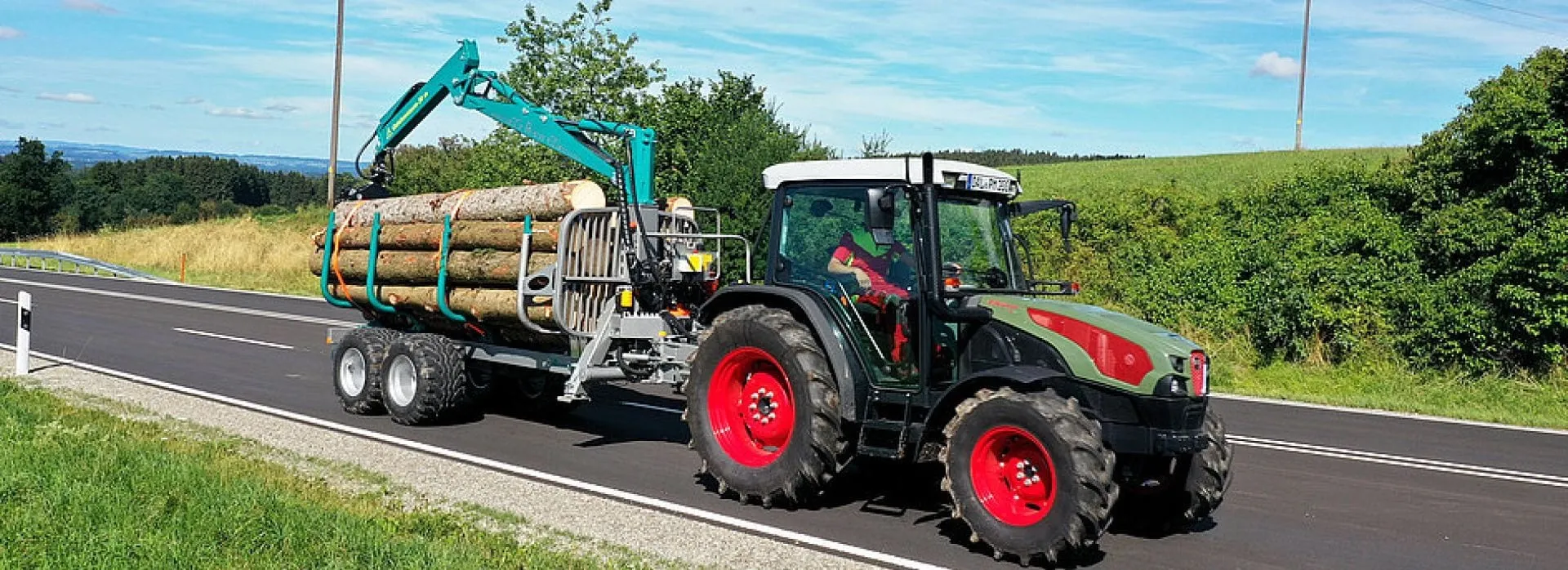

Pfanzelt S-line S8 Forwarding Trailer
The larger S-line trailer, with a longer crane and higher lifting capacity (LK 3767, 35 kNm net, 6.7 m reach) and a larger load volume, for bigger farm-forest jobs.
Bolted double frame
The double tube frame takes different trunk lengths, and metre wood can be loaded at right angles without conversion.
Read more
The double tube frame takes different trunk lengths, and metre wood can be loaded at right angles without conversion.
Bogie axle and steering draw bar
A bogie axle for stability under the crane and off-road, and a hydraulically steered draw bar with two cylinders, standard on both sizes.
Read more
A bogie axle for stability under the crane and off-road, and a hydraulically steered draw bar with two cylinders, standard on both sizes.
Pfanzelt loading crane
An LK 2764 or LK 3767 crane with power link geometry, operated from a station on the draw bar outside the hazard zone.
Read more
An LK 2764 or LK 3767 crane with power link geometry, operated from a station on the draw bar outside the hazard zone.
Speak to us about theS8
EnquirePfanzelt S8
- Load capacity off-road
- 6 t
- Crane reach
- 6,700 mm
- Lift moment, net
- 35 kNm
- Dead weight with crane
- approx. 2.2 t
Technical data: Pfanzelt S8
Frame
- Frame
- Bolted double frame
- Bogie axle
- Standard
- Front cage area
- 1.79 m²
- Long flat bed
- 3,710 mm
- Hydraulic pivoting draw bar, 2 cylinders
- Standard
- Stanchion pairs
- 3 + 1
- Control panel on the draw bar
- Standard
Loads
- Load capacity off-road
- 6 t
- Dead weight with crane
- approx. 2.2 t
Brakes and tyres
- Brake system
- 2-wheel hydraulic
- Brake surface
- 300 × 60 mm, 6-hole wheel
- Tyres
- 380/55-17″, 14 PR grooved tread
- Wheels with valve protection
- Standard
Crane
- Loading crane
- Pfanzelt LK 3767
- Reach
- 6,700 mm
- Lift moment, net
- 35 kNm
- Pivoting moment
- 11.9 kNm
- Crane control
- 8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope
- Clamshell gripper
- Pm 230
Options
- Other
- Independent hydraulic oil supply, incl. Cardan shaft
- Crane cable winch with wireless control, 1.5 t tractive force
- Pendulum with internal concealed hoses
- Cut material pan
- DUO variant (tipper bed)
- Stanchion pair insertion in the rear
- Crane floodlights
- Tyres
- 480/45-17″ grooved tread, with valve protection
- Brakes
- 4-wheel hydraulic brake
- 2-wheel air brake with 2-wheel hydraulic brake
- 4-wheel Overrun brake with automatic jolt control and hydraulic auxiliary brake
- 4-wheel pneumatic brake system
Frame and bogie axle
The S-line frame is a bolted double tube frame, so the loading bed takes different trunk lengths and metre wood can be loaded at right angles without conversion; with the two extra stanchions fitted at the rear, metre-wood bundles or loose metre wood can also be carried across the direction of travel. The bogie axle keeps the trailer stable during crane work and mobile off-road, especially on forwarding tracks, and spreads the ground pressure evenly.
Draw bar, brakes and stowage
A steerable draw bar with a large steering angle is standard; two hydraulic cylinders make it easy to turn even a laden trailer against the slope, and it can be locked mechanically for road travel. A hydraulic two-wheel brake is standard. LED lights are integrated in the frame and fold in for forest work, and there is room for fuel cans and straps, with a chainsaw holder as standard.
Crane
The crane’s power link system between the main and folding booms gives a loading geometry that places timber directly against the front grille, with both hydraulic cylinders above the main arm, protected from damage. The operating station on the draw bar puts the operator outside the hazard zone with a clear view, and the crane control has two cross levers, each with an electrical switch. The A-pillar stabilisers have their cylinders inside, and telescope for secure support in dense timber and on slopes. Hoses are routed under protection from the control block to the crane tip.
Options
The DUO variant adds a hydraulically tipping dump box for bulk material. A two-part, hot-dip galvanised floor pan carries branches and cut material, and the crane cable winch (1.5 t, 50 m of cable, radio-controlled, with a mechanical trailing drum brake and freewheel) is available for both sizes.
Exc@v8 supplies and supports Pfanzelt forwarding trailers in the UK.
Documents and data sheets
Pfanzelt's data sheet covers every model in one file.
