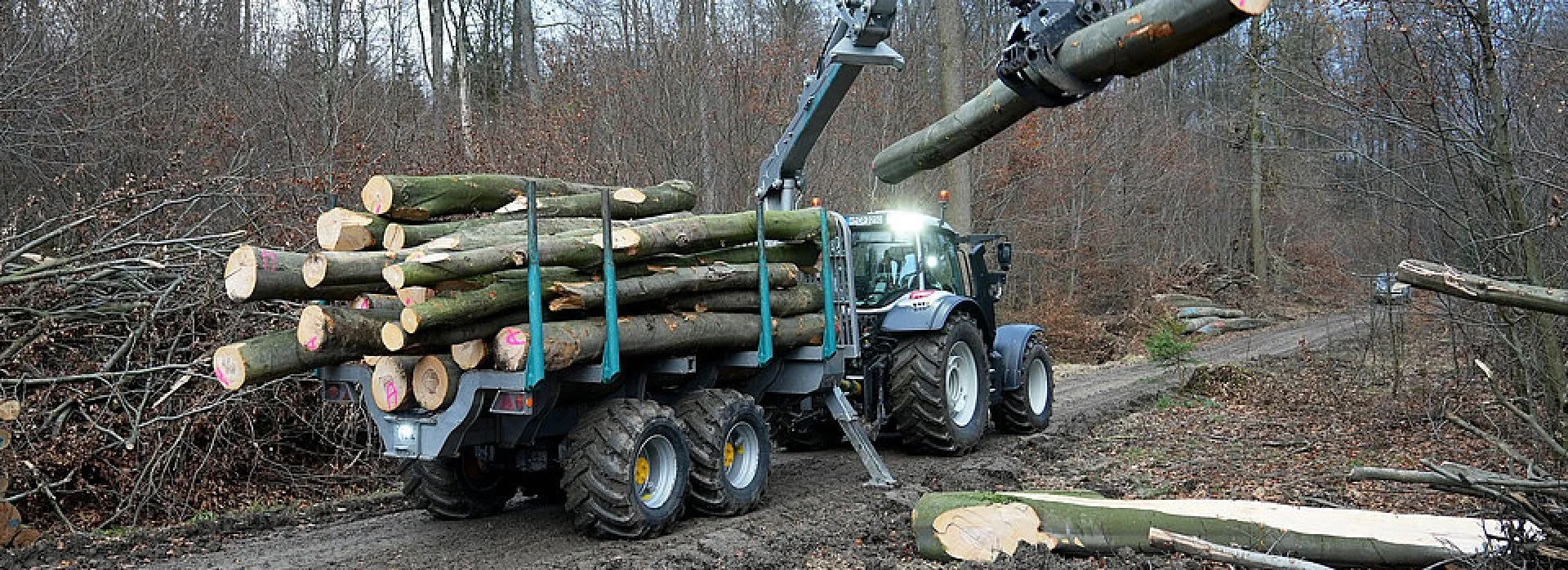

Pfanzelt logLINE L16 Forwarding Trailer

• 13 to 17 t off-road

  Three sizes on a reinforced central tube frame, with a 1,500 mm frame extension and stanchions that extend sideways by 300 mm.

  Read more

  Three sizes on a reinforced central tube frame, with a 1,500 mm frame extension and stanchions that extend sideways by 300 mm.

• Heavy cranes

  Pfanzelt cranes of the 6 or 7 mt class with EHC control and two Danfoss joysticks, on an independent oil supply with a load-sensing pump.

  Read more

  Pfanzelt cranes of the 6 or 7 mt class with EHC control and two Danfoss joysticks, on an independent oil supply with a load-sensing pump.

• Draw bar and drive

  A four-wheel pneumatic brake as standard, a draw bar suspension and tilt option on the L16 and L19, and powerDRIVE wheel hub drive on every size.

  Read more

  A four-wheel pneumatic brake as standard, a draw bar suspension and tilt option on the L16 and L19, and powerDRIVE wheel hub drive on every size.

Pfanzelt L16

Load capacity off-road

15.0 t

Crane reach

8,300 mm

Lift moment, net

70 kNm

Dead weight with crane

approx. 5.5 t

Technical data: Pfanzelt L16

Frame

Frame

Central tube frame

Central tube

250 × 250 × 8 mm

Frame extension

1,500 mm

Long flat bed

4,500–6,000 mm

Stanchion pairs

4 (extensible sideways by 300 mm)

Hydraulic pivoting draw bar, 2 cylinders

Standard

Draw bar pivoting moment

35 kNm

Front cage area

3.25–3.75 m²

Running gear

Bogie chassis, 1,300 mm wheelbase

Bogie oscillation

±17°, ±180 mm

Track width

1,800 mm

Loads

Load capacity off-road

15.0 t

Dead weight with crane

approx. 5.5 t

Brakes and tyres

Brake system

4-wheel pneumatic braking system with spring-loading

Tyres

600/50-22.5″, 12 PR stud profile

Rim flange reinforcement, spar sleeve protection

Standard

Crane

Loading crane

Pfanzelt LK 7185

Reach

8,300 mm

Lift moment, net

70 kNm

Pivoting moment

27 kNm

Independent oil supply with load-sensing pump

Standard

Crane control

EHC control with 2 Danfoss Profi1 joysticks

Clamshell gripper

Pm 230

Options

Tyres

• 560/45-22.5″
• 700/40-22.5″ BKT Flotation

Fitted as standard

• 600/50-22.5″ Trelleborg T404
• Loading crane LK 7185 (8,300 mm, 70 kNm)

Other

Draw bar tilt / spring suspension system

Cranes and control

• EHC control with remote control unit
• Loading crane LK 62100 (9,800 mm, 61 kNm)
• Loading crane LK 71100 (10,000 mm, 70 kNm)

Drive

powerDRIVE

Frame

The logLINE frame is built on a torsion-resistant central spar of fine-grained steel. An integrated, extensible frame lengthens the flat bed by up to 1,500 mm, and every stanchion extends sideways by 300 mm, adding 0.5 m² of bed area.

Draw bar and hitch

The draw bar is bottom-hitched, on adjustable spherical bearings, with a large steering angle (up to ±860 mm from the centre) and two hydraulic cylinders, so a laden trailer can be turned uphill. On the L16 and L19, an additional cylinder turns the draw bar into a suspension and tilt system that levels the flat bed and keeps the crane column vertical on slopes. With an independent oil supply, the piston pump is concealed above or below the draw bar.

Axle and brakes

The bogie axle runs on adjustable spherical bearings with up to 360 mm of pendulum travel, and the underside is smooth, with cables and hoses concealed, so it passes over trunks and branches without damage. A pneumatically actuated brake acting on all four wheels is standard, with encapsulated diaphragm cylinders. The LED lights are protected by a plexiglass panel, and two lockable storage bins hold chainsaws, fuel cans and straps.

powerDRIVE

The optional powerDRIVE hydraulic wheel hub drive gives up to 6.1 t of thrust, with proportional drive forwards and backwards, a hill start assist, automatic switch-off when braking, freewheel for road travel and control from the tractor cab; Pfanzelt notes that the figures depend on the hydraulic oil quantity and pressure.

Exc@v8 supplies and supports Pfanzelt forwarding trailers in the UK.

Documents and data sheets

Pfanzelt's data sheet covers every model in one file.

Data sheet (PDF)
