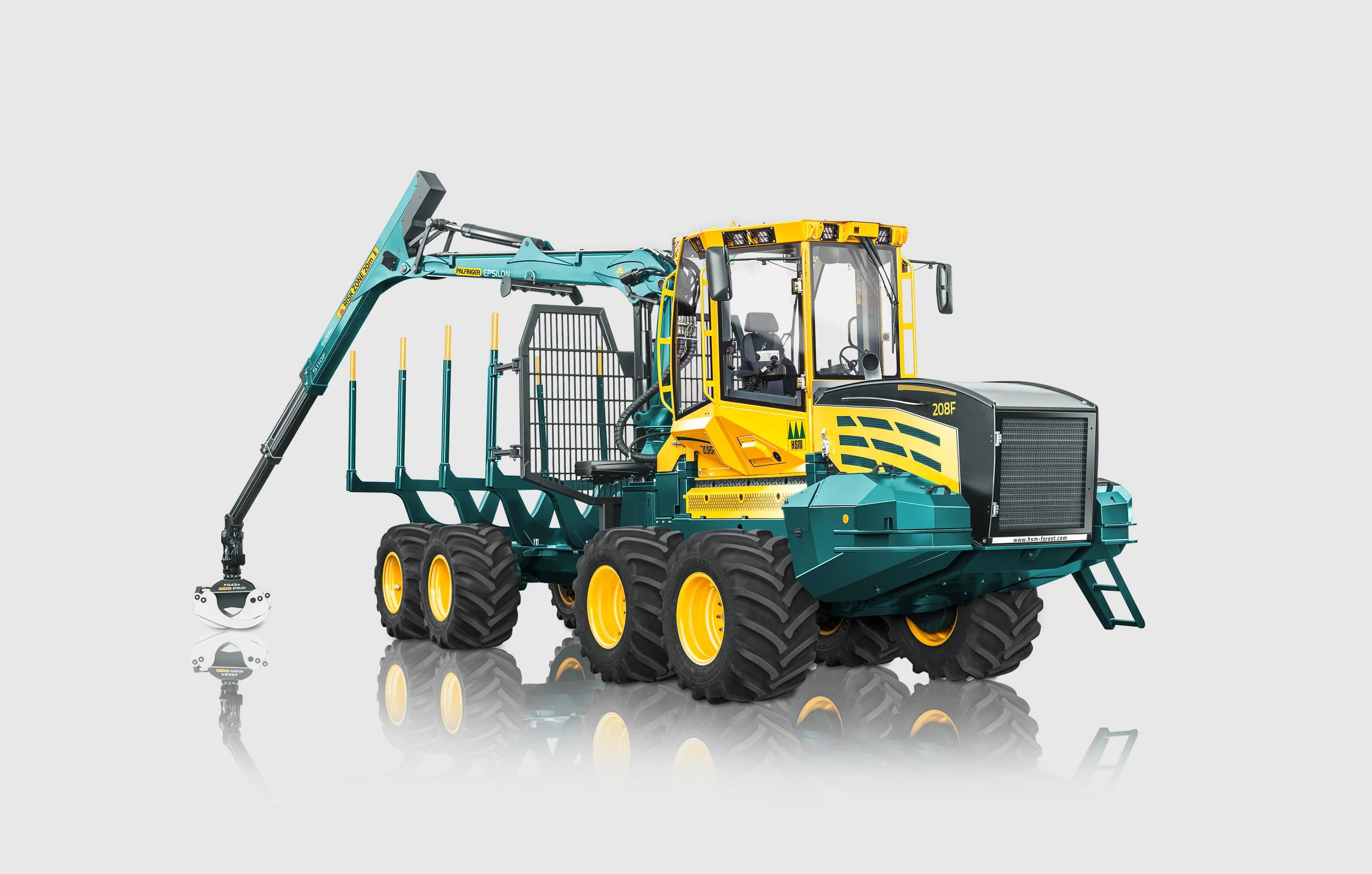

HSM Forwarders

Name: Exc@v8 Group
Address: Unit 15A, Mealbank Mill Industrial Estate, Kendal, Cumbria, LA8 9DL, GB
Telephone: 01539 729999

The HSM 208F is a forwarder in eight versions, from 7 t to 20 t payload and the BigFoot for soft ground, with a narrow build on wide tyres, a four- or six-cylinder Volvo Penta engine and a choice of Epsilon or Mesera crane.

Narrow machine, wide tyres

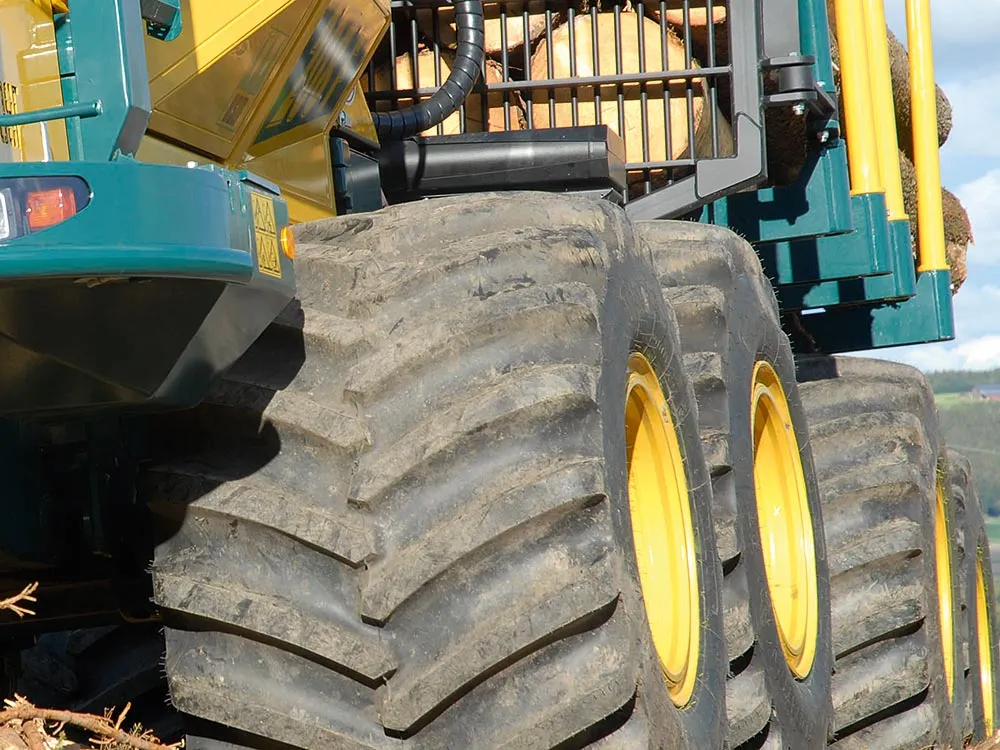

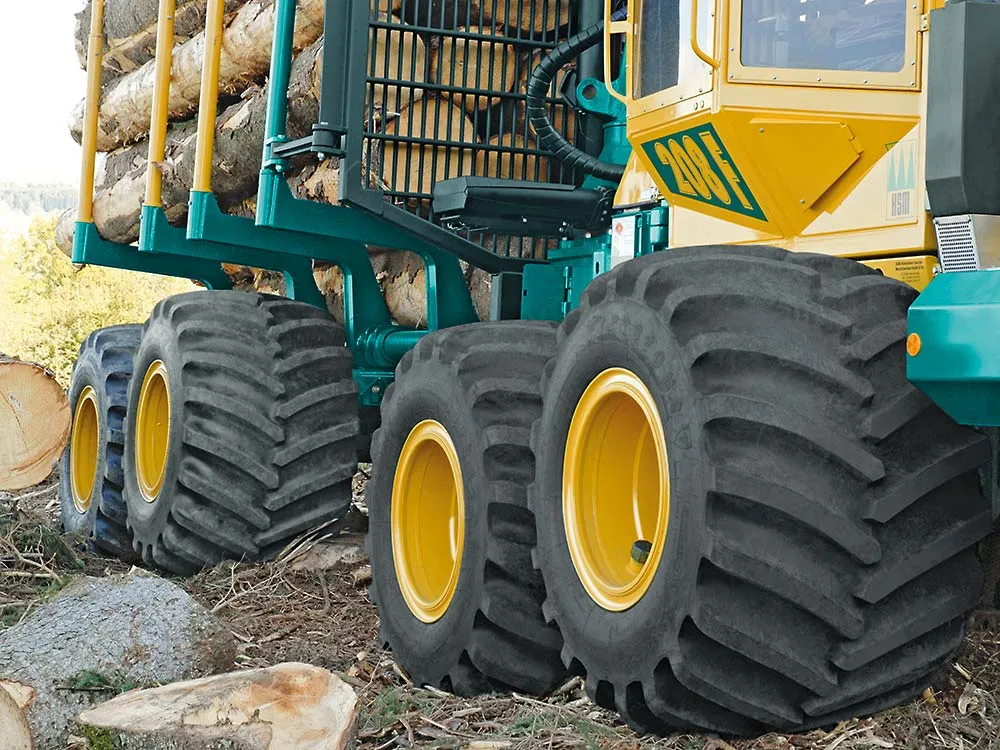

Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
Read more
Every 208F stays within 3,000 mm overall width while running on wide tyres, the HSM principle for load capacity and ground protection. The BigFoot runs on 940 mm wide Firestone 54 × 37-25 tyres, which are also an option on the 10 t to 12 t.
One drivetrain across the range
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Read more
A NAF 2-speed transfer gearbox with HSM High Speed Drive, 0 to 14 km/h in first gear, 100% selectable differential locks front and rear, and articulated steering with a 45° steering angle.
Load-sensing hydraulics
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.
Read more
A variable pump delivering 304 l/min at 1,600 rpm, at up to 350 bar, on Panolin synthetic ester oil with Kleenoil microfiltration.

Choose from the HSM forwarders

HSM 208F 7 t Forwarder
- Payload: 7 t
- Power: 129 kW (175 HP)
- Weight: 13,900 kg
- Load area: 4,000 mm long
7 t payload
HSM 208F 9 t Forwarder
- Payload: 9 t
- Power: 129 kW (175 HP)
- Weight: 14,800 kg
- Load area: 4,100 mm long
9 t payload
HSM 208F 10 t Forwarder
- Payload: 10 t
- Power: 129 kW (175 HP), 175 kW optional
- Weight: From 17,200 kg
- Load area: 4,400 mm long
10 t payload
HSM 208F 11 t Forwarder
- Payload: 11 t
- Power: 185 kW (252 HP), 210 kW optional
- Weight: From 17,800 kg
- Load area: 4,400 mm long
11 t payload
HSM 208F 12 t Forwarder
- Payload: 12 t
- Power: 185 kW (252 HP), 210 kW optional
- Weight: From 18,200 kg
- Load area: 3,700–4,650 mm long
12 t payload
HSM 208F 14 t Forwarder
- Payload: 14 t
- Power: 185 kW (252 HP), 210 kW optional
- Weight: From 18,500 kg
- Load area: 5,050 mm long
14 t payload
HSM 208F 20 t Forwarder
- Payload: 20 t
- Power: 210 kW (286 HP), 250 kW optional
- Weight: 21,800 kg
- Load area: 4,400 mm long
20 t payload
HSM 208F BigFoot Forwarder
- Payload: 11 t
- Power: 185 kW (252 HP), 210 kW optional
- Weight: 18,500 kg
- Load area: 4,400 mm long
11 t payload

Compare the models

Only what differs. Everything else is the same on all 8 models.

Key figures

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Payload	7 t	9 t	10 t	11 t	12 t	14 t	20 t	11 t
Power	129 kW (175 HP)	129 kW (175 HP)	129 kW (175 HP), 175 kW optional	185 kW (252 HP), 210 kW optional	185 kW (252 HP), 210 kW optional	185 kW (252 HP), 210 kW optional	210 kW (286 HP), 250 kW optional	185 kW (252 HP), 210 kW optional
Weight	13,900 kg	14,800 kg	From 17,200 kg	From 17,800 kg	From 18,200 kg	From 18,500 kg	21,800 kg	18,500 kg
Load area	4,000 mm long	4,100 mm long	4,400 mm long	4,400 mm long	3,700–4,650 mm long	5,050 mm long	4,400 mm long	4,400 mm long

Engine

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Model	Volvo Penta TAD581VE, 4-cylinder, EU Stage V	Volvo Penta TAD581VE, 4-cylinder, EU Stage V	Volvo Penta TAD581VE, 4-cylinder, EU Stage V	Volvo Penta TAD881VE, 6-cylinder, EU Stage V	Volvo Penta TAD881VE, 6-cylinder, EU Stage V	Volvo Penta TAD881VE, 6-cylinder, EU Stage V	Volvo Penta TAD882VE, 6-cylinder, EU Stage V	Volvo Penta TAD881VE, 6-cylinder, EU Stage V
Power	129 kW (175 HP) from 1,700 rpm	129 kW (175 HP) from 1,700 rpm	129 kW (175 HP) from 1,700 rpm	185 kW (252 HP) from 1,600 rpm	185 kW (252 HP) from 1,600 rpm	185 kW (252 HP) from 1,600 rpm	210 kW (286 HP) from 1,700 rpm	185 kW (252 HP) from 1,600 rpm
Torque range	800 Nm from 1,100 to 1,500 rpm	800 Nm from 1,100 to 1,500 rpm	800 Nm from 1,100 to 1,500 rpm	1,150 Nm from 1,100 to 1,500 rpm	1,150 Nm from 1,100 to 1,500 rpm	1,150 Nm from 1,100 to 1,500 rpm	1,225 Nm from 1,100 to 1,600 rpm	1,150 Nm from 1,100 to 1,500 rpm
Maximum torque	816 Nm at 1,380 rpm	816 Nm at 1,380 rpm	816 Nm at 1,380 rpm	1,175 Nm at 1,400 rpm	1,175 Nm at 1,400 rpm	1,175 Nm at 1,400 rpm	1,255 Nm at 1,400 rpm	1,175 Nm at 1,400 rpm
Displacement	5.13 litres	5.13 litres	5.13 litres	7.7 litres	7.7 litres	7.7 litres	7.7 litres	7.7 litres

Engine (optional)

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Model	Not on this model	Not on this model	Volvo Penta TAD583VE, 4-cylinder, EU Stage V	Volvo Penta TAD882VE, 6-cylinder, EU Stage V	Volvo Penta TAD882VE, 6-cylinder, EU Stage V	Volvo Penta TAD882VE, 6-cylinder, EU Stage V	Volvo Penta TAD884VE, 6-cylinder, EU Stage V	Volvo Penta TAD882VE, 6-cylinder, EU Stage V
Power	Not on this model	Not on this model	175 kW (238 HP) from 1,750 rpm	210 kW (286 HP) from 1,700 rpm	210 kW (286 HP) from 1,700 rpm	210 kW (286 HP) from 1,700 rpm	250 kW (340 HP) from 1,800 rpm	210 kW (286 HP) from 1,700 rpm
Torque range	Not on this model	Not on this model	947 Nm from 1,200 to 1,750 rpm	1,225 Nm from 1,100 to 1,600 rpm	1,225 Nm from 1,100 to 1,600 rpm	1,225 Nm from 1,100 to 1,600 rpm	1,330 Nm from 1,200 to 1,800 rpm	1,225 Nm from 1,100 to 1,600 rpm
Maximum torque	Not on this model	Not on this model	969 Nm at 1,380 rpm	1,255 Nm at 1,400 rpm	1,255 Nm at 1,400 rpm	1,255 Nm at 1,400 rpm	1,360 Nm at 1,400 rpm	1,255 Nm at 1,400 rpm
Displacement	Not on this model	Not on this model	5.13 litres	7.7 litres	7.7 litres	7.7 litres	7.7 litres	7.7 litres

Drive

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Axles	NAF portal bogie axles	NAF portal bogie axles	NAF portal bogie axles	NAF portal bogie axles	NAF portal bogie axles	NAF balanced portal bogie axles	NAF planetary axles	NAF planetary axles

Tyres

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Standard	600/50-22.5: 2,300 mm overall width, 2,400 mm with tracks	710/40-22.5: 2,500 mm overall width, 2,600 mm with tracks	710/45-26.5: 2,600 mm overall width, 2,700 mm with tracks	710/45-26.5: 2,600 mm overall width, 2,700 mm with tracks	710/45-26.5: 2,600 mm overall width, 2,700 mm with tracks	710/45-26.5: 2,860 mm overall width, 2,960 mm with tracks	750/55-26.5: 3,000 mm overall width	Firestone 54 × 37-25, 940 mm wide: 3,000 mm overall width

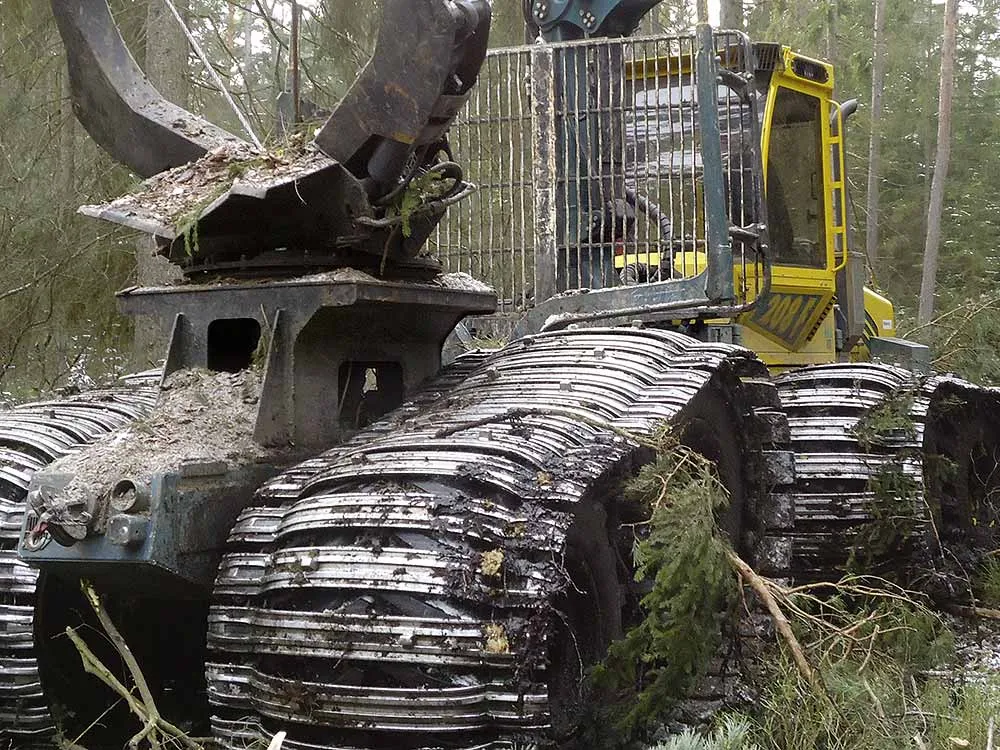

Tracks	Not on this model	Not on this model	Not on this model	Not on this model	Not on this model	Not on this model	Not on this model	Up to 1,340 mm wide, on special bunks, for very wet ground
Optional	650/45-22.5: 2,400 mm overall width, 2,500 mm with tracks 710/40-22.5: 2,500 mm overall width, 2,600 mm with tracks	600/50-22.5: 2,300 mm overall width, 2,400 mm with tracks 650/45-22.5: 2,400 mm overall width, 2,500 mm with tracks	600/55-26.5: 2,400 mm overall width, 2,500 mm with tracks 800/40-26.5: 2,700 mm overall width, 2,800 mm with tracks 870/40-26.5: 2,900 mm overall width, 3,000 mm with tracks 54 × 37-25: 2,900 mm overall width, 3,000 mm with tracks	600/55-26.5: 2,400 mm overall width, 2,500 mm with tracks 800/40-26.5: 2,700 mm overall width, 2,800 mm with tracks 870/40-26.5: 2,900 mm overall width, 3,000 mm with tracks 54 × 37-25: 2,900 mm overall width, 3,000 mm with tracks	600/55-26.5: 2,400 mm overall width, 2,500 mm with tracks 800/40-26.5: 2,700 mm overall width, 2,800 mm with tracks 870/40-26.5: 2,900 mm overall width, 3,000 mm with tracks 54 × 37-25: 2,900 mm overall width, 3,000 mm with tracks	600/55-26.5: 2,660 mm overall width, 2,760 mm with tracks 800/40-26.5: 3,000 mm overall width, 3,000 mm with tracks	Not on this model	Not on this model

Tanks

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Diesel	150 l	150 l	170 l	190 l	190 l	225 l	220 l + 65 l	190 l
AdBlue	25 l	25 l	25 l	45 l	45 l	45 l	45 l	45 l
Hydraulic oil	110 l	110 l	130 l	130 l	130 l	130 l	170 l	130 l

Weight

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Operating weight	13,900 kg as standard	14,800 kg as standard	From 17,200 kg	From 17,800 kg	From 18,200 kg	From 18,500 kg	21,800 kg as standard	18,500 kg as standard

Crane

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Standard crane	Epsilon C60 F69 (82 / 63 kNm, 6.9 m reach)	Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)	Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)	Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)	Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)	Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)	Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)	Epsilon M70 F80 (102 / 68 kNm, 8.0 m reach)
Other cranes	1 more Epsilon and 11 Mesera cranes	10 more Epsilon and 11 Mesera cranes	11 more Epsilon and 10 Mesera cranes	11 more Epsilon and 10 Mesera cranes	14 more Epsilon and 21 Mesera cranes	17 more Epsilon and 21 Mesera cranes	17 more Epsilon and 21 Mesera cranes	11 more Epsilon and 10 Mesera cranes

Load area

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Rungs	4 rungs	4 rungs	4 rungs	4 rungs	4 rungs, the last one extensible	4 rungs	4 rungs	4 rungs
Length	4,000 mm	4,100 mm	4,400 mm	4,400 mm	3,700 to 4,650 mm 5,050 mm optional (2 × 3 m)	5,050 mm	4,400 mm	4,400 mm
Cross section	2.9 m² (3.3 m² optional)	3.6 m² (3.9 m² optional)	4.0 m² (4.3 m² optional)	4.0 m² (4.3 m² optional)	4.0 m² (4.3 m² optional)	4.4 m²	4.9 m² (4.2 m² optional)	3.8 m² (4.2 m² optional)
Payload	7 t	9 t	10 t	11 t	12 t	14 t	20 t	11 t

Equipment

Specification	208F 7 t	208F 9 t	208F 10 t	208F 11 t	208F 12 t	208F 14 t	208F 20 t	208F BigFoot
Standard	14 LED work lights on the cab 4 work lights on the crane Voltage converter, 24 V to 12 V Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box Reversing camera with colour monitor Rear work lights	14 LED work lights on the cab 4 work lights on the crane Voltage converter, 24 V to 12 V Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box Reversing camera with colour monitor Rear work lights	14 LED work lights on the cab 4 work lights on the crane Voltage converter, 24 V to 12 V Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box Reversing camera with colour monitor Rear work lights	14 LED work lights on the cab 4 work lights on the crane Voltage converter, 24 V to 12 V Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box Reversing camera with colour monitor Rear work lights	14 LED work lights on the cab 4 work lights on the crane Voltage converter, 24 V to 12 V Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box Reversing camera with colour monitor Rear work lights	14 LED work lights on the cab 4 work lights on the crane Voltage converter, 24 V to 12 V Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box Reversing camera with colour monitor Rear work lights	4 LED work lights on the cab 4 work lights on the crane Voltage converter Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box	4 LED work lights on the cab 4 work lights on the crane Voltage converter Radio with CD Fire extinguisher First-aid kit Warning triangle Tool kit Cooling box
Special	Front dozer blade Front bogie lift Turnable rung Last rung plugged Tiltable crane Quick-change system for rungs Clambunk Auxiliary heating Bogie tracks Radio control for the winch Drive by radio Sun blinds Pluggable front grid Cab suspension HCS Crane tip control xyControl (Epsilon cranes only) Other accessories on request	Front dozer blade Front bogie lift Turnable rung Last rung plugged Tiltable crane Quick-change system for rungs Clambunk Auxiliary heating Bogie tracks Radio control for the winch Drive by radio Sun blinds Pluggable front grid Cab suspension HCS Crane tip control xyControl (Epsilon cranes only) Other accessories on request	Front dozer blade Front bogie lift Turnable rung Last rung plugged Tiltable crane Quick-change system for rungs Clambunk Auxiliary heating Bogie tracks Radio control for the winch Drive by radio Sun blinds Pluggable front grid Cab suspension HCS Crane tip control xyControl (Epsilon cranes only) Other accessories on request	Front dozer blade Front bogie lift Turnable rung Last rung plugged Tiltable crane Quick-change system for rungs Clambunk Auxiliary heating Bogie tracks Radio control for the winch Drive by radio Sun blinds Pluggable front grid Cab suspension HCS Crane tip control xyControl (Epsilon cranes only) Other accessories on request	Front dozer blade Front bogie lift Turnable rung Last rung plugged Tiltable crane Quick-change system for rungs Clambunk Auxiliary heating Bogie tracks Radio control for the winch Drive by radio Sun blinds Pluggable front grid Cab suspension HCS Crane tip control xyControl (Epsilon cranes only) Other accessories on request	Front dozer blade Front bogie lift Turnable rung Last rung plugged Tiltable crane Quick-change system for rungs Clambunk Auxiliary heating Bogie tracks Radio control for the winch Drive by radio Sun blinds Pluggable front grid Cab suspension HCS Crane tip control xyControl (Epsilon cranes only) Other accessories on request	Not on this model	Front dozer blade Front bogie lift Single-drum winch, 7 t Turnable rung, tiltable crane, quick-change system for rungs
