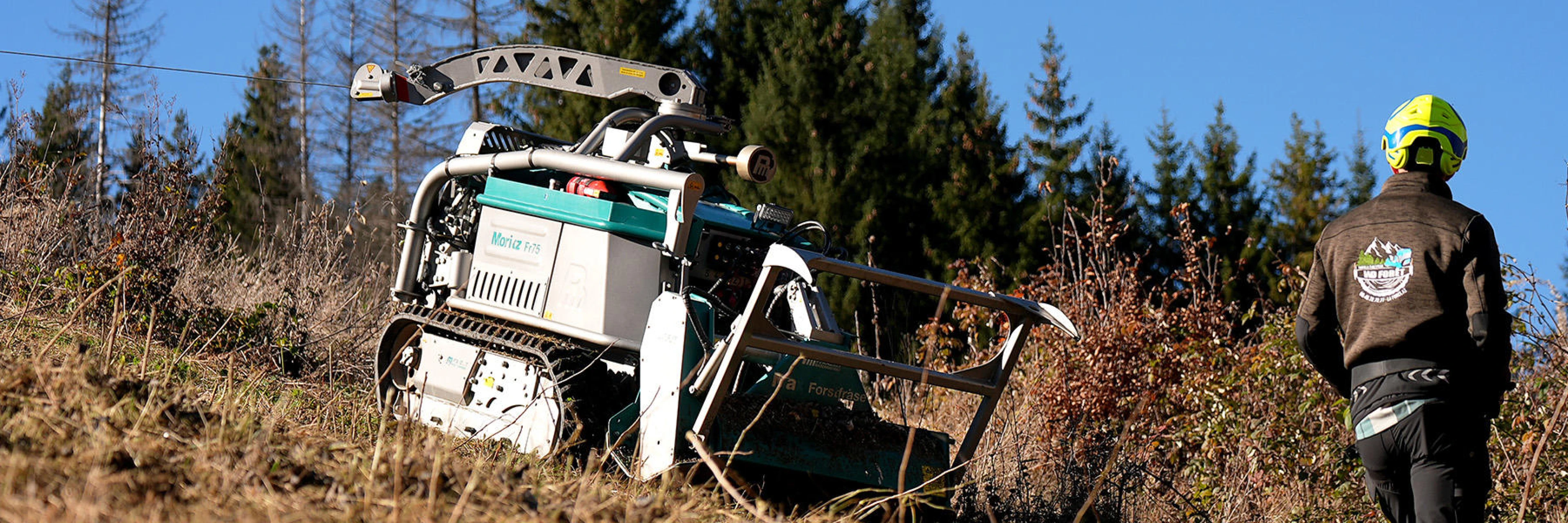

Pfanzelt Moritz Remote Mini Tractor
The Pfanzelt Moritz is a remote-controlled mini tractor on tracks for steep, soft and sensitive ground, in two versions, the Fr70 and Fr75. It works as a forestry tractor with a cable winch, as a carrier for mowers, mulchers and planting tools, on trails and ski slopes, and, in Exc@v8's fire version, in support of firefighting.
Fully remote-controlled
Every function, from driving and steering to the winch, the PTO and starting or stopping the engine, runs from Pfanzelt's radio remote control, which can also work third-party attachments.
Read more
Every function, from driving and steering to the winch, the PTO and starting or stopping the engine, runs from Pfanzelt's radio remote control, which can also work third-party attachments.

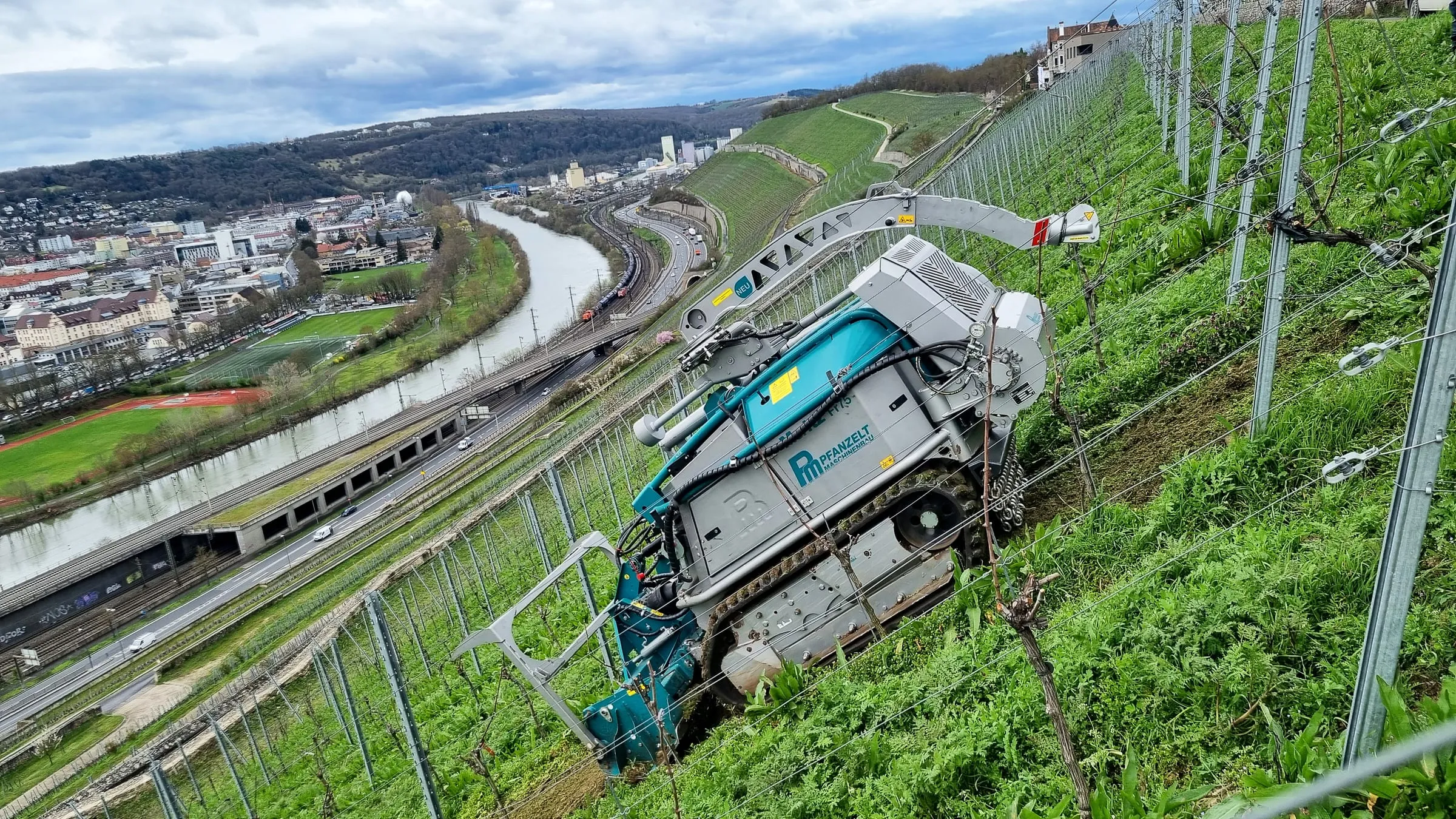

Steep and soft ground
Slope angles of 50° at the front and 40° at the rear, 320 mm of ground clearance and rubber tracks that keep the ground pressure to 0.28 or 0.33 kg/cm², on a chassis that widens hydraulically from 1,150 to 1,550 mm.
Read more
Slope angles of 50° at the front and 40° at the rear, 320 mm of ground clearance and rubber tracks that keep the ground pressure to 0.28 or 0.33 kg/cm², on a chassis that widens hydraulically from 1,150 to 1,550 mm.
One tractor, many tools
It can take attachments on category 1 three-point hitches, driven by a mechanical PTO or performance hydraulics of up to 96 l/min at 300 bar, and a cable winch of 5.0 to 7.2 t that comes off in a few minutes.
Read more
It can take attachments on category 1 three-point hitches, driven by a mechanical PTO or performance hydraulics of up to 96 l/min at 300 bar, and a cable winch of 5.0 to 7.2 t that comes off in a few minutes.
Choose a model
Speak to us about theMoritz Fr75
EnquirePfanzelt Moritz Fr7575 hp
The Moritz with a 55 kW (75 hp) Deutz engine, 1,450 kg without attachments and a ground pressure of 0.33 kg/cm².
- Power
- 55 kW (75 hp)
- Weight
- 1,450 kg
- Ground pressure
- 0.33 kg/cm²
- Slope angle
- 50° front, 40° rear
Pfanzelt Moritz Fr7050 hp
The Moritz with a 36 kW (50 hp) Deutz engine, 1,400 kg without attachments and a ground pressure of 0.28 kg/cm².
- Power
- 36 kW (50 hp)
- Weight
- 1,400 kg
- Ground pressure
- 0.28 kg/cm²
- Slope angle
- 50° front, 40° rear
Compare the models
Only what differs. Everything else is the same on all 2 models.
Key figures
| Specification | Moritz Fr75 | Moritz Fr70 |
|---|---|---|
| Power | 55 kW (75 hp) | 36 kW (50 hp) |
| Weight | 1,450 kg | 1,400 kg |
| Ground pressure | 0.33 kg/cm² | 0.28 kg/cm² |
Engine
| Specification | Moritz Fr75 | Moritz Fr70 |
|---|---|---|
| Power | 55 kW (75 hp) | 36 kW (50 hp) |
Drive and tracks
| Specification | Moritz Fr75 | Moritz Fr70 |
|---|---|---|
| Ground pressure | 0.33 kg/cm² | 0.28 kg/cm² |
Dimensions and weight
| Specification | Moritz Fr75 | Moritz Fr70 |
|---|---|---|
| Weight | 1,450 kg, without attachments | 1,400 kg, without attachments |

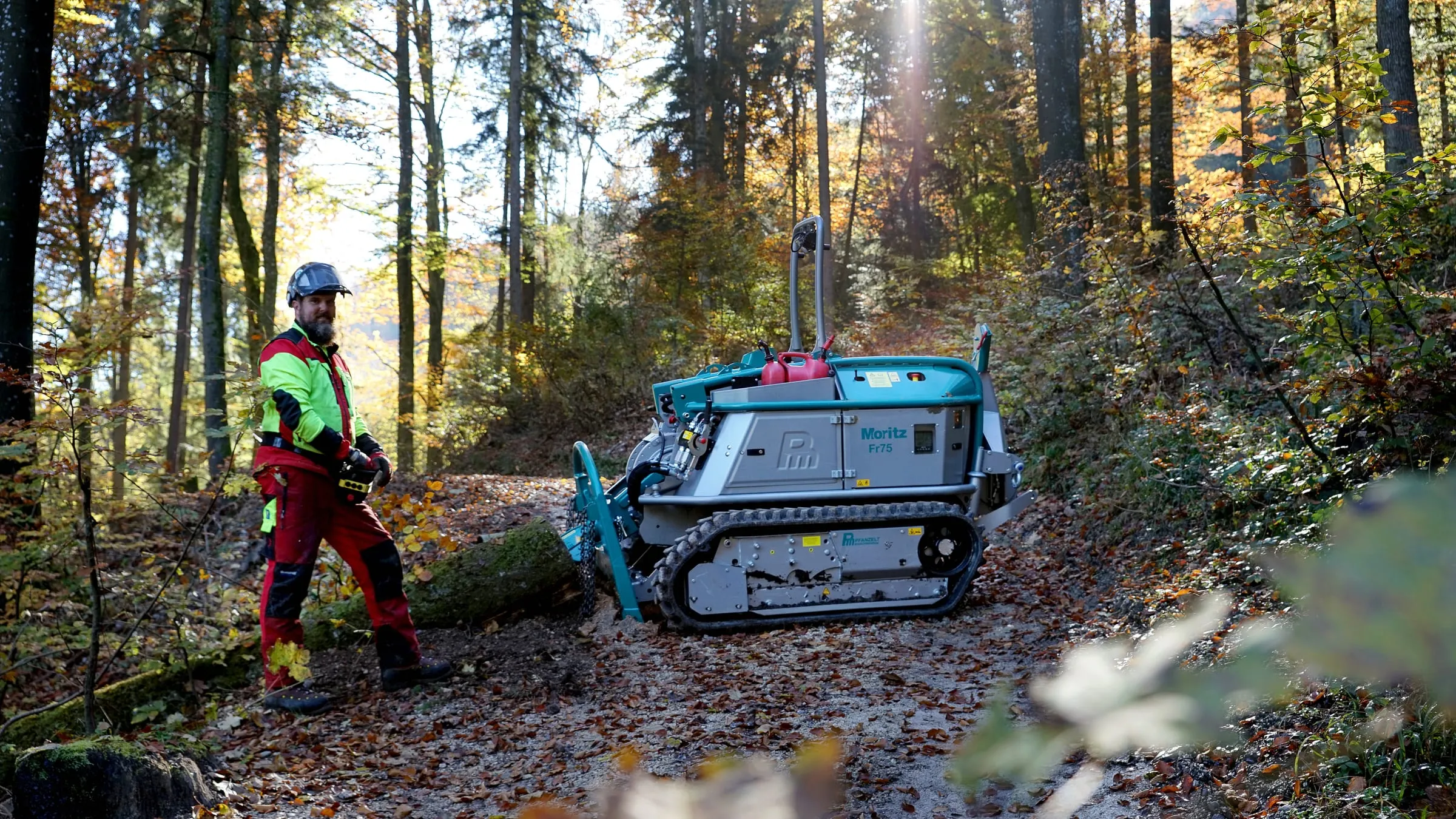

Forestry and winching

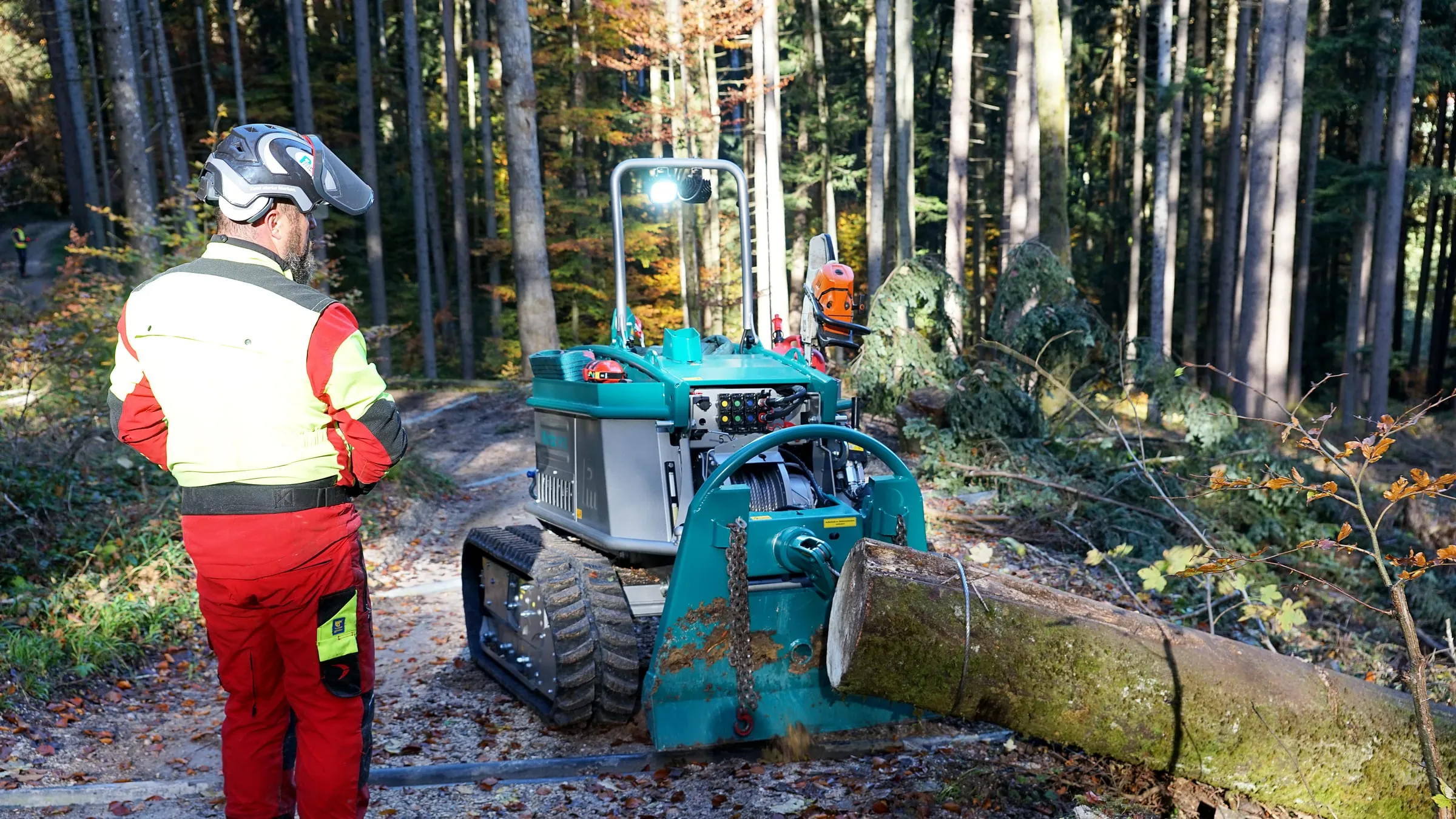

With a geared cable winch of 5.0 to 7.2 t and up to 110 m of cable, the Moritz skids and forwards timber and supports felling. The winch sits in the stacking shield, so the cable infeed height can be set, and the shield can be anchored to a tree when the machine’s own weight isn’t enough. A lockable bin and holders carry the chainsaw, fuel and straps.

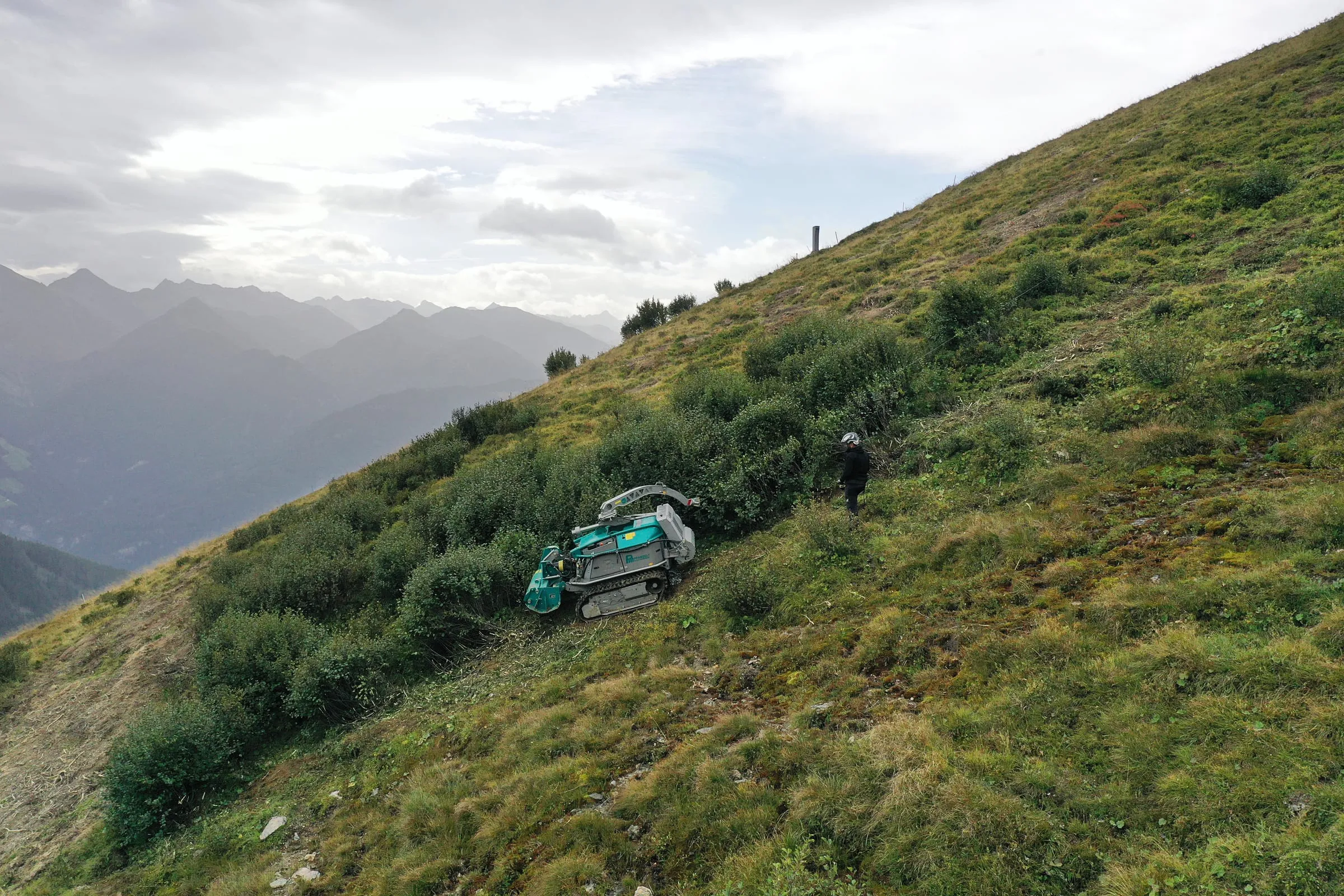

Steep ground

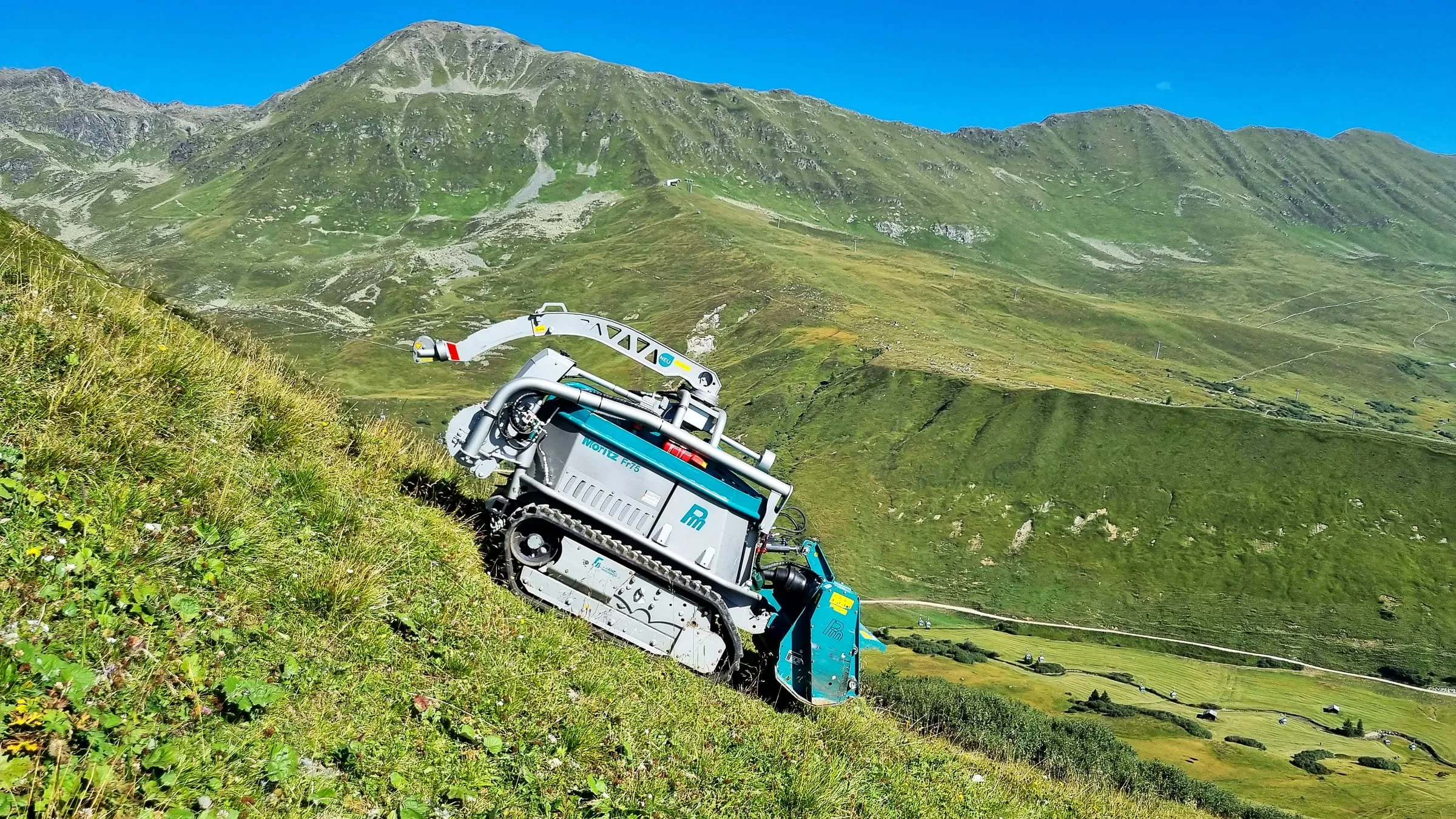

On exposed slopes, a hydraulic traction winch with up to 1,000 m of rope secures the Moritz from above. Its pull is set from the remote, up to about 11 kN, and the rope guide leaves every direction of travel free. The tracks widen hydraulically by 400 mm for stability, and the drift setting holds the line when mowing across a slope.

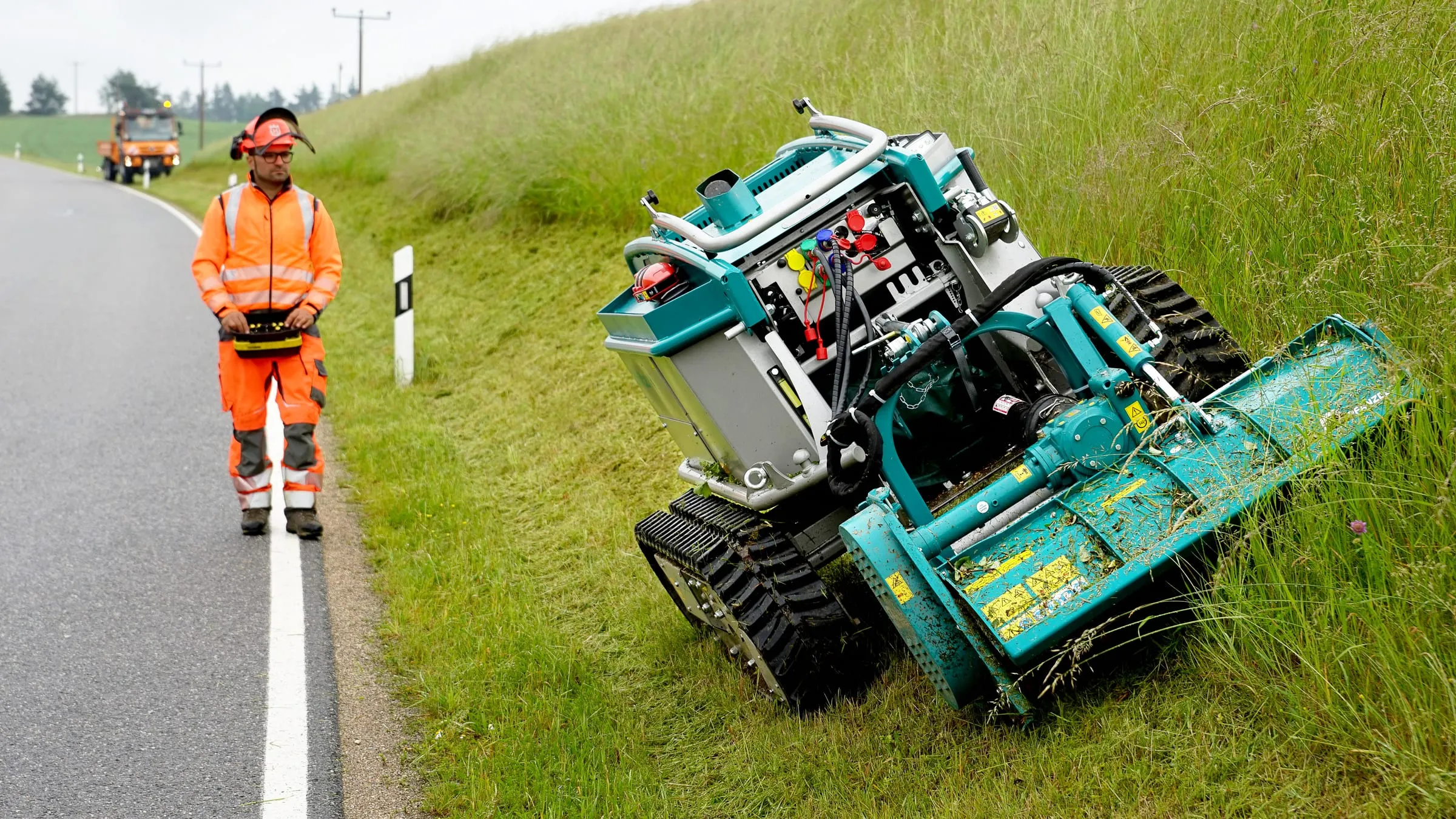

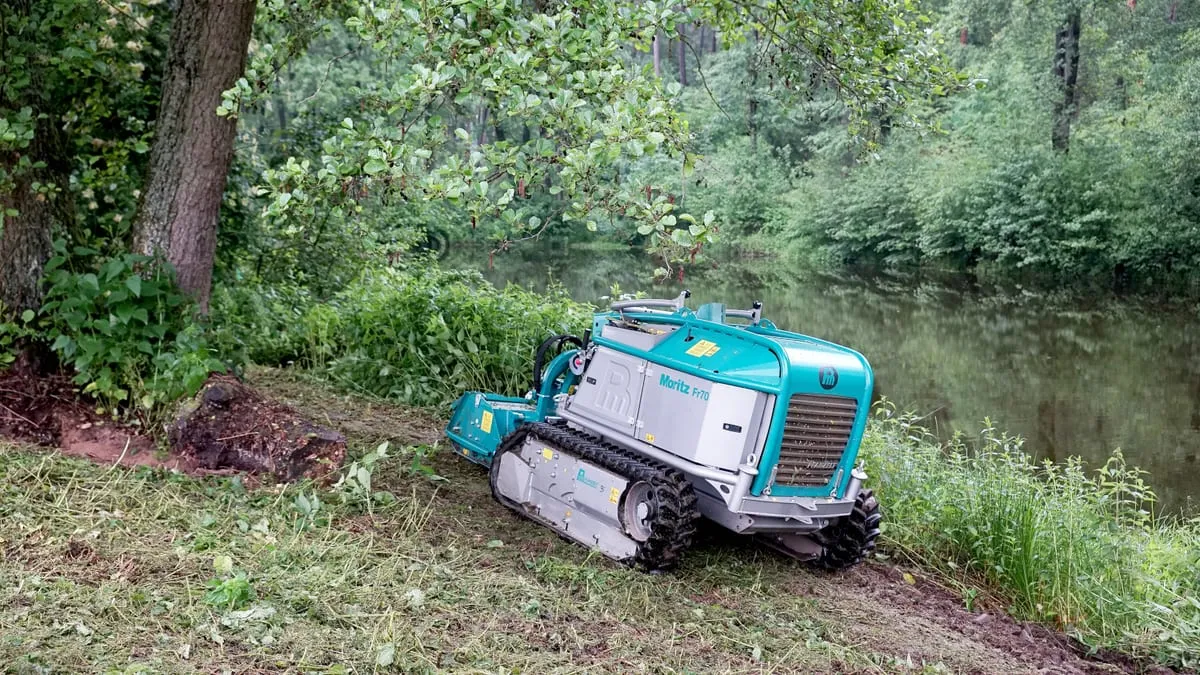

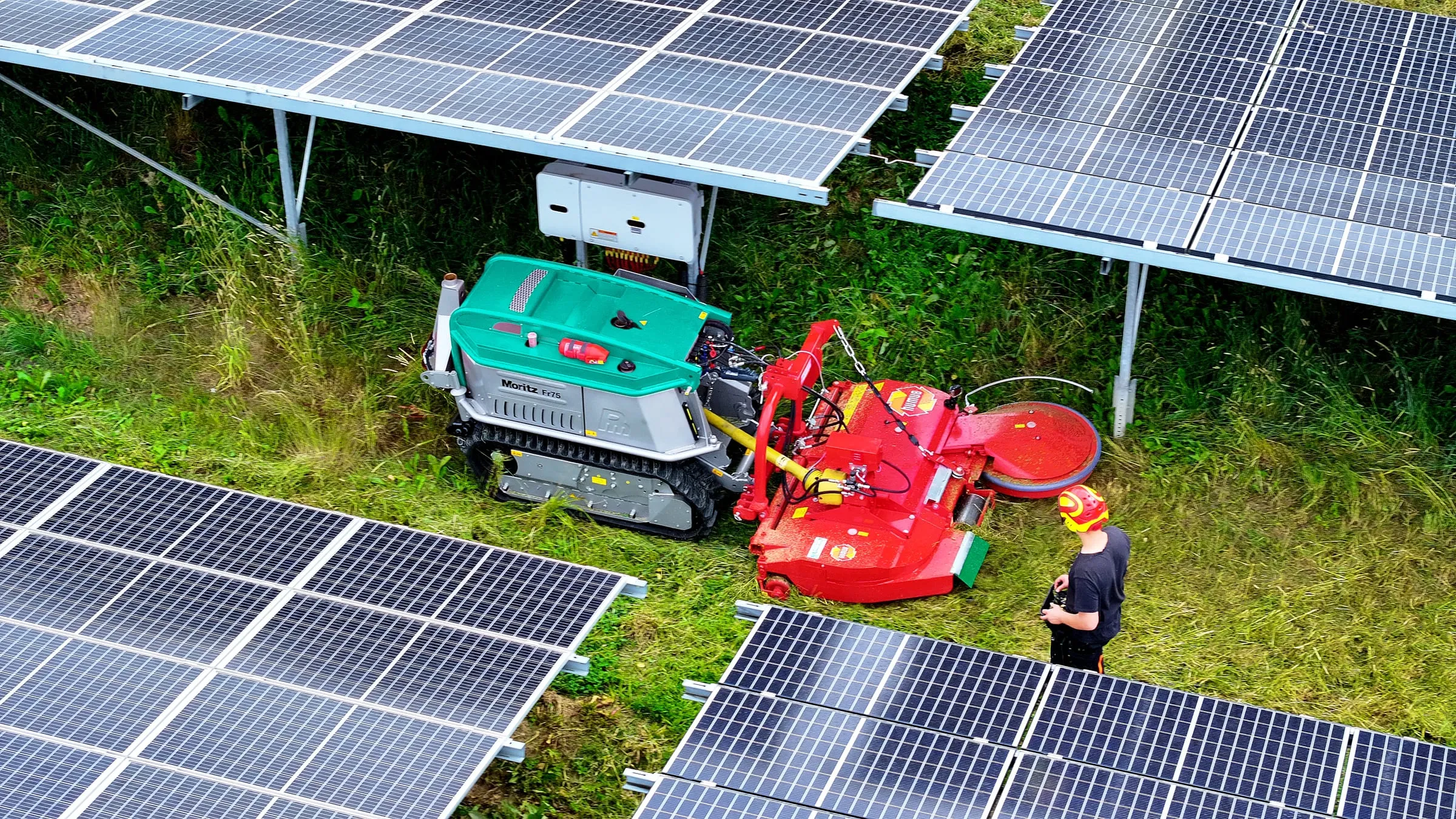

Mowing and mulching

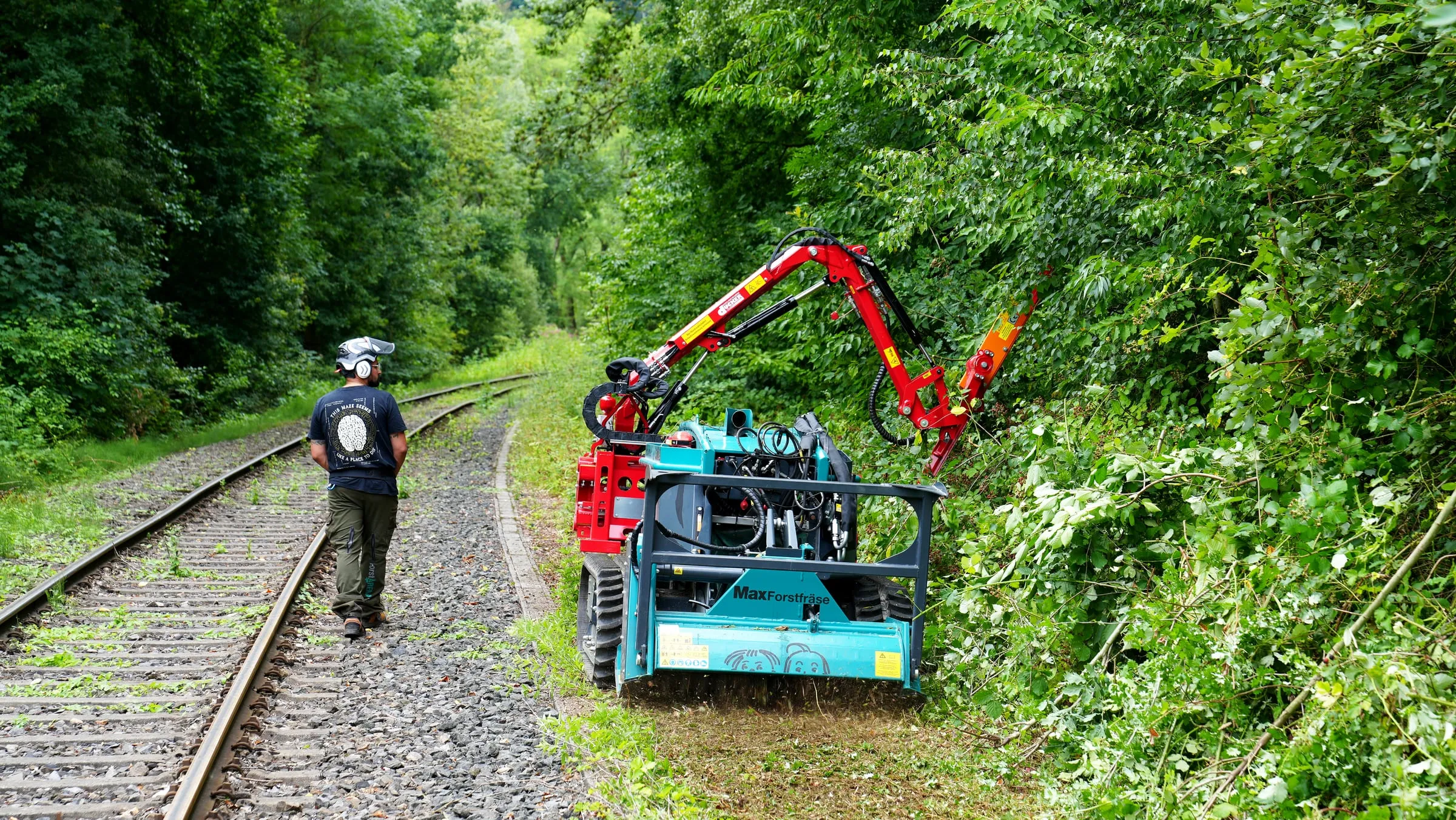

With a mower or mulcher, the Moritz works road verges, railway lines, embankments, solar parks and the banks of rivers and lakes. Pfanzelt’s forestry mulchers, including the MAX forestry mulcher, and its grass and undergrowth mulchers run from the PTO or the performance hydraulics.
Trail building and maintenance
On mountain bike and hiking trails, the Moritz builds and renovates paths with a trail groomer or milling attachment, working by remote on narrow lines without damaging the ground around them. The PTH Trail Crusher, which crushes stone, mills and mulches in one pass, can be fitted as an extra, as can Pfanzelt’s own MAXpro Stonecrusher and Compactor.
Planting and sowing
For reforestation, the Moritz prepares the ground with the MAX forestry mulcher or a sowing-strip mulcher with a seed module. It plants with the Plantomat, which carries 50 container plants and sets 100 to 120 an hour.

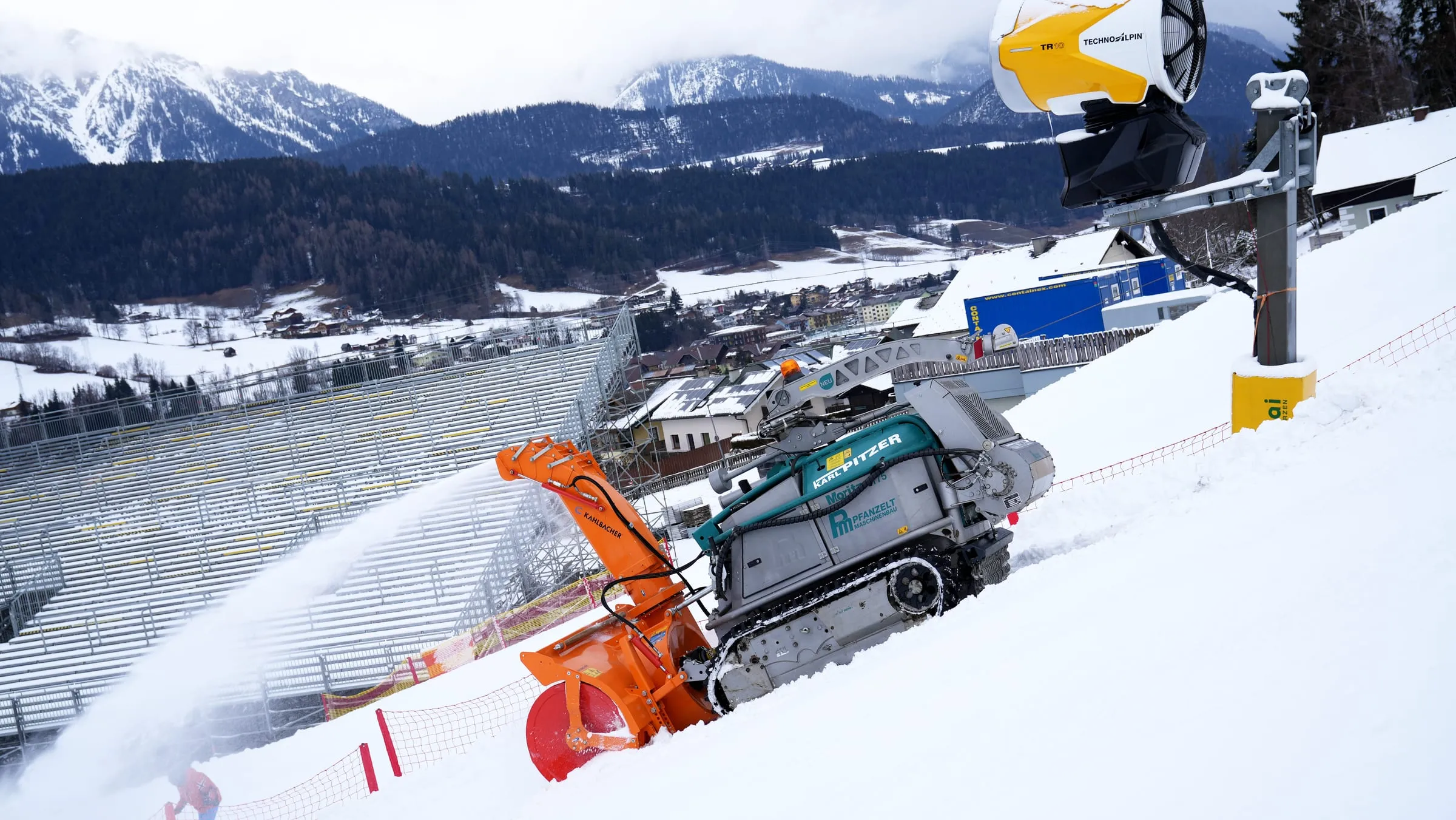

Snow and alpine work
In winter, the Moritz clears paths and ski slopes with a snow blower or a blade, held on steep ground by its traction winch. In summer, it maintains ski slopes with a mulcher or cutter bar.

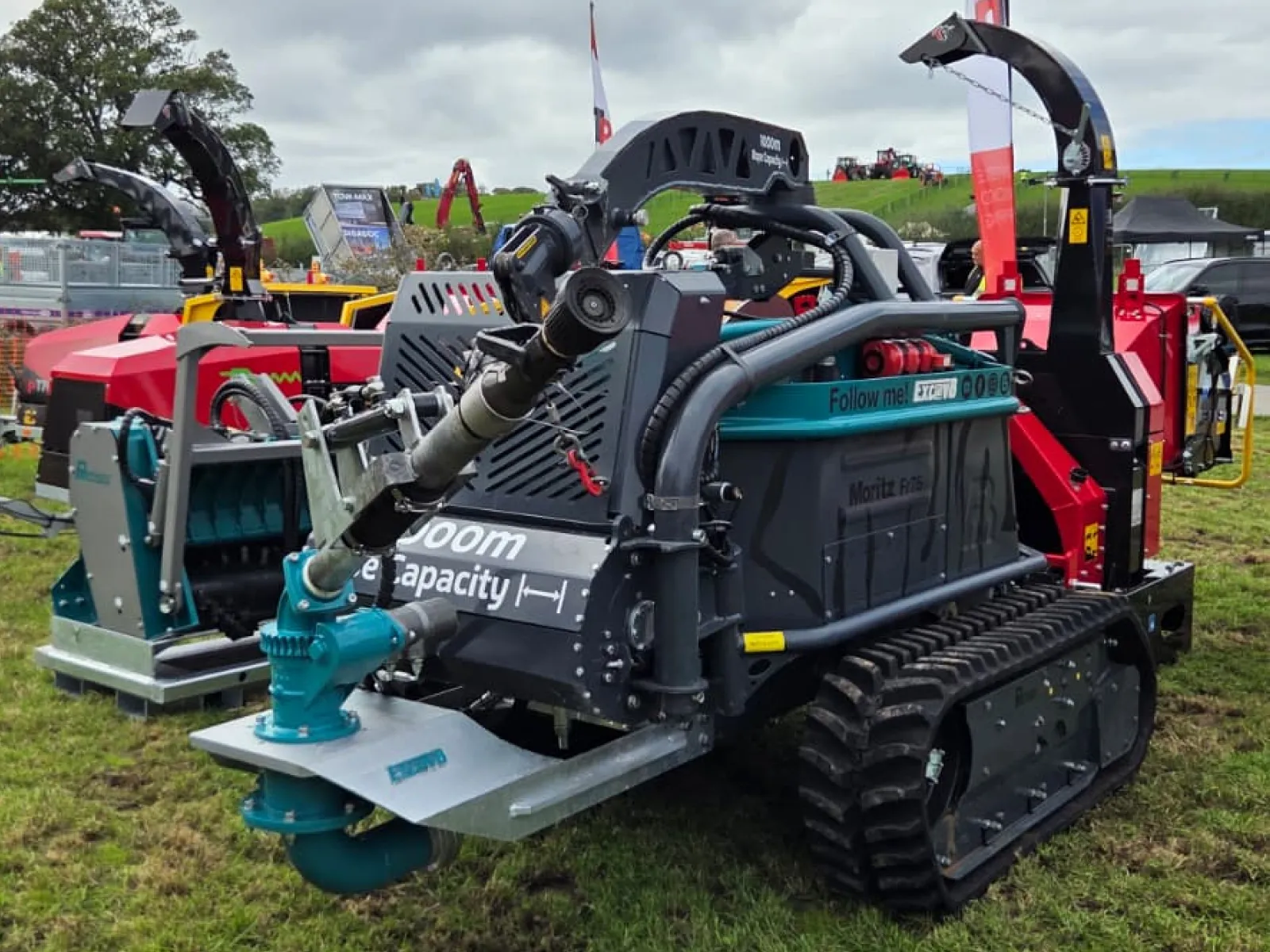

Fire version by Exc@v8
Exc@v8 builds a fire version of the Moritz to support crews in the first response to wildfires. It is configured from attachments to suit the job rather than supplied as one kit, and it can be ordered:
- a rear-mounted water and foam cannon, pumping from 40 l/min to 10 m³/min, with foam for sites such as recycling centres
- a front blade for clearing debris
- a radio-controlled hose reel of Exc@v8’s own design, recovering hose at about 40 m a minute
The Moritz keeps its other tools, such as a PTO-driven woodchipper; we showed it at APF 2026 with a woodchipper and wildfire-fighting equipment. Remote-operated firefighting machinery · Ask about the fire version
Attachments and options
Pfanzelt builds most of these for the Moritz, the firefighting equipment is Exc@v8’s, and other makers’ equipment fits its category 1 three-point hitch. Pfanzelt’s Moritz brochure (PDF) has the details.

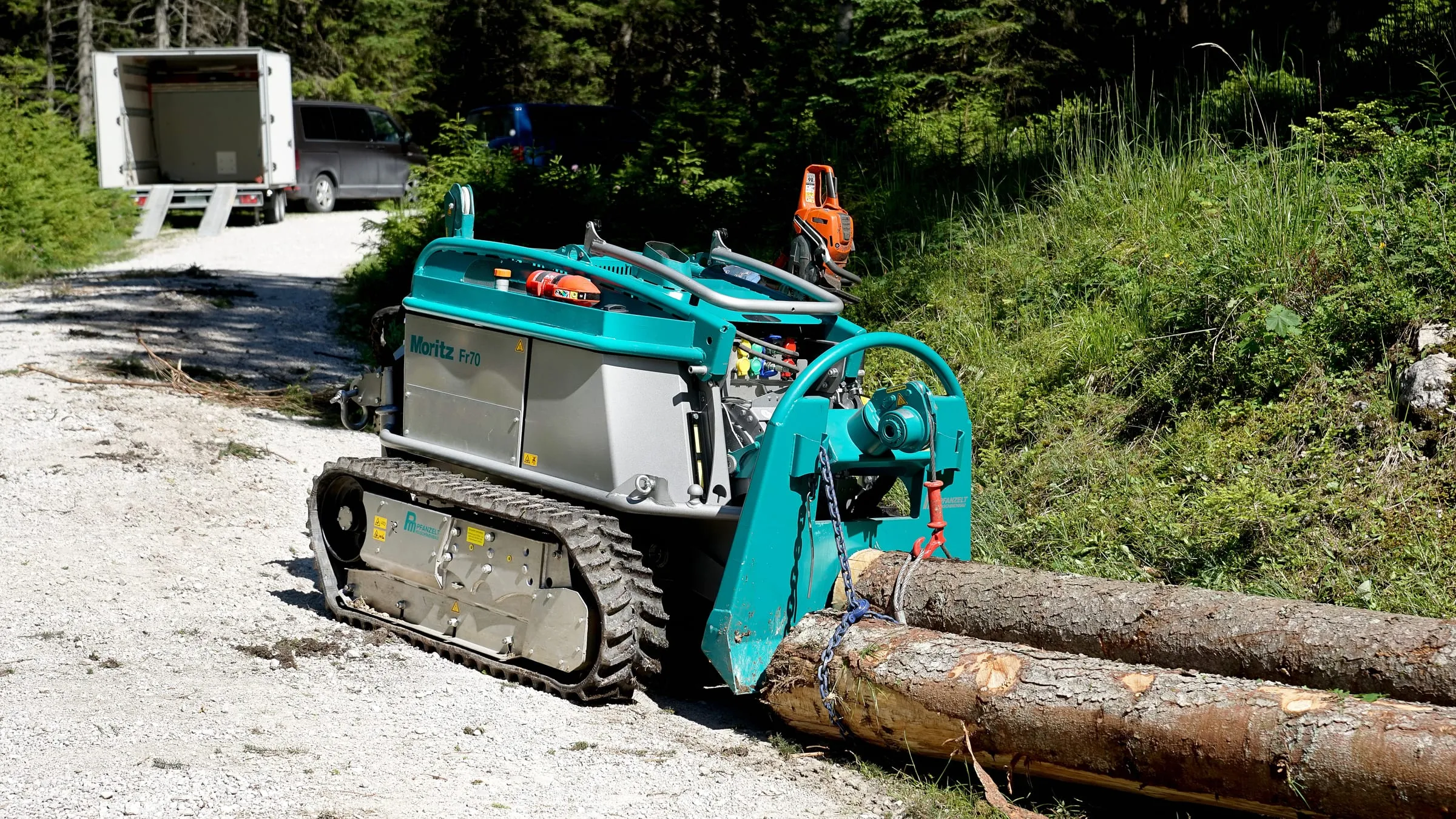

Cable winch units
50, 60 or 72 kN, with 90 to 110 m of 11 or 12 mm cable and a stacking shield; they come off in a few minutes with the excavation device.
Auxiliary front winch
10 kN, with 30 m of 6 mm cable (up to 50 m), worked from the Moritz’s remote, with a deflection pulley.

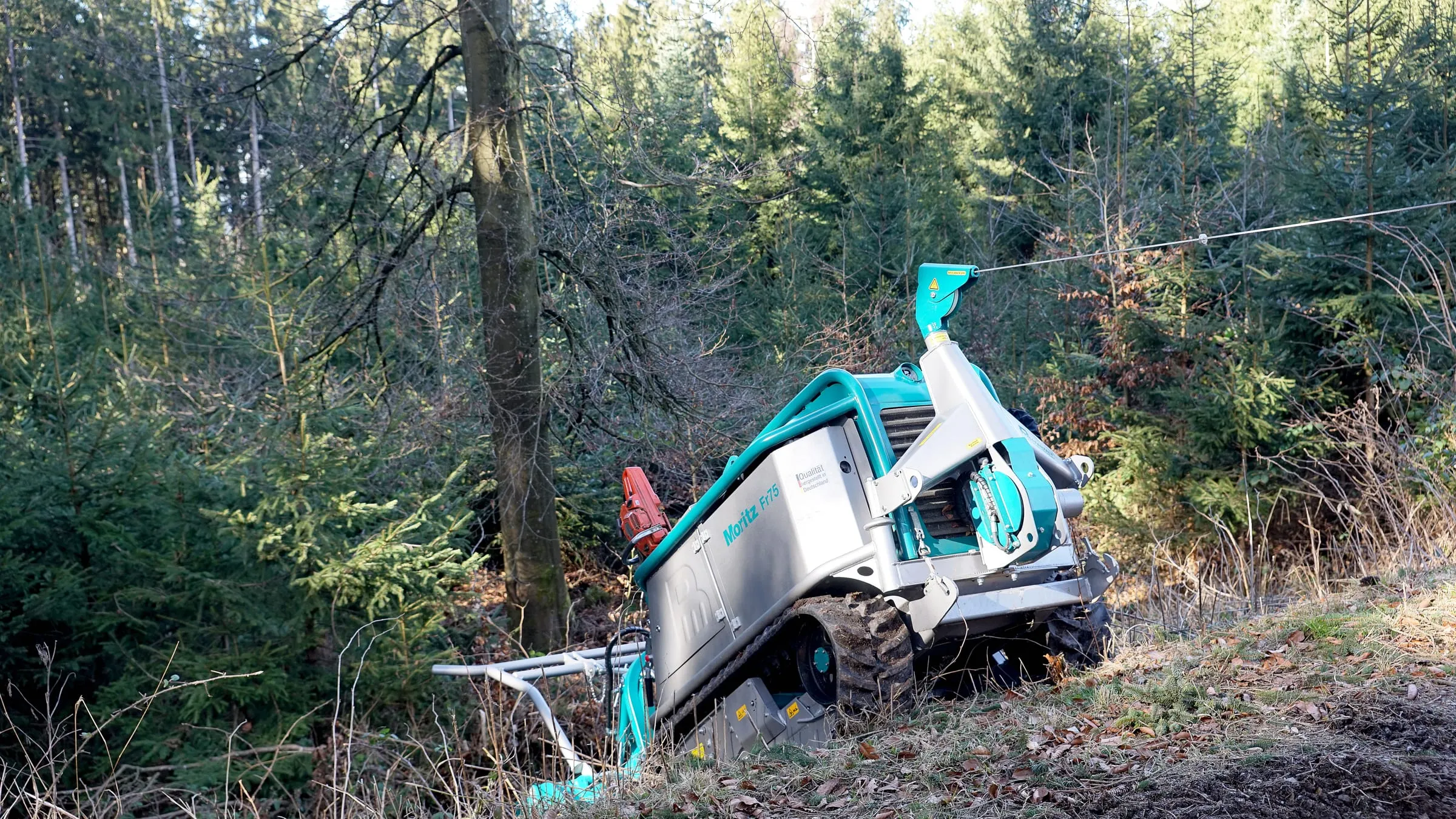

Traction winch
Secures the Moritz from above on steep slopes: up to about 11 kN, set from the remote, with up to 1,000 m of rope.

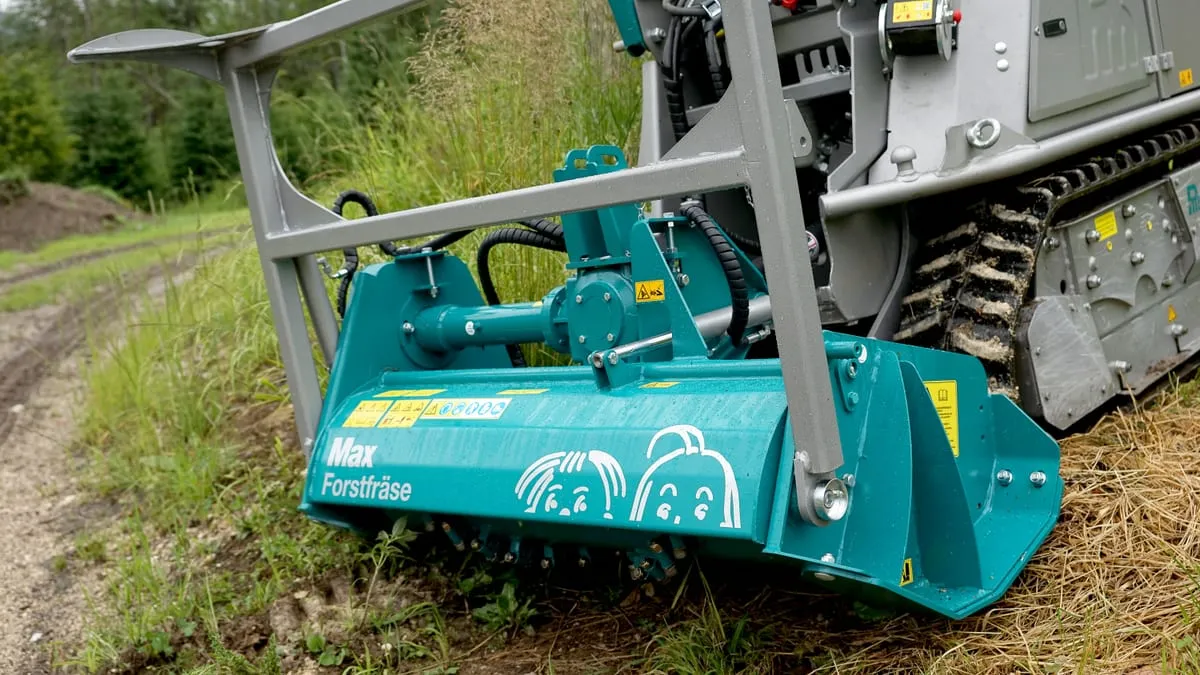

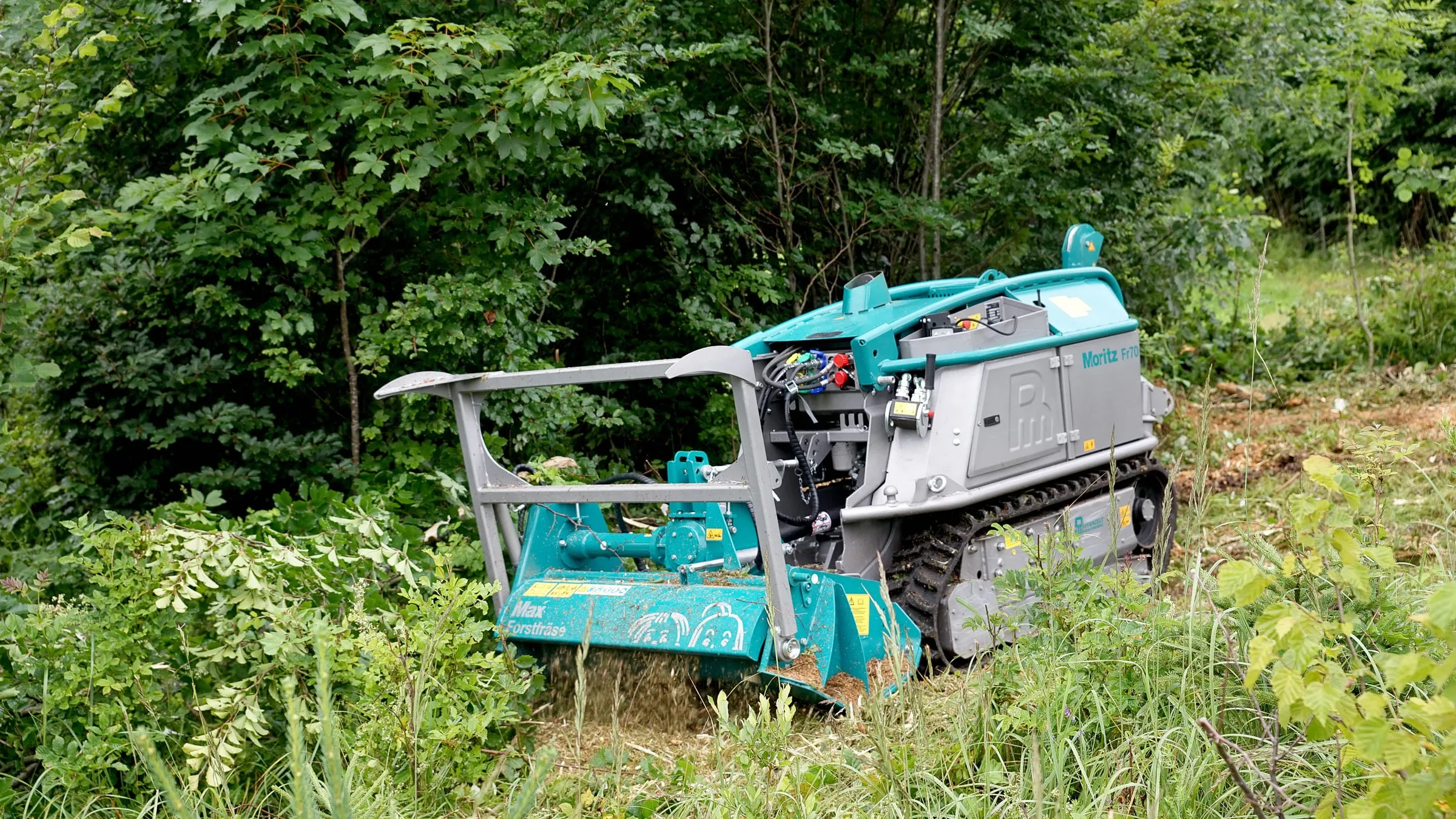

MAX forestry mulcher
Driven by the PTO, with a hydraulic flap and 40 carbide tools that can be turned to use three sides; hydraulic side shift as an option.
Forestry mulcher
About 1,200 mm wide, driven by the PTO on the three-point hitch, with a mechanical side shift of about 400 mm.
Mulchers
The Mulcher 120 and Mulcher 135, and a grass and undergrowth mulcher, with hydraulic side shift and flap as options.

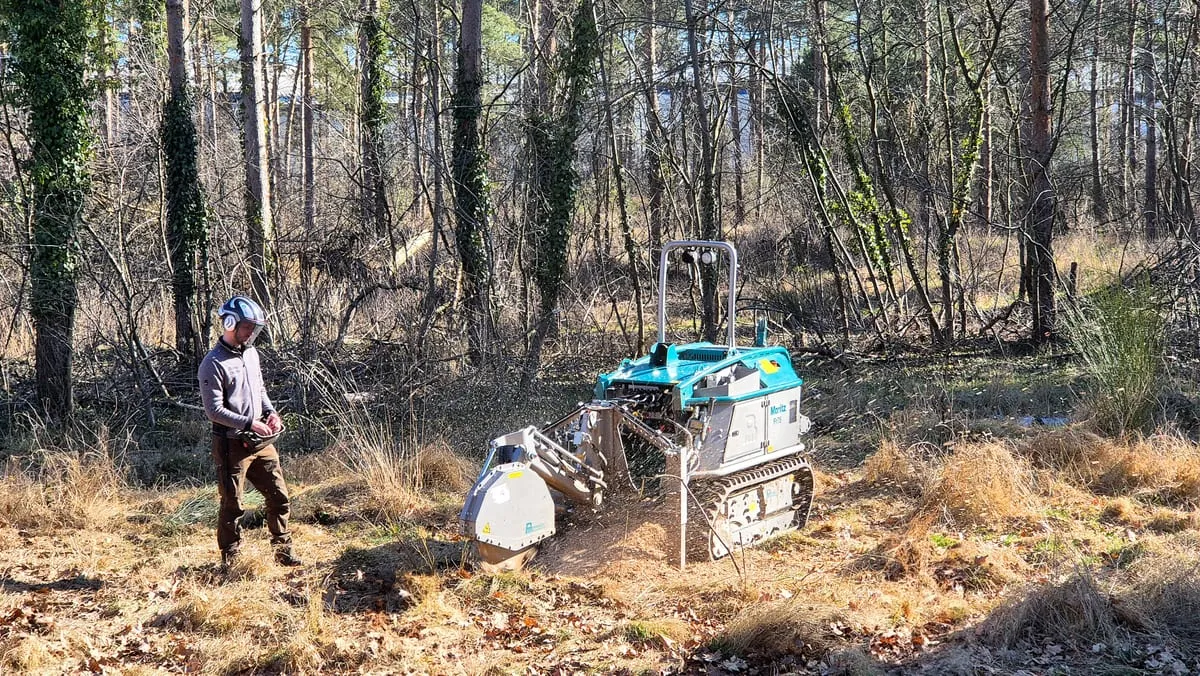

Stump grinder
Fits the MAX forestry mulcher: it swivels ±45° and works to 620 mm below ground with a 600 mm milling wheel.
Sowing-strip mulcher
Cuts V-shaped seed trenches 200 mm deep; the sowing module sows coarse and fine seed and stops when the Moritz stops.

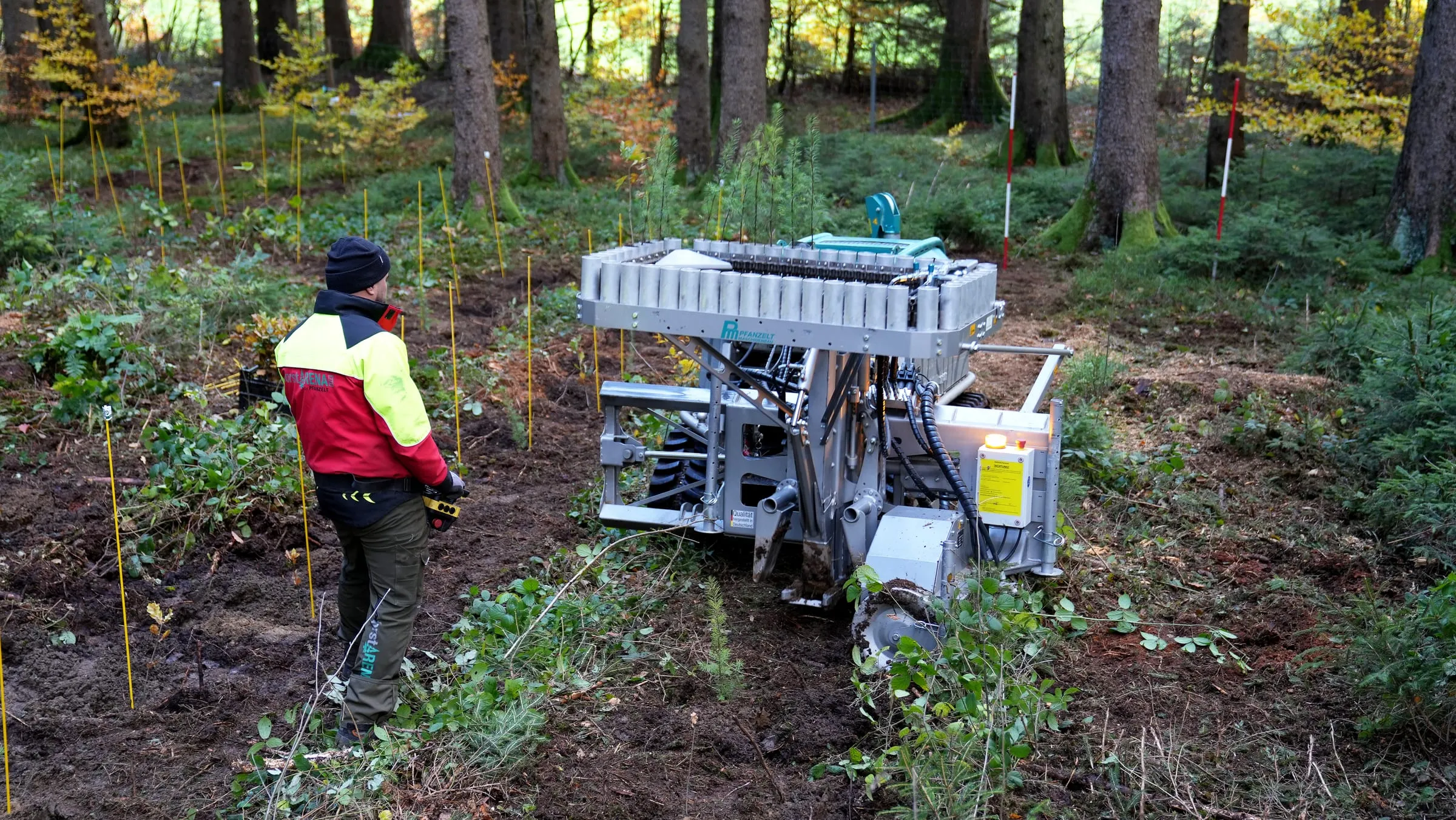

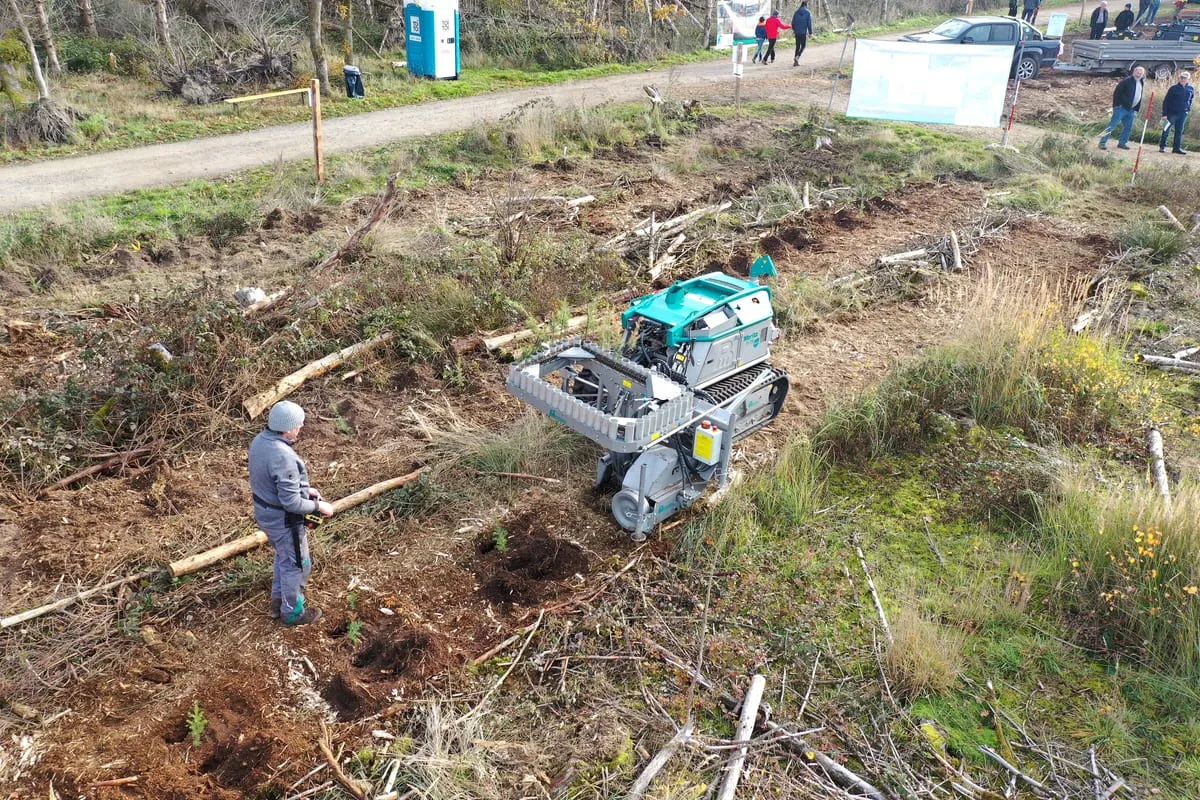

Plantomat planter
Plants automatically, run from the Moritz’s remote, with a tilling wheel and a magazine for 50 container plants.

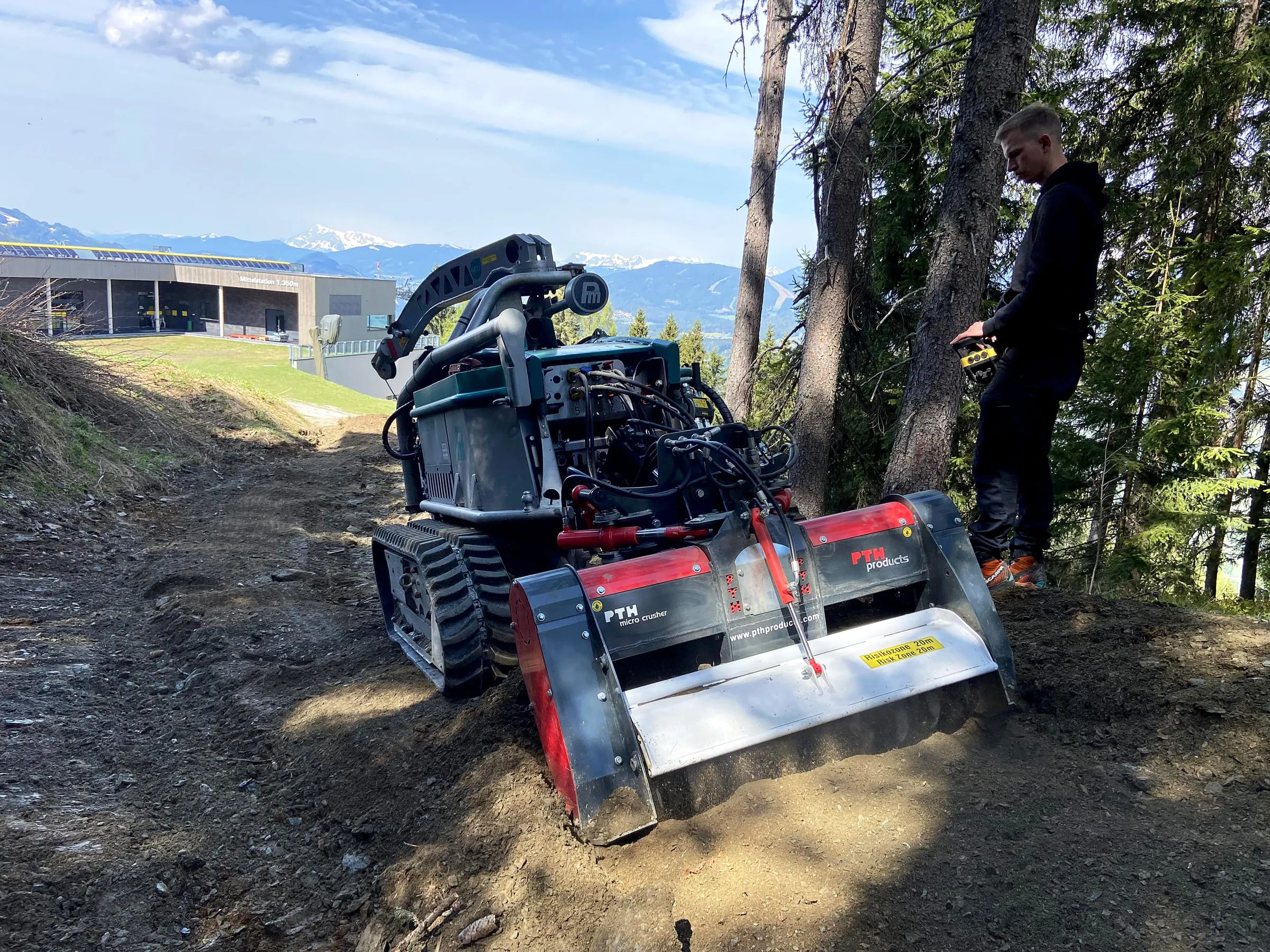

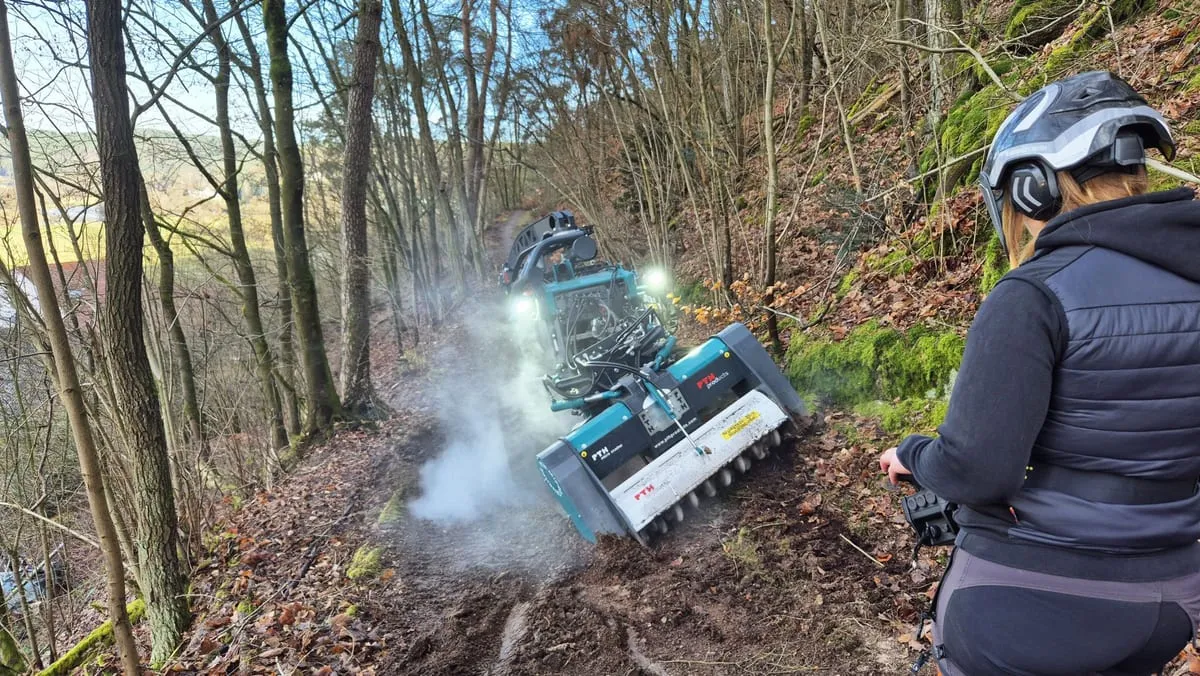

PTH Trail Crusher
Crushes stone, mills and mulches a trail in one pass, from the PTO or the performance hydraulics. PTH Trail Crusher

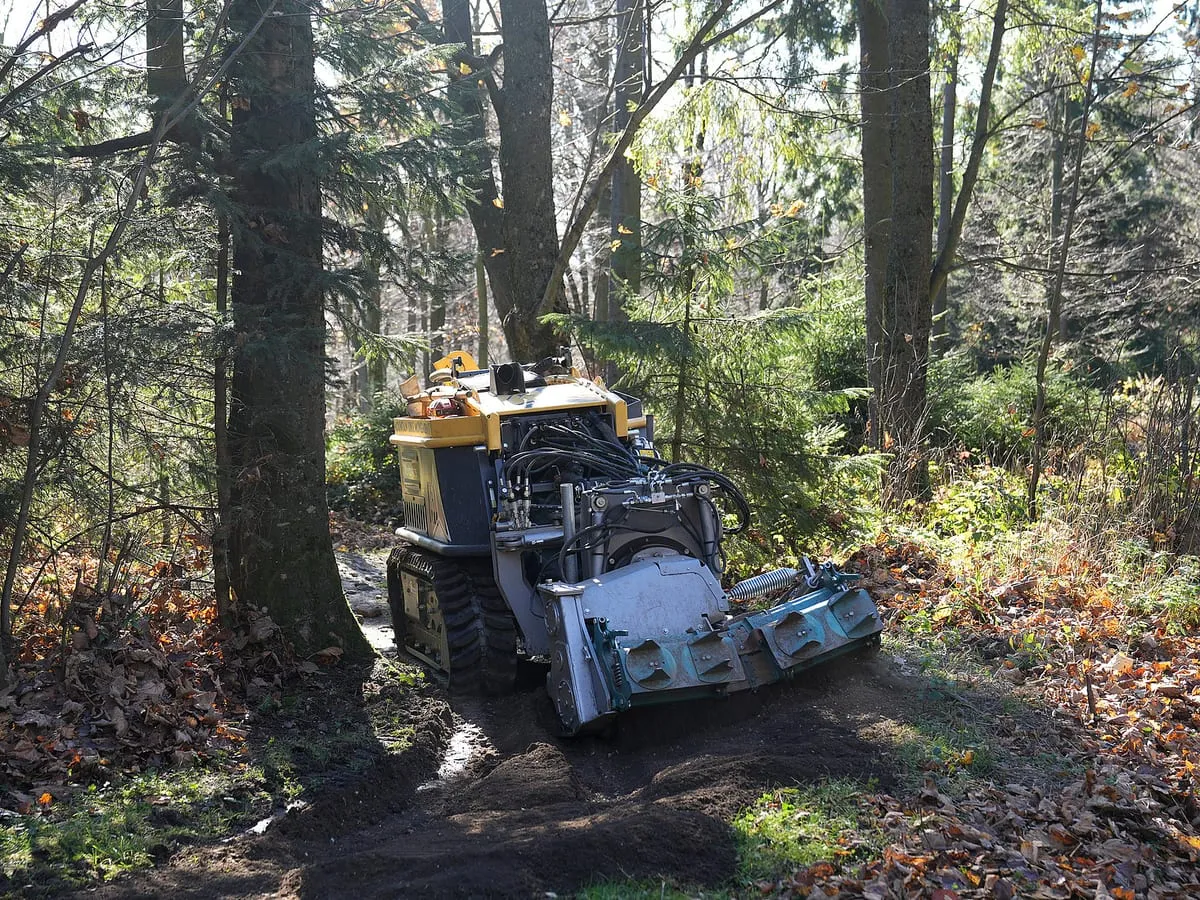

MAXpro Stonecrusher and Compactor
Pfanzelt’s own tools for building and renovating paths and trails.

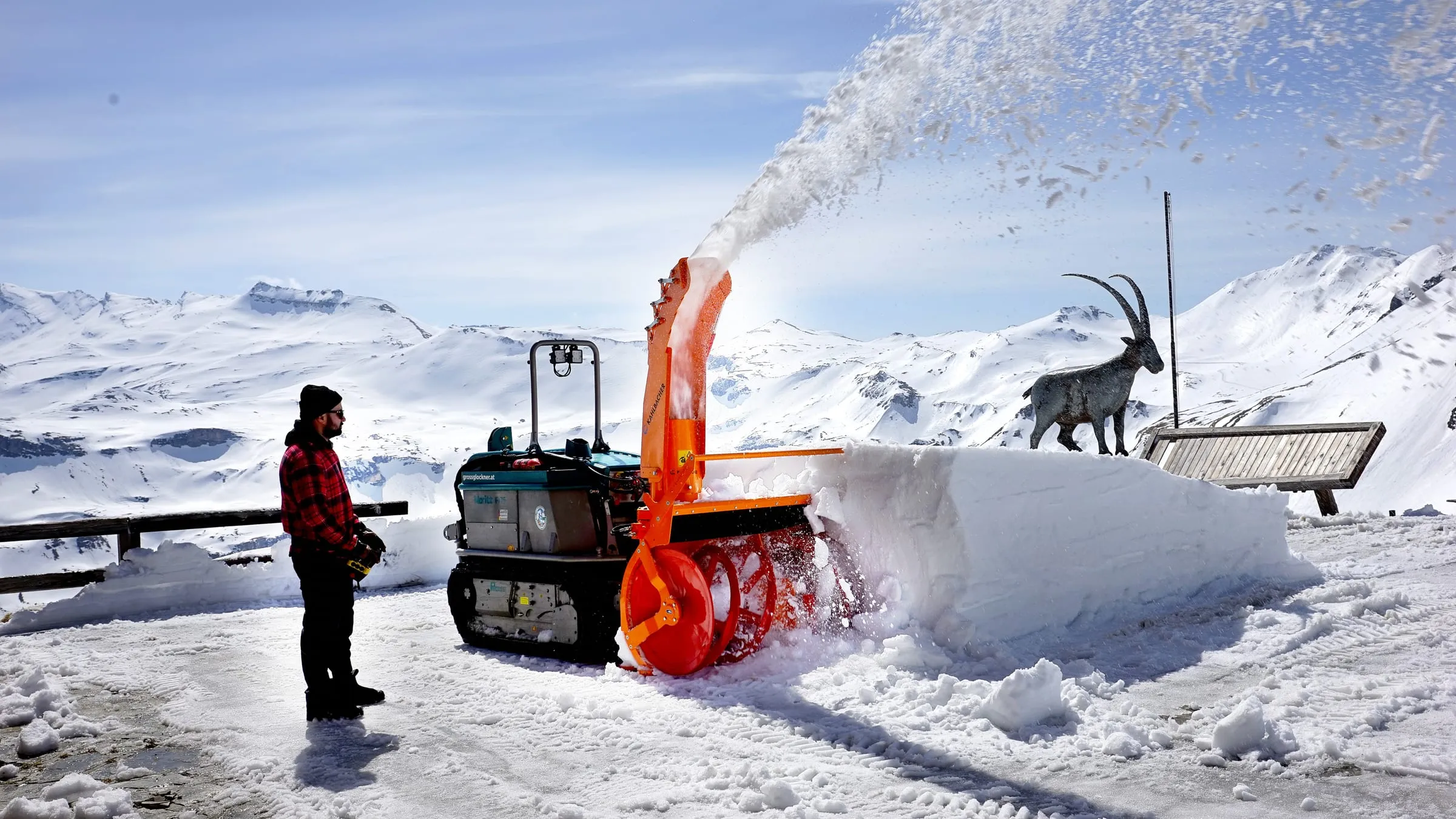

Snow blower
Clears paths and ski slopes in winter, held on steep ground by the traction winch.

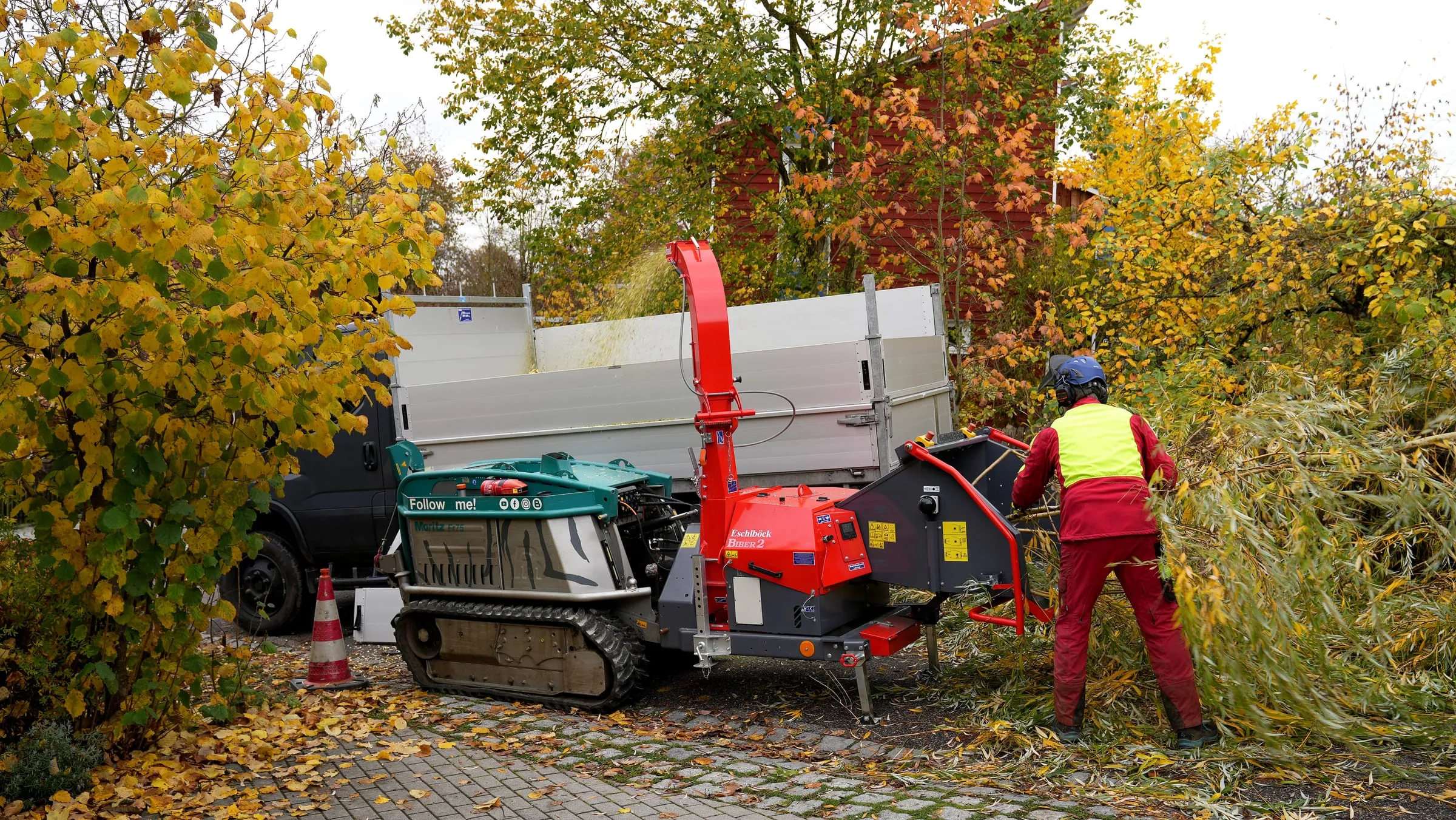

Woodchipper
A PTO-driven woodchipper, such as the TP 175, runs from the Moritz.

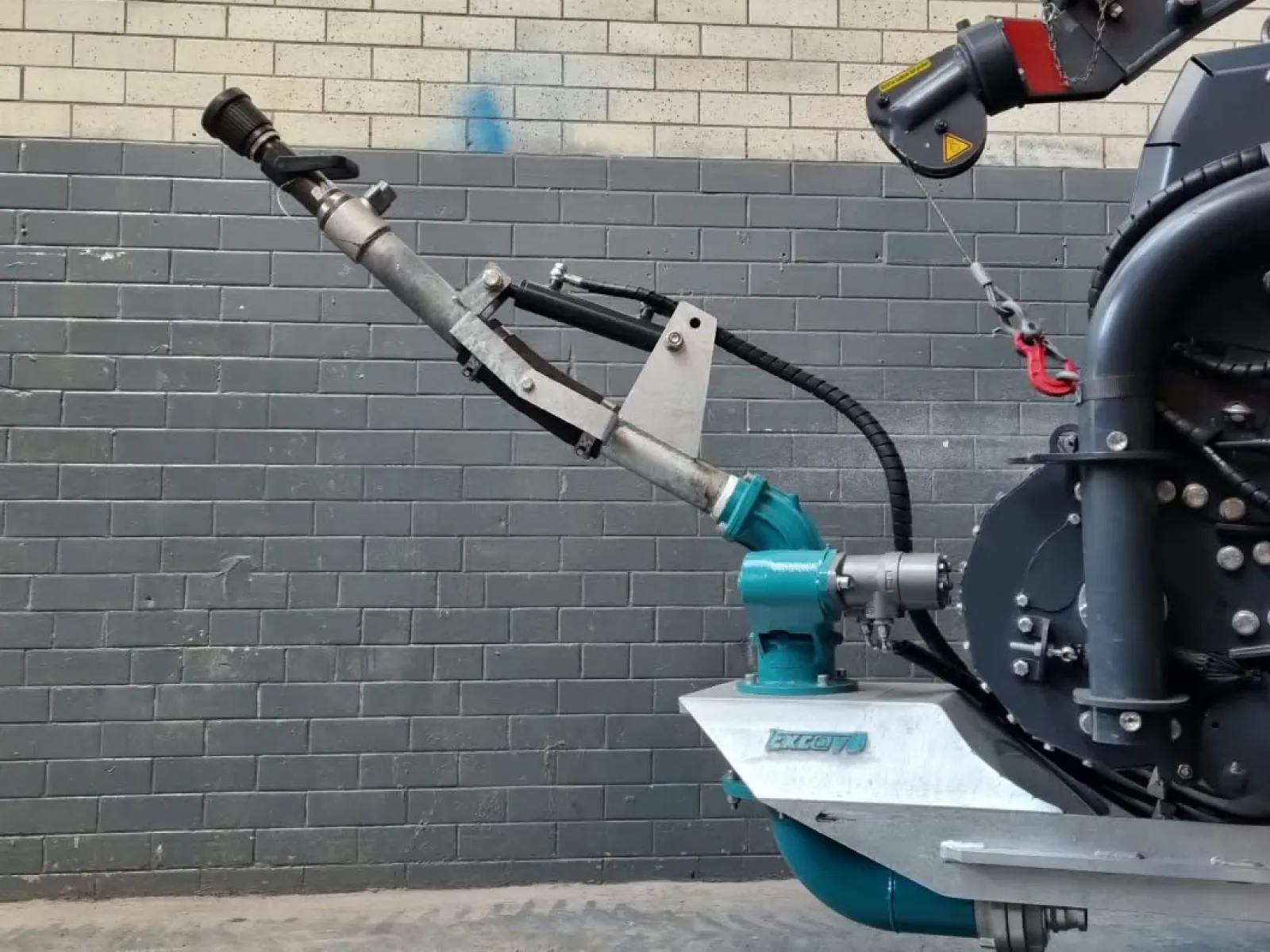

Water and foam cannon
Rear-mounted on Exc@v8’s fire version, pumping from 40 l/min to 10 m³/min, with foam for fires at sites such as recycling centres.

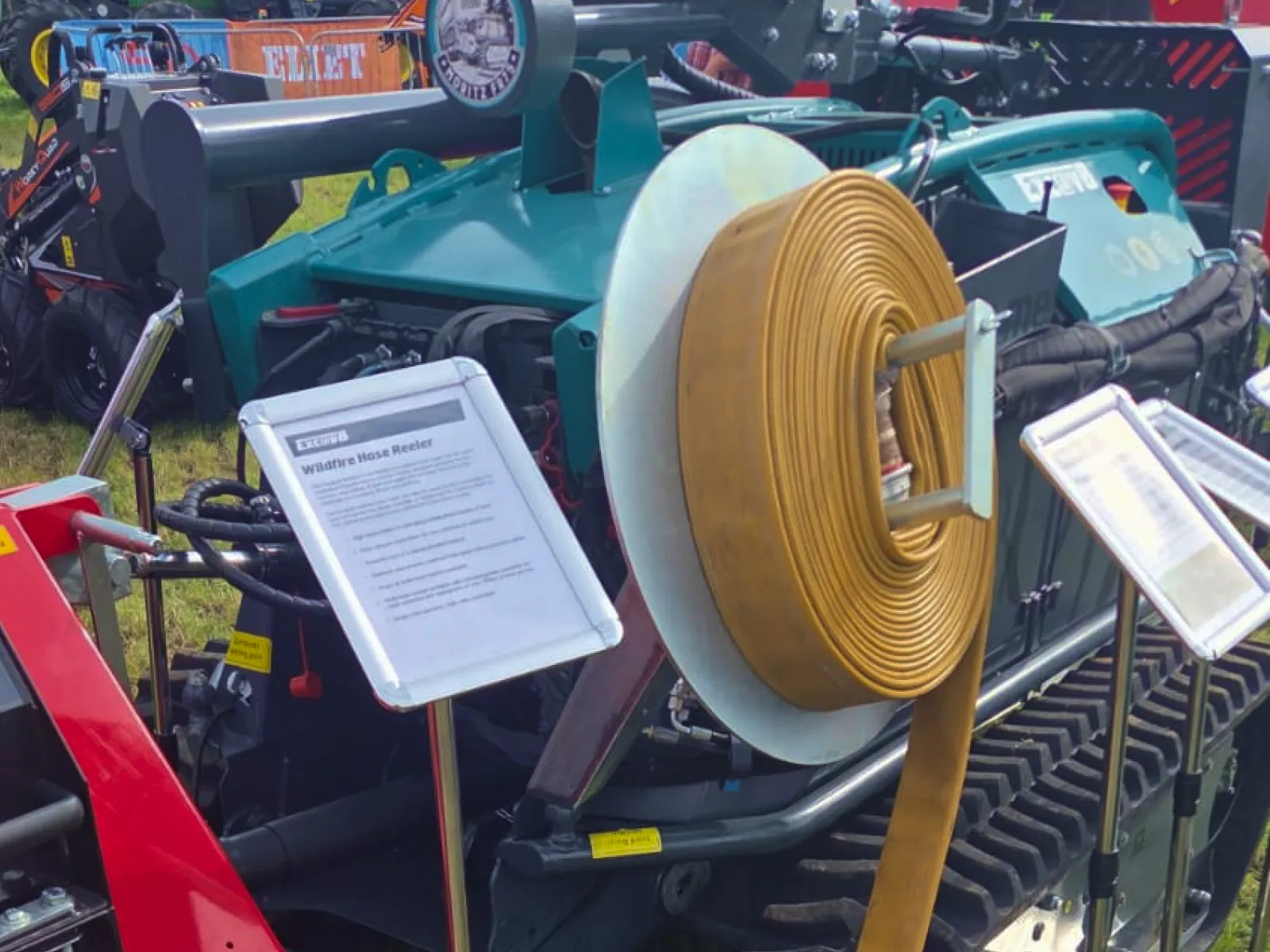

Radio-controlled hose reel
Exc@v8’s own design for the fire version, recovering hose at about 40 m a minute.

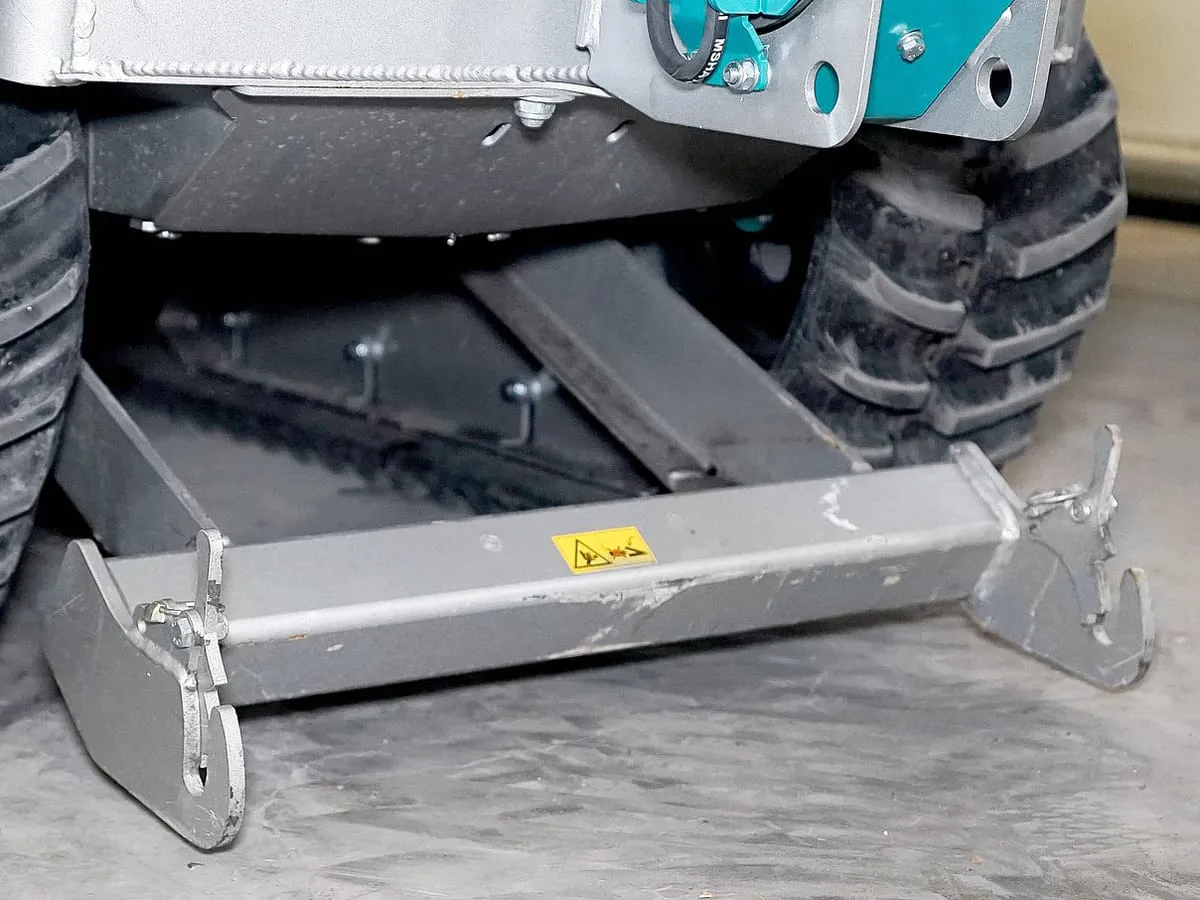

Front power lift
Category 1 three-point hitches front and rear; the front power lift lifts up to 7 kN and can take a top link.

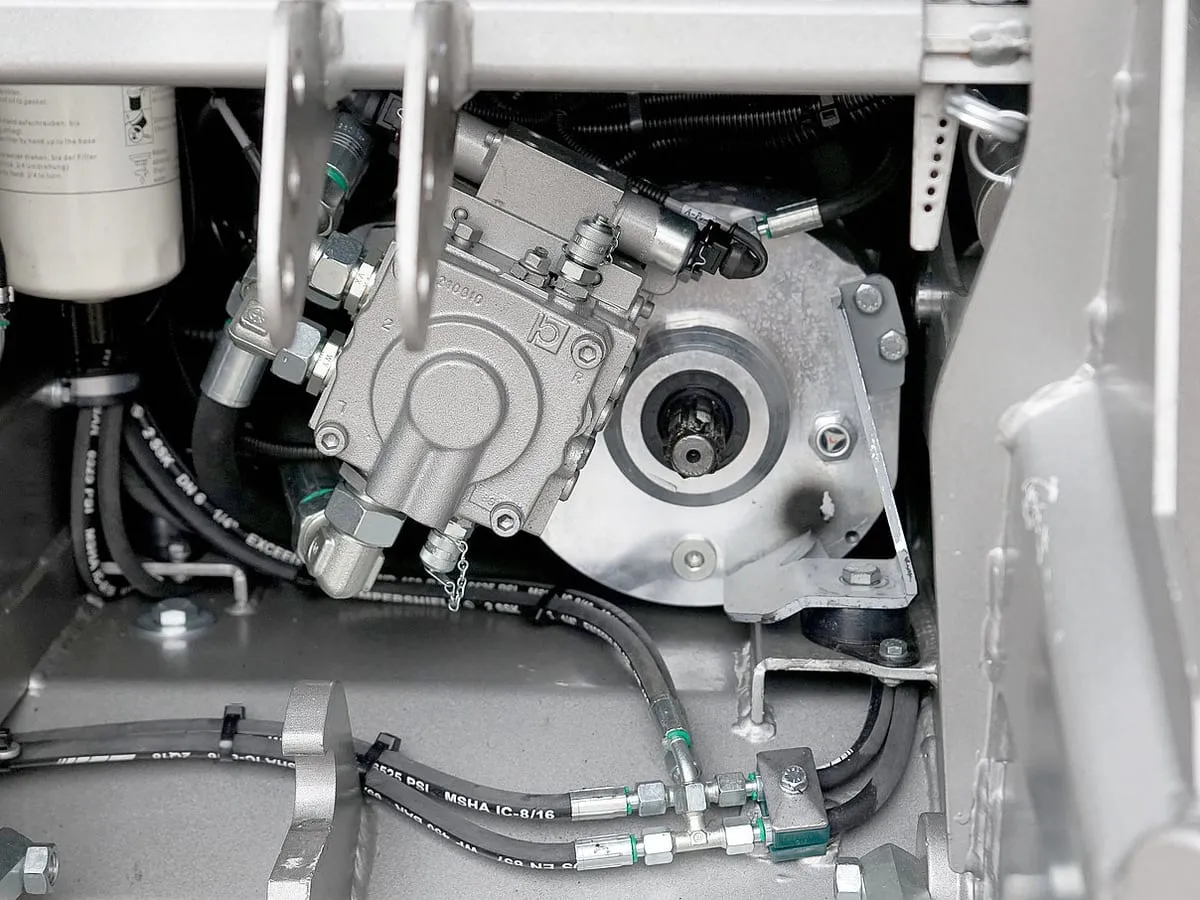

PTO and performance hydraulics
A mechanical PTO at about 540 and 2,100 rpm, and performance hydraulics of up to 48 kW: 0 to 96 l/min at 300 bar.

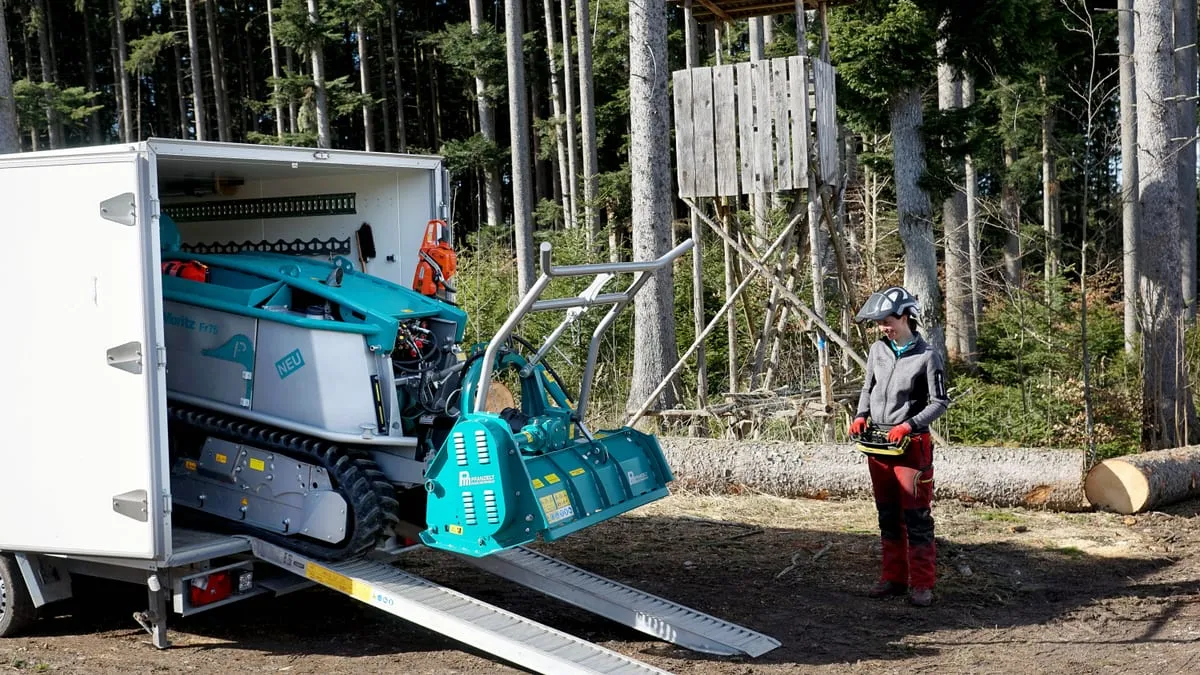

Machine options
300 mm tracks, LED work lights, roll bars, a transport box and frame, extra control valves and hoist compensation.
Technical data: Pfanzelt Moritz Fr75
Engine
- Engine
- Deutz TD2.9 L4 diesel, 4-cylinder, water-cooled, turbocharged
- Power
- 55 kW (75 hp)
- Max. torque
- Up to 260 Nm
- Cooling
- Cleanfix reversible fan, combination radiator
- Fuel tank
- 45 l
Drive and tracks
- Drive
- Closed, proportional two-circuit hydraulic drive (2 × 11 kW), controlled by radio
- Speed
- 0–3 km/h (1st stage), 0–6 km/h (2nd stage); final speed preselectable
- Drift setting
- Compensates for the downhill force when mowing across a slope
- Tracks
- Rubber, AS design, 250 mm wide (300 mm optional), 1,650 mm long; hydraulically tensioned double guide wheel
- Track width
- Hydraulically adjustable, 1,150 to 1,550 mm
- Ground clearance
- 320 mm
- Ground pressure
- 0.33 kg/cm²
- Slope angle
- 50° front, 40° rear
Dimensions and weight
- Length × width × height
- 2,300 × 1,150 / 1,550 × 1,350 mm
- Weight
- 1,450 kg, without attachments
- Chassis
- Torsion-resistant box frame in special steel; solid steel underbody protection; all-round branch deflectors with a hood guard; lockable storage bin; lashing points
Hydraulics and PTO
- On-board hydraulics
- Separate circuit, 18 l/min at 200 bar; proportional control for the hoist, with floating position
- Control valves (optional)
- Up to 4 proportional and 2 black/white double-acting
- Performance hydraulics (optional)
- Closed circuit, axial piston pump, up to 48 kW, 0–96 l/min, 300 bar, with multicoupler
- PTO (optional)
- Mechanical, oil-cooled multi-plate clutch; approx. 540 and 2,100 rpm
- Three-point hitch
- Category 1, front and rear; front power lift up to 7 kN (optional)

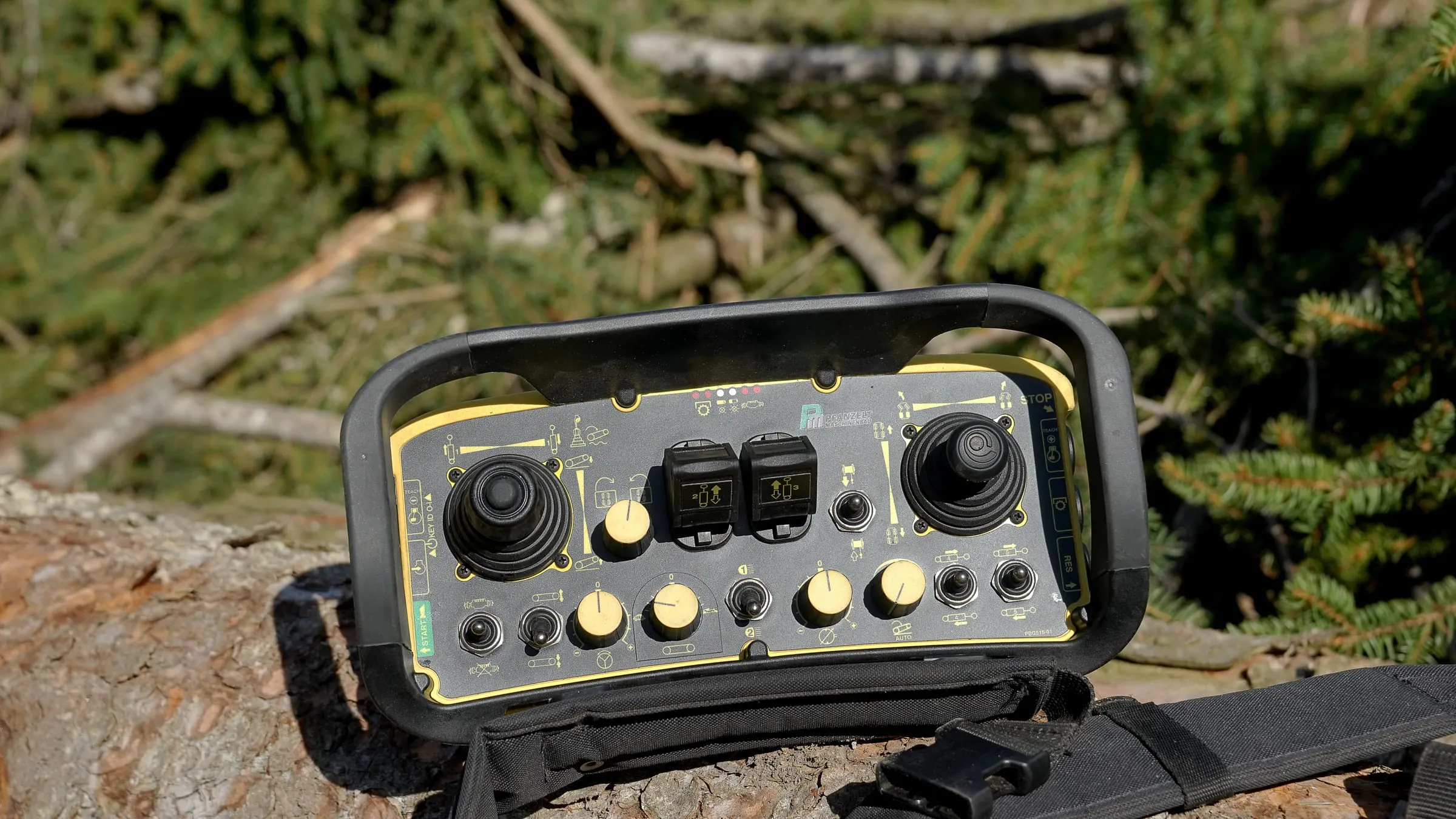

Remote control
- Functions
- Every function: emergency stop, engine throttle and start/stop, driving and steering, both speed stages, drift setting, reversible fan, cable winch and stacking shield, hoist, track width, PTO, control valves, horn and lights; third-party equipment
Cable winch (optional)
- Winch units
- 50 kN, 110 m × 11 mm
- 60 kN, 110 m × 11 mm
- 72 kN, 90 m × 12 mm
- All need the performance hydraulics
- Cable speed
- Average 0.40 m/s, proportional in both directions
- Stacking shield
- Hydraulically height-adjustable, approx. 1,100 mm wide, 14 kN lifting capacity; K 50 attachment jaw
- Quick change
- Excavation device for removing and fitting the winch in a few minutes
Technical data: Pfanzelt Moritz Fr70
Engine
- Engine
- Deutz TD2.9 L4 diesel, 4-cylinder, water-cooled, turbocharged
- Power
- 36 kW (50 hp)
- Max. torque
- Up to 260 Nm
- Cooling
- Cleanfix reversible fan, combination radiator
- Fuel tank
- 45 l
Drive and tracks
- Drive
- Closed, proportional two-circuit hydraulic drive (2 × 11 kW), controlled by radio
- Speed
- 0–3 km/h (1st stage), 0–6 km/h (2nd stage); final speed preselectable
- Drift setting
- Compensates for the downhill force when mowing across a slope
- Tracks
- Rubber, AS design, 250 mm wide (300 mm optional), 1,650 mm long; hydraulically tensioned double guide wheel
- Track width
- Hydraulically adjustable, 1,150 to 1,550 mm
- Ground clearance
- 320 mm
- Ground pressure
- 0.28 kg/cm²
- Slope angle
- 50° front, 40° rear
Dimensions and weight
- Length × width × height
- 2,300 × 1,150 / 1,550 × 1,350 mm
- Weight
- 1,400 kg, without attachments
- Chassis
- Torsion-resistant box frame in special steel; solid steel underbody protection; all-round branch deflectors with a hood guard; lockable storage bin; lashing points
Hydraulics and PTO
- On-board hydraulics
- Separate circuit, 18 l/min at 200 bar; proportional control for the hoist, with floating position
- Control valves (optional)
- Up to 4 proportional and 2 black/white double-acting
- Performance hydraulics (optional)
- Closed circuit, axial piston pump, up to 48 kW, 0–96 l/min, 300 bar, with multicoupler
- PTO (optional)
- Mechanical, oil-cooled multi-plate clutch; approx. 540 and 2,100 rpm
- Three-point hitch
- Category 1, front and rear; front power lift up to 7 kN (optional)
Remote control
- Functions
- Every function: emergency stop, engine throttle and start/stop, driving and steering, both speed stages, drift setting, reversible fan, cable winch and stacking shield, hoist, track width, PTO, control valves, horn and lights; third-party equipment
Cable winch (optional)
- Winch units
- 50 kN, 110 m × 11 mm
- 60 kN, 110 m × 11 mm
- 72 kN, 90 m × 12 mm
- All need the performance hydraulics
- Cable speed
- Average 0.40 m/s, proportional in both directions
- Stacking shield
- Hydraulically height-adjustable, approx. 1,100 mm wide, 14 kN lifting capacity; K 50 attachment jaw
- Quick change
- Excavation device for removing and fitting the winch in a few minutes
Documents and data sheets
Pfanzelt's data sheet covers every model in one file.
Data sheet (PDF)Pfanzelt Moritz Remote Mini Tractor: https://excav8.co.uk/pfanzelt/remote-mini-tractors/moritz
