Konrad Yarders
Konrad's tower yarders for steep ground: the truck-mounted Mounty, the compact KMS on a trailer or tracks, and the Combi Yarder for tracked excavators.
Truck, trailer, tracks or excavator

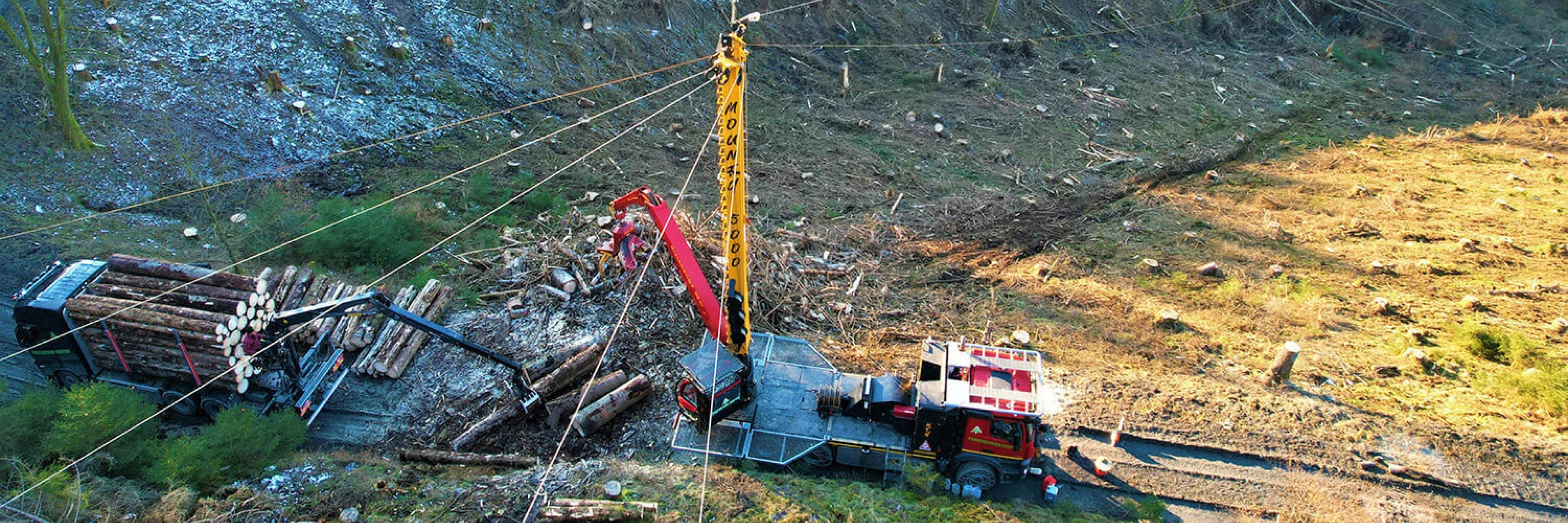

The Mounty is built on a Mercedes Arocs truck, the KMS on a tandem trailer or, as the KR50-1, on tracks, and the Combi Yarder mounts on a tracked excavator of 16 to 24 tonnes.
Read more
The Mounty is built on a Mercedes Arocs truck, the KMS on a tandem trailer or, as the KR50-1, on tracks, and the Combi Yarder mounts on a tracked excavator of 16 to 24 tonnes.
Towers from 11 to 14.2 m
Tower heights run from 11 m on the Combi Yarder and KM40-3 to 14.2 m on the Mounty 5000, for skylines from 500 m up to 1,000 m on the KMS.
Read more
Tower heights run from 11 m on the Combi Yarder and KM40-3 to 14.2 m on the Mounty 5000, for skylines from 500 m up to 1,000 m on the KMS.
Konrad radio control
All three are run on Konrad's KFS radio remote control, and the Mounty and KMS on its KTC 1.0 control system as well.
Read more
All three are run on Konrad's KFS radio remote control, and the Mounty and KMS on its KTC 1.0 control system as well.
Choose from the Konrad yarders

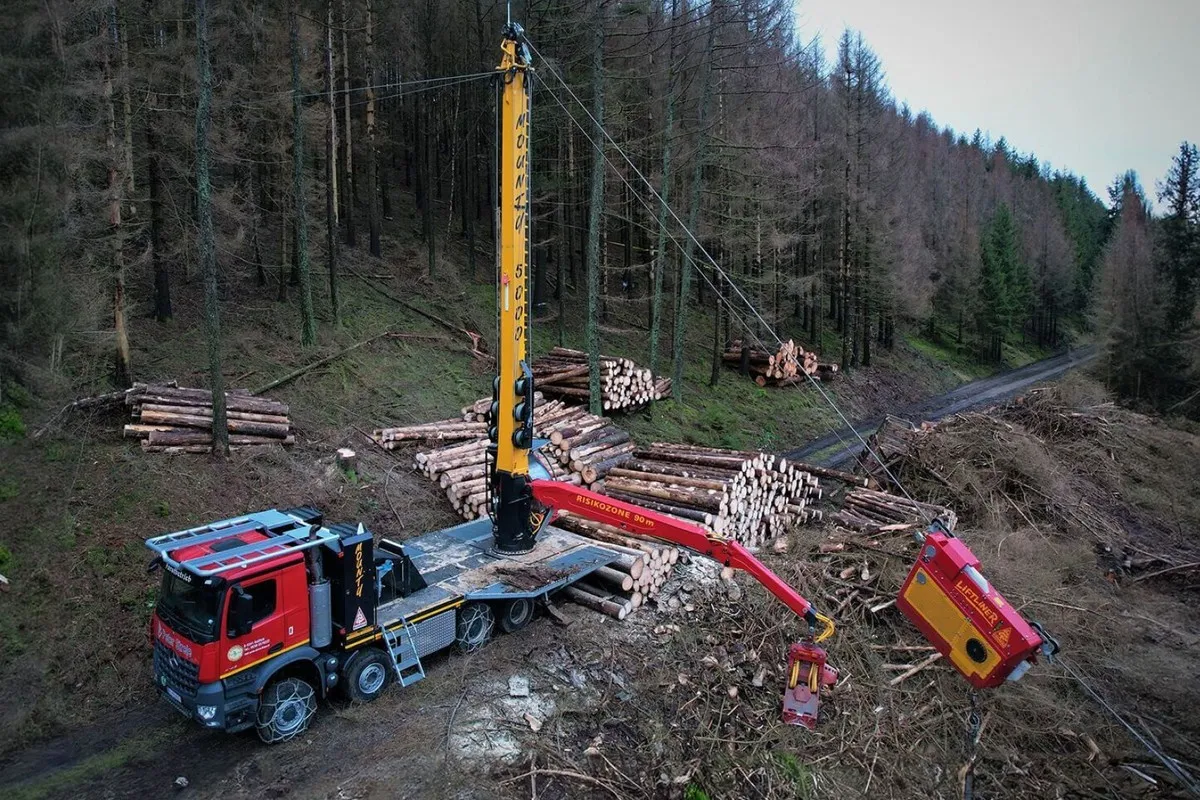

Konrad Mounty 3000 Tower Yarder
- Tower height: 13.0 m
- Main line pull: 30 kN
- Operating length: 500 m, 700 m long-rope
- Power: 420 PS
13.0 m

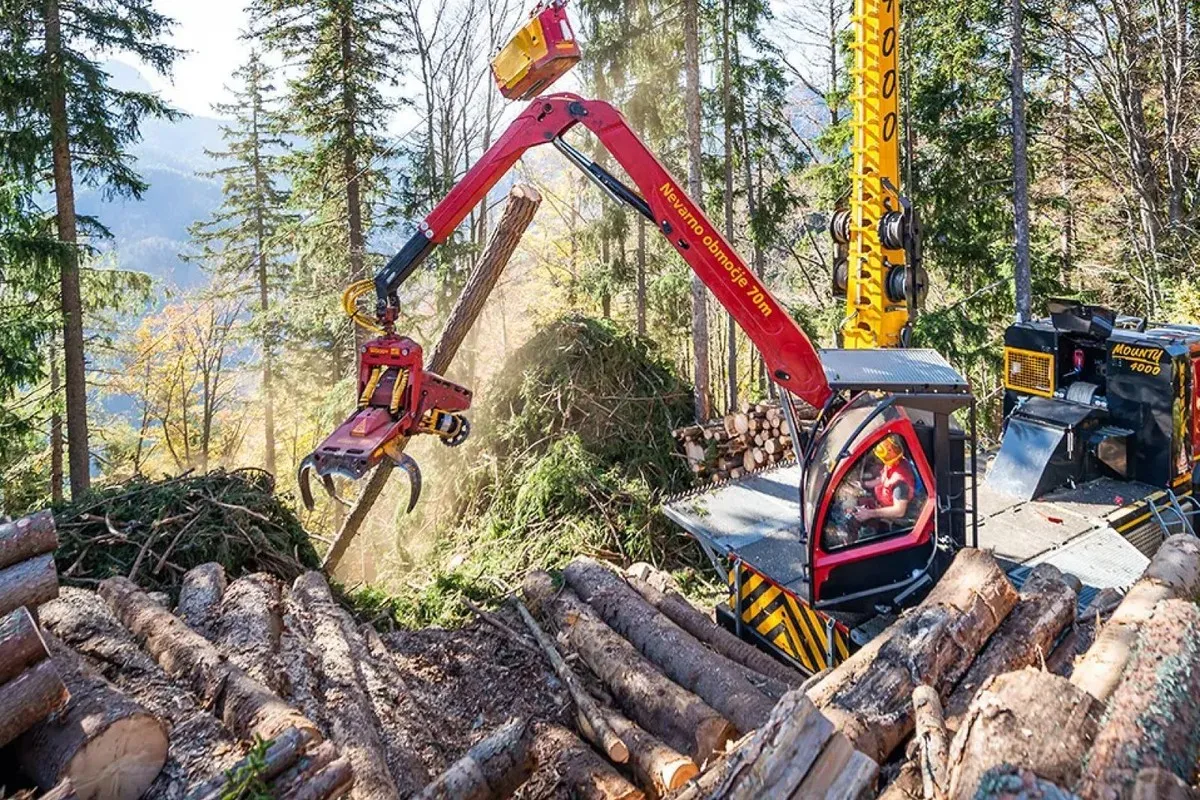

Konrad Mounty 4000 Tower Yarder
- Tower height: 13.0 m
- Main line pull: 47 kN
- Operating length: 600 m, 800 m long-rope
- Power: 420 or 450 PS
13.0 m
Konrad Mounty 5000 Tower Yarder
- Tower height: 14.2 m
- Main line pull: 47 kN
- Operating length: 800 m
- Power: 450 PS
14.2 m
Konrad KMS KM/KR40-3 Tower Yarder
- Tower height: 11.0 m
- Main line pull: 40 kN
- Skyline: 22 mm, 1,000 m
- Weight: 13,260–14,550 kg
11.0 m

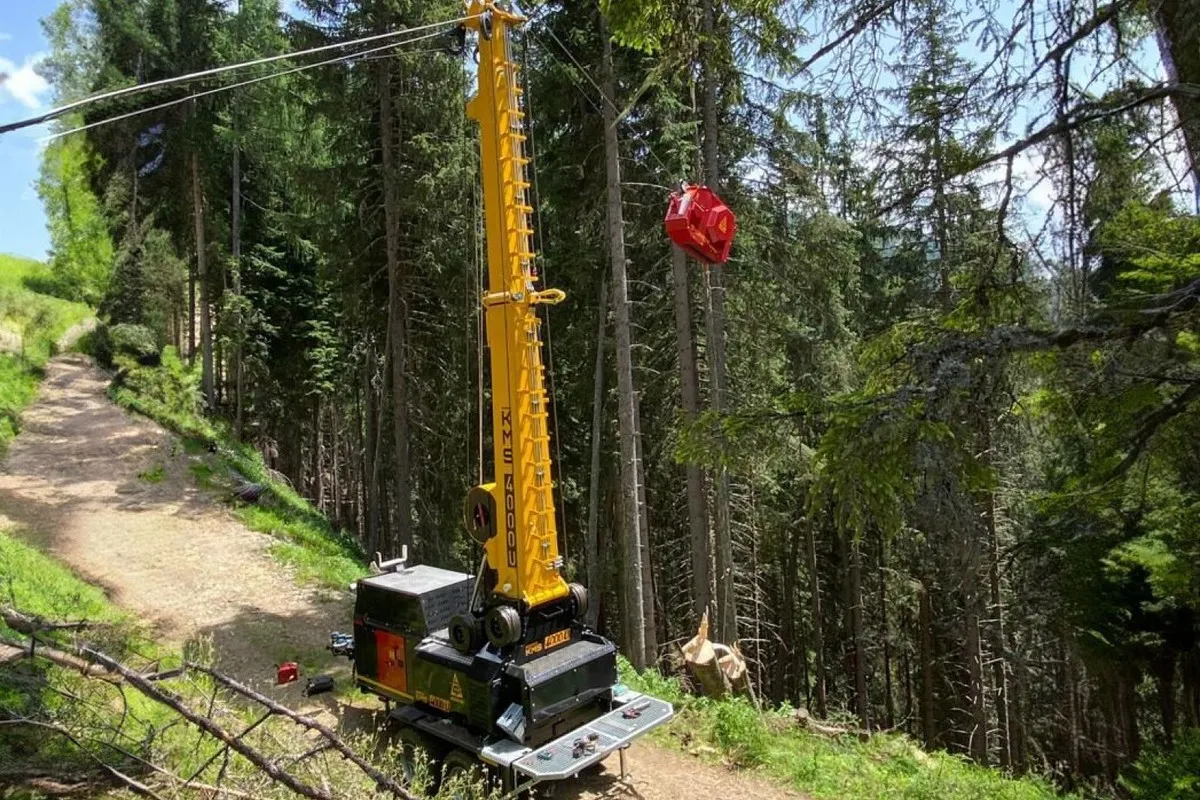

Konrad KMS KM/KR50-1 Tower Yarder
- Tower height: KM: 12.0 m · KR: 11.5 m
- Main line pull: 45 kN
- Skyline: 22 mm, 1,000 m
- Weight: KM: 14,700–15,800 kg · KR: approx. 18,860 kg
KM: 12.0 m

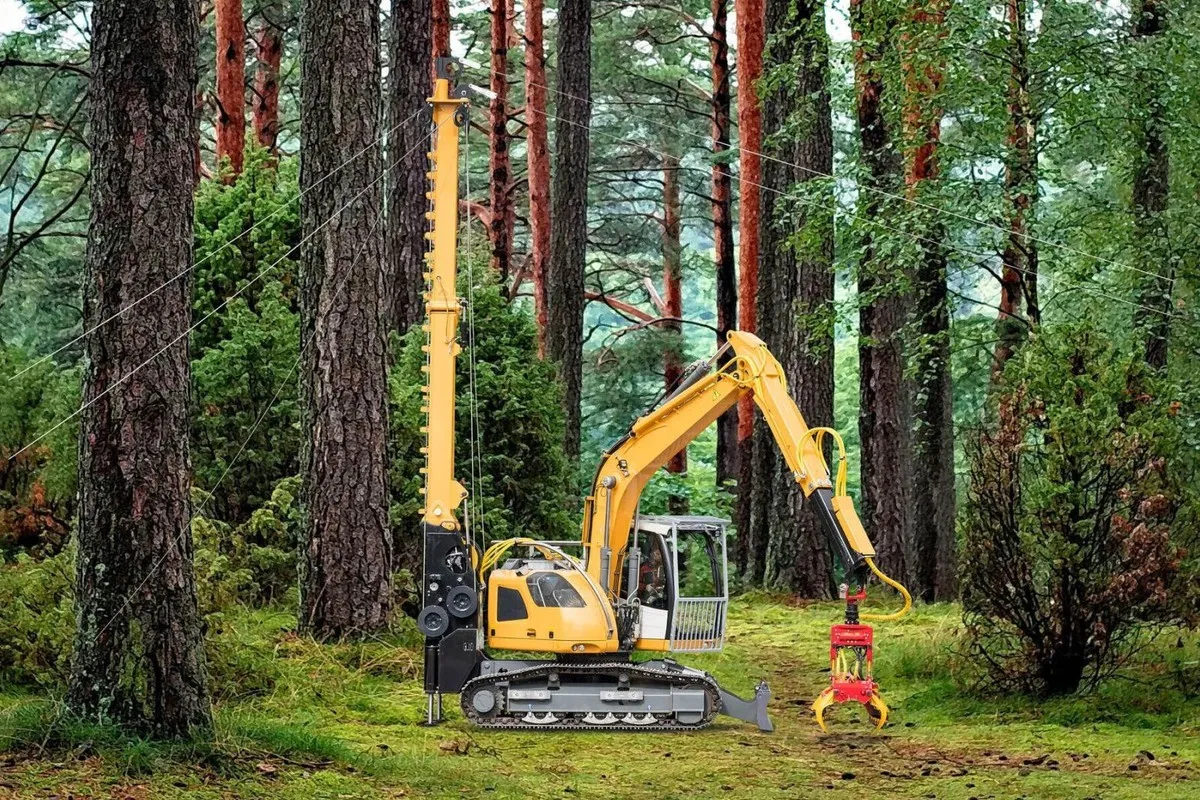

Konrad Combi Yarder 2500
- Tower height: 11 m
- Main line pull: 25 kN
- Skyline: 18 mm, 500 m
- Carrier: Tracked excavator, 16–24 t
11 m
Konrad Combi Yarder 3500
- Tower height: 11 m
- Main line pull: 35 kN
- Skyline: 20 mm, 500 m
- Carrier: Tracked excavator, 16–24 t
11 m
Speak to us about theKonrad Yarders
EnquireCompare the models
Only what differs. Everything else is the same on all 7 models.
Key figures
| Specification | Mounty 3000 | Mounty 4000 | Mounty 5000 | KM/KR40-3 | KM/KR50-1 | Combi Yarder 2500 | Combi Yarder 3500 |
|---|---|---|---|---|---|---|---|
| Tower height | 13.0 m | 13.0 m | 14.2 m | 11.0 m | KM: 12.0 m · KR: 11.5 m | 11 m | 11 m |
| Main line pull | 30 kN | 47 kN | 47 kN | 40 kN | 45 kN | 25 kN | 35 kN |
| Operating length | 500 m, 700 m long-rope | 600 m, 800 m long-rope | 800 m | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Power | 420 PS | 420 or 450 PS | 450 PS | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Skyline | –Not on this model | –Not on this model | –Not on this model | 22 mm, 1,000 m | 22 mm, 1,000 m | 18 mm, 500 m | 20 mm, 500 m |
| Weight | –Not on this model | –Not on this model | –Not on this model | 13,260–14,550 kg | KM: 14,700–15,800 kg · KR: approx. 18,860 kg | –Not on this model | –Not on this model |
| Carrier | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | Tracked excavator, 16–24 t | Tracked excavator, 16–24 t |
General
| Specification | Mounty 3000 | Mounty 4000 | Mounty 5000 | KM/KR40-3 | KM/KR50-1 | Combi Yarder 2500 | Combi Yarder 3500 |
|---|---|---|---|---|---|---|---|
| Carrier vehicle | Mercedes Arocs AK 3342 6×6; other carriers on request | Mercedes Arocs AK 3342 6×6 or Mercedes Arocs AK 4145 8×6; other carriers on request | Mercedes Arocs AK 4145 8×6; other carriers on request | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Power | 420 PS | 420 or 450 PS | 450 PS | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Weight | 26,000–29,000 kg, depending on version | 28,000–32,000 kg, depending on version | 31,000–35,000 kg, depending on version | 13,260–14,550 kg, depending on version | KM: 14,700–15,800 kg, depending on version · KR: approx. 18,860 kg | –Not on this model | –Not on this model |
| Transport dimensions (L × W × H) | 11.90 × 2.50 × 4.00 m | 11.90 × 2.50 × 4.00 m | 13.09 × 2.50 × 4.00 m | 6.09 × 2.26 × 3.22 m | KM: 6.32 × 2.26 × 3.28 m · KR: 5.31 × 2.25 × 3.03 m | –Not on this model | –Not on this model |
| Tower height | 13.0 m (3-rope version with skyline discharger) | 13.0 m (3-rope version with skyline discharger) | 14.2 m (3-rope version with skyline discharger) | 11.0 m (3-rope version with skyline discharger) | KM: 12.0 m · KR: 11.5 m when supported (11.3 m when not) | 11 m | 11 m |
| Tilt angle | ±6.5° | ±6.5° | ±6.5° | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Control system | KTC 1.0 | KTC 1.0 | KTC 1.0 | KTC 1.0 | KTC 1.0 | –Not on this model | –Not on this model |
| Radio remote control | KFS-16, KFS-20 | KFS-16, KFS-20 | KFS-16, KFS-20 | KFS-16, KFS-20 | KFS-16, KFS-20 | –Not on this model | –Not on this model |
| Harvester heads | Konrad Woody WH50-1 or WH60-1 | Konrad Woody WH50-1 or WH60-1 | Konrad Woody W52, WH50-1 or WH60-1 | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Chassis | –Not on this model | –Not on this model | –Not on this model | Tandem trailer | KM: Tandem trailer · KR: Tracked undercarriage, radio-controlled | –Not on this model | –Not on this model |
| Travel drive | –Not on this model | –Not on this model | –Not on this model | Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control (optional) | KM: Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control · KR: Tracked undercarriage, radio-controlled, 0–4 km/h | –Not on this model | –Not on this model |
| Tandem axle | –Not on this model | –Not on this model | –Not on this model | Air brakes, mechanical parking brake, design speed 40 km/h (up to 80 km/h in a special version) | KM: Air brakes, mechanical parking brake, maximum permitted speed 40 km/h (80 km/h possible with the appropriate type approval) | –Not on this model | –Not on this model |
| Tyres | –Not on this model | –Not on this model | –Not on this model | 445/45 R19.5 | KM: 445/45 R19.5 | –Not on this model | –Not on this model |
| Carrier | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | Tracked excavator, 16–24 t | Tracked excavator, 16–24 t |
| Cable crane control | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | Konrad KFS 16 | Konrad KFS 16 |
Cable crane
| Specification | Mounty 3000 | Mounty 4000 | Mounty 5000 | KM/KR40-3 | KM/KR50-1 | Combi Yarder 2500 | Combi Yarder 3500 |
|---|---|---|---|---|---|---|---|
| Skyline winch |
| 22 mm, 800 m (standard and long-rope); 120 kN | 22 mm, 800 m (standard and long-rope); 120 kN | 22 mm, 1,000 m; 120 kN | 22 mm, 1,000 m; 120 kN | –Not on this model | –Not on this model |
| Main line winch |
|
|
| 12 mm, 1,000 m; 40 kN; rope speed 4–9 m/s | 12 mm, 1,000 m; 45 kN | –Not on this model | –Not on this model |
| Guy line winch |
|
|
| –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Straw line winch (optional) |
|
|
| 8 mm, 2,000 m; 20 kN | 7 mm, 1,600 m; 18 kN | –Not on this model | –Not on this model |
| Haul-back winch (optional) |
|
|
| 8 mm, 2,000 m; 35 kN; rope speed 4–9 m/s | 11 mm, 2,000 m; 40 kN | –Not on this model | –Not on this model |
| Guy line winches | –Not on this model | –Not on this model | –Not on this model | 6 × 18 mm, 70 m; 9 kN | 18 mm, 70 m; 9 kN | –Not on this model | –Not on this model |
| Skyline | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | 18 mm, 500 m | 20 mm, 500 m |
| Skyline tension | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | 80 kN | 100 kN |
| Main line | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | 10 mm, 500 m | 11 mm, 500 m |
| Main line pull | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | 25 kN | 35 kN |
| Anchor ropes | –Not on this model | –Not on this model | –Not on this model | –Not on this model | –Not on this model | 4 × 16 mm, 70 m | 4 × 18 mm, 70 m |
Crane
| Specification | Mounty 3000 | Mounty 4000 | Mounty 5000 | KM/KR40-3 | KM/KR50-1 | Combi Yarder 2500 | Combi Yarder 3500 |
|---|---|---|---|---|---|---|---|
| Crane | MT22 | MT24 | MT24 | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Lifting torque | 200 kNm | 220 kNm | 220 kNm | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Slewing torque | 40 kNm | 40 kNm | 40 kNm | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Slewing range | 350° | 350° | 350° | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Reach | 9.6 m | 9.9 m | 9.9 m | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
Hydraulics
| Specification | Mounty 3000 | Mounty 4000 | Mounty 5000 | KM/KR40-3 | KM/KR50-1 | Combi Yarder 2500 | Combi Yarder 3500 |
|---|---|---|---|---|---|---|---|
| Cable crane pumps | Axial piston pumps, closed circuit, max. 460 bar | Axial piston pumps, closed circuit, max. 460 bar | Axial piston pumps, closed circuit, max. 460 bar | Axial piston pumps, closed circuit, max. 460 bar | Axial piston pumps, closed circuit, max. 460 bar | –Not on this model | –Not on this model |
| Working pump | Axial piston pump, open circuit, max. 350 bar | Axial piston pump, open circuit, max. 350 bar | Axial piston pump, open circuit, max. 350 bar | –Not on this model | –Not on this model | –Not on this model | –Not on this model |
| Power take-off pump | Axial piston pump, open circuit, max. 100 bar | Axial piston pump, open circuit, max. 100 bar | Axial piston pump, open circuit, max. 100 bar | Axial piston pump, open circuit, max. 280 bar | Axial piston pump, open circuit, max. 280 bar | –Not on this model | –Not on this model |
| Hydraulic oil tank | 400 l | 400 l | 400 l | 160 l | KM: 240 l · KR: 160 l | –Not on this model | –Not on this model |
Engine
| Specification | Mounty 3000 | Mounty 4000 | Mounty 5000 | KM/KR40-3 | KM/KR50-1 | Combi Yarder 2500 | Combi Yarder 3500 |
|---|---|---|---|---|---|---|---|
| Engine | –Not on this model | –Not on this model | –Not on this model | Water-cooled FPT 6-cylinder turbo diesel, EU Stage V | Water-cooled FPT 6-cylinder turbo diesel, EU Stage V | –Not on this model | –Not on this model |
| Power | –Not on this model | –Not on this model | –Not on this model | 212 kW (288 PS) at 2,200 rpm | 212 kW (288 PS) at 2,200 rpm | –Not on this model | –Not on this model |
| Torque | –Not on this model | –Not on this model | –Not on this model | 1,160 Nm at 1,500 rpm | 1,160 Nm at 1,500 rpm | –Not on this model | –Not on this model |
| Displacement | –Not on this model | –Not on this model | –Not on this model | 6.7 litres | 6.7 litres | –Not on this model | –Not on this model |
| Diesel tank | –Not on this model | –Not on this model | –Not on this model | 170 l | 170 l | –Not on this model | –Not on this model |
