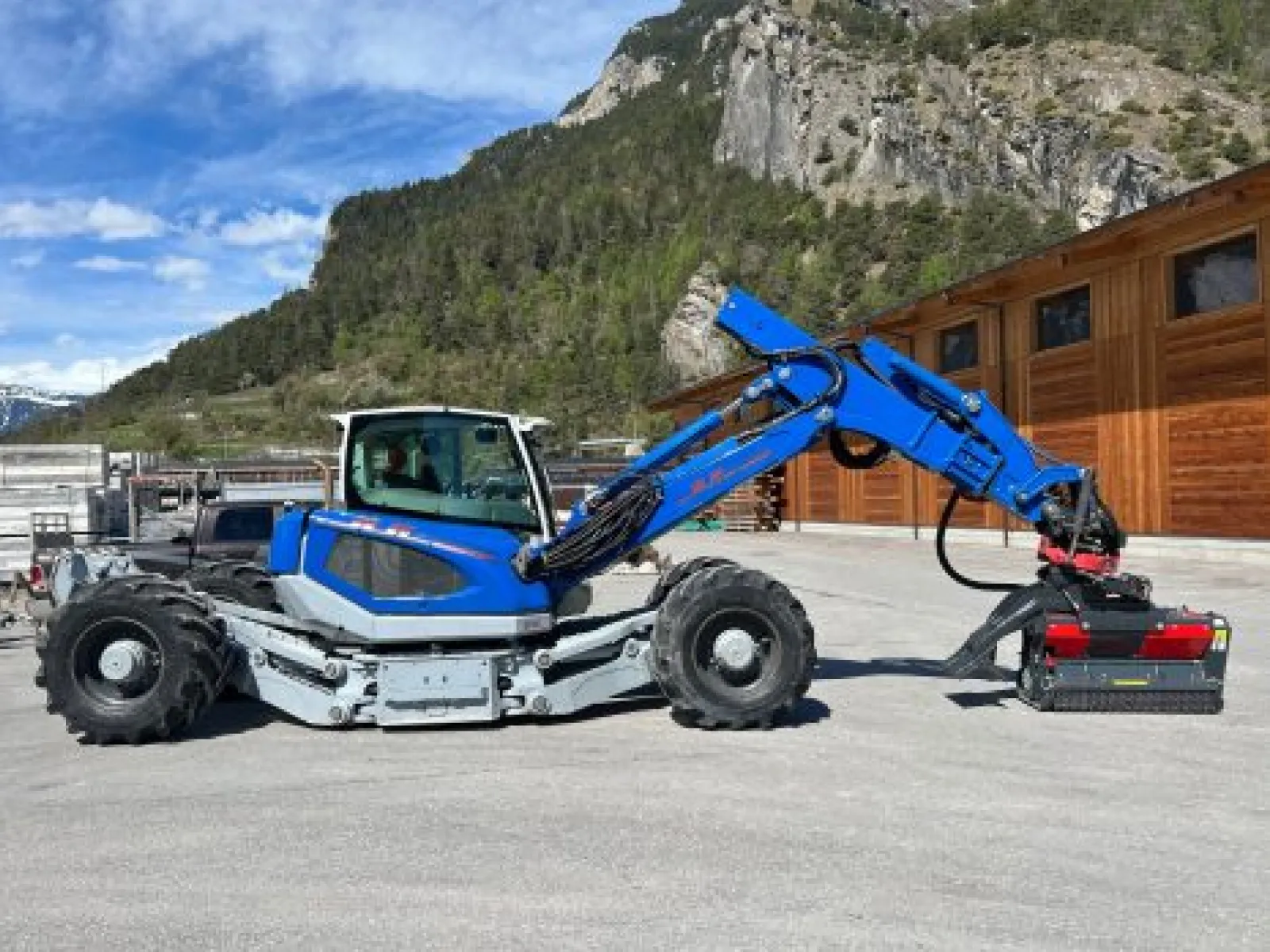

PTH Excavator Crusher EC-L 1400
10–25 tonnes
The PTH Excavator Crusher EC-L 1400 combines a stone crusher, stone cutter and forestry mulcher in one attachment for 10 to 25 tonne excavators, with a 1,400 mm working width and two hydraulic flaps, working in stone, mixed ground, wood and earth.
- Stone crusher, stone cutter and forestry mulcher in one attachment
- For 10–25 t excavators, from 120 l/min at 250–360 bar
- 1,400 mm working width, 1,590 mm total width, working depth up to 150 mm
- Carbide-tipped tools on an overlapping rotor, with a mechanically adjustable HARDOX crushing stage
- Hydraulically adjustable discharge and feed flaps
Technical data
| Excavator class | 10–25 t |
|---|---|
| Tools | 36 |
| Oil flow | From 120 l/min |
| Pressure | 250–360 bar |
| Drive | Single-sided, 6 high-performance V-belts |
| Dead weight | Approx. 720 kg |
| Working width | 1,400 mm |
| Total width | 1,590 mm |
| Working depth | Max. 150 mm |
| Crushing stage | HARDOX, mechanically adjustable |
Overview
The PTH Excavator Crusher EC-L 1400 is a stone crusher, stone cutter and forestry mulcher in one attachment for excavators of 10 to 25 tonnes, with a 1,400 mm working width. It works in hard ground such as stone, where forestry mulchers reach their limits, as well as in mixed soils, wood and earth.
The larger size
The EC-L is the larger of PTH’s two excavator crusher sizes, for excavators of 10 to 25 tonnes. It has a hydraulically adjustable feed flap as well as the discharge flap, and works to a depth of up to 150 mm. This is the 1,400 mm working width, the widest; the EC-L 1150 is the 1,150 mm one, and the EC-M 1150 suits smaller excavators of 5 to 14 tonnes.
Construction

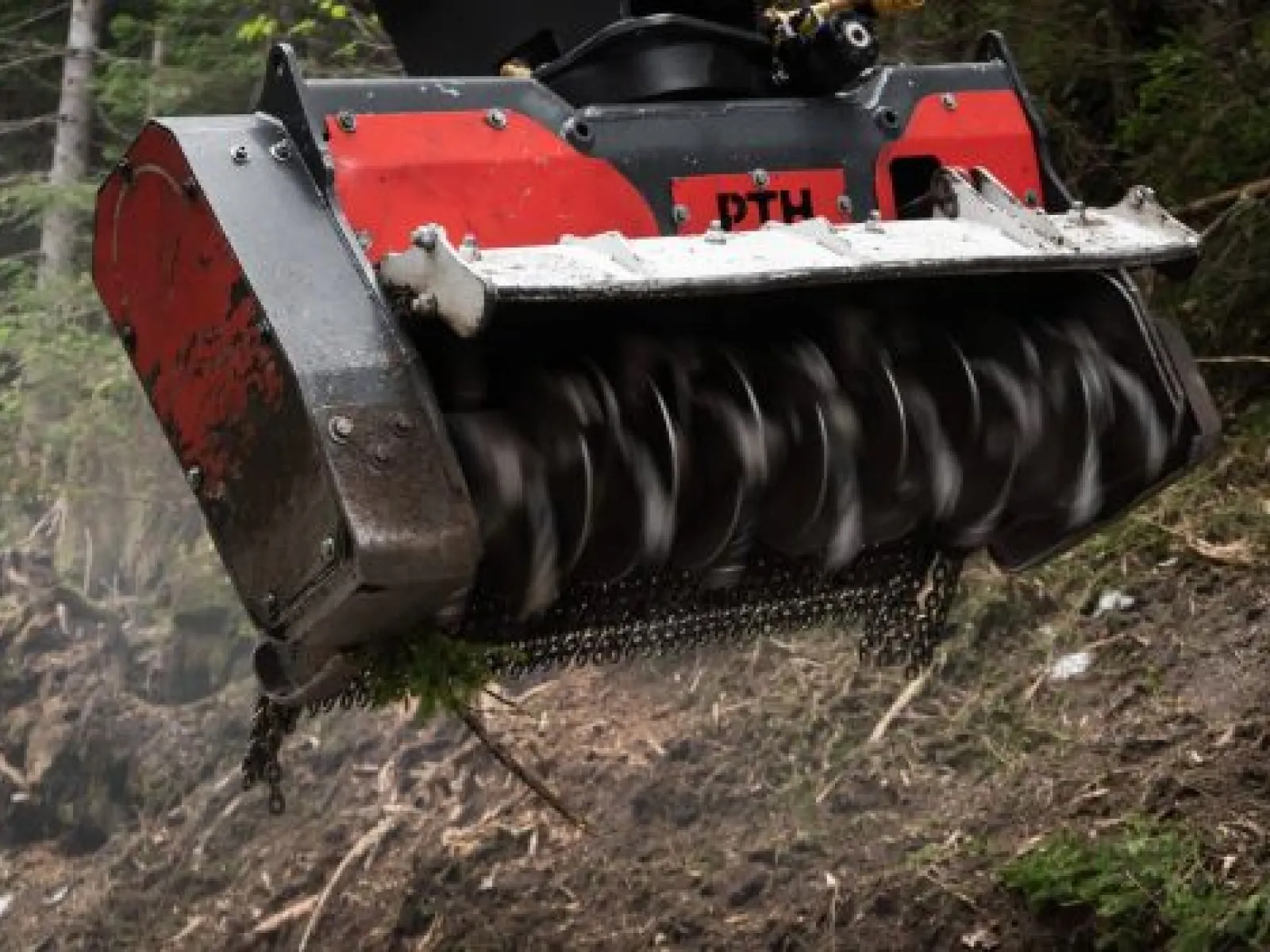

The EC-L 1400 carries carbide-tipped stationary tools on a rotor with an overlapping tool arrangement, inside replaceable 10 mm HARDOX armour, with a mechanically adjustable HARDOX crushing stage. The tool holders wear little, and the machine can be set up as a forestry mulcher, a stone crusher or a universal version. A single-sided drive with six high-performance V-belts turns the rotor.
Where it is used
- Verge and embankment maintenance, and bank rehabilitation.
- Road, path and track construction.
- Land reclamation, and preparing material directly on site.
- Construction sites.
- Forestry.
Fitting it to the excavator
An adapter plate fits it to the excavator’s quick coupler, or to a wheel loader. The EC-L 1400 needs at least 120 l/min of oil at 250 to 360 bar, which has to match the excavator’s hydraulics, so check both before you order: call us or use the form below.
Options
- Adapter plate for an excavator or wheel loader
- Raised sliding shoe
- Hydraulic control block with three functions
- Rotary rotator and/or a Powertilt plate
- Support roller for height control or re-compaction
- A special RAL paint finish
- Capable of PTH Tronic MIC 4.0
Quick answers
Which excavators does it suit? Excavators of 10 to 25 tonnes. Call us with the make and model of your excavator to check it suits.
Can I buy the PTH Excavator Crusher EC-L 1400 in the UK? Yes. Exc@v8 supplies PTH’s range in the UK. Use the form below or call us for pricing and availability.
