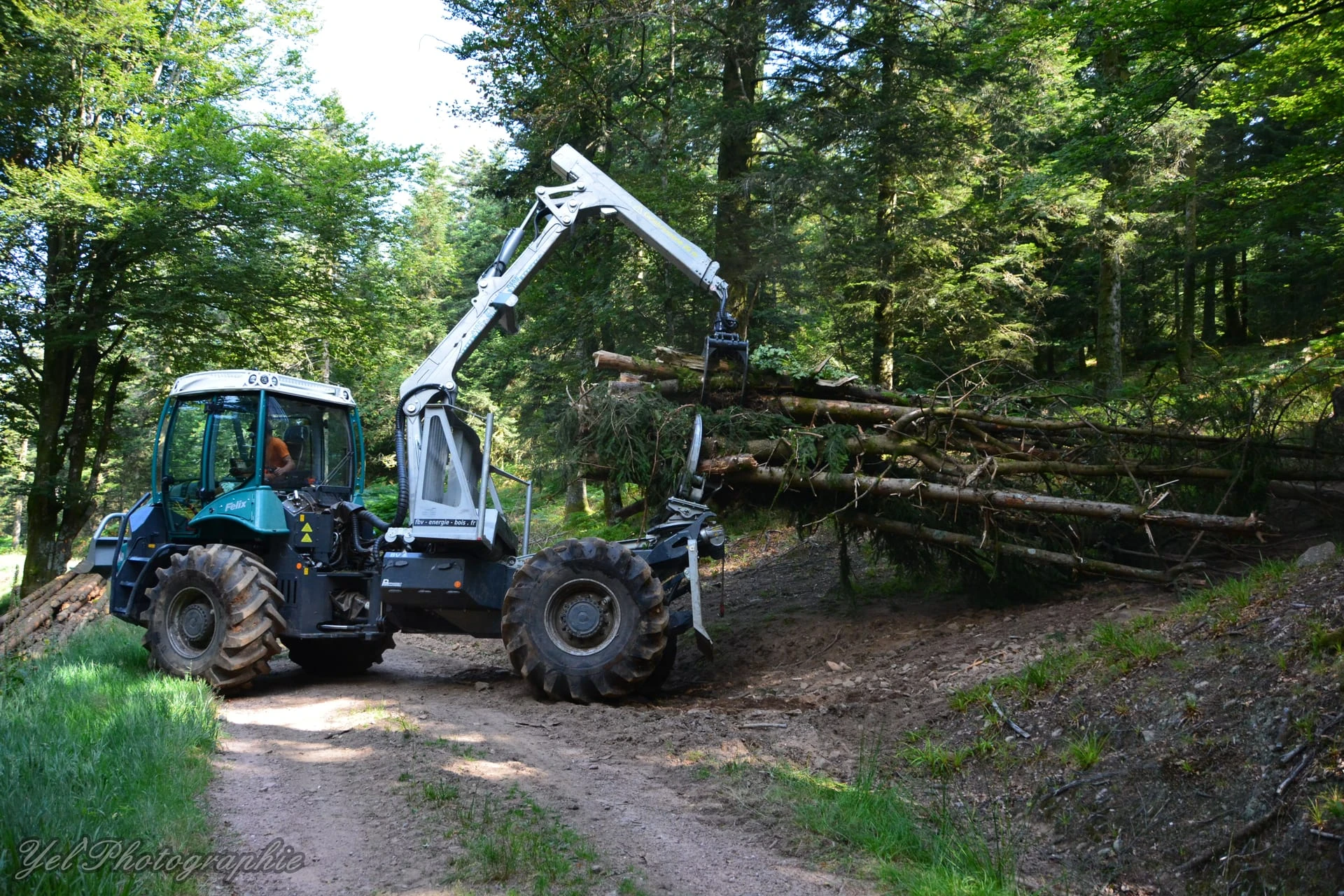

Pfanzelt Felix Specialist Forestry Tractor
The Pfanzelt Felix is a specialist forestry tractor that works as a skidder, forwarder, clam-bunk machine or combined machine, in two versions: the four-wheel 208.5 and the six-wheel 214.5, both with Pfanzelt's hydra2POWER drive and a rotating XXL cab.
hydra2POWER drive
Pfanzelt's own hydrostatic drive, with one drive unit per axle and no Cardan shaft, and permanent all-wheel drive with a hydraulic longitudinal differential.
Read more
Pfanzelt's own hydrostatic drive, with one drive unit per axle and no Cardan shaft, and permanent all-wheel drive with a hydraulic longitudinal differential.
Built around the rear section
A fine-grain steel box frame with a central spar carries the cable winches, crane and clam bunk or stanchion basket, with a 1,200 mm telescopic central spar on the V configuration.
Read more
A fine-grain steel box frame with a central spar carries the cable winches, crane and clam bunk or stanchion basket, with a 1,200 mm telescopic central spar on the V configuration.
XXL cab
An air-suspended cab with over 7 m² of glass, and an operator station that rotates electrically through 320° with all the controls on the seat.
Read more
An air-suspended cab with over 7 m² of glass, and an operator station that rotates electrically through 320° with all the controls on the seat.
Choose a model
Speak to us about theFelix 208.5 4WD
EnquirePfanzelt Felix 208.5 4WD

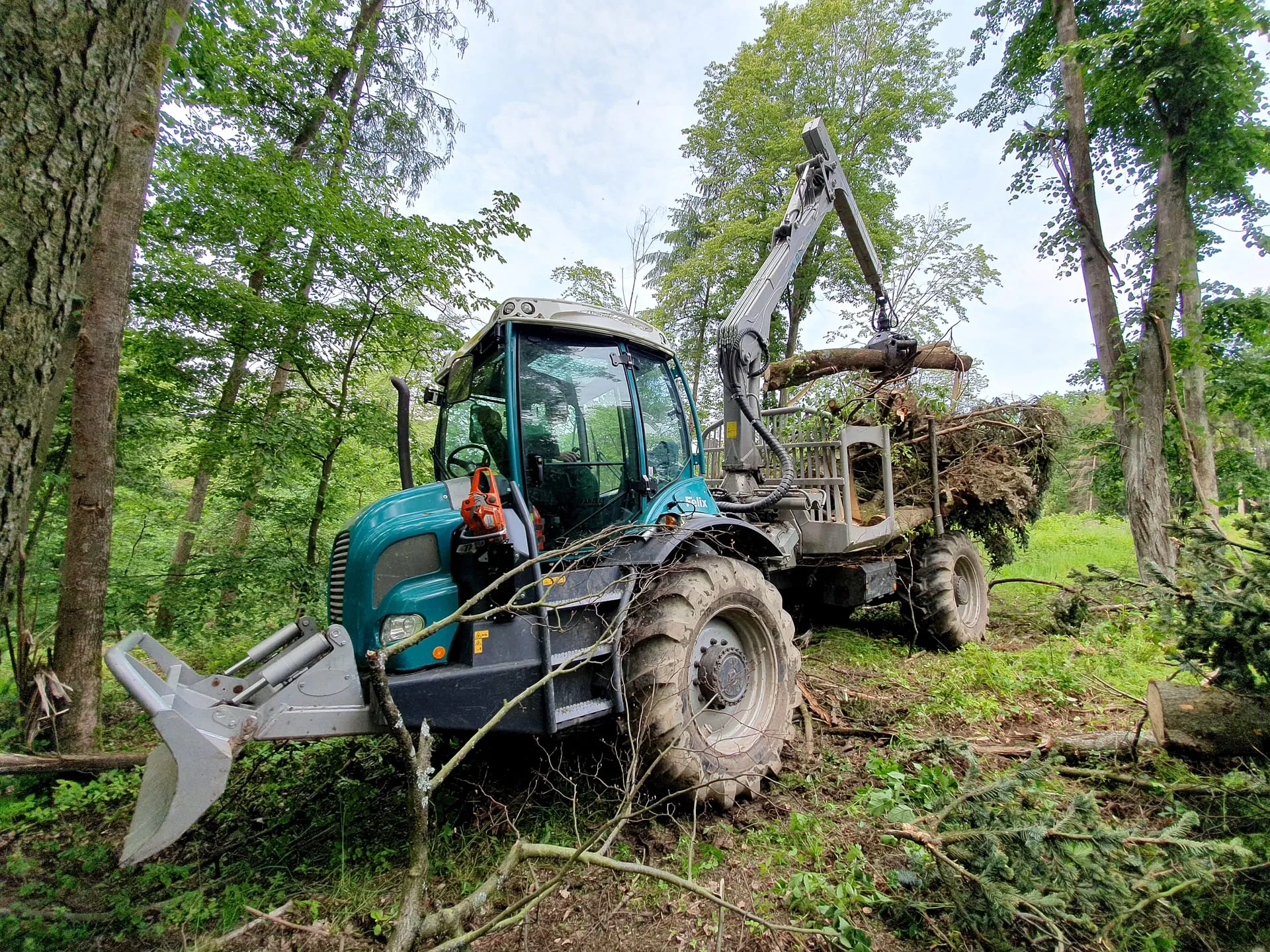

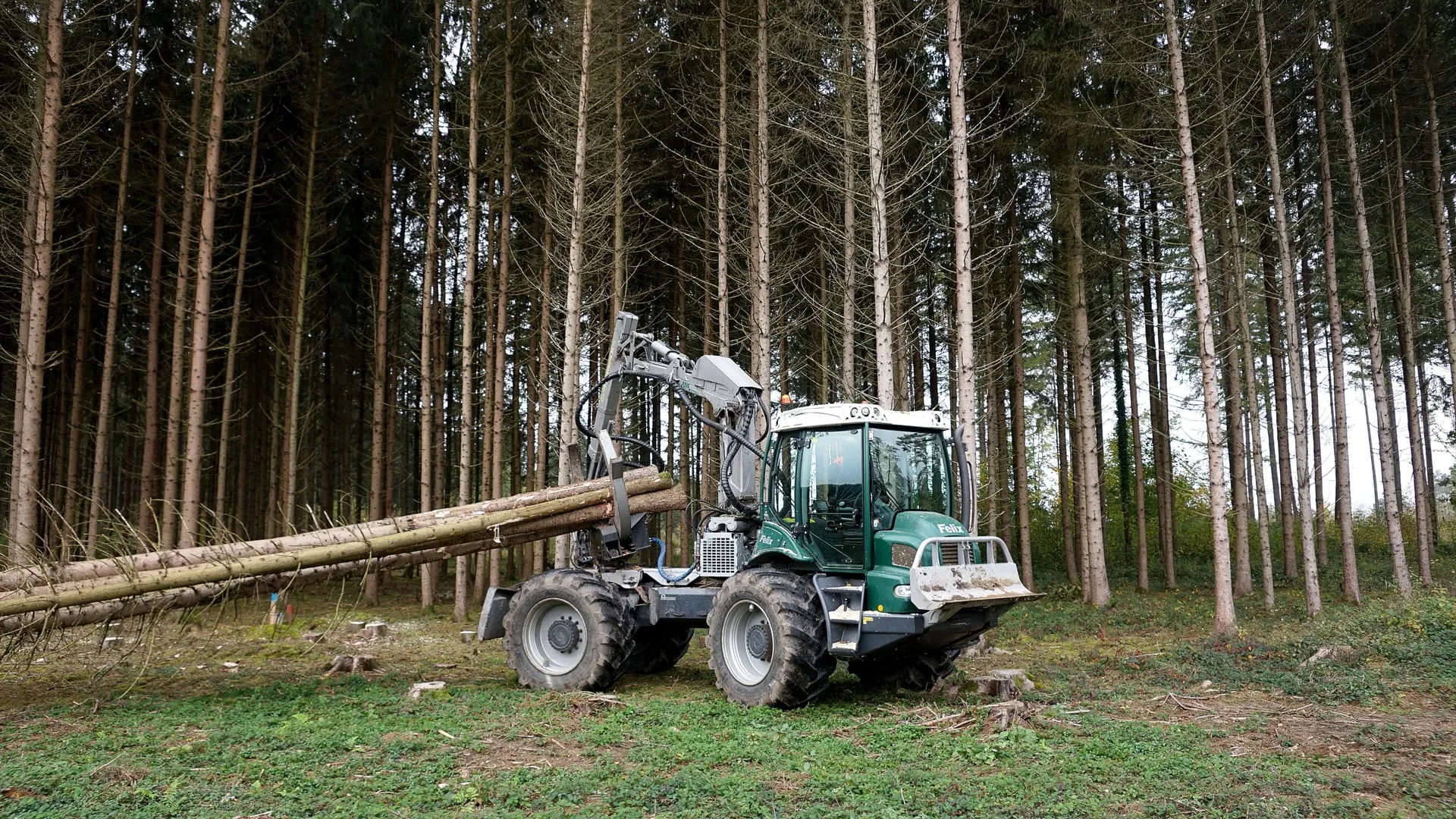

The four-wheel Felix, built for long timber, working as a skidder, forwarder, clam-bunk machine or combined machine, in three configurations (F, K and V).
- Drive
- 4WD
- Power
- 133 or 174 kW
- Permitted weight
- 18.0 t
- Configurations
- F, K or V
Pfanzelt Felix 214.5 6WD

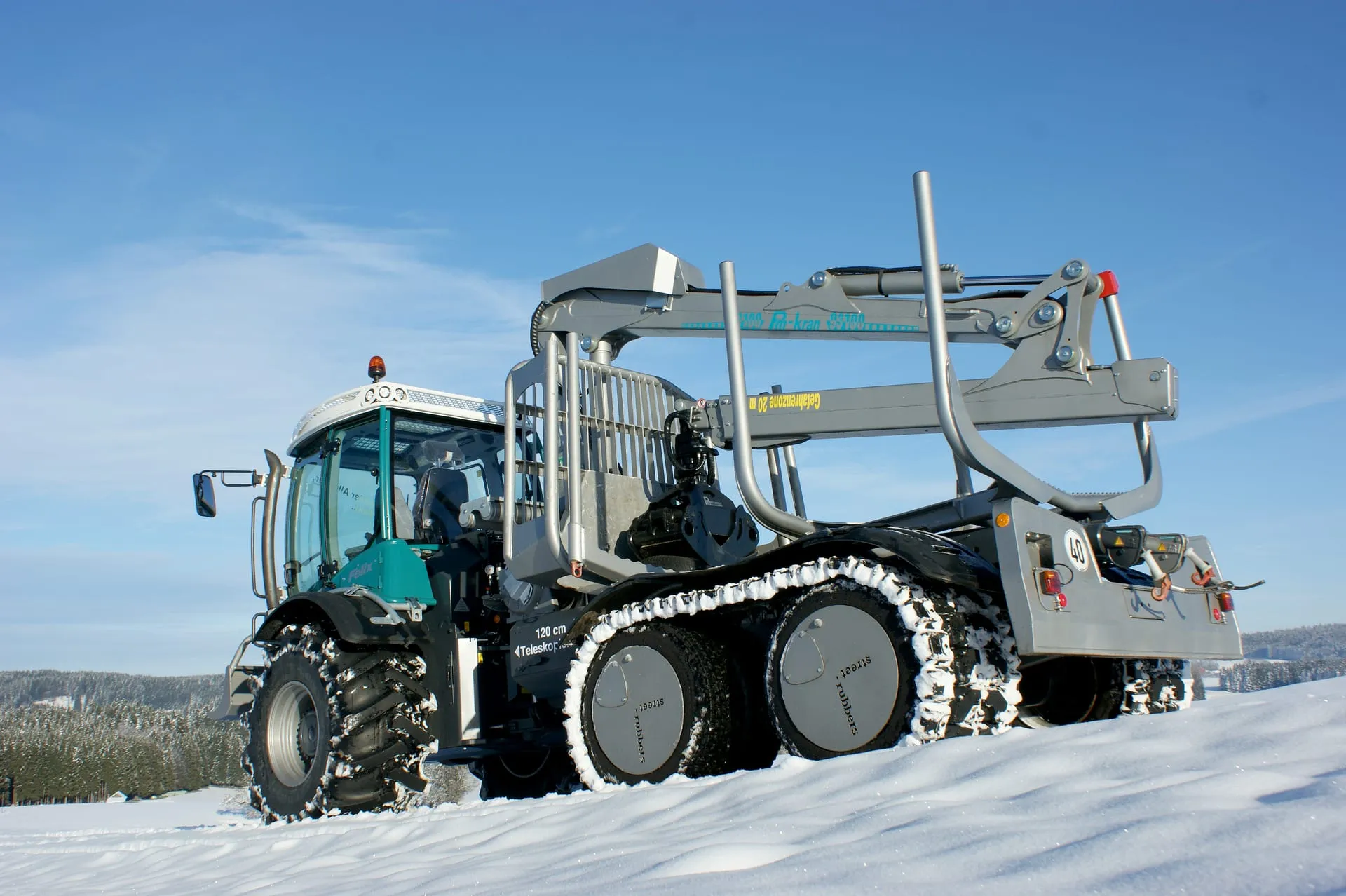

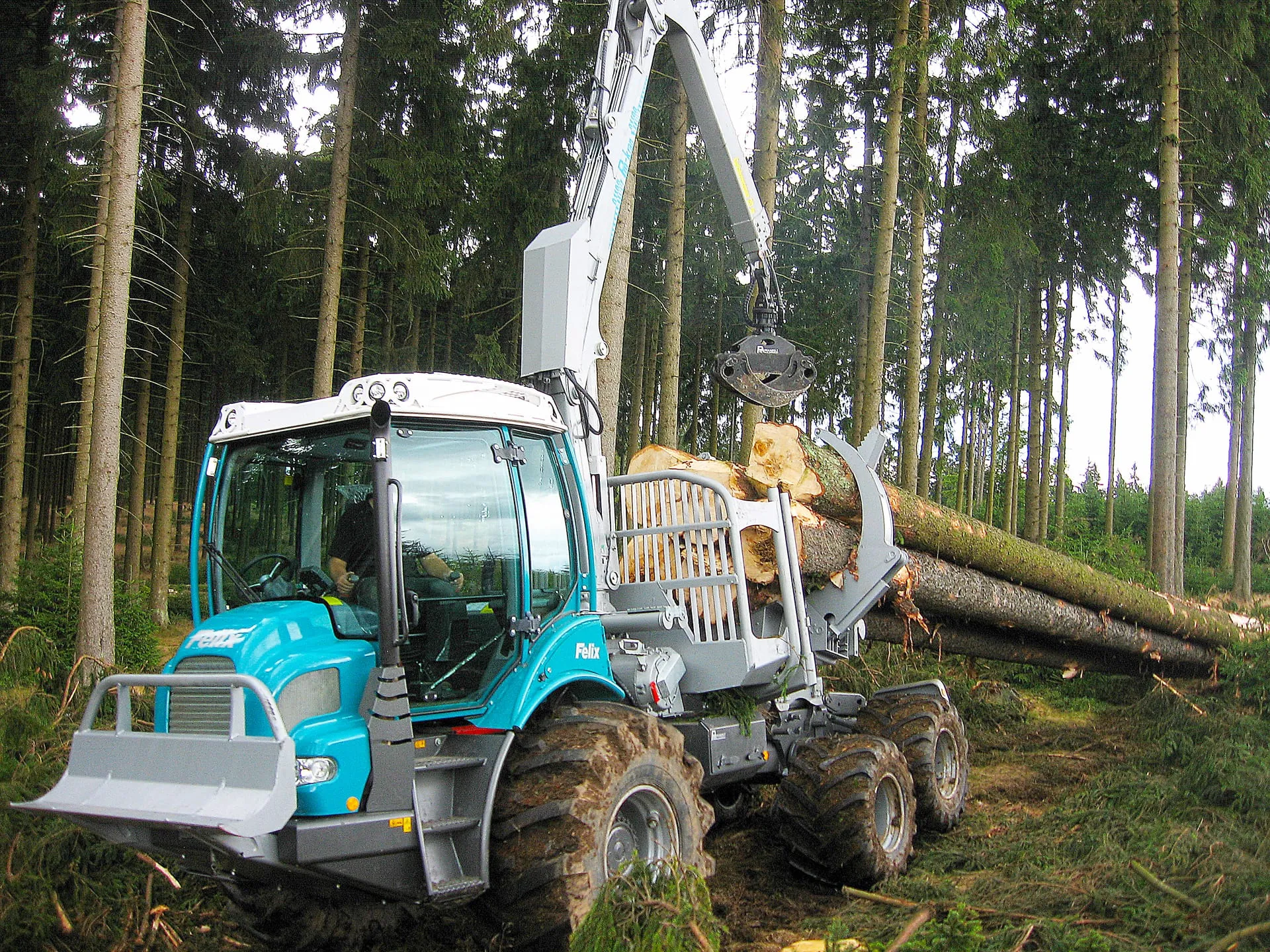

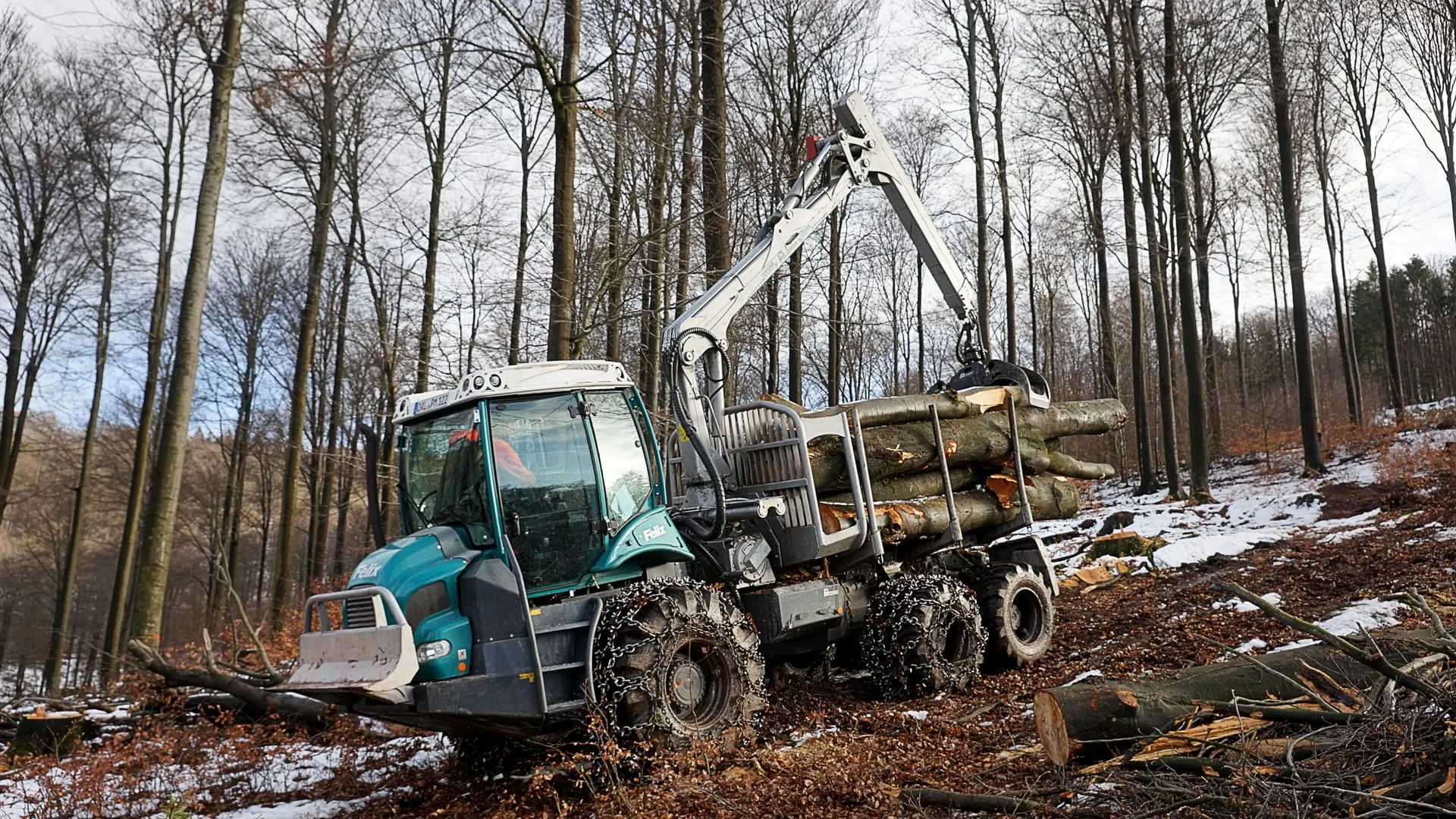

The six-wheel Felix, a combined machine for long and short timber: on the V configuration its rear section telescopes hydraulically by 1,200 mm, from a short chassis for long timber to a longer one with a stanchion basket for short logs, on a NAF tandem rear axle.
- Drive
- 6WD
- Power
- 133 or 174 kW
- Permitted weight
- 20.4 t
- Configurations
- K or V
Compare the models
Only what differs. Everything else is the same on all 2 models.
Key figures
| Specification | Felix 208.5 4WD | Felix 214.5 6WD |
|---|---|---|
| Drive | 4WD | 6WD |
| Permitted weight | 18.0 t | 20.4 t |
| Configurations | F, K or V | K or V |
Drive
| Specification | Felix 208.5 4WD | Felix 214.5 6WD |
|---|---|---|
| Axles |
|
|
Rear section
| Specification | Felix 208.5 4WD | Felix 214.5 6WD |
|---|---|---|
| Loading bed |
|
|
Tyres and weight
| Specification | Felix 208.5 4WD | Felix 214.5 6WD |
|---|---|---|
| Tyres (options) | 600/65-34″, 620/75-26″ or 710/55-34″ |
|
| Dead weight / permitted max. weight | According to equipment / 18.0 t (40 km/h) | According to equipment / 20.4 t (40 km/h) |
Rear section and configurations
The Felix’s cab sits right at the front, which gives a clear view over the short bonnet and a good approach angle onto the trail, and leaves the rear section free for the cable winches, crane and clam bunk or stanchion basket, so heavy timber in the crane or clam bunk does not tip the machine and the weight is well distributed on rough ground. On the V configuration, the telescopic central spar lengthens the rear section hydraulically by 1,200 mm, from a short chassis for long timber to a longer one for short logs, and Pfanzelt’s quick-change system converts the stanchion cage to a clam bunk without tools. The 208.5 comes in three configurations (F, K and V), the 214.5 in two (K and V); the loading bed row in the technical data shows how they differ.
hydra2POWER drive
Pfanzelt’s own hydra2POWER traction drive has two hydraulic pumps and motors, one drive unit per axle, with no Cardan shaft. Permanent all-wheel drive with a hydraulic longitudinal differential gives full traction, and because the front and rear do not lock against each other when chains or tracks are fitted to one axle only, tyre wear and fuel use stay low. The 45° wide-angle hydraulic motors run efficiently, and the electronic control sets the driving characteristics for on- and off-road work, so the machine can be manoeuvred precisely on steep slopes with the accelerator alone.
Combined steering
The Felix combines articulated steering with stub-axle steering on the rear section. On the road, the steering wheel operates the articulated steering only; in the forest, the combined steering is used, including a parallel (crab) mode that drives the machine sideways out of a ditch and spreads the load on wet ground.
Working on slopes
The roller block is hydraulically height-adjustable for working on steep slopes, with guide tubes protecting the winch cables up to the infeed roller. On the 208.5, the stanchion basket can optionally be tilted sideways to shift the centre of gravity when driving across a slope.
XXL cab and service

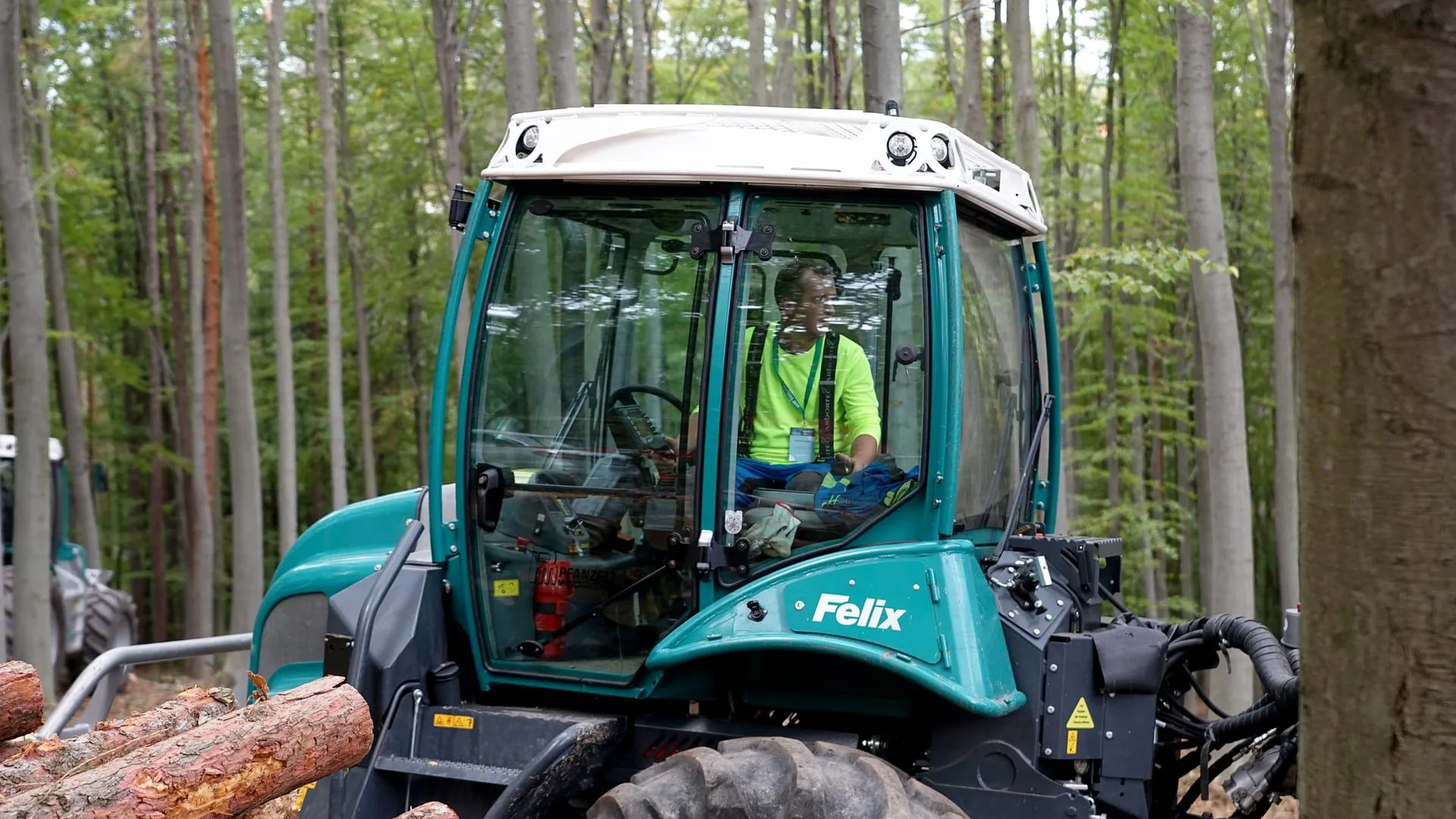

The air-suspended XXL cab has over 7 m² of glass, an operator station that rotates electrically through 320° with all controls on the seat, a fold-away steering column, a separate terminal for road travel and an optional passenger seat. The engine, transmission and main hydraulics sit under the cab, with service openings that need no tools. The Felix travels between sites on the road at up to 40 km/h.
Exc@v8 supplies and supports Pfanzelt forestry machinery in the UK.
Technical data: Pfanzelt Felix 208.5 4WD
Engine
- Engine
- Deutz TCD 6.1 Stage V, 6 cylinders, 6,057 cm³
- Power
- 133 kW (180 hp) or 174 kW (236 hp), at 2,100 rpm (ISO 14396)
- Torque
- 818 Nm at 1,500 rpm or 1,072 Nm at 1,500 rpm
- Exhaust treatment
- SCR catalyst
- Fuel tank
- 220 l
Drive
- Transmission
- Pfanzelt hydra2POWER: Hydrostatic infinitely adjustable traction drive, 2 pumps with dual motor technology (each axle one unit), drive without Cardan shaft, hydraulic motors with wide angle technology up to 45 degrees, max. traction force approx. 142 kN at diesel engine speed of 1,600 rpm, hydrostatic direction reversal, reversing circuit (forward / reverse ), driving speed from 0–39 km/h, hydraulic spring accumulator, parking brake
- All-wheel drive
- Permanent all-wheel drive with hydraulic longitudinal differential
- Electrohydraulic locking for front and rear axle
- Axles
- Front axle (rigid planetary axis) Kessler, load capacity 29 t
- Rear axle (planetary axle with stub axle) Kessler, load capacity 29 t
- Steering
- Hydrostatic steering with separate oil circuit, adjustable steering column height and inclination, steering columns folds away during forestry operations, combined steering function consisting of articulated and stub axle steering in the rear section, separately operated under field conditions via joystick, for driving on public roads via steering wheel (articulated steering only), rear steering in this case locked
Rear section
- Frame
- Rear section frame made of fine grain steel, box structure, central spar
- Telescopic central spar
- 1,200 mm, on the V configuration only
- Loading bed
- F: 4,440 mm long, 2,070 mm wide, 3.2 m² loading cross-section
- K: no loading bed (without head frame)
- V: 3,240 or 4,440 mm long, 2,070 mm wide, 3.2 m² loading cross-section
Hydraulics and electronics
- Hydraulics
- Pressure- & volume controlled axial piston pump with load-sensing function, performance: 200 l at 215 bar, control valves: Electrically proportionally controlled valves, managed by electronically programmable control unit, joystick (Colt type), hydraulic tank 160 l
- Electronics
- Control panel, touchbutton control integrated in operator console, functions for crane settings, cable winch, differential, steering
Cab
- Cab
- Large-volume, air-suspended cab with all-round visibility (over 7 m² window area), two large roof windows at the rear and front, safety cab according to ISO standards (ROPS); rear window made of 12 mm mono-polycarbonate (regulation for use with cable winches)
- Operator seat
- Air-suspended rotary seat with seat heater; the complete control station can be rotated through 320° by an electric motor (Grammer Actimo XL); Joystick supports on both armrests
- Ventilation
- Heating with 3-stage blower, automatic air-conditioning
- Lighting
- 12 working floodlights integrated in cab roof
Tyres and weight
- Tyres (options)
- 600/65-34″, 620/75-26″ or 710/55-34″
- Dead weight / permitted max. weight
- According to equipment / 18.0 t (40 km/h)
Equipment
- Additional standard equipment
- Detachable mudguards, 2 large stowage bins with integrated pneumatically operated step; fire extinguisher integrated in the cab
Technical data: Pfanzelt Felix 214.5 6WD
Engine
- Engine
- Deutz TCD 6.1 Stage V, 6 cylinders, 6,057 cm³
- Power
- 133 kW (180 hp) or 174 kW (236 hp), at 2,100 rpm (ISO 14396)
- Torque
- 818 Nm at 1,500 rpm or 1,072 Nm at 1,500 rpm
- Exhaust treatment
- SCR catalyst
- Fuel tank
- 220 l
Drive
- Transmission
- Pfanzelt hydra2POWER: Hydrostatic infinitely adjustable traction drive, 2 pumps with dual motor technology (each axle one unit), drive without Cardan shaft, hydraulic motors with wide angle technology up to 45 degrees, max. traction force approx. 142 kN at diesel engine speed of 1,600 rpm, hydrostatic direction reversal, reversing circuit (forward / reverse ), driving speed from 0–39 km/h, hydraulic spring accumulator, parking brake
- All-wheel drive
- Permanent all-wheel drive with hydraulic longitudinal differential
- Electrohydraulic locking for front and rear axle
- Axles
- Front axle (rigid planetary axle) Kessler, load capacity 29 t
- Rear axle (rigid planetary axle) NAF tandem axle
- Steering
- Hydrostatic steering with separate oil circuit, adjustable steering column height and inclination, steering columns folds away during forestry operations, combined steering function consisting of articulated and stub axle steering in the rear section, separately operated under field conditions via joystick, for driving on public roads via steering wheel (articulated steering only), rear steering in this case locked
Rear section
- Frame
- Rear section frame made of fine grain steel, box structure, central spar
- Telescopic central spar
- 1,200 mm, on the V configuration only
- Loading bed
- K: no loading bed (without head frame)
- V: 3,240 or 4,440 mm long, 2,070 mm wide, 3.2 m² loading cross-section
Hydraulics and electronics
- Hydraulics
- Pressure- & volume controlled axial piston pump with load-sensing function, performance: 200 l at 215 bar, control valves: Electrically proportionally controlled valves, managed by electronically programmable control unit, joystick (Colt type), hydraulic tank 160 l
- Electronics
- Control panel, touchbutton control integrated in operator console, functions for crane settings, cable winch, differential, steering
Cab
- Cab
- Large-volume, air-suspended cab with all-round visibility (over 7 m² window area), two large roof windows at the rear and front, safety cab according to ISO standards (ROPS); rear window made of 12 mm mono-polycarbonate (regulation for use with cable winches)
- Operator seat
- Air-suspended rotary seat with seat heater; the complete control station can be rotated through 320° by an electric motor (Grammer Actimo XL); Joystick supports on both armrests
- Ventilation
- Heating with 3-stage blower, automatic air-conditioning
- Lighting
- 12 working floodlights integrated in cab roof
Tyres and weight
- Tyres (options)
- Front 620/75-26″, rear 650/45-22.5″
- Front Nokian 28L-26″, rear 710/40-22.5″
- Dead weight / permitted max. weight
- According to equipment / 20.4 t (40 km/h)
Equipment
- Additional standard equipment
- Detachable mudguards, 2 large stowage bins with integrated pneumatically operated step; fire extinguisher integrated in the cab
