Pfanzelt Forestry Cranes
Pfanzelt's forestry and loading cranes for forwarding trailers, chippers and tractors, in five groups from 3-point linkage cranes to 10 m tractor cranes.

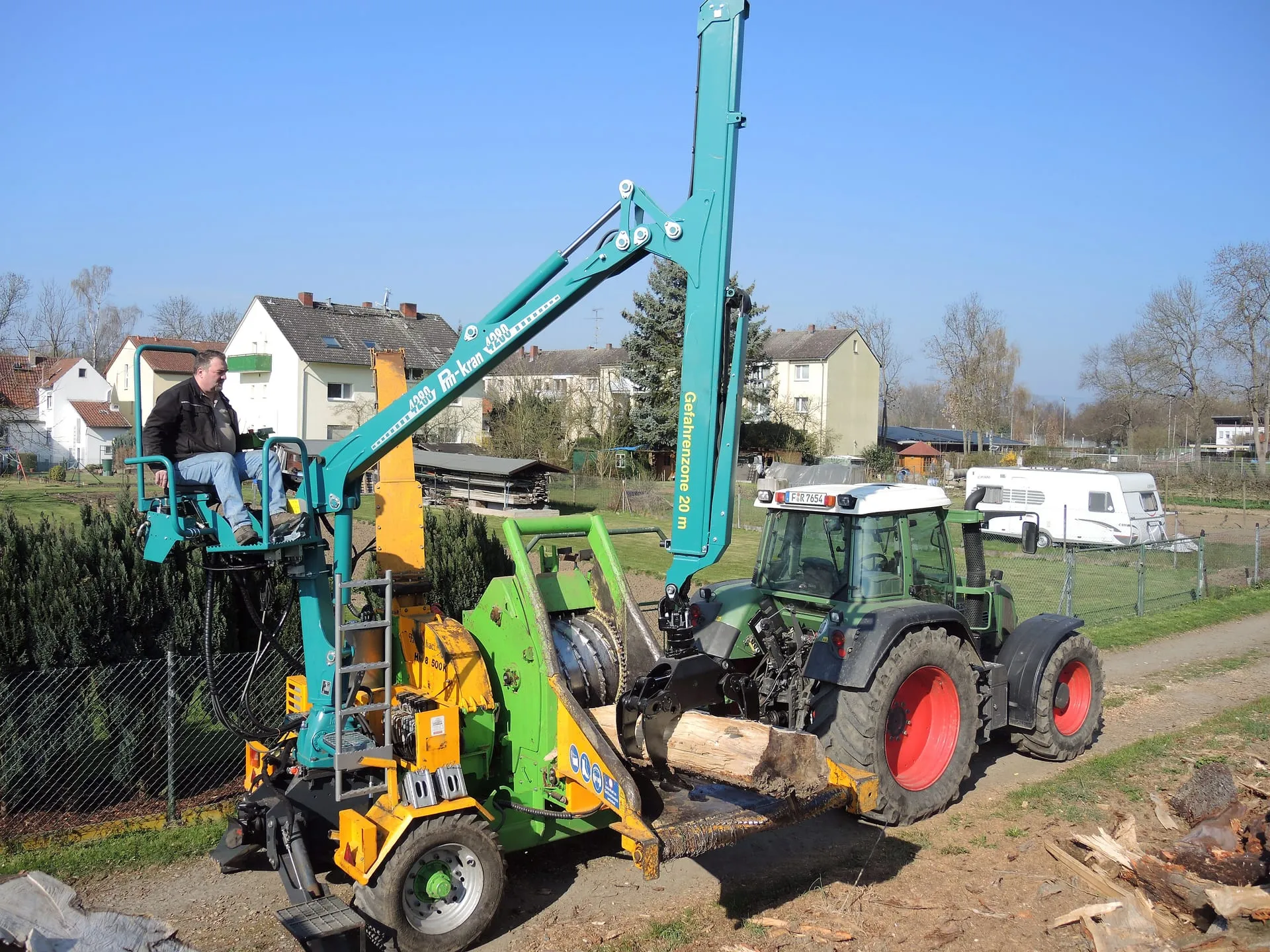

Pfanzelt Loading Cranes, Top-Mounted Boom Cylinder
- Ten sizes, 4167 to 61100
- 6,620 to 9,950 mm crane length
- 52 to 86 kNm gross lift moment
- Main boom cylinder on top, protected when handling timber
- Single or double telescope; 4.5 or 6.0 t infinite rotator

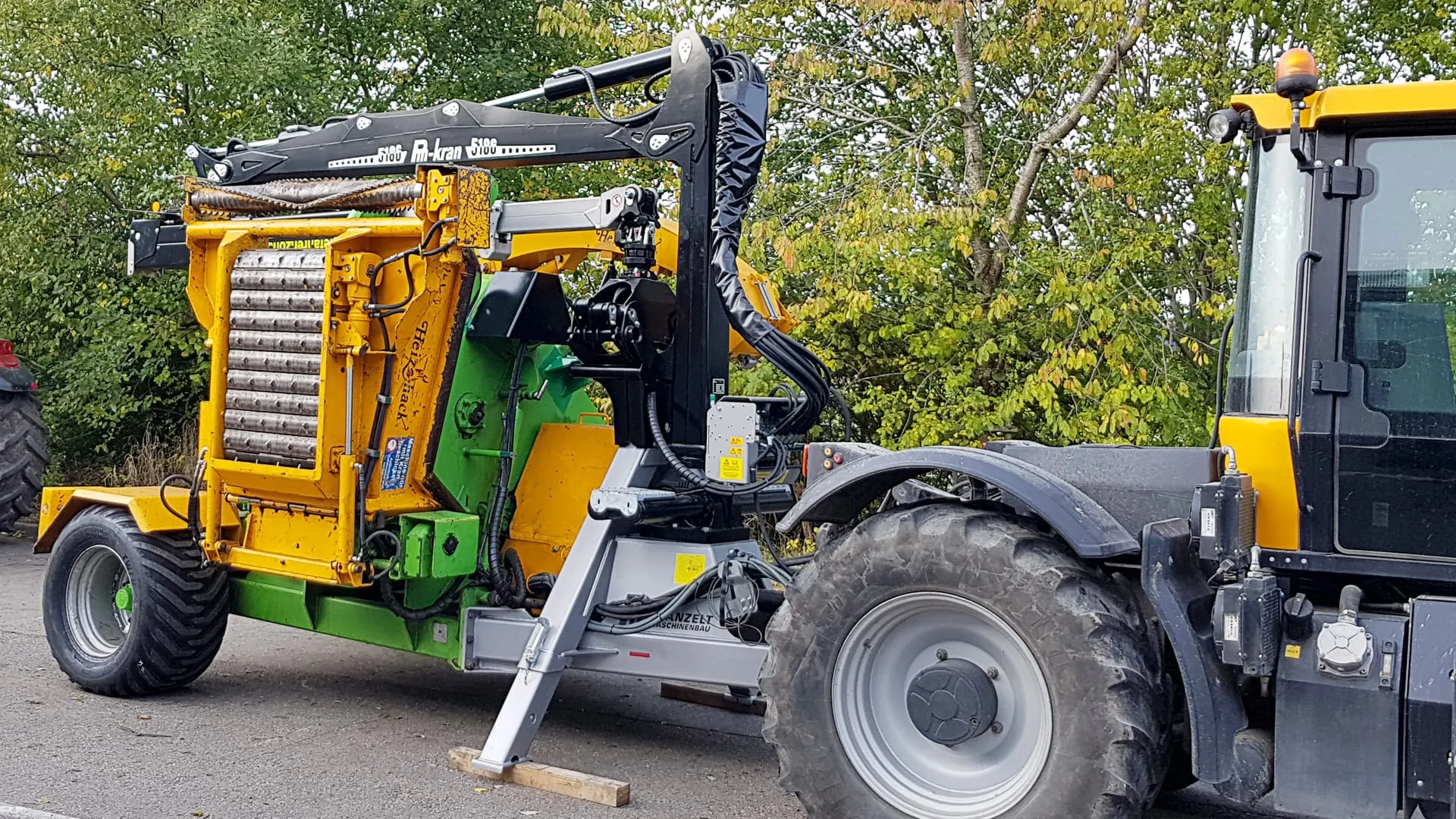

Pfanzelt Loading Cranes, Upright Boom Cylinder
- Eleven sizes, 4267 to 62100
- 6,370 to 9,800 mm crane length
- 56 to 79 kNm gross lift moment
- Upright main boom cylinder, protected by the fender grille
- Single or double telescope; 4.5 or 6.0 t infinite rotator

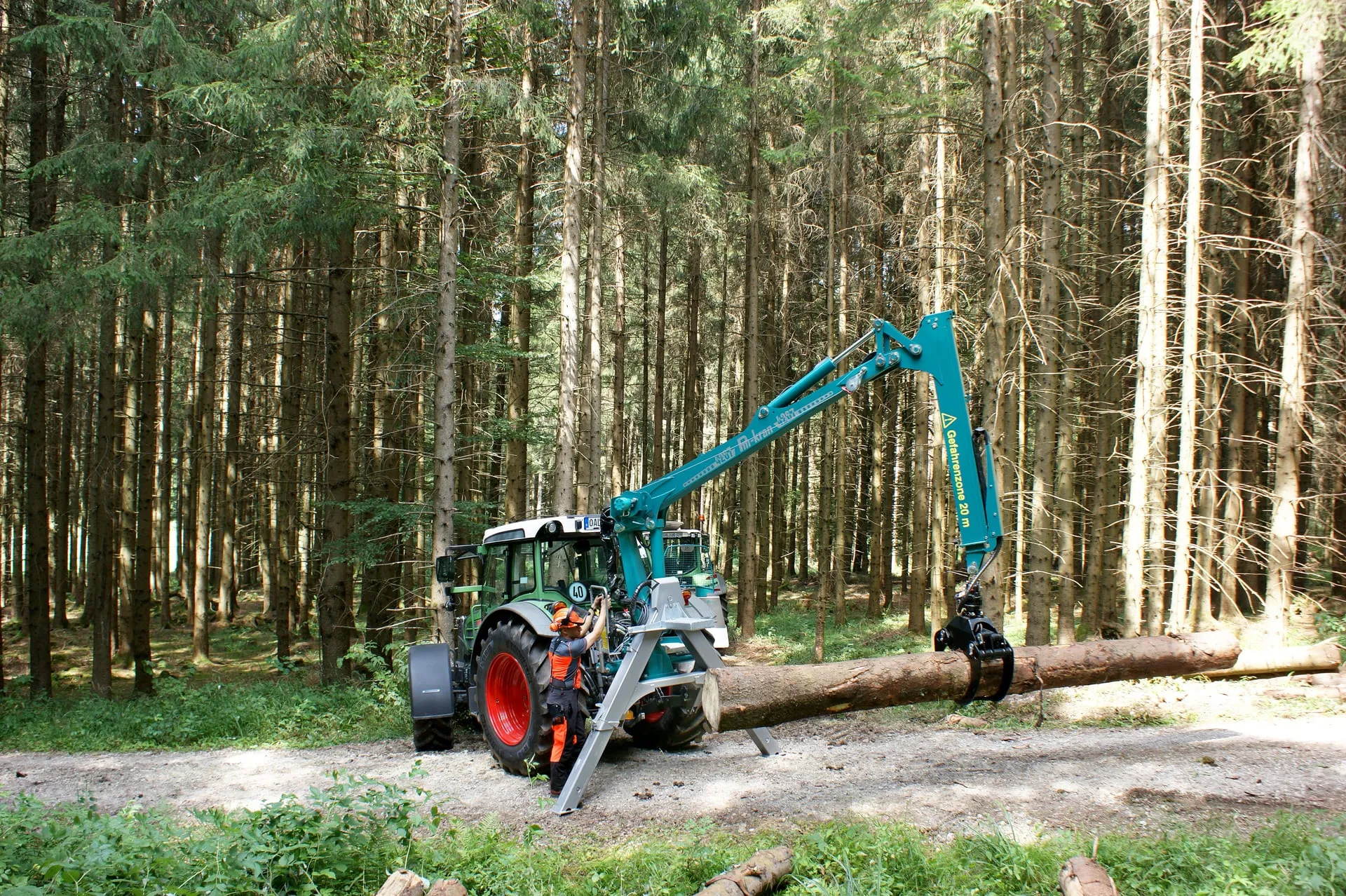

Pfanzelt 3-Point Linkage Cranes
- Three sizes: 4267, 4272 and 5280
- 6,370 to 7,800 mm reach
- 56 / 40.5 to 69 / 51 kNm gross / net lift moment
- Mounts on the 3-point hitch, with integrated stabilisers
- Pm230 gripper, 1,260 mm opening, 4.5 t rotator
Pfanzelt Tractor-Mounted Forestry Cranes
- Six sizes, 5153 to 71100
- 5,090 to 10,000 mm crane length
- Up to 106 / 70 kNm (112 / 70 kNm on the 71100)
- 6-way EHC control with two joysticks
- 6.0 or 10.0 t infinite rotator

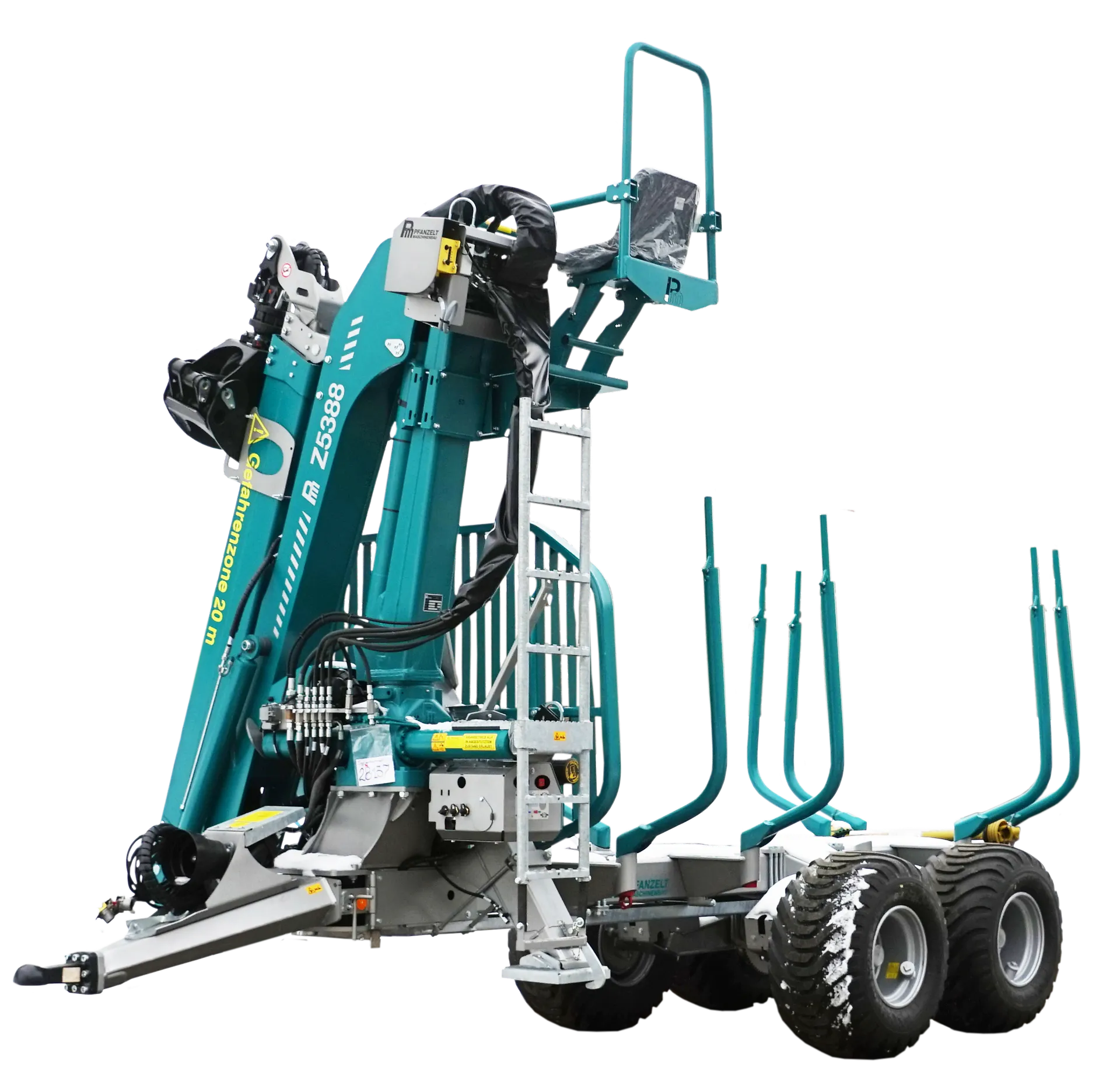

Pfanzelt Z-Cranes
- Three sizes, Z4359, Z5376 and Z5388
- 5,700 to 8,800 mm crane length
- 40.5 to 51 kNm net lift moment
- Offered on Pfanzelt Profi forwarding trailers
- 2 control toggles with 2 electrical functions
