Konrad Carriages
Konrad's carriages for cable crane systems: the diesel Liftliner LL40-2 with its own hoisting winch, and the electric E-Liner EL40-2.
Diesel or electric
The Liftliner LL40-2 has a 55 kW Hatz diesel engine and its own 40 kN hoisting winch. The E-Liner EL40-2 runs on capacitors that recharge as loads are hauled in.
Read more
The Liftliner LL40-2 has a 55 kW Hatz diesel engine and its own 40 kN hoisting winch. The E-Liner EL40-2 runs on capacitors that recharge as loads are hauled in.
18 to 22 mm skylines
Both carriages run on skylines of 18 to 22 mm and are radio-controlled on Konrad's KFS-16 or KFS-20 system.
Read more
Both carriages run on skylines of 18 to 22 mm and are radio-controlled on Konrad's KFS-16 or KFS-20 system.
Uphill and downhill
The E-Liner works uphill and downhill, and downhill the Konrad Mounty runs the Liftliner in the haul-back system.
Read more
The E-Liner works uphill and downhill, and downhill the Konrad Mounty runs the Liftliner in the haul-back system.

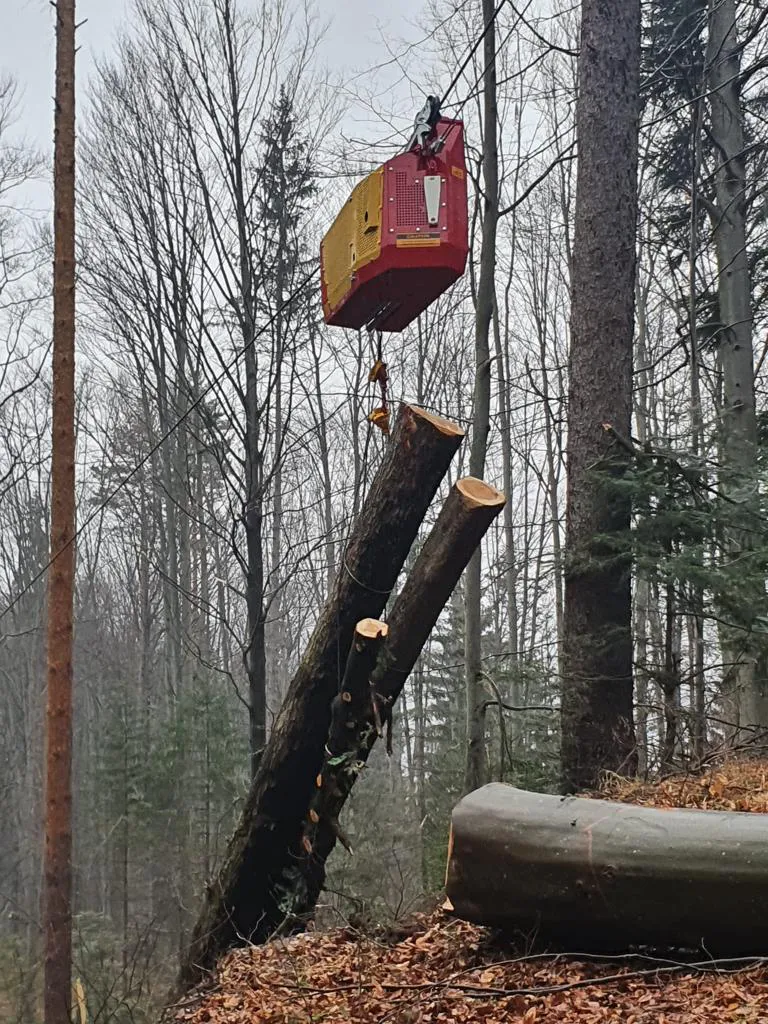

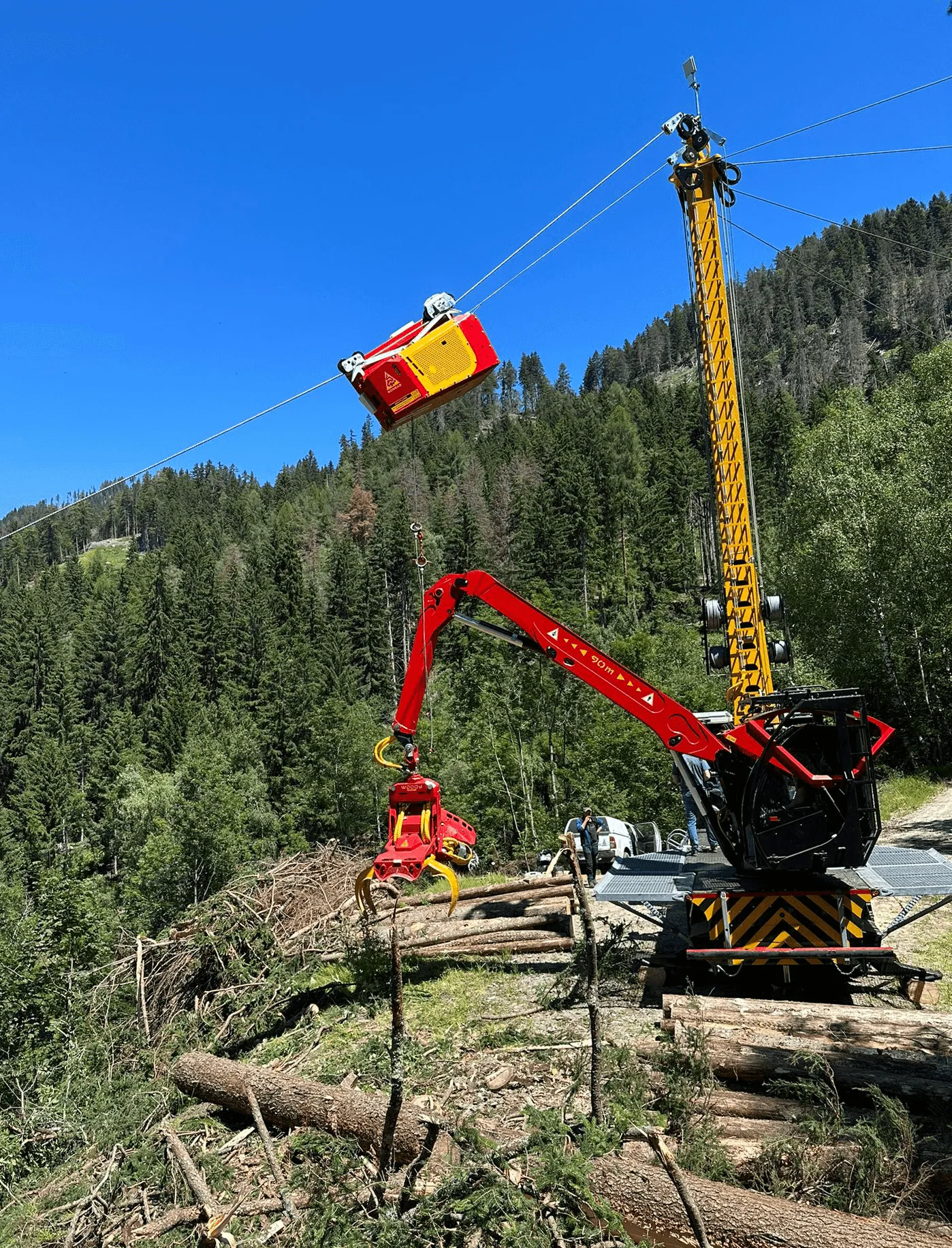

Konrad Liftliner LL40-2 Carriage
The Konrad Liftliner LL40-2 is a radio-controlled, diesel-powered carriage for cable crane systems, with its own 40 kN hoisting winch, so it can lift and lower loads while it travels along the skyline.
- Hatz 4-cylinder turbo diesel, 55 kW
- 40 kN hoisting winch with 100 m of 11 mm rope
- For skylines of 18–22 mm
- 1,050 kg with fluids, tank empty
- Radio-controlled, on KFS-16 or KFS-20
Technical data
Weight 1,050 kg, with operating fluids, diesel tank empty Skyline diameter 18–22 mm Operating voltage 12 V Radio remote control KFS-16, KFS-20 Engine Hatz 4H50 TICD, 4-cylinder diesel with turbo and intercooler Power 55 kW at 2,300 rpm Torque 240 Nm at 1,700 rpm Displacement 1.95 litres Diesel tank 25 l Winch drive Radial piston motor Winch pulling force 40 kN Standard rope 11 mm, 100 m Hydraulic pump Axial piston pump, closed circuit Max. operating pressure 400 bar Hydraulic oil HVLP 46 Hydraulic system capacity 22 l

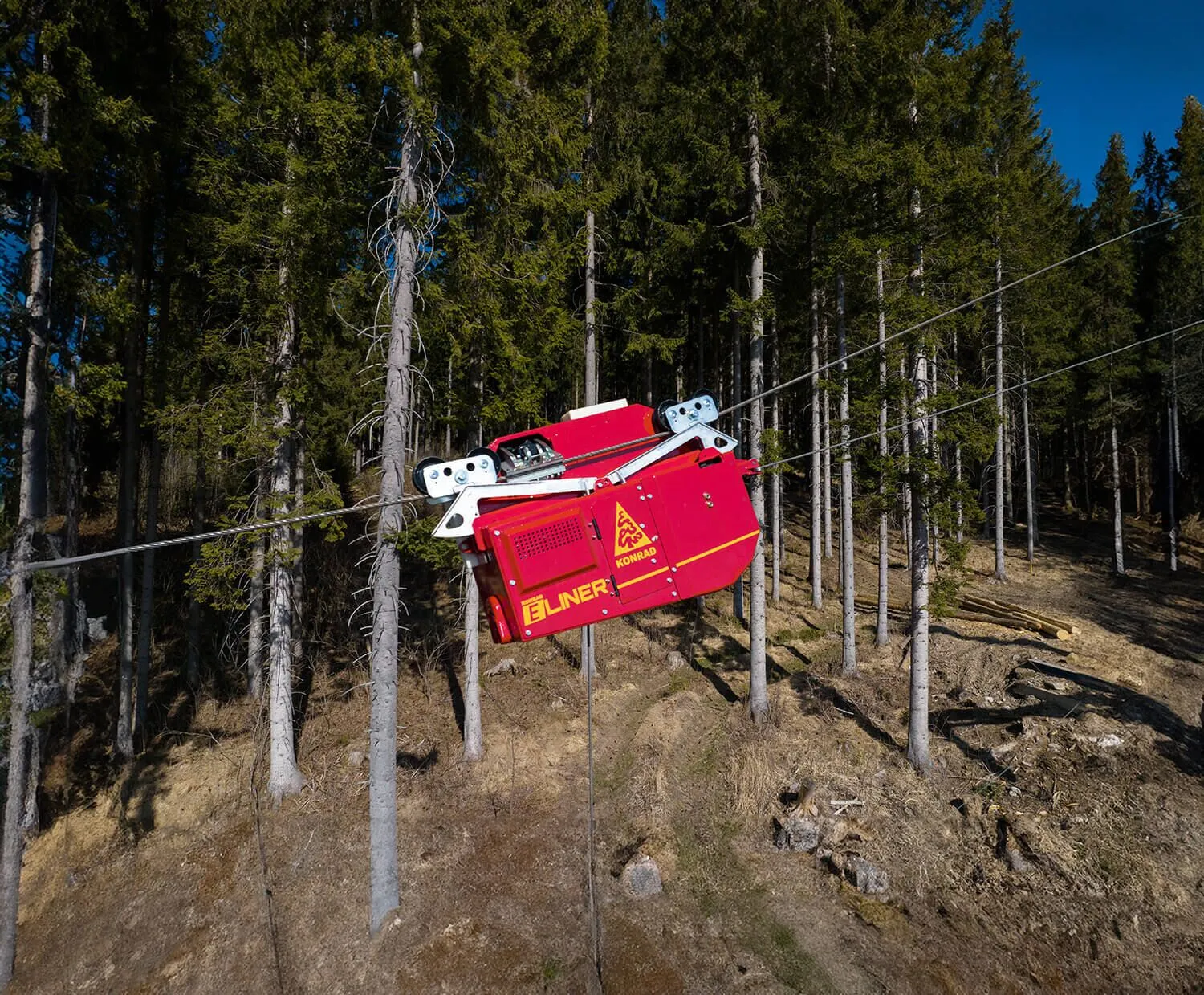

Konrad E-Liner EL40-2 Carriage
The Konrad E-Liner EL40-2 is an electric carriage for cable crane systems, with a 40 kN payload and an electric spool-out drive powered by capacitors that recharge as loads are hauled in, so it needs no fuel and no battery changes.
- 40 kN payload, 790 kg
- Electric spool-out support, 2–5 kN at up to 2.2 m/s
- High-power capacitors, recharged during haul-in
- For skylines of 18–22 mm and main lines of 11–12 mm
- Uphill and downhill operation
Technical data
Weight 790 kg, including equipment Payload 40 kN Max. spooling force 2–5 kN Max. spooling speed 2.2 m/s Skyline diameter 18–22 mm Main line diameter 11–12 mm Radio remote control KFS-16, KFS-20 Capacitor voltage 60 V DC (max. 64 V DC) Battery voltage 24 V DC Battery 20 Ah, LiFePO4 Hydraulic pump Axial piston pump, open circuit Max. working pressure 320 bar Hydraulic system capacity 14 l
