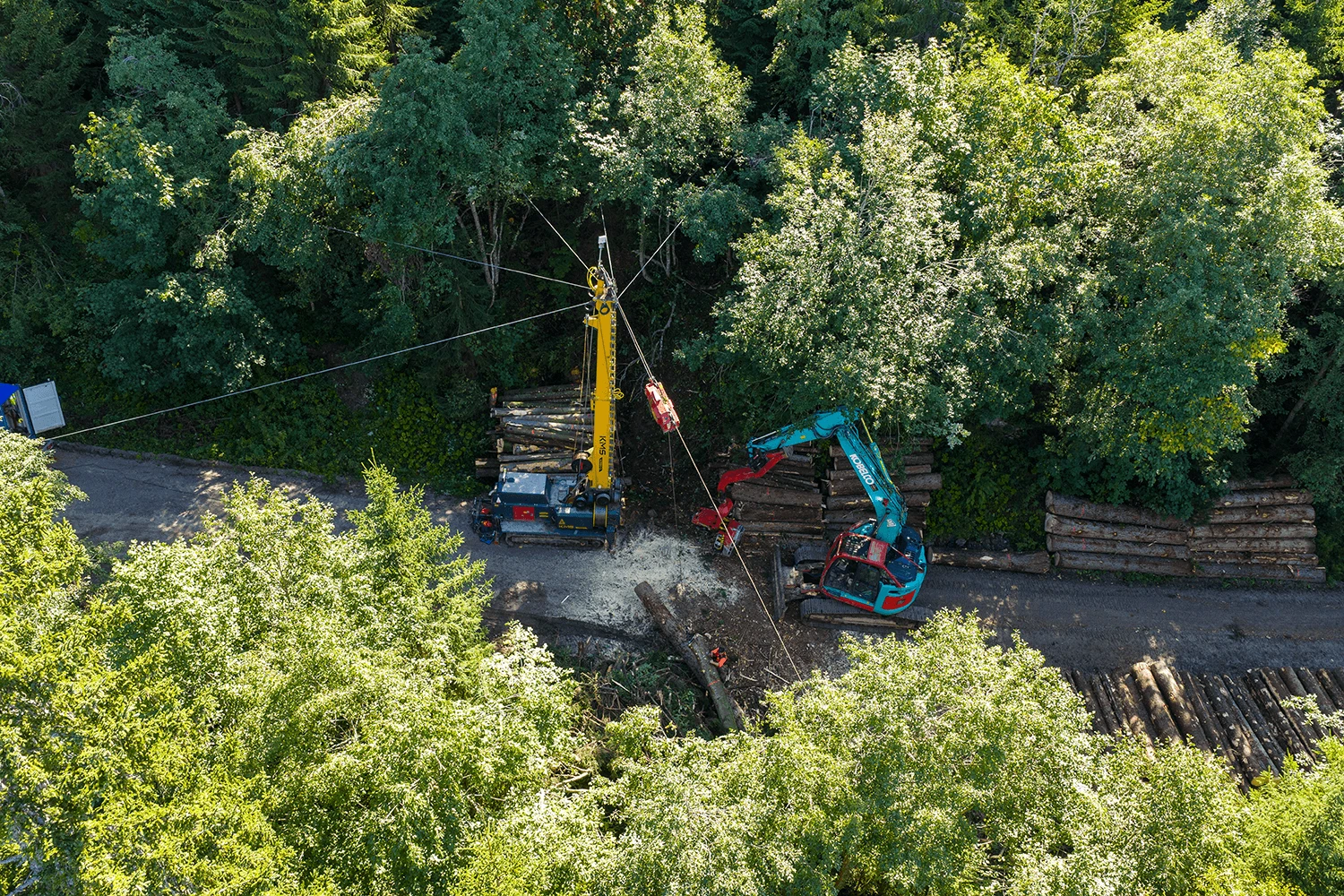

Konrad KMS Tower Yarder
The Konrad KMS is a compact, remote-controlled tower yarder on a tandem trailer, or on tracks, for cable lines of up to 1,000 m, uphill and downhill: the KM40-3, and the newer KM50-1 and tracked KR50-1.
Compact, on a trailer or tracks
The KMS is mounted on a tandem trailer with a hydrostatic auxiliary drive (optional on the KM40-3), or on a radio-controlled tracked undercarriage for the KR50-1, with a tower of 11.0 to 12.0 m.
Read more
The KMS is mounted on a tandem trailer with a hydrostatic auxiliary drive (optional on the KM40-3), or on a radio-controlled tracked undercarriage for the KR50-1, with a tower of 11.0 to 12.0 m.
Run from the remote
The set-up, the winches and the carriage are all radio-controlled, on Konrad's KTC 1.0 control system and KFS-16 or KFS-20 radio remote control.
Read more
The set-up, the winches and the carriage are all radio-controlled, on Konrad's KTC 1.0 control system and KFS-16 or KFS-20 radio remote control.
Long lines
A 22 mm skyline of 1,000 m on a 120 kN winch and a 1,000 m main line, driven by a 212 kW FPT six-cylinder engine.
Read more
A 22 mm skyline of 1,000 m on a 120 kN winch and a 1,000 m main line, driven by a 212 kW FPT six-cylinder engine.
Choose a model
Speak to us about theKM40-3
EnquireKonrad KM40-3
The KMS on a tandem trailer: a remote-controlled skyline crane in a 2-cable or 3-cable version, with an automatic drive function for the carriage as standard and a 1,000 m skyline.
- Tower height
- 11.0 m
- Main line pull
- 40 kN
- Skyline
- 22 mm, 1,000 m
- Weight
- 13,260–14,550 kg
Konrad KM50-1
The newer, larger KMS on a tandem trailer with hydrostatic drive: lines of up to 1,000 m uphill and downhill, a 12.0 m tower and 45 kN on the main line.
- Tower height
- 12.0 m
- Main line pull
- 45 kN
- Skyline
- 22 mm, 1,000 m
- Weight
- 14,700–15,800 kg
Konrad KR50-1
The KMS 50-1 on a radio-controlled tracked undercarriage instead of a trailer, for the same 1,000 m lines, with an 11.5 m tower.
- Tower height
- 11.5 m
- Main line pull
- 45 kN
- Skyline
- 22 mm, 1,000 m
- Weight
- Approx. 18,860 kg
Compare the models
Only what differs. Everything else is the same on all 3 models.
Key figures
| Specification | KM40-3 | KM50-1 | KR50-1 |
|---|---|---|---|
| Tower height | 11.0 m | 12.0 m | 11.5 m |
| Main line pull | 40 kN | 45 kN | 45 kN |
| Weight | 13,260–14,550 kg | 14,700–15,800 kg | Approx. 18,860 kg |
General
| Specification | KM40-3 | KM50-1 | KR50-1 |
|---|---|---|---|
| Chassis | Tandem trailer | Tandem trailer | Tracked undercarriage, radio-controlled |
| Weight | 13,260–14,550 kg, depending on version | 14,700–15,800 kg, depending on version | Approx. 18,860 kg |
| Transport dimensions (L × W × H) | 6.09 × 2.26 × 3.22 m | 6.32 × 2.26 × 3.28 m | 5.31 × 2.25 × 3.03 m |
| Tower height | 11.0 m (3-rope version with skyline discharger) | 12.0 m | 11.5 m when supported (11.3 m when not) |
| Travel drive | Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control (optional) | Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control | Tracked undercarriage, radio-controlled, 0–4 km/h |
| Tandem axle | Air brakes, mechanical parking brake, design speed 40 km/h (up to 80 km/h in a special version) | Air brakes, mechanical parking brake, maximum permitted speed 40 km/h (80 km/h possible with the appropriate type approval) | Not on this model |
| Tyres | 445/45 R19.5 | 445/45 R19.5 | Not on this model |
Cable crane
| Specification | KM40-3 | KM50-1 | KR50-1 |
|---|---|---|---|
| Main line winch | 12 mm, 1,000 m; 40 kN; rope speed 4–9 m/s | 12 mm, 1,000 m; 45 kN | 12 mm, 1,000 m; 45 kN |
| Guy line winches | 6 × 18 mm, 70 m; 9 kN | 18 mm, 70 m; 9 kN | 18 mm, 70 m; 9 kN |
| Straw line winch (optional) | 8 mm, 2,000 m; 20 kN | 7 mm, 1,600 m; 18 kN | 7 mm, 1,600 m; 18 kN |
| Haul-back winch (optional) | 8 mm, 2,000 m; 35 kN; rope speed 4–9 m/s | 11 mm, 2,000 m; 40 kN | 11 mm, 2,000 m; 40 kN |
Hydraulics
| Specification | KM40-3 | KM50-1 | KR50-1 |
|---|---|---|---|
| Hydraulic oil tank | 160 l | 240 l | 160 l |
Remote control
Every function the crew needs for a quick, safe set-up is on the remote: the supports, raising the tower, the guy line drums and winch, the skyline and main line winches, the tensioning cylinder, carriage start and stop, the winch in the carriage, the automatic drive function, handing over radio control, and the horn.
Versions and options
The KM40-3 comes as a 2-cable or 3-cable version. Options include a straw line winch, a long-cable version and additional guy line winches. The 50-1 runs on a tandem trailer with hydrostatic drive (KM50-1) or on a radio-controlled tracked undercarriage (KR50-1).
Technical data: Konrad KM40-3
General
- Chassis
- Tandem trailer
- Weight
- 13,260–14,550 kg, depending on version
- Transport dimensions (L × W × H)
- 6.09 × 2.26 × 3.22 m
- Tower height
- 11.0 m (3-rope version with skyline discharger)
- Control system
- KTC 1.0
- Radio remote control
- KFS-16, KFS-20
- Travel drive
- Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control (optional)
- Tandem axle
- Air brakes, mechanical parking brake, design speed 40 km/h (up to 80 km/h in a special version)
- Tyres
- 445/45 R19.5
Cable crane
- Skyline winch
- 22 mm, 1,000 m; 120 kN
- Main line winch
- 12 mm, 1,000 m; 40 kN; rope speed 4–9 m/s
- Guy line winches
- 6 × 18 mm, 70 m; 9 kN
- Straw line winch (optional)
- 8 mm, 2,000 m; 20 kN
- Haul-back winch (optional)
- 8 mm, 2,000 m; 35 kN; rope speed 4–9 m/s
Engine
- Engine
- Water-cooled FPT 6-cylinder turbo diesel, EU Stage V
- Power
- 212 kW (288 PS) at 2,200 rpm
- Torque
- 1,160 Nm at 1,500 rpm
- Displacement
- 6.7 litres
- Diesel tank
- 170 l
Hydraulics
- Cable crane pumps
- Axial piston pumps, closed circuit, max. 460 bar
- Power take-off pump
- Axial piston pump, open circuit, max. 280 bar
- Hydraulic oil tank
- 160 l

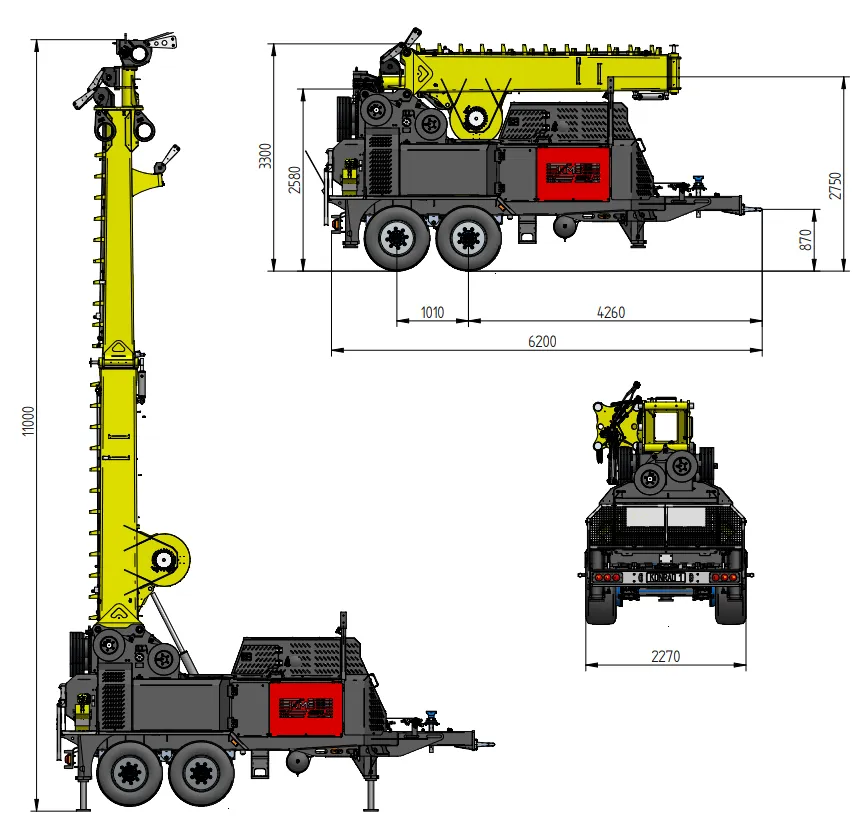

Dimension drawing
Technical data: Konrad KM50-1
General
- Chassis
- Tandem trailer
- Weight
- 14,700–15,800 kg, depending on version
- Transport dimensions (L × W × H)
- 6.32 × 2.26 × 3.28 m
- Tower height
- 12.0 m
- Control system
- KTC 1.0
- Radio remote control
- KFS-16, KFS-20
- Travel drive
- Hydrostatic auxiliary drive up to 12 km/h, with cable or radio control
- Tandem axle
- Air brakes, mechanical parking brake, maximum permitted speed 40 km/h (80 km/h possible with the appropriate type approval)
- Tyres
- 445/45 R19.5
Cable crane
- Skyline winch
- 22 mm, 1,000 m; 120 kN
- Main line winch
- 12 mm, 1,000 m; 45 kN
- Guy line winches
- 18 mm, 70 m; 9 kN
- Straw line winch (optional)
- 7 mm, 1,600 m; 18 kN
- Haul-back winch (optional)
- 11 mm, 2,000 m; 40 kN
Engine
- Engine
- Water-cooled FPT 6-cylinder turbo diesel, EU Stage V
- Power
- 212 kW (288 PS) at 2,200 rpm
- Torque
- 1,160 Nm at 1,500 rpm
- Displacement
- 6.7 litres
- Diesel tank
- 170 l
Hydraulics
- Cable crane pumps
- Axial piston pumps, closed circuit, max. 460 bar
- Power take-off pump
- Axial piston pump, open circuit, max. 280 bar
- Hydraulic oil tank
- 240 l
Technical data: Konrad KR50-1
General
- Chassis
- Tracked undercarriage, radio-controlled
- Weight
- Approx. 18,860 kg
- Transport dimensions (L × W × H)
- 5.31 × 2.25 × 3.03 m
- Tower height
- 11.5 m when supported (11.3 m when not)
- Control system
- KTC 1.0
- Radio remote control
- KFS-16, KFS-20
- Travel drive
- Tracked undercarriage, radio-controlled, 0–4 km/h
Cable crane
- Skyline winch
- 22 mm, 1,000 m; 120 kN
- Main line winch
- 12 mm, 1,000 m; 45 kN
- Guy line winches
- 18 mm, 70 m; 9 kN
- Straw line winch (optional)
- 7 mm, 1,600 m; 18 kN
- Haul-back winch (optional)
- 11 mm, 2,000 m; 40 kN
Engine
- Engine
- Water-cooled FPT 6-cylinder turbo diesel, EU Stage V
- Power
- 212 kW (288 PS) at 2,200 rpm
- Torque
- 1,160 Nm at 1,500 rpm
- Displacement
- 6.7 litres
- Diesel tank
- 170 l
Hydraulics
- Cable crane pumps
- Axial piston pumps, closed circuit, max. 460 bar
- Power take-off pump
- Axial piston pump, open circuit, max. 280 bar
- Hydraulic oil tank
- 160 l
