Steelwrist XTR20 Tiltrotator
15–20 tonnes

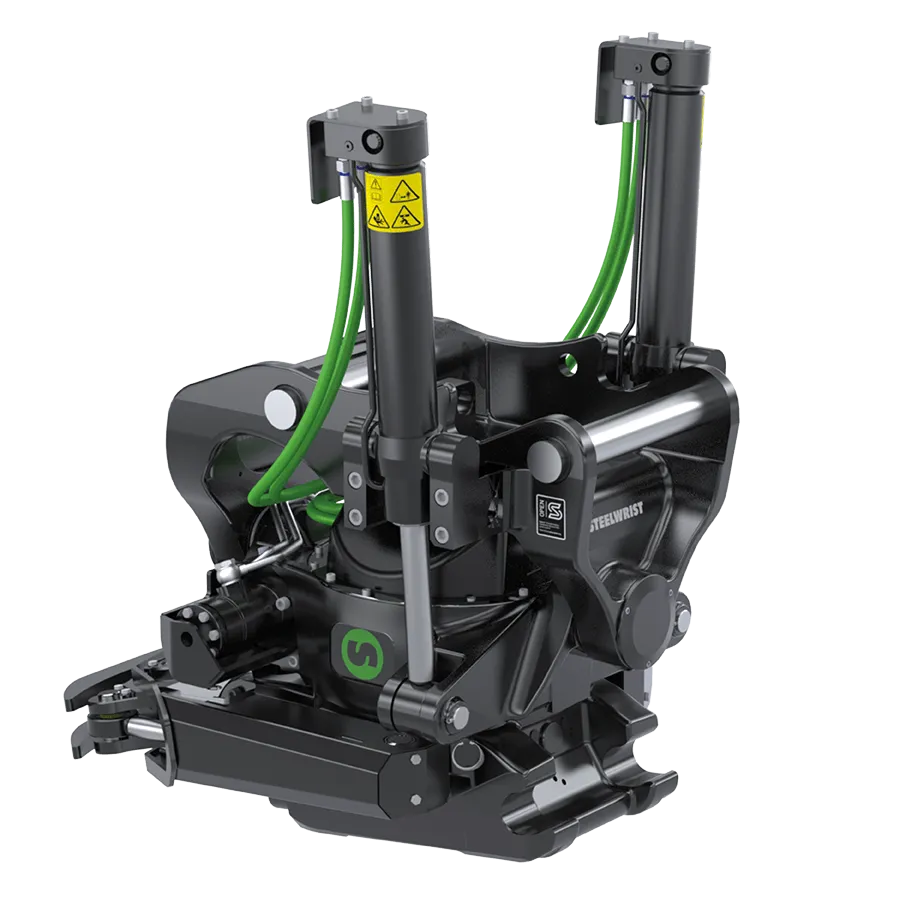

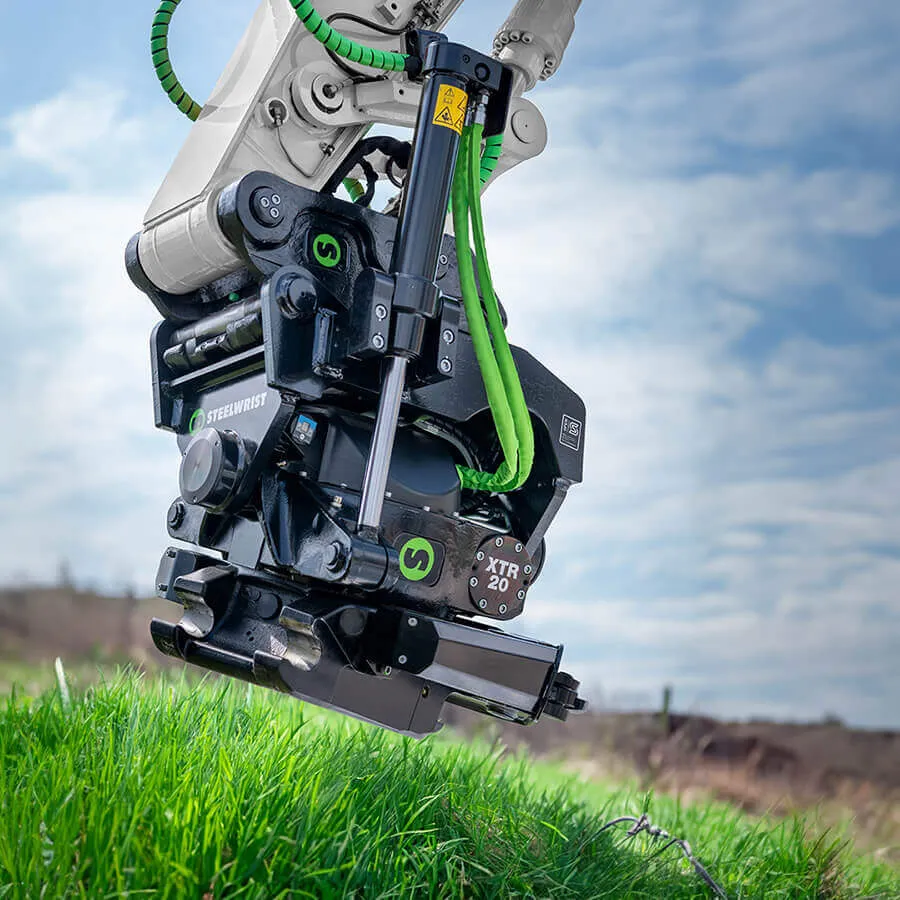

The Steelwrist XTR20 is a third-generation tiltrotator for excavators from 15 to 20 tonnes, with ±45° tilt, LockSense work tool locking and OptiLube onboard lubrication, from 540 kg.
- ±45° tilt angle, weighing from 540 kg
- Building height from 557 mm
- Machine interfaces: S60, SQ60 and Direct Fit (DF)
- Tool coupler safety: LockSense
- OptiLube onboard lubrication and QuantumConnect control system
Technical data
| Machine weight range | 15–20 tonnes |
|---|---|
| Weight (from) | 540 kg |
| Gripper cassette weight | 103 kg |
| Max tilt angle | ±45° |
| Tilt torque | 46 kNm |
| Rotational torque | 11.4 kNm |
| Max breakout torque | 180 kNm |
| Oil flow | 100 l/min |
| Max pressure | 220 bar |
| Max pressure, separate AUX | 350 bar |
| Hydraulic AUX (without gripper) | 2 |
| Hydraulic AUX (with gripper) | 1 |
| Building height | 557–598 mm |
| Length | 812–930 mm |
| Cylinder width | 799 mm |
| Cylinder height | 510 mm |
| Machine interface | S60, SQ60, Direct Fit (DF) |
| Tiltrotator quick coupler | S60, SQ60 |
| Safety solution | LockSense |
| Direct Fit pin diameter | 60–80 mm |
| Direct Fit pin distance (centre to centre) | 300–500 mm |
| Direct Fit max dipper arm width | 335 mm |
| Direct Fit lifting hook | 8 tonnes |
| Note | Dimensions vary by coupler and mounting; the product sheet lists every configuration. |
Overview
The Steelwrist XTR20 is part of Steelwrist’s third-generation tiltrotators, introduced in 2024, for excavators between 15 and 20 tonnes. The generation brings best-in-class tilt geometry, the patented LockSense work tool locking and the OptiLube onboard lubrication system, with the low building height typical of Steelwrist tiltrotators. Exc@v8 supplies it in the UK.
Where the XTR20 fits

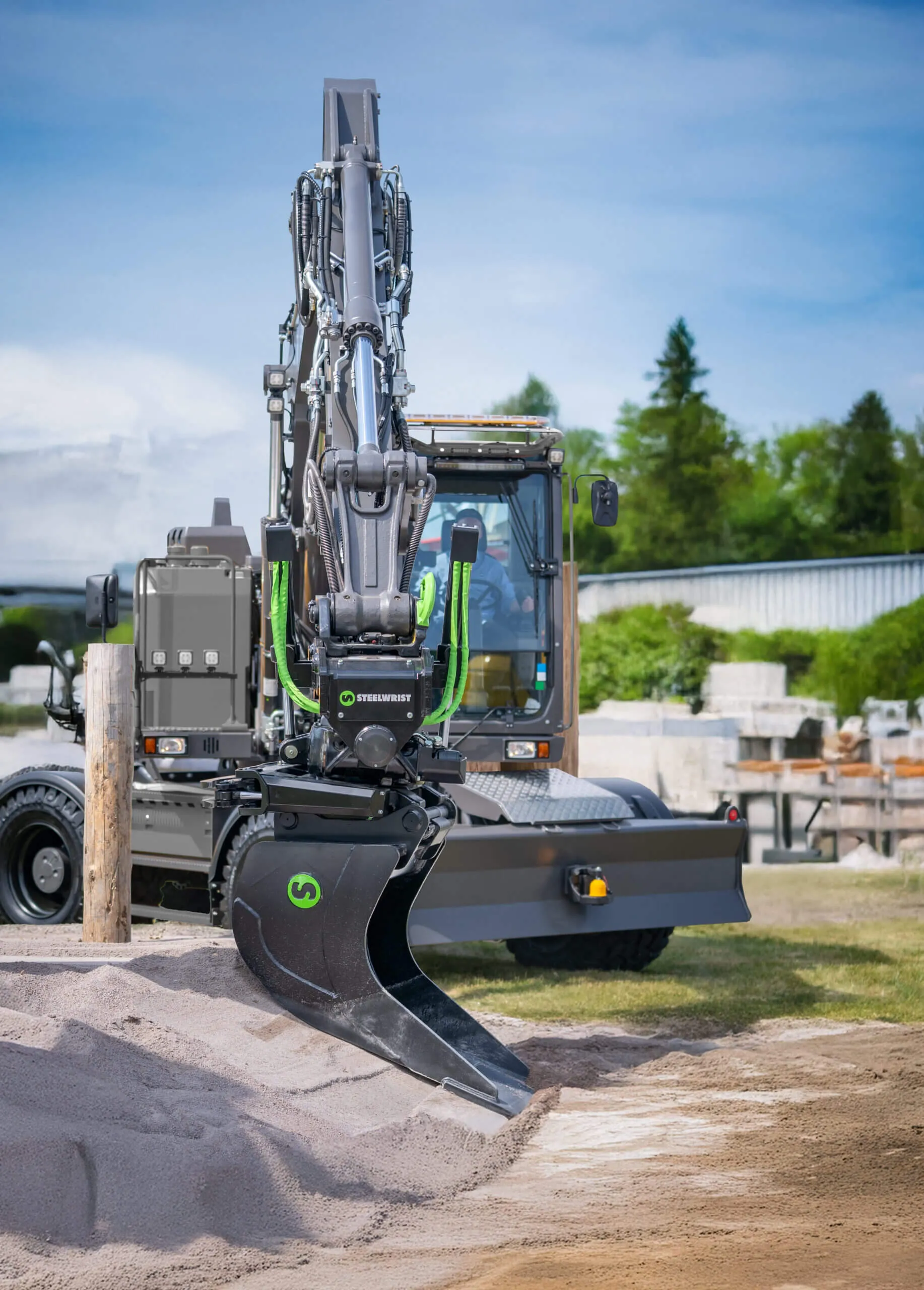

A tiltrotator widens the range of jobs the excavator can take on, from small-scale landscaping to roadwork and foundation work on construction sites. The XTR20 lets the excavator rotate a work tool 360° and tilt it 45° in each direction, with precise control.
Couplers and mounting
The XTR20 connects to the excavator through an S60 or SQ60 top, or Direct Fit (DF). The tool side takes S60 and SQ60 quick couplers, following Steelwrist’s symmetrical S-standard. Steelwrist SQ is its automatic oil connection technology for changing and connecting hydraulic work tools.
Thanks to the modular design the tiltrotator can be upgraded from an S-type to an SQ-type interface later.
A Direct Fit unit takes pin diameters of 60–80 mm at pin distances of 300–500 mm, fits a dipper arm up to 335 mm wide and includes an 8-tonne lifting hook.
Building height and length differ between these configurations, so those figures in the technical data are ranges. The product sheet lists every combination.
Work tool safety
The tool coupler has LockSense, a patented wireless sensor system for secure work tool locking that keeps cables and connectors out of the harsh environment.
Tilt geometry and lubrication
The design minimises cylinder spread through the tilt stroke for smooth, high-torque movement, and positions the tilt cylinders to keep clear of the excavator’s arm. The onboard OptiLube system lubricates automatically with a lubricant developed for Steelwrist tiltrotators, is built into the tiltrotator’s control system, and alerts the operator when the lubricant cartridge needs replacing.
Hydraulics and control
The XTR20 runs on an oil flow of 100 l/min at up to 220 bar.
The tiltrotator is delivered with the QuantumConnect control platform. It includes the InstallMate and QuantumConnect apps and stays up to date through its connectivity, and Steelwrist’s guidance app walks the installer through setup step by step, in most languages.
Gripper cassette (option)
A downward-angled 3-finger gripper cassette extends the excavator’s reach. Its improved geometry gives a wide opening and near-complete closure, so it handles objects precisely.
Quick answers
What size excavator is the XTR20 for? Excavators from 15 to 20 tonnes.
How much does it weigh? From 540 kg.
How far does it tilt? Up to ±45°, which is 45° each way.
