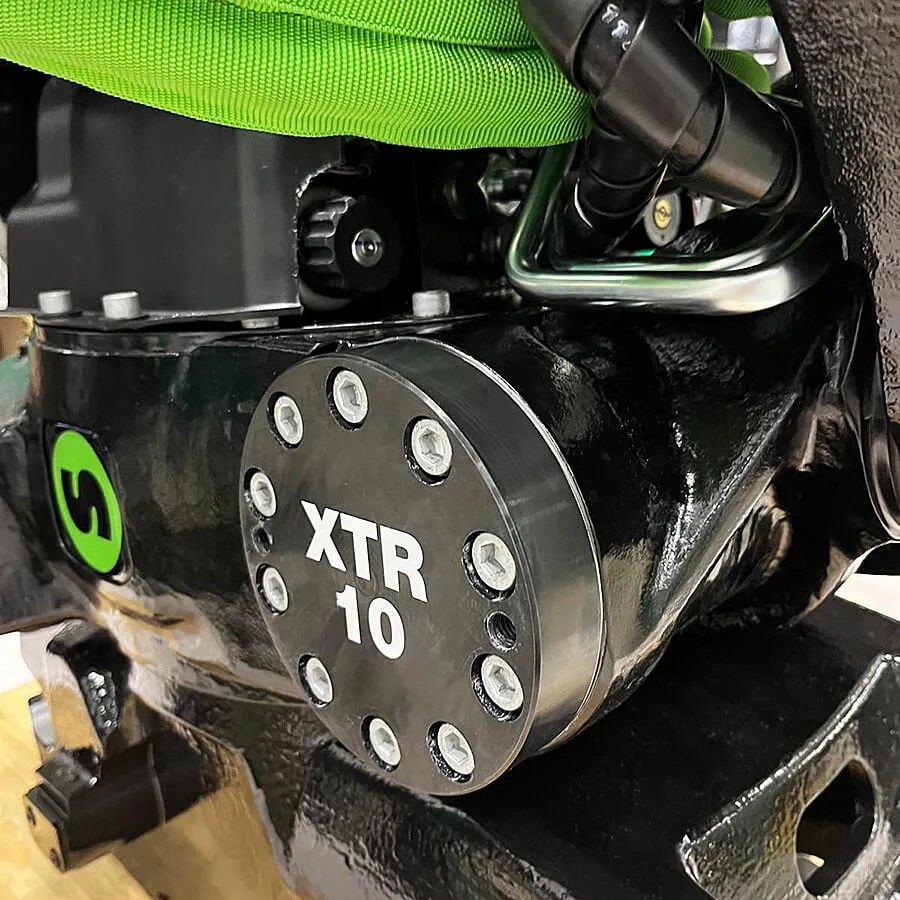

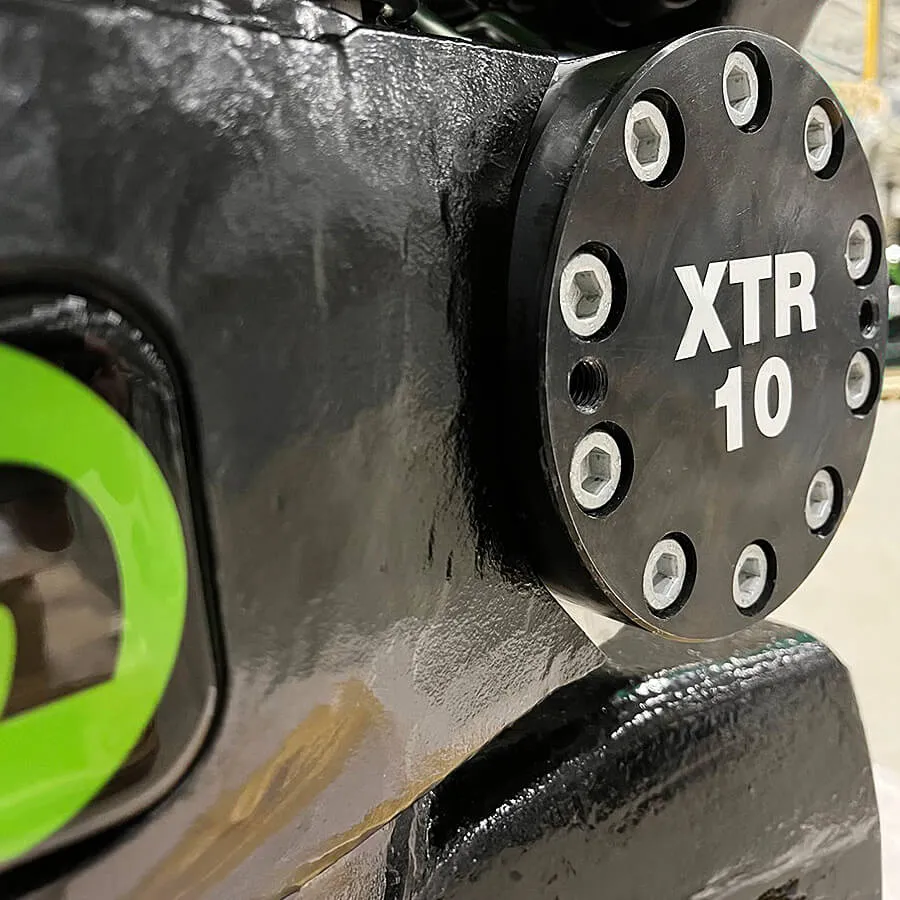

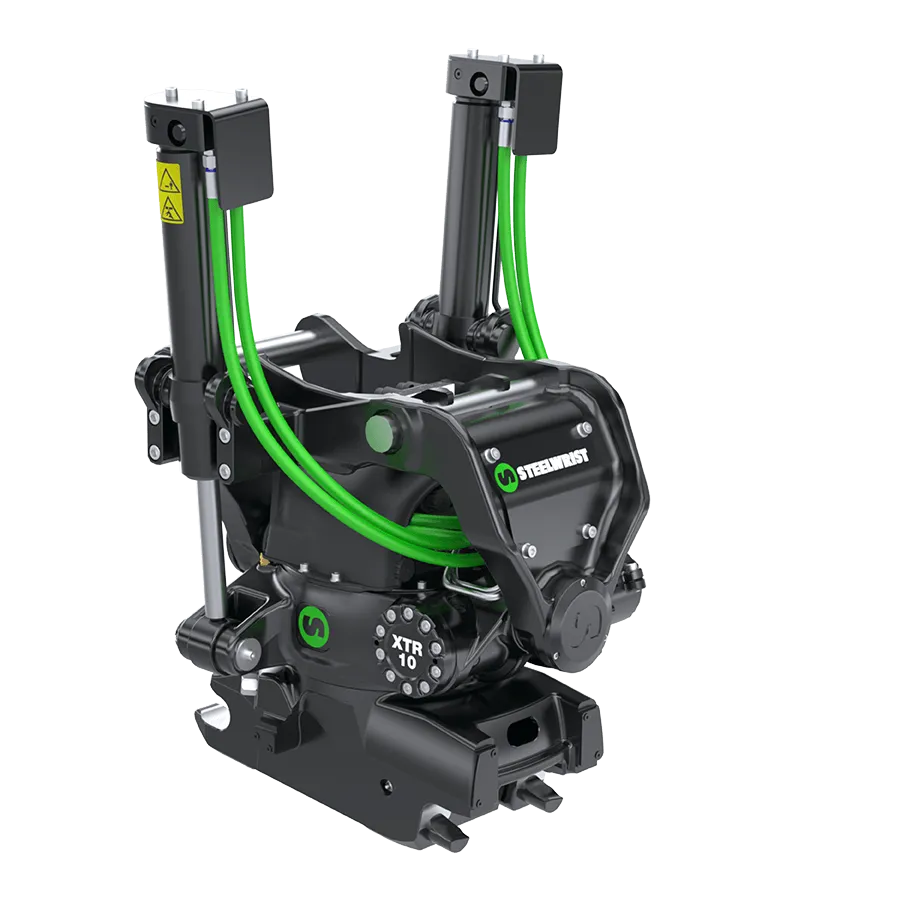

Steelwrist XTR10 Tiltrotator
6–10 tonnes
The Steelwrist XTR10 is a third-generation tiltrotator for excavators from 6 to 10 tonnes, with ±45° tilt, LockSense work tool locking and OptiLube onboard lubrication, from 315 kg.
- ±45° tilt angle, weighing from 315 kg
- Building height from 497 mm
- Machine interfaces: S45, SQ45, S50, SQ50 and Direct Fit (DF)
- Tool coupler safety: LockSense
- OptiLube onboard lubrication and QuantumConnect control system
Technical data
| Machine weight range | 6–10 tonnes |
|---|---|
| Weight (from) | 315 kg |
| Gripper cassette weight | 70 kg |
| Max tilt angle | ±45° |
| Tilt torque | 33 kNm |
| Rotational torque | 8.1 kNm |
| Max breakout torque | 80 kNm |
| Oil flow | 100 l/min |
| Max pressure | 220 bar |
| Max pressure, separate AUX | 350 bar |
| Hydraulic AUX (without gripper) | 2 |
| Hydraulic AUX (with gripper) | 1 |
| Building height | 497–517 mm |
| Length | 683 mm |
| Cylinder width | 692 mm |
| Cylinder height | 411 mm |
| Machine interface | S45, SQ45, S50, SQ50, Direct Fit (DF) |
| Tiltrotator quick coupler | S45, SQ45, S50, SQ50 |
| Safety solution | LockSense |
| Direct Fit pin diameter | 45–60 mm |
| Direct Fit pin distance (centre to centre) | 250–420 mm |
| Direct Fit max dipper arm width | 228 mm |
| Direct Fit lifting hook | 3 tonnes |
| Note | Weight and dimensions vary by coupler and mounting; the product sheet lists every configuration. |
Overview
The Steelwrist XTR10 is part of Steelwrist’s third-generation tiltrotators, introduced in 2024, for excavators between 6 and 10 tonnes. The generation brings best-in-class tilt geometry, the patented LockSense work tool locking and the OptiLube onboard lubrication system, with the low building height typical of Steelwrist tiltrotators. Exc@v8 supplies it in the UK.
Where the XTR10 fits
A tiltrotator widens the range of jobs the excavator can take on, from small-scale landscaping to roadwork and foundation work on construction sites. The XTR10 lets the excavator rotate a work tool 360° and tilt it 45° in each direction, with precise control.
Couplers and mounting
The XTR10 connects to the excavator through an S45, SQ45, S50 or SQ50 top, or Direct Fit (DF). The tool side takes S45, SQ45, S50 and SQ50 quick couplers, following Steelwrist’s symmetrical S-standard. Steelwrist SQ is its automatic oil connection technology for changing and connecting hydraulic work tools.
Thanks to the modular design the tiltrotator can be upgraded from an S-type to an SQ-type interface later.
A Direct Fit unit takes pin diameters of 45–60 mm at pin distances of 250–420 mm, fits a dipper arm up to 228 mm wide and includes a 3-tonne lifting hook.
Weight and building height differ between these configurations, so those figures in the technical data are ranges. The product sheet lists every combination.
Work tool safety
The tool coupler has LockSense, a patented wireless sensor system for secure work tool locking that keeps cables and connectors out of the harsh environment.
Tilt geometry and lubrication
The design minimises cylinder spread through the tilt stroke for smooth, high-torque movement, and positions the tilt cylinders to keep clear of the excavator’s arm. The onboard OptiLube system lubricates automatically with a lubricant developed for Steelwrist tiltrotators, is built into the tiltrotator’s control system, and alerts the operator when the lubricant cartridge needs replacing.
Hydraulics and control
The XTR10 runs on an oil flow of 100 l/min at up to 220 bar.
The tiltrotator is delivered with the QuantumConnect control platform. It includes the InstallMate and QuantumConnect apps and stays up to date through its connectivity, and Steelwrist’s guidance app walks the installer through setup step by step, in most languages.
Gripper cassette (option)
A downward-angled 3-finger gripper cassette extends the excavator’s reach. Its improved geometry gives a wide opening and near-complete closure, so it handles objects precisely.
Quick answers
What size excavator is the XTR10 for? Excavators from 6 to 10 tonnes.
How much does it weigh? From 315 kg, depending on the coupler and mounting.
How far does it tilt? Up to ±45°, which is 45° each way.
Can I buy the XTR10 in the UK? Yes. Exc@v8 is the UK dealer for Steelwrist. Use the form below or call us for pricing and availability.
