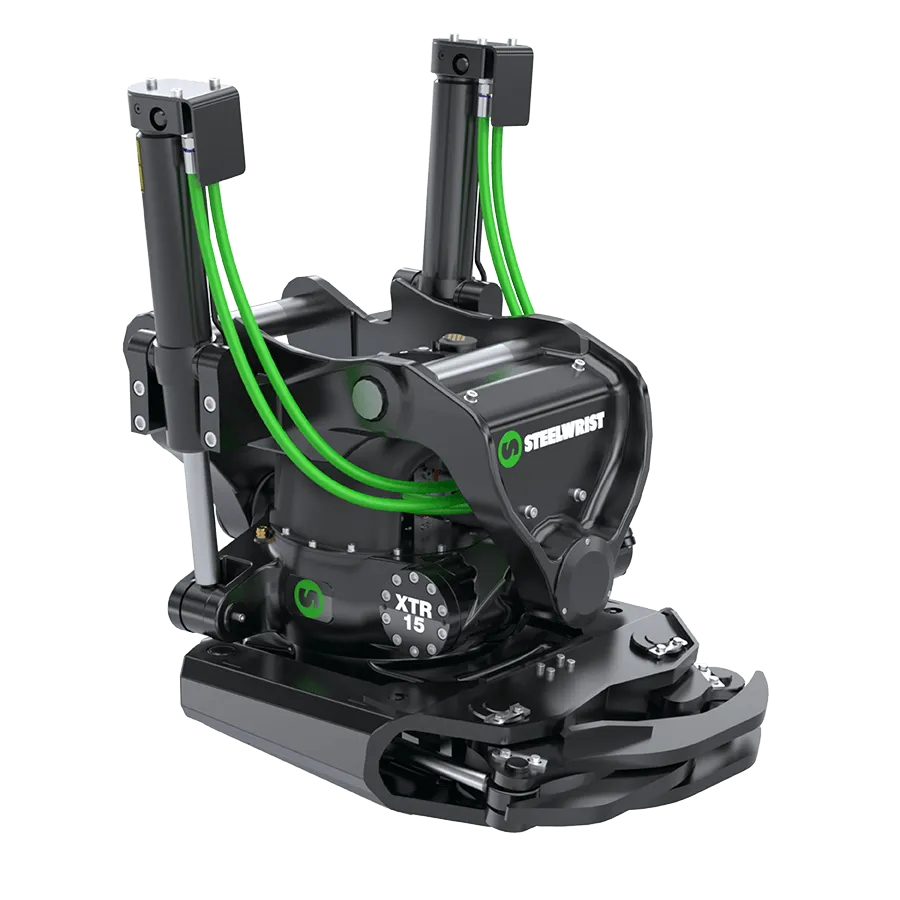

Steelwrist XTR15 Tiltrotator
12–15 tonnes
The Steelwrist XTR15 is a third-generation tiltrotator for excavators from 12 to 15 tonnes, with ±45° tilt, LockSense work tool locking and OptiLube onboard lubrication, from 460 kg.
- ±45° tilt angle, weighing from 460 kg
- Building height from 548 mm
- Machine interfaces: S60 and SQ60
- Tool coupler safety: LockSense
- OptiLube onboard lubrication and QuantumConnect control system
Technical data
| Machine weight range | 12–15 tonnes |
|---|---|
| Weight (from) | 460 kg |
| Gripper cassette weight | 103 kg |
| Max tilt angle | ±45° |
| Tilt torque | 41 kNm |
| Rotational torque | 9.8 kNm |
| Max breakout torque | 150 kNm |
| Oil flow | 100 l/min |
| Max pressure | 220 bar |
| Max pressure, separate AUX | 350 bar |
| Hydraulic AUX (without gripper) | 2 |
| Hydraulic AUX (with gripper) | 1 |
| Building height | 548 mm |
| Length | 796 mm |
| Cylinder width | 788 mm |
| Cylinder height | 469 mm |
| Machine interface | S60, SQ60 |
| Tiltrotator quick coupler | S60, SQ60 |
| Safety solution | LockSense |
| Note | Weight and dimensions vary by coupler and mounting; the product sheet lists every configuration. |
Overview
The Steelwrist XTR15 is part of Steelwrist’s third-generation tiltrotators, introduced in 2024, for excavators between 12 and 15 tonnes. The generation brings best-in-class tilt geometry, the patented LockSense work tool locking and the OptiLube onboard lubrication system, with the low building height typical of Steelwrist tiltrotators. Exc@v8 supplies it in the UK.
Where the XTR15 fits
A tiltrotator widens the range of jobs the excavator can take on, from small-scale landscaping to roadwork and foundation work on construction sites. The XTR15 lets the excavator rotate a work tool 360° and tilt it 45° in each direction, with precise control.
Couplers and mounting
The XTR15 connects to the excavator through an S60 or SQ60 top. The tool side takes S60 and SQ60 quick couplers, following Steelwrist’s symmetrical S-standard. Steelwrist SQ is its automatic oil connection technology for changing and connecting hydraulic work tools.
Thanks to the modular design the tiltrotator can be upgraded from an S-type to an SQ-type interface later.
Weight differs between these configurations, so those figures in the technical data are ranges. The product sheet lists every combination.
Work tool safety
The tool coupler has LockSense, a patented wireless sensor system for secure work tool locking that keeps cables and connectors out of the harsh environment.
Tilt geometry and lubrication
The design minimises cylinder spread through the tilt stroke for smooth, high-torque movement, and positions the tilt cylinders to keep clear of the excavator’s arm. The onboard OptiLube system lubricates automatically with a lubricant developed for Steelwrist tiltrotators, is built into the tiltrotator’s control system, and alerts the operator when the lubricant cartridge needs replacing.
Hydraulics and control
The XTR15 runs on an oil flow of 100 l/min at up to 220 bar.
The tiltrotator is delivered with the QuantumConnect control platform. It includes the InstallMate and QuantumConnect apps and stays up to date through its connectivity, and Steelwrist’s guidance app walks the installer through setup step by step, in most languages.
Gripper cassette (option)
A downward-angled 3-finger gripper cassette extends the excavator’s reach. Its improved geometry gives a wide opening and near-complete closure, so it handles objects precisely.
Quick answers
What size excavator is the XTR15 for? Excavators from 12 to 15 tonnes.
How much does it weigh? From 460 kg, depending on the coupler and mounting.
How far does it tilt? Up to ±45°, which is 45° each way.
Can I buy the XTR15 in the UK? Yes. Exc@v8 is the UK dealer for Steelwrist. Use the form below or call us for pricing and availability.
