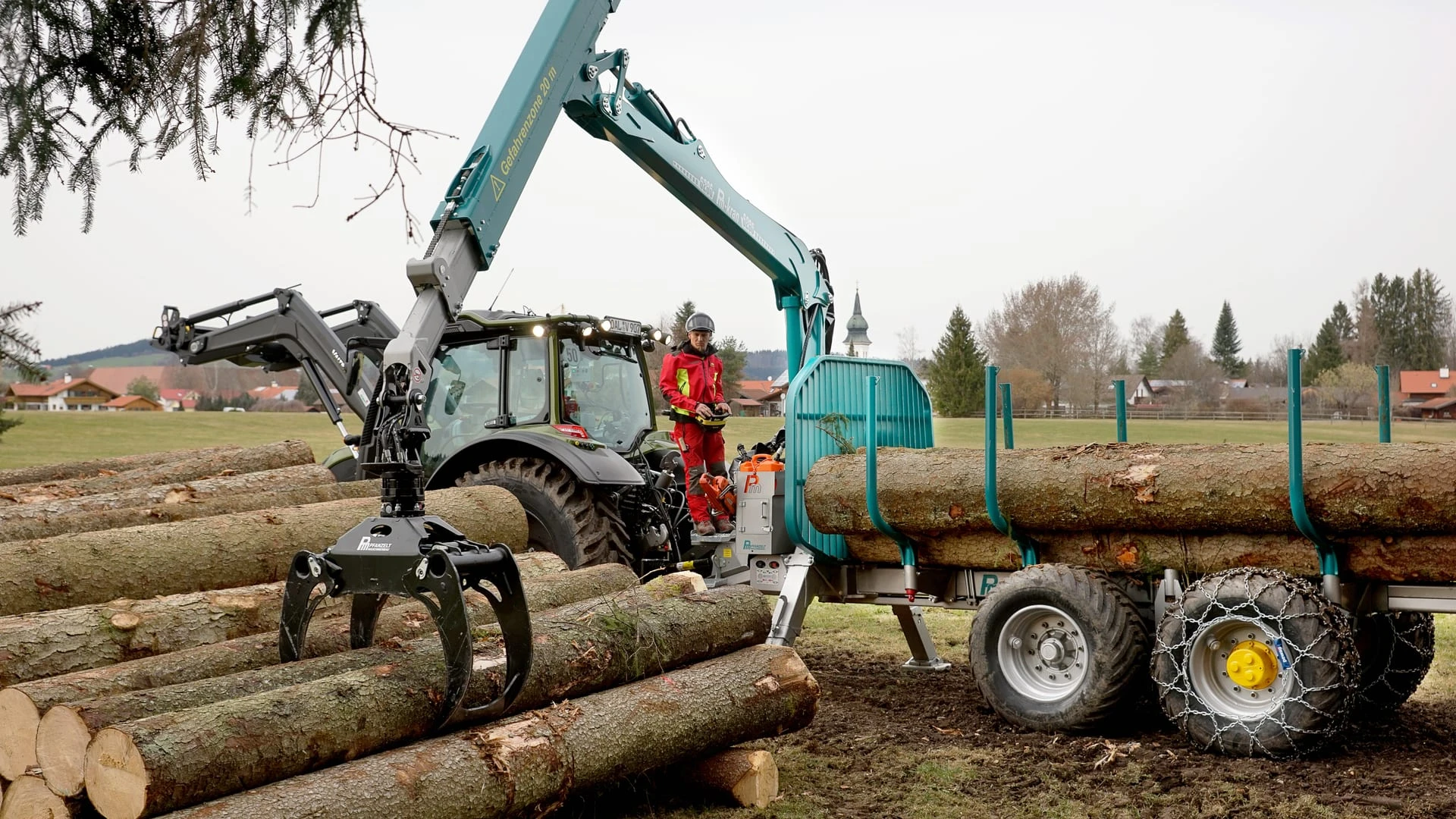

Pfanzelt Profi Forwarding Trailers

Name: Exc@v8 Group
Address: Unit 15A, Mealbank Mill Industrial Estate, Kendal, Cumbria, LA8 9DL, GB
Telephone: 01539 729999

Pfanzelt's Profi forwarding trailers are built around a central tube frame for professional forwarding, in four sizes from the P11+ to the P17, with 9 to 15 t of load capacity off-road and Pfanzelt cranes of up to 9.95 m reach.

Central tube frame
A torsion-resistant central spar of fine-grained steel, with a 2,000 mm frame extension and sliding stanchions and axle to set the weight distribution.
Read more
A torsion-resistant central spar of fine-grained steel, with a 2,000 mm frame extension and sliding stanchions and axle to set the weight distribution.
Cranes up to 9.95 m
Pfanzelt loading cranes from the LK 4267 to the LK 51100, with a wide choice of optional cranes on every size.
Read more
Pfanzelt loading cranes from the LK 4267 to the LK 51100, with a wide choice of optional cranes on every size.
Wheel drive options
powerDRIVE wheel hub drive, with up to 6.1 t of thrust, on every size, and uniDRIVE wheel drive on the P11+, P13 and P15.
Read more
powerDRIVE wheel hub drive, with up to 6.1 t of thrust, on every size, and uniDRIVE wheel drive on the P11+, P13 and P15.

Pfanzelt P11+

The Profi series entry model: compact, with 9 t of load capacity off-road and an LK 4267 crane, and the option of uniDRIVE wheel drive for demanding terrain.

Load capacity off-road: 9 t
Crane reach: 6,340 mm
Lift moment, net: 40.5 kNm
Dead weight with crane: approx. 3.3 t

Pfanzelt P13

The P13: 11 t off-road, with an LK 4272 crane, a four-wheel air brake and a double-walled crane support zone.

Load capacity off-road: 11 t
Crane reach: 7,140 mm
Lift moment, net: 40.5 kNm
Dead weight with crane: approx. 3.6 t

Pfanzelt P15

The P15: 13 t off-road with a double-telescope crane of the 5 mt class (LK 5180), and the option of powerDRIVE wheel hub drive.

Load capacity off-road: 13 t
Crane reach: 8,000 mm
Lift moment, net: 51 kNm
Dead weight with crane: approx. 4.2 t

Pfanzelt P17

The largest Profi trailer: 15 t off-road, a larger central tube, a flat bed up to 6.5 m and an LK 51100 crane with 9.95 m of reach.

Load capacity off-road: 15 t
Crane reach: 9,950 mm
Lift moment, net: 51 kNm
Dead weight with crane: approx. 4.5 t

Compare the models

Only what differs. Everything else is the same on all 4 models.

Key figures

Specification	P11+	P13	P15	P17
Load capacity off-road	9 t	11 t	13 t	15 t
Crane reach	6,340 mm	7,140 mm	8,000 mm	9,950 mm
Lift moment, net	40.5 kNm	40.5 kNm	51 kNm	51 kNm
Dead weight with crane	approx. 3.3 t	approx. 3.6 t	approx. 4.2 t	approx. 4.5 t

Frame

Specification	P11+	P13	P15	P17
Central tube	200 × 200 × 10 mm	200 × 200 × 10 mm	200 × 200 × 10 mm	300 × 200 × 10 mm
Double-walled crane support zone	Not on this model	Standard	Standard	Standard
Long flat bed	3,800–5,900 mm	3,800–5,900 mm	3,800–5,900 mm	4,500–6,500 mm
Front cage area	2.12 m²	2.38 m²	2.87 m²	3.52 m²

Loads

Specification	P11+	P13	P15	P17
Load capacity off-road	9 t	11 t	13 t	15 t
Dead weight with crane	approx. 3.3 t	approx. 3.6 t	approx. 4.2 t	approx. 4.5 t

Brakes and tyres

Specification	P11+	P13	P15	P17
Brake system	2-wheel hydraulic	4-wheel air brake	4-wheel air brake	4-wheel air brake
Brake surface	300 × 90 mm, 8-hole wheel	300 × 90 mm, 8-hole wheel	406 × 120 mm, 10-hole wheel	406 × 120 mm, 10-hole wheel
Tyres	380/55-17″, 14 PR grooved tread	480/45-17″, 14 PR grooved tread	500/45-22.5″, 12 PR stud profile	600/50-22.5″, 12 PR stud profile
Wheels with valve protection	Standard	Standard	Not on this model	Not on this model
Rim flange reinforcement, spar sleeve protection	Optional	Optional	Standard	Standard

Crane

Specification	P11+	P13	P15	P17
Loading crane	Pfanzelt LK 4267	Pfanzelt LK 4272	Pfanzelt LK 5180	Pfanzelt LK 51100
Reach	6,340 mm	7,140 mm	8,000 mm	9,950 mm
Lift moment, net	40.5 kNm	40.5 kNm	51 kNm	51 kNm
Pivoting moment	15.2 kNm	15.2 kNm	21.5 kNm	21.5 kNm

Options

Specification	P11+	P13	P15	P17
Fitted as standard	Not on this model	480/45-17″ grooved tread, with valve protection 4-wheel air brake Loading crane LK 4272 (7,140 mm crane length)	4-wheel air brake	600/50-22.5″ stud profile, forestry wheel 4-wheel air brake Loading crane LK 51100 (9,950 mm crane length)
Tyres	480/45-17″ grooved tread, with valve protection 520/50-17″ grooved tread, with valve protection	520/50-17″ grooved tread, with valve protection 520/50-17″ 159B forestry wheel 560/45-22.5″ stud profile, forestry wheel	500/60-22.5″ Tianli Forestry Flotation 560/45-22.5″ stud profile, forestry wheel 600/50-22.5″ stud profile, forestry wheel 600/50-22.5″ Tianli Forestry Flotation	560/45-22.5″ stud profile, forestry wheel 600/50-22.5″ Tianli Forestry Flotation
Brakes	Hydraulic 4-wheel brake 4-wheel overrun brake automatic jolt control 4-wheel air brake Combi brake (air brake and hydraulic 4-wheel brake)	Hydraulic 4-wheel brake Combi brake (air brake and hydraulic 4-wheel brake)	Hydraulic 4-wheel brake Combi brake (air brake and hydraulic 4-wheel brake)	Hydraulic 4-wheel brake Combi brake (air brake and hydraulic 4-wheel brake)
Drive	uniDRIVE powerDRIVE	uniDRIVE powerDRIVE	uniDRIVE powerDRIVE	powerDRIVE
Cranes and control	Loading crane LK 4167 (6,620 mm crane length) Loading crane LK 4272 (7,140 mm crane length) Loading crane LK 4177 (7,550 mm crane length) Loading crane LK 5180 (8,000 mm crane length) Loading crane LK 5280 (7,800 mm crane length) Loading crane LK 6180 (8,000 mm crane length) Loading crane LK 6280 (7,800 mm crane length) Loading crane LK 4282 double telescope (7,960 mm crane length) Loading crane LK 5287 double telescope (8,730 mm crane length) Loading crane LK 5186 (8,800 mm crane length) Loading crane LK 5286 (8,600 mm crane length) Loading crane LK 6186 (8,800 mm crane length) Loading crane LK 6286 (8,600 mm crane length) Z-Crane Z4389 (5,700 mm crane length) Crane operation via EHC control block with wireless control unit	Loading crane LK 4177 (7,550 mm crane length) Loading crane LK 5180 (8,000 mm crane length) Loading crane LK 5280 (7,800 mm crane length) Loading crane LK 6180 (8,000 mm crane length) Loading crane LK 6280 (7,800 mm crane length) Loading crane LK 4282 double telescope (7,960 mm crane length) Loading crane LK 5287 double telescope (8,730 mm crane length) Loading crane LK 5186 (8,800 mm crane length) Loading crane LK 5286 (8,600 mm crane length) Loading crane LK 6186 (8,800 mm crane length) Loading crane LK 6286 (8,600 mm crane length) Z-Crane Z4389 (5,700 mm crane length) Z-Crane Z5376 (7,600 mm crane length) Z-Crane Z5388 (8,800 mm crane length) Crane operation via EHC control block with wireless control unit	Loading crane LK 6180 (8,000 mm crane length) Loading crane LK 6280 (7,800 mm crane length) Loading crane LK 5287 double telescope (8,730 mm crane length) Loading crane LK 5186 (8,800 mm crane length) Loading crane LK 5286 (8,600 mm crane length) Loading crane LK 6186 (8,800 mm crane length) Loading crane LK 6286 (8,600 mm crane length) Loading crane LK 51100 (9,950 mm crane length) Loading crane LK 61100 (9,950 mm crane length) Z-Crane Z5376 (7,600 mm crane length) Z-Crane Z5388 (8,800 mm crane length) Crane operation via EHC control block with wireless control unit	Loading crane LK 6180 (8,000 mm crane length) Loading crane LK 5186 (8,800 mm crane length) Loading crane LK 5286 (8,600 mm crane length) Loading crane LK 6186 (8,800 mm crane length) Loading crane LK 6286 (8,600 mm crane length) Loading crane LK 61100 (9,950 mm crane length) Z-Crane Z5376 (7,600 mm crane length) Z-Crane Z5388 (8,800 mm crane length) Crane operation via EHC control block with wireless control unit

Pfanzelt Profi forwarding trailer loaded with timber

Frame and axle

The Profi frame is built on a torsion-resistant central spar of fine-grained steel. An integrated, extensible frame lengthens the flat bed by up to 2,000 mm for different timber lengths, and the stanchions and axle bogie slide along the spar to set the weight distribution. The bogie axle runs on lubricated, adjustable spherical bearings, with up to 394 mm of pendulum travel to cross branches and obstacles.

Tractor and loaded Pfanzelt Profi trailer on a sloping farm track

Draw bar and hitch

The pivoting draw bar has a large steering angle, up to ±750 mm from the centre, with two hydraulic cylinders giving 23.6 kNm of pivoting moment, so a laden trailer can be turned uphill. It comes top- or bottom-hitched, on adjustable spherical bearings, and with an independent oil supply the piston pump is encapsulated above or below the draw bar.

Pfanzelt Profi trailer unloading timber in a spruce forest

Brakes and stowage

A brake system acting on four wheels is standard, hydraulic or pneumatic depending on the size, with encapsulated diaphragm brake cylinders. LED lights in the frame fold in for forest work. A high box for brush and a floor pan for branches and trunks are available, and chainsaws, fuel cans, straps and tools have their own holders and storage bin.

Pfanzelt Profi trailer working in windthrown timber

Drive systems

uniDRIVE, a hydraulic wheel drive with up to 2 t of thrust per wheel, supplied from the trailer’s own oil supply or the tractor, is available on the P11+, P13 and P15. powerDRIVE, a hydraulic wheel hub drive with up to 6.1 t of thrust, is available on all four: proportional drive forwards and backwards, compatible with every brake system, switched off automatically when braking, with freewheel for road travel and an uphill assist, controlled from the tractor cab. Pfanzelt gives these drive versions:

Type	Thrust	Max. speed
2WD-I	2.4 t	8.8 km/h
2WD-II	3.1 t	8.2 km/h
4WD-I	4.8 t	4.4 km/h
4WD-II	6.1 t	4.1 km/h

Exc@v8 supplies and supports Pfanzelt forwarding trailers in the UK.

Technical data: Pfanzelt P11+

Frame

Frame: Central tube frame
Central tube: 200 × 200 × 10 mm
Bogie axle: Standard
Frame extension: 2,000 mm, mechanically extensible
Long flat bed: 3,800–5,900 mm
Headache rack: Standard
Front cage area: 2.12 m²
Hydraulic pivoting draw bar, 2 cylinders: Standard
Stanchion pairs: 4
Control panel on the draw bar: Standard

Loads

Load capacity off-road: 9 t
Dead weight with crane: approx. 3.3 t

Brakes and tyres

Brake system: 2-wheel hydraulic
Brake surface: 300 × 90 mm, 8-hole wheel
Tyres: 380/55-17″, 14 PR grooved tread
Wheels with valve protection: Standard
Rim flange reinforcement, spar sleeve protection: Optional

Crane

Loading crane: Pfanzelt LK 4267
Reach: 6,340 mm
Lift moment, net: 40.5 kNm
Pivoting moment: 15.2 kNm
Crane control: 8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope
Clamshell gripper: Pm 230

Options

Tyres: 480/45-17″ grooved tread, with valve protection
520/50-17″ grooved tread, with valve protection
Brakes: Hydraulic 4-wheel brake
4-wheel overrun brake automatic jolt control
4-wheel air brake
Combi brake (air brake and hydraulic 4-wheel brake)
Drive: uniDRIVE
powerDRIVE
Cranes and control: Loading crane LK 4167 (6,620 mm crane length)
Loading crane LK 4272 (7,140 mm crane length)
Loading crane LK 4177 (7,550 mm crane length)
Loading crane LK 5180 (8,000 mm crane length)
Loading crane LK 5280 (7,800 mm crane length)
Loading crane LK 6180 (8,000 mm crane length)
Loading crane LK 6280 (7,800 mm crane length)
Loading crane LK 4282 double telescope (7,960 mm crane length)
Loading crane LK 5287 double telescope (8,730 mm crane length)
Loading crane LK 5186 (8,800 mm crane length)
Loading crane LK 5286 (8,600 mm crane length)
Loading crane LK 6186 (8,800 mm crane length)
Loading crane LK 6286 (8,600 mm crane length)
Z-Crane Z4389 (5,700 mm crane length)
Crane operation via EHC control block with wireless control unit
Other: Independent hydraulic oil supply via piston pump
Crane cable winch with wireless control, 1.5 t tractive force
Pendulum with concealed hoses
Crane operating hours counter
Crane floodlights
Cut material box
Floor pan
Draw bar, bottom hitch
Ball hitch

Technical data: Pfanzelt P13

Frame

Frame: Central tube frame
Central tube: 200 × 200 × 10 mm
Bogie axle: Standard
Double-walled crane support zone: Standard
Frame extension: 2,000 mm, mechanically extensible
Long flat bed: 3,800–5,900 mm
Headache rack: Standard
Front cage area: 2.38 m²
Hydraulic pivoting draw bar, 2 cylinders: Standard
Stanchion pairs: 4
Control panel on the draw bar: Standard

Loads

Load capacity off-road: 11 t
Dead weight with crane: approx. 3.6 t

Brakes and tyres

Brake system: 4-wheel air brake
Brake surface: 300 × 90 mm, 8-hole wheel
Tyres: 480/45-17″, 14 PR grooved tread
Wheels with valve protection: Standard
Rim flange reinforcement, spar sleeve protection: Optional

Crane

Loading crane: Pfanzelt LK 4272
Reach: 7,140 mm
Lift moment, net: 40.5 kNm
Pivoting moment: 15.2 kNm
Crane control: 8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope
Clamshell gripper: Pm 230

Options

Fitted as standard: 480/45-17″ grooved tread, with valve protection
4-wheel air brake
Loading crane LK 4272 (7,140 mm crane length)
Tyres: 520/50-17″ grooved tread, with valve protection
520/50-17″ 159B forestry wheel
560/45-22.5″ stud profile, forestry wheel
Brakes: Hydraulic 4-wheel brake
Combi brake (air brake and hydraulic 4-wheel brake)
Drive: uniDRIVE
powerDRIVE
Cranes and control: Loading crane LK 4177 (7,550 mm crane length)
Loading crane LK 5180 (8,000 mm crane length)
Loading crane LK 5280 (7,800 mm crane length)
Loading crane LK 6180 (8,000 mm crane length)
Loading crane LK 6280 (7,800 mm crane length)
Loading crane LK 4282 double telescope (7,960 mm crane length)
Loading crane LK 5287 double telescope (8,730 mm crane length)
Loading crane LK 5186 (8,800 mm crane length)
Loading crane LK 5286 (8,600 mm crane length)
Loading crane LK 6186 (8,800 mm crane length)
Loading crane LK 6286 (8,600 mm crane length)
Z-Crane Z4389 (5,700 mm crane length)
Z-Crane Z5376 (7,600 mm crane length)
Z-Crane Z5388 (8,800 mm crane length)
Crane operation via EHC control block with wireless control unit
Other: Independent hydraulic oil supply via piston pump
Crane cable winch with wireless control, 1.5 t tractive force
Pendulum with concealed hoses
Crane operating hours counter
Crane floodlights
Cut material box
Floor pan
Draw bar, bottom hitch
Ball hitch

Technical data: Pfanzelt P15

Frame

Frame: Central tube frame
Central tube: 200 × 200 × 10 mm
Bogie axle: Standard
Double-walled crane support zone: Standard
Frame extension: 2,000 mm, mechanically extensible
Long flat bed: 3,800–5,900 mm
Headache rack: Standard
Front cage area: 2.87 m²
Hydraulic pivoting draw bar, 2 cylinders: Standard
Stanchion pairs: 4
Control panel on the draw bar: Standard

Loads

Load capacity off-road: 13 t
Dead weight with crane: approx. 4.2 t

Brakes and tyres

Brake system: 4-wheel air brake
Brake surface: 406 × 120 mm, 10-hole wheel
Tyres: 500/45-22.5″, 12 PR stud profile
Rim flange reinforcement, spar sleeve protection: Standard

Crane

Loading crane: Pfanzelt LK 5180
Reach: 8,000 mm
Lift moment, net: 51 kNm
Pivoting moment: 21.5 kNm
Crane control: 8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope
Clamshell gripper: Pm 230

Options

Fitted as standard: 4-wheel air brake
Tyres: 500/60-22.5″ Tianli Forestry Flotation
560/45-22.5″ stud profile, forestry wheel
600/50-22.5″ stud profile, forestry wheel
600/50-22.5″ Tianli Forestry Flotation
Brakes: Hydraulic 4-wheel brake
Combi brake (air brake and hydraulic 4-wheel brake)
Drive: uniDRIVE
powerDRIVE
Cranes and control: Loading crane LK 6180 (8,000 mm crane length)
Loading crane LK 6280 (7,800 mm crane length)
Loading crane LK 5287 double telescope (8,730 mm crane length)
Loading crane LK 5186 (8,800 mm crane length)
Loading crane LK 5286 (8,600 mm crane length)
Loading crane LK 6186 (8,800 mm crane length)
Loading crane LK 6286 (8,600 mm crane length)
Loading crane LK 51100 (9,950 mm crane length)
Loading crane LK 61100 (9,950 mm crane length)
Z-Crane Z5376 (7,600 mm crane length)
Z-Crane Z5388 (8,800 mm crane length)
Crane operation via EHC control block with wireless control unit
Other: Independent hydraulic oil supply via piston pump
Crane cable winch with wireless control, 1.5 t tractive force
Pendulum with concealed hoses
Crane operating hours counter
Crane floodlights
Cut material box
Floor pan
Draw bar, bottom hitch
Ball hitch

Technical data: Pfanzelt P17

Frame

Frame: Central tube frame
Central tube: 300 × 200 × 10 mm
Bogie axle: Standard
Double-walled crane support zone: Standard
Frame extension: 2,000 mm, mechanically extensible
Long flat bed: 4,500–6,500 mm
Headache rack: Standard
Front cage area: 3.52 m²
Hydraulic pivoting draw bar, 2 cylinders: Standard
Stanchion pairs: 4
Control panel on the draw bar: Standard

Loads

Load capacity off-road: 15 t
Dead weight with crane: approx. 4.5 t

Brakes and tyres

Brake system: 4-wheel air brake
Brake surface: 406 × 120 mm, 10-hole wheel
Tyres: 600/50-22.5″, 12 PR stud profile
Rim flange reinforcement, spar sleeve protection: Standard

Crane

Loading crane: Pfanzelt LK 51100
Reach: 9,950 mm
Lift moment, net: 51 kNm
Pivoting moment: 21.5 kNm
Crane control: 8-way mechanical, 2 control toggles, 2 electrical functions (rocker) for gripper and telescope
Clamshell gripper: Pm 230

Options

Fitted as standard: 600/50-22.5″ stud profile, forestry wheel
4-wheel air brake
Loading crane LK 51100 (9,950 mm crane length)
Tyres: 560/45-22.5″ stud profile, forestry wheel
600/50-22.5″ Tianli Forestry Flotation
Brakes: Hydraulic 4-wheel brake
Combi brake (air brake and hydraulic 4-wheel brake)
Drive: powerDRIVE
Cranes and control: Loading crane LK 6180 (8,000 mm crane length)
Loading crane LK 5186 (8,800 mm crane length)
Loading crane LK 5286 (8,600 mm crane length)
Loading crane LK 6186 (8,800 mm crane length)
Loading crane LK 6286 (8,600 mm crane length)
Loading crane LK 61100 (9,950 mm crane length)
Z-Crane Z5376 (7,600 mm crane length)
Z-Crane Z5388 (8,800 mm crane length)
Crane operation via EHC control block with wireless control unit
Other: Independent hydraulic oil supply via piston pump
Crane cable winch with wireless control, 1.5 t tractive force
Pendulum with concealed hoses
Crane operating hours counter
Crane floodlights
Cut material box
Floor pan
Draw bar, bottom hitch
Ball hitch
